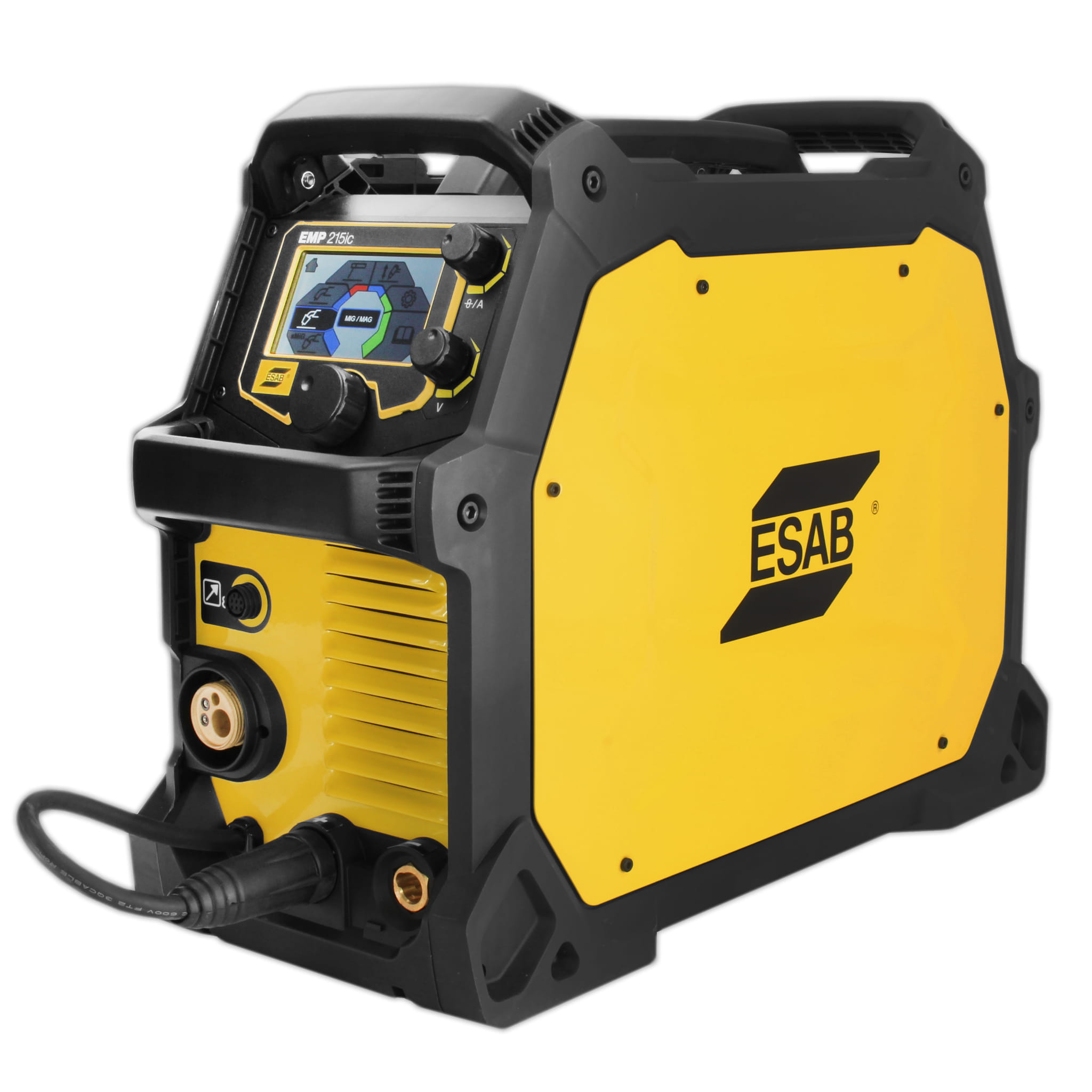

ESAB Rebel EMP 215ic Welder

ESAB REBEL ™ EMP 215ic - 0700300985

| Brand: ESAB | Welding methods: MIG / MAG, TIG, MMA | Power supply: 230V | Welding current: 205A | Efficiency: 25% |

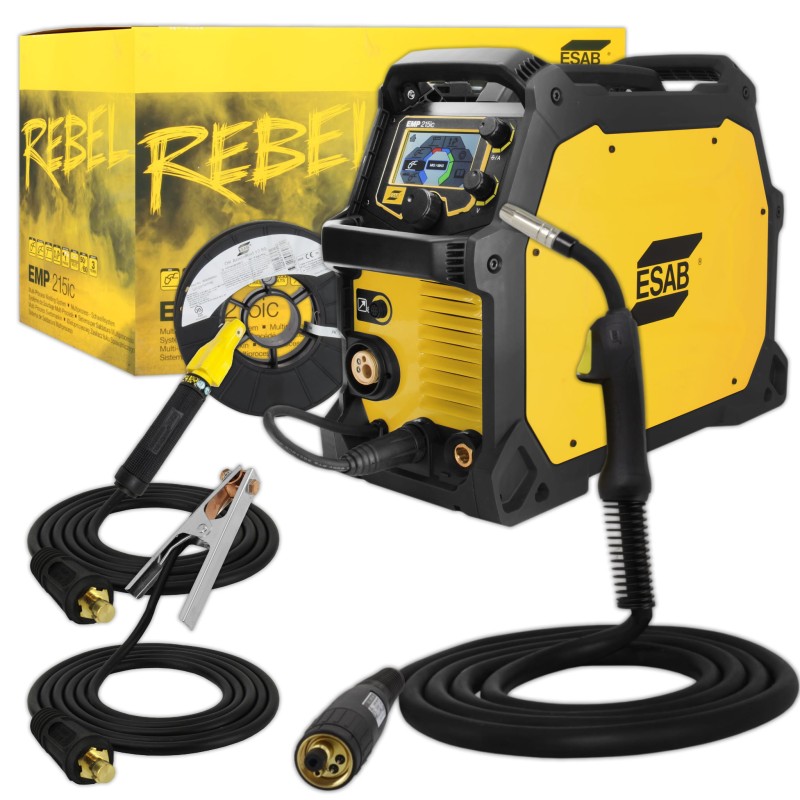

STANDARD EQUIPMENT:

• ESAB Rebel ™ EMP 215ic
• Welding holder ESAB MXL 200 3m,
• 2 m long ground and electrode cable,
• OK Aristor wire 12.50 5 kg 0.8 mm on a 200 mm spool,
• 4.5 m gas hose with a quick coupler,
• Contact tips and feed rolls for wires from 0.6 to 1.0 mm.

The welding device from the Rebel ™ series is adapted to be powered from a single-phase network with a voltage of 120 VAC and 230 VAC, offering users the most innovative technology of work.

A breakthrough design based on the opinions of professional welders makes Rebel a complete set for welding all materials - carbon steel and high-alloy (stainless) steel and aluminum alloys, regardless of the place of use.

Intuitive and simple setting of welding parameters makes the device suitable for practically every user, while maintaining the highest quality of welding works performed in the workshop and in the field.

APPLICATION:

• Production of lightweight structures.
• Repair and maintenance.
• Assembly and bonding of structures.
• Automotive industry.
• Building mechanics.
• Construction.
• Agricultural equipment.
• Heating and ventilation installations.
• Training centers.

TECHNICAL SPECIFICATIONS

• Welding current / Efficiency: 205A / 25%; 150A / 40%; 125A / 60% 110A / 100%
• Power supply: 230V
• Frequency: 50/60 Hz
• Network protection: 25A
• Current adjustment range: smooth 5-240A
• Spool diameter: 100 & 200 mm
• Idle voltage: 68V
• Rolls: 2
• Weight: 18.2 kg
• Dimensions: Length: 23 in. (584 mm) Width: 9 in. (229 mm) Height: 16 in. (406 mm)
• Standards: CSA E60974-1-00; CE: IEC / EN 60974-1, 5, 7, 10, 12 & 13. RoHS
• Power cord : 3 m 3x2.5 mm² H07RN-F

FEATURES:

• True multi-functionality and performance ensuring best-in-class MIG / MAG, FCAW, MMA welding, including cellulose electrode welding and Lift TIG welding using the Rebel EMP 215ic model.
• The unique sMIG ("smart MIG") function constantly "learns" the welder's working technique and adjusts the welding parameters accordingly to ensure arc stability and obtain high-quality welds every time. It also increases the work efficiency of experienced welders and reduces the time for newcomers to learn the secrets of the device.

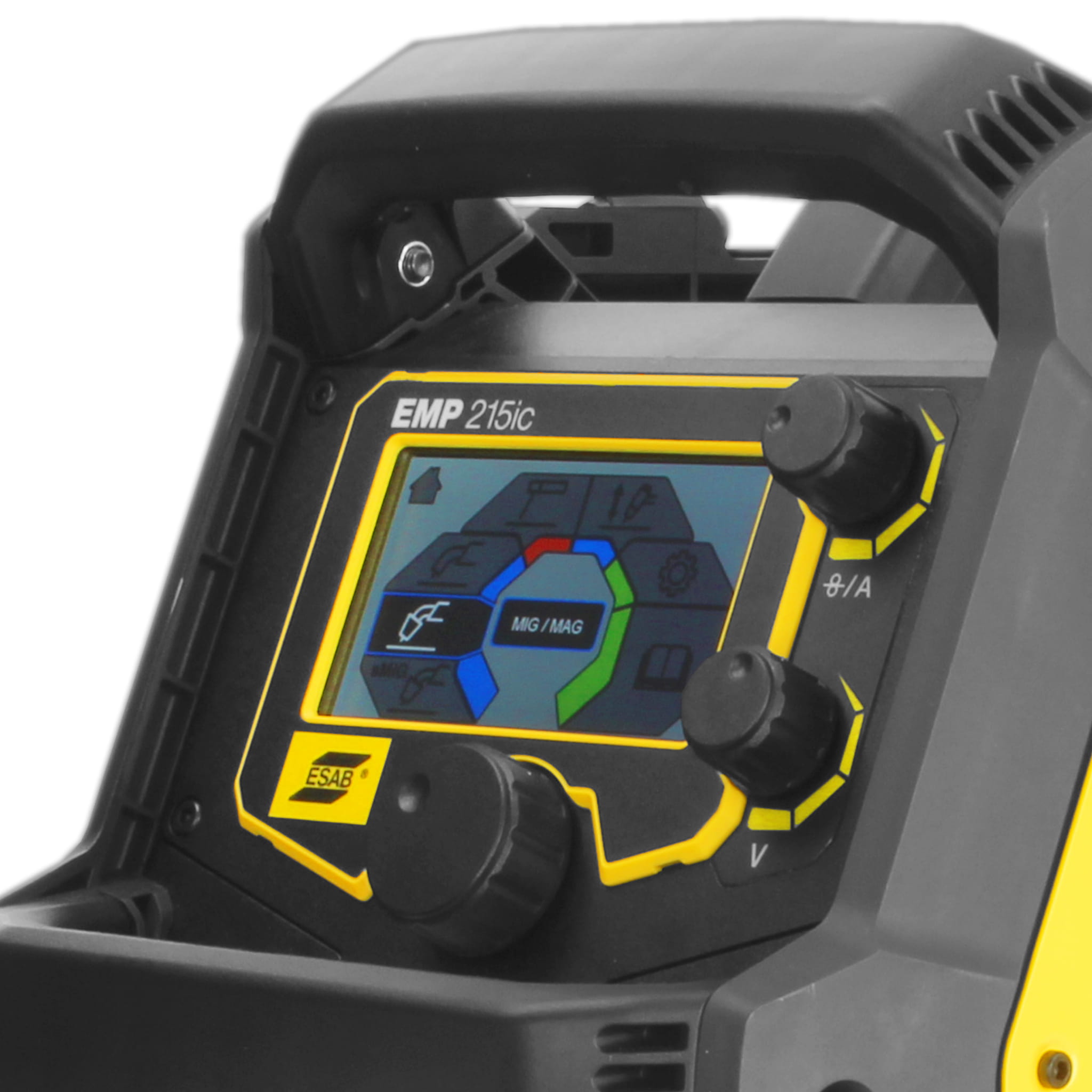

• Equipped with a large TFT display, the innovative user interface clearly displays settings and welding parameters, which are also visible from a distance. The display is packed with exclusive features, including on-demand display of the owner's manual or spare parts list - all in multiple languages.
• A durable housing with five handles and a uniform steel structure allow for easy portability of the device, which is also covered by a three-year warranty.

INVEROT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors.

LEVEL OF SECURITY

The IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP23s means the device is intended for indoor and outdoor use; however, it should not be used in rainy weather

APPLICATION CLASS S

Means that the device is suitable for use in places where there is an increased risk of electric shock.

STRONG AND ROBUST CONSTRUCTION

The housing of the device is made of light and durable composites, resistant to all kinds of mechanical damage.

MIG / MAG

Gas-shielded arc welding is one of the most widely used processes for the production of welded structures.

TIG DC LIFT

In the TIG lift mode, the arc is ignited when the electrode comes into contact with the workpiece. In TIG DC mode, the current is constant.

GAS-FREE WELDING

Thanks to the polarity reversal function, it is possible to weld without shielding gas with FCAW self-shielding wire. It is a method with the use of a self-shielding flux-cored wire for welding (in all positions) steel of normal and increased strength, not exceeding 510 MPa.

WORK CYCLE

The duty cycle is based on a 10-minute period. Duty cycle of 25% means that after 2.5 minutes of operation, a 7.5 minute break is required. Duty cycle of 100% means that the device can work continuously without interruption.
