⚡ SPARTUS EasyMIG 219 Dual Pulse

SPARTUS EasyMIG 219 Dual Pulse is a modern, mobile inverter welding machine designed for users who expect high-quality welds, especially when welding aluminum and stainless steel. The key advantages of this model are the Dual Pulse mode, Cool Pulse function and built-in 4-roll wire feeder, which ensure process stability and full control over the weld pool.

✅ MIG/MAG welding – full process control

SPARTUS EasyMIG 219 Dual Pulse offers synergic MIG/MAG welding, in which the device automatically selects operating parameters according to the selected material, wire diameter and shielding gas. Additionally, a manual mode is available, allowing full, manual adjustment of welding parameters according to the user's individual preferences.

The use of Pulse / Dual Pulse mode allows precise control of the heat input, ensuring a stable arc, aesthetically pleasing weld face and reduced spatter – especially when welding aluminum.

At low wire feed speed, the device automatically switches to Cool Pulse mode, reducing the amount of heat input. This makes it possible to weld thin elements stably with minimal risk of overheating and distortion.

The device is equipped with a 2T/4T function, enabling the selection of one of two trigger operation modes. Inductance adjustment allows precise shaping of the arc characteristics, affecting the amount of spatter and the smoothness of metal transfer.

The Post Gas function ensures shielding gas flow after welding is completed, protecting the weld and wire tip from oxidation and improving the quality and appearance of the weld finish.

Additionally, the device allows cooperation with a Spool Gun, which significantly increases work comfort in applications requiring maximum control over wire feeding.

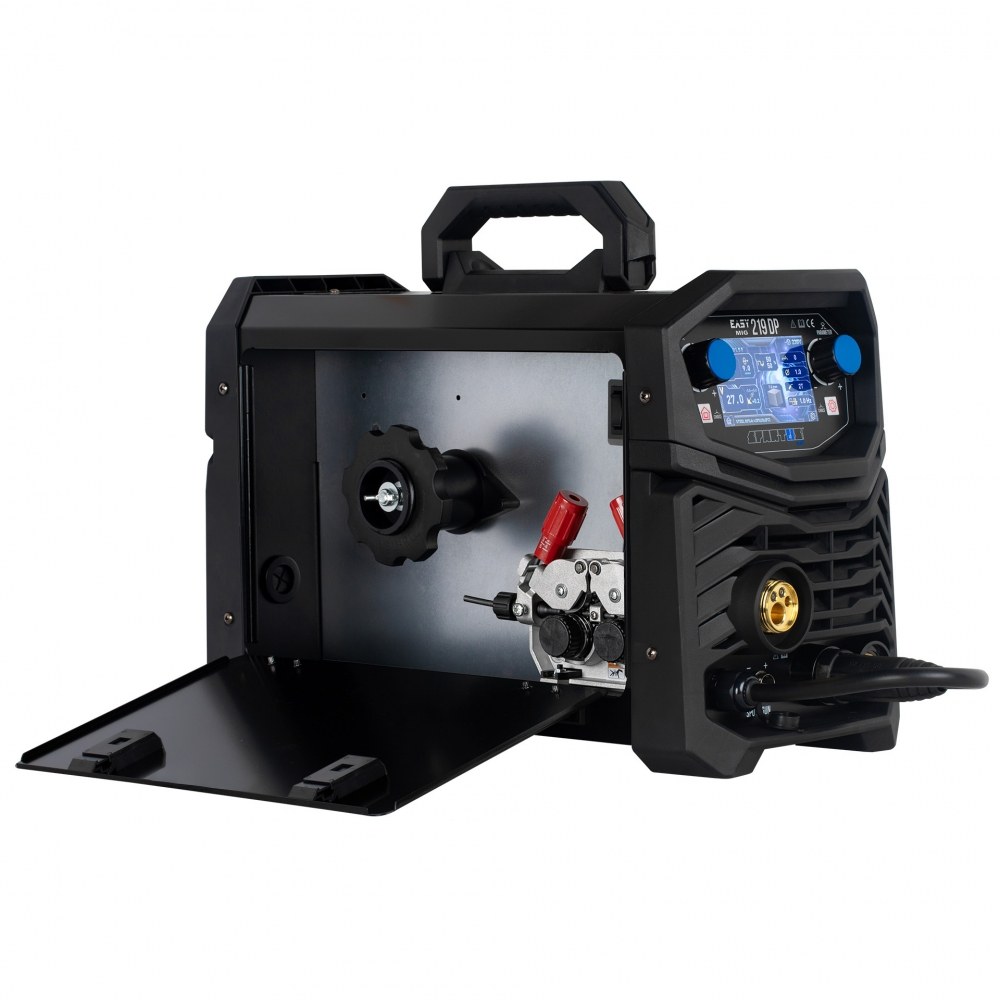

✅ 4-roll feeder – stable and precise wire feeding

The built-in 4-roll wire feeder ensures even and stable wire feeding even during dynamic changes in welding parameters. The use of four pressure rolls translates into better control over the MIG/MAG process and high weld repeatability.

This solution is crucial when working with soft aluminum wires and when welding in Pulse and Dual Pulse modes, where wire feeding stability directly affects weld quality.

✅ TIG DC Lift and MMA – additional welding capabilities

SPARTUS EasyMIG 219 Dual Pulse, in addition to advanced MIG/MAG welding, also offers the possibility of working with TIG DC Lift and MMA methods, which significantly increases the versatility of the device.

The MMA method is equipped with the following functions:

• Hot Start – facilitates arc ignition,
• Arc Force – stabilizes the welding process,
• VRD – increases work safety.

These functions enable effective welding with coated electrodes in various working conditions.

✅ Application

SPARTUS EasyMIG 219 Dual Pulse is used in a wide range of welding works – both in the workshop and in the field. The device is perfect for welding:

• aluminum,
• stainless steel,
• structural steel,
• as well as for CuSi brazing.

In these applications, precise control of heat input and process stability are of key importance.

Thanks to its compact and mobile design, advanced MIG/MAG functions and additional TIG DC Lift and MMA methods, the EasyMIG 219 Dual Pulse is a versatile tool for:

• workshop work,
• installation work,
• service work,
• production of light structures,
• welding of thin-walled elements.

The device ensures high quality, weld aesthetics and repeatability of results.

✅ Technical parameters

• Power supply: ~1× 230V ± 10% 50 / 60 Hz
• MIG welding current: 30 - 200A
• MIG duty cycle: 60%
• Output voltage: 15.5 - 24V
• Feeder type: built-in, 4-roll
• Wire spool: ≤ 5kg / ∅200mm
• Wire diameter: 0.8 / 1.0 / 1.2 mm
• Synergy: yes
• 2T/4T mode: yes
• Additional MIG functions: Dual Pulse, inductance, synergic programs, manual parameter adjustment, inductance control, spool gun, wire test
• TIG Lift: yes
• TIG welding current: 10 - 200A
• MMA welding current: 10 - 200A
• Arc Force: yes
• Hot Start: yes
• VRD: yes
• Current consumption: MIG 40A / TIG 30A / MMA 43A
• Power factor (cosφ): 0.66
• Efficiency η: 84.3%
• Insulation class: H
• Protection class: IP21S
• Weight: 13 kg
• Dimensions: 552 x 225 x 340 mm

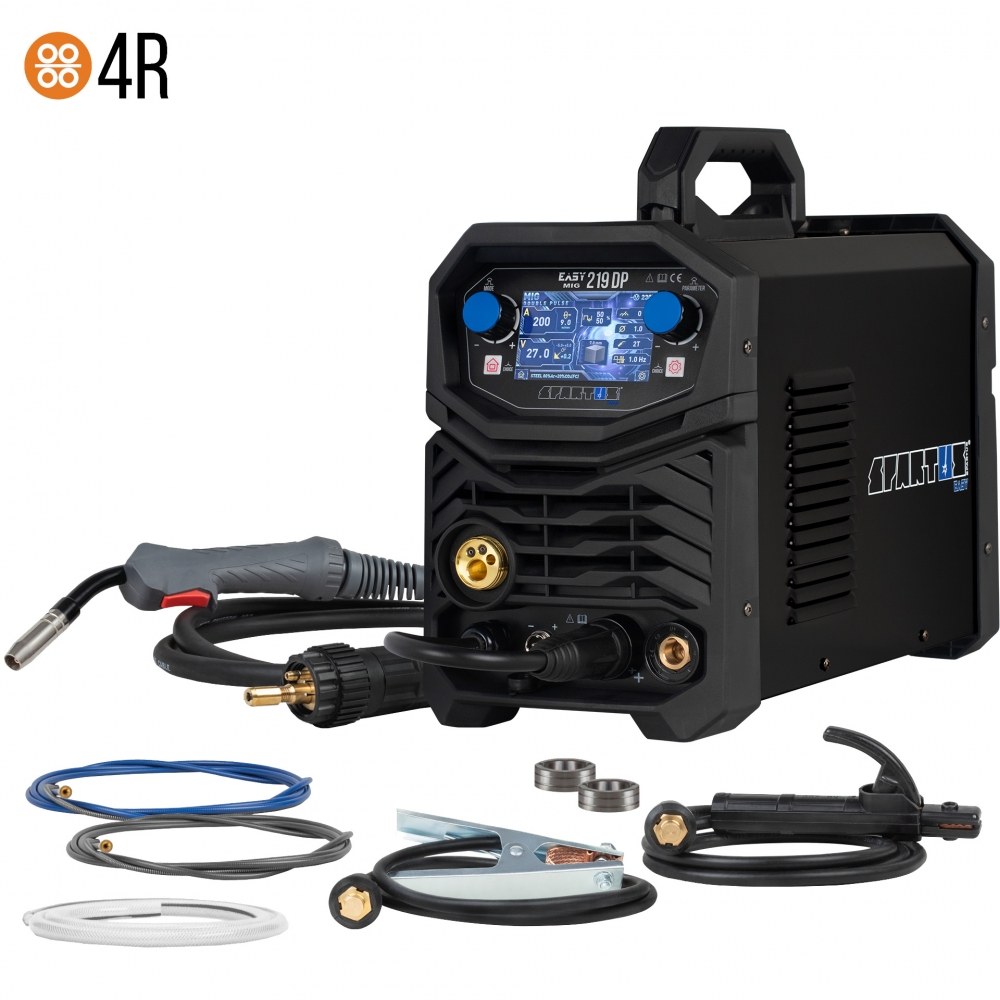

✅ Package includes

• EasyMIG 219DP
• MIG torch SPE 150 3m
• graphite wire liner
• steel wire liner
• drive rolls 1.0–1.2U fi30 + additionally 2x 0.8–1.0V fi30
• electrode holder
• ground cable
• gas hose
• user manual
