Weldman Spotter 7500

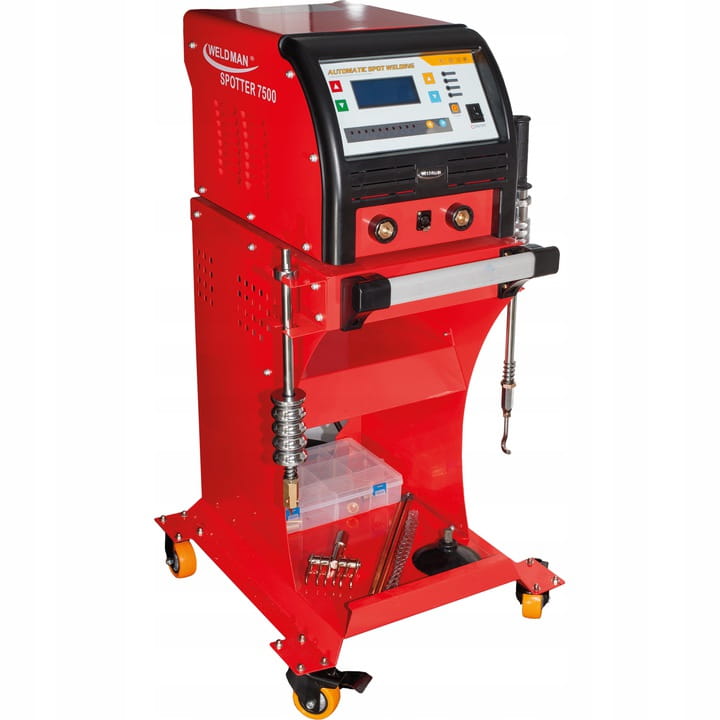

WELDMAN MICROPROCESSOR-CONTROLLED SPOTTER 7500 WELDING MACHINE

Producer: Weldman | Power supply: 400V | Current: 7000A | Power: 15.5kVa | Maximum thickness of the welded material [mm]: 3

STANDARD EQUIPMENT

• SPOTTER 7500
• Transport trolley
• Kinetic hammer for the holder (gun) for triangular washers
• Kinetic hammer with hook for corrugated wire or round and straight washers
• Mechanical vacuum cup
• Carbon electrodes 2 pcs.
• Work cable with handle (gun) 2.2 m
• 2.5m power cord
• Earth cable with 2 m earth terminal
• 6 finger comb welding handle

ADDITIONAL EQUIPMENT

• Round washers: 12 mm: 30 pcs.
• Triangular washers: 5 pcs.
• Straight washers: 10 pcs.
• Straight screwed washers: 10 pcs.
• Screw M5 L=16 mm: 20 pcs.
• Screw M6 L= 16 mm: 20 pcs.
• Corrugated wire L= 300 mm: 10 pcs.
• Screw electrode
• Electrode for round washers
• Straight pad electrode
• Electrode for crushing irregularities (formed after pulling the sheet)
• Double-sided electrode for corrugated wire and spot welding
• Electrode holder for corrugated wire
• Triangular washers holder
• Mass tip
• Toolbox for consumables

The SPOTTER 7500 microprocessor-controlled welding machine has been designed for sheet metal processing:

• In the form of one-sided welding,
• Extraction (by heating elements of various shapes),
• Cutting and heating with a carbon electrode.
• All settings available on the control panel: 10 operating modes, monochrome graphic display, adjustment of current and time values and selection of the thickness of the welded material.

The microprocessor-controlled welder is an extremely efficient, trouble-free and easy-to-use tool

The welding machine has a wide range of applications, especially in workshops performing bodywork repairs for the automotive industry. It is an extremely efficient, failure-free and easy-to-use tool. It will certainly be perfect in the hands of experienced specialists.

It will cope with all the tasks that we encounter in body shops.

TECHNICAL DATA:

• Code: 106 132
• Device type: SPOTTER 7500
• Supply voltage [V]: 400
• Supply current power [kVA]: 15.5
• Supply current [A]: 20-75
• Welding current [A]: 7000
• Welding current voltage [V]: 1-11.5
• Welding time adjustment [s]: 0.1-9.9
• max. thickness of the welded material [mm]: 3
• Protection class [IP]: 21
• Welder dimensions [cm]: 51x35x34
• Dimensions of the welding machine with a trolley [cm]: 62x55x107
• Welder weight [kg]: 28
• Welder weight with trolley: 47

LEVEL OF SECURITY

IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP21 means that the device is adapted to work in closed rooms.

ZAAWANSOWANY PANEL STEROWANIA:

• 1 Adjustment of the welding current: decrease - green / increase - red
• 2 Monochrome graphic display (displays the operating mode of the welder, welding current,
  welding time, supply voltage)
• 3 Adjustment of the welding duration value: decrease - blue / increase - yellow
• 4 Gun Trigger LED (WORK)
• 5 LED indicating an error in the welder's operation (FAULT)
• 6 LED diode indicating the connection of compressed air (GAS) - the function is inactive in the given model
• 7 Power LED (POWER)
• 8 ON/OFF main switch
• 9 POWER welder power switch
• 10 Welder operating mode selection: left/right with LEDs indicating the selected operating mode.

TRYBY PRACY:

• 01 Heating round pads electrode + welded element
• 02 Heating of triangular washers punch with handle + washer
• 03 Rivet heating electrode + welded element
• 04 One-sided electrode welding
• 05 Electrode overlap welding
• 06 Upset-heating tempering
• 07 Squeezing irregularities of the electrode
• 08 Corrugated wire heating electrode + corrugated wire
• 09 Heating straight pads electrode + welded element
• 10 Mechanical pliers for double-sided welding

HEATING THE TIPS

Operating mode 01-03-09 and then set the material thickness, time and heating current. Then we put the gun in the selected place and by pressing the trigger we heat the tip.

Using a punch with a hook, we repair the surface. After repair, turn the striker with the hook by approx. 90° to tear off the washer.

ONE-SIDED SHEET WELDING

Operating mode 04 and then set the thickness of the welded material, time and welding current.

Operating mode 07 for crushing irregularities formed after pulling out the sheet metal, place the electrode for crushing irregularities in the gun with a wrench, material thickness and welding current and start welding as above.

Operation mode 05. Sheet metal overlap welding, place the carbon electrode holder and the carbon electrode in the gun with the assembly key, set the material thickness and welding current.

CURVED WIRE HEATING

Working mode 08 and then we set the material thickness, time and current. We put the gun in the hole of the corrugated wire and press the electrode to the wire at an angle of 90 °. By pressing the trigger of the gun, we heat the wire to the surface. Using a comb holder or a punch with a hook, we repair the surface.

BURNING-HEATING-TEMPERING

Operating mode 06 and only set the material thickness and heating current. We move the electrode in a circular motion, heating the surface. After finishing, we cool the surface with a wet material or compressed air.

WORKING WITH A MECHANICAL SUCTION CUP

Pulling off sheet metal can be used with the use of a punch with a mechanical suction cup. To do this, screw the suction cup to the striker. Then we put the suction cup to the sheet and mechanically pull the sheet away. After finishing work, unscrew the suction cup from the striker.

UNIVERSAL APPLICATION

The welding machine copes with one-sided welding and pulling as well as cutting various car body elements

EFFICIENCY

Modern technology and display ensure quick and precise parameter setting.

COMFORT OF WORK

An intuitive display that allows you to select the operating mode, as well as welding time and current adjustment switches allow you to choose the parameters to suit your needs.

SECURITY

The device is protected by an overheat protection system that turns off the device circuit when a problem is detected. After a few minutes, the device cools down to a temperature that allows it to restart automatically.

TRANSPORT AND MOBILITY

The transport trolley allows you to freely move the spotter to any place.
