Weldman Power MIG 280 LCD Synergy 4x4

WELDMAN POWER MIG 280 LCD SYNERGY 4x4 - SEMI-AUTOMATIC WELDING MACHINE

| Brand: WELDMAN | Welding methods: MIG / MAG, MMA, FLUX, TIG LIFT | Power supply : 400V | Welding current : 250A | Efficiency: 60% / 210A |

COMPLETE SET INCLUDES:

• Weldman POWERMIG 280 welding machine
• Welding holder PRO25 REMOTE PARWELD MB-24 4 m
• 3 m ground cable with 300 A ground clamp (DX 50)
• 3 m power cord

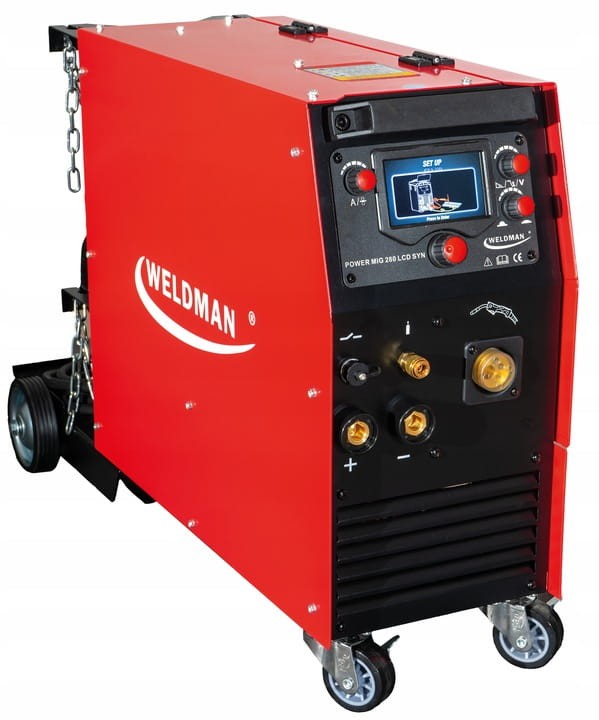

SEMI-AUTOMATIC POWER MIG 280 LCD WELDING MACHINE

A device made in IGBT inverter technology . It is used for welding with the following methods:

• Welding with coated electrodes (DC),
• Welding with the MIG / MAG method (in gas shield),
• FLUX welding ( without gas shield),
• Welding TIG Lift current (DC) with a contact arc ignition.

Powered with three-phase 400V, made in IGBT technology, equipped with an LCD display and a SYNERGY function for MIG / MAG welding (in gas shield).

Designed for welding with 0.6-1.2 mm diameter welding wires, 0.9 mm self-shielding wires and 1.6-5.0 coated and tungsten electrodes of low-carbon, low-alloy (MAG), alloyed (MIG) steel, aluminum and castings cast iron (MMA). Max spool 15 kg.

Synergy function with material separation (FE, SS, AL, FLUX, 2T / 4T gun operating mode, Spool gun.

Application primarily in workshops, services that deal with car tinsmiths, farms and wherever important for the work is mobility and effective operation of the set.

TECHNICAL DATA:

• Code: 104 401
• Supply voltage [V]: 400
• Idle current voltage [V]: 55
• Welding current adjustment range [A]: 10-250
• Efficiency max at 40 ° C EN 60974-1: 210A @ 60% 150A @ 100%
• Wire diameter [mm]: 0.6-1.2
• Protection class [IP]: 21S
• Dimensions [cm]: 51x23x42
• Weight [kg]: 18

LEVEL OF SECURITY

The IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP21 means that the device is adapted to work in closed rooms.

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

PROTECTION AGAINST OVERHEATING

The IGBT module is protected against overheating by a protective system that switches off the machine's welding circuit. After a few minutes, the welding machine cools down to a temperature that allows it to be turned on again automatically.

WORK CYCLE

The duty cycle is based on a 10-minute period. 60% duty cycle means that after 6 minutes of operation, a 4-minute break is required. Duty cycle of 100% means that the device can work continuously without interruption.

MMA

A covered electrode method consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes, e.g. basic, cellulose, rutile or acid.

ARC FORCE

Increasing or decreasing the length of the welding arc depending on the distance between the electrode and the material to be welded. It allows you to adjust the dynamics of the welding arc. Shortening the arc length is accompanied by an increase in the welding current, which stabilizes the arc.

HOT START

The purpose of this function is to prevent the electrode from sticking to the material and is a great help when striking the arc. It works when the arc is struck, causing the welding current to temporarily increase above the value set by the welder.

ANTI STICK

It is a short circuit protection function. It lowers the welding current to the minimum value when the electrode sticks to the workpiece. This makes it easier to detach the electrode from the workpiece and protects the electrode holder against damage.

SYNERGY

Welding with the MIG / MAG method using synergic settings. The device selects welding parameters depending on the selected type and thickness of the material. These parameters can be changed by the user in order to adjust the settings to their own needs.

REVERSING POLARITY - WELDING WITHOUT GAS

Thanks to the variable polarity, it is possible to weld with the FLUX method with flux-cored wire without shielding gas. The wire is filled with a flux that produces protective gases during welding.

4 ROLL WIRE FEED

Professional feeder, has a powerful motor that allows for stable wire feeding without jamming. It is equipped with 4 drive rollers.

It is designed for heavy-duty work and for longer handles than plastic feeders that cannot handle 4 or 5 meter handles.

TIG LIFT WELDING

For welding with this method it is necessary to use an additional TIG torch. A gas cooled torch with a current carrying capacity appropriate to the device, with a shielding gas control valve, is required.

REGULATION OF INDUCTION

It enables optimization of the arc characteristics depending on the thickness of the welded element as well as the welding method and conditions. This function is useful during MIG / MAG welding of thin elements, preventing them from burning out and brazing galvanized elements.

EUROCONNECTOR

Standard connection for welding torches, which enables the connection of various types of torches (e.g. prepared for aluminum welding by replacing the Teflon insert and contact tip).

STRONG AND ROBUST CONSTRUCTION

The housing of the device is made of light and durable composites, resistant to all kinds of mechanical damage.

SPOOL GUN

Possibility to use a SPOOL GUN type handle with a built-in wire feeder (the handle is not included in the set). The method enables welding with both gas shield and self-shielding wire without gas.

EASY TRANSPORT

The chassis for a gas cylinder and road wheels are a huge advantage of this device, it allows for easy transport of the welder with all the accessories.

EASY TO USE, CLEAR CONTROL PANEL:

The easy-to-use control panel enables precise and smooth adjustment of parameters. The digital display shows the actual current during welding. The MIG 280 LCD semi-automatic welding machine has a graphical menu that facilitates operation and allows you to choose the type of material to be welded.

2T / 4T

• 2T - Pressing the gun trigger button will cause gas to pre-flow, then strike the arc and start welding. When the button is released, the arc will be extinguished and gas will flow out.
• 4T - Pressing and releasing the welding gun button will pre-flow gas, then strike the arc and start welding. When the button is pressed and released again, the arc will be extinguished and the gas will flow out.

SMOOTH ADJUSTMENT OF WIRE FEED

Smooth regulation of the wire feed speed is supported by an additional potentiometer, which allows you to set the speed for different wire diameters.

COOLING

The device has a fan cooling system, which significantly increases its efficiency by means of an adaptive fan.
