Weldman Power MIG 210 LCD Synergia Inverter welder

SEMI-AUTOMATIC WELDMAN POWER MIG 210 LCD SYNERGY 4x4

| Brand: Weldman | Welding methods: MMA, MIG, TIG LIFT | Power supply: 230V | Welding current: 200A | Efficiency: 20% |

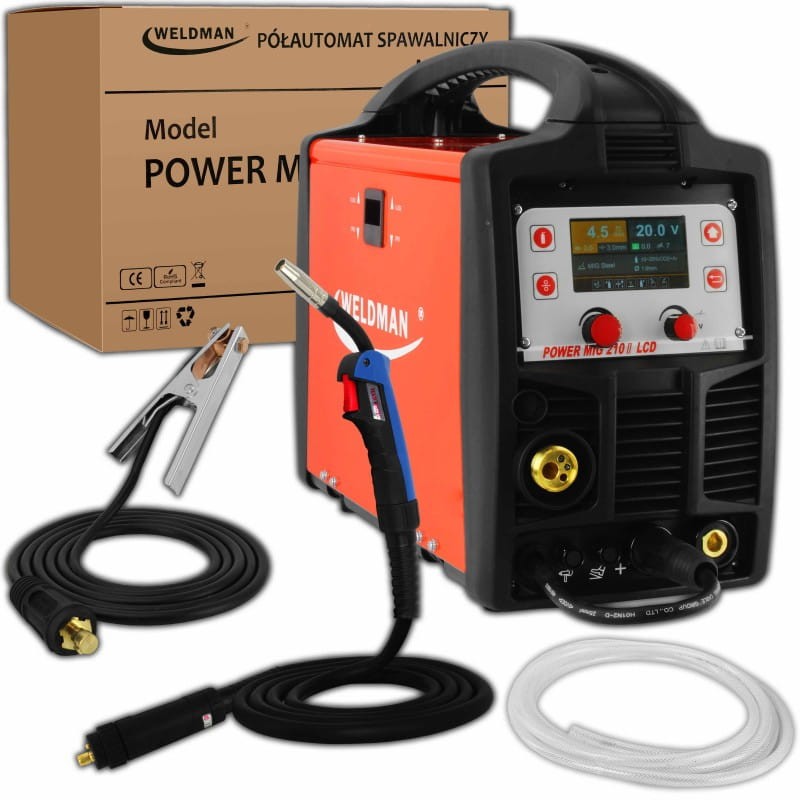

COMPLETE SET INCLUDES:

• POWER MIG 210 LCD SYNERGY welder
• 2.3 m power cord with 230V plug
• Welding torch BINZEL MB 15 3 m
• 3 m ground cable with 300A clamp (DX50)
• 4 m gas line with 8 mm inner diameter
• Gas connection (stub) for 8 mm technical hose

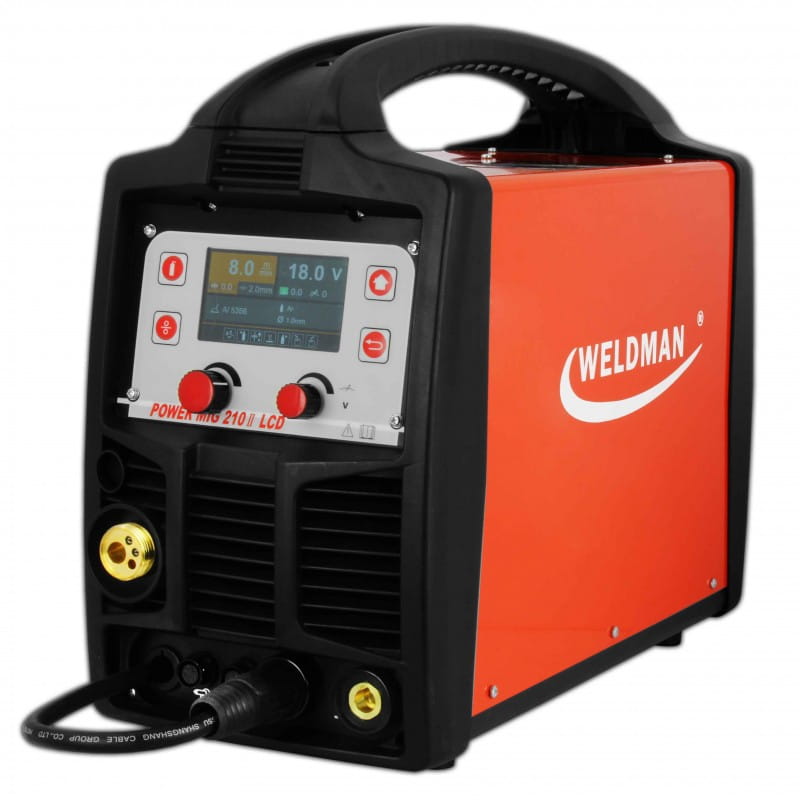

POWER MIG 210 LCD

is a single-phase device with microprocessor control. This product has been developed in accordance with the IGBT inverter technology, and its task is to weld using several specific methods:

• Welding with coated electrodes (DC),
• Welding with the MIG / MAG method (in gas shield),
• FLUX welding (without gas shield),
• TIG Lift welding with direct current (DC) with contact arc ignition.

The POWER MIG 210 LCD semi-automatic welding machine uses 0.9 mm diameter self-shielding wires, 0.6-1.0 mm welding wires, as well as 4 mm coated and tungsten electrodes.

The device fulfills its task very well when welding low-alloy steel (MAG), aluminum, low-carbon steel, cast iron, as well as alloy steel (MIG).

A very important advantage of this product is also thermal protection, which contributes to safe work. If you need a compact device that has a multitude of functions, the POWER MIG 210 LCD semi-automatic welding machine will be the best choice.

TECHNICAL DATA:

• Code: 104 722
• Supply voltage [V]: 230
• Idle current voltage [V]: 69
• Welding current adjustment range [A]: MIG 15-200 TIG DC 10-180 MMA 20-180
• Efficiency max at 40 ° C EN 60974-1: 200A @ 20% 89A @ 100%
• Wire diameter [mm] : 0.6-1.0
• Protection class [IP]: 21S
• Dimensions [cm]: 54x25x44
• Weight [kg]: 21

LEVEL OF SECURITY

IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP21 means that the device is adapted to work in closed rooms.

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

PROTECTION AGAINST OVERHEATING

The IGBT module is protected against overheating by a protective system that switches off the machine's welding circuit. After a few minutes, the welding machine cools down to a temperature that allows it to be switched on again automatically.

WORK CYCLE

The duty cycle is based on a 10-minute period. Duty cycle of 20% means that after 2 minutes of operation of the device, an 8-minute break is required. Duty cycle of 100% means that the device can work continuously without interruption.

MMA

A covered electrode method consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes, e.g. basic, cellulose, rutile or acid.

ARC FORCE

Increasing or decreasing the length of the welding arc depending on the distance between the electrode and the material to be welded. It allows you to adjust the dynamics of the welding arc. Shortening the arc length is accompanied by an increase in the welding current, which stabilizes the arc.

VRD

The VRD function lowers the voltage in no-load condition. The correct voltage is not restored until just before the arc is struck. This minimizes the risk of electric shock, but in some cases may make the arc difficult to ignite.

HOT START

The purpose of this function is to prevent the electrode from sticking to the material and is a great help when striking the arc. It works when the arc is struck, causing the welding current to temporarily increase above the value set by the welder.

ANTI STICK

It is a short circuit protection function. It lowers the welding current to the minimum value when the electrode sticks to the workpiece. This makes it easier to detach the electrode from the workpiece and protects the electrode holder against damage.

SYNERGY

Welding with the MIG / MAG method using synergic settings. The device selects welding parameters depending on the selected type and thickness of the material. These parameters can be changed by the user in order to adjust the settings to their own needs. Nine programs have been prepared for synergic welding, including a braze welding program.

REVERSING POLARITY - WELDING WITHOUT GAS

Due to the variable polarity, it is possible to weld with the FLUX method with flux-cored wire without shielding gas. The wire is filled with a flux that produces protective gases during welding.

4 ROLL WIRE FEED

Professional feeder made of die-cast aluminum, has a powerful motor that allows for stable wire feeding without jamming. It is equipped with 4 drive rollers.

It is designed for heavy duty work and longer handles than plastic feeders that cannot handle 4 or 5 meter handles.

2T / 4T

2T - Pressing the gun trigger button will cause gas to pre-flow, then strike the arc and start welding. When the button is released, the arc will be extinguished and gas will flow out.

4T - Pressing and releasing the welding gun button will cause gas to pre-flow, then strike the arc and start welding. When the button is pressed and released again, the arc will be extinguished and the gas will flow out.

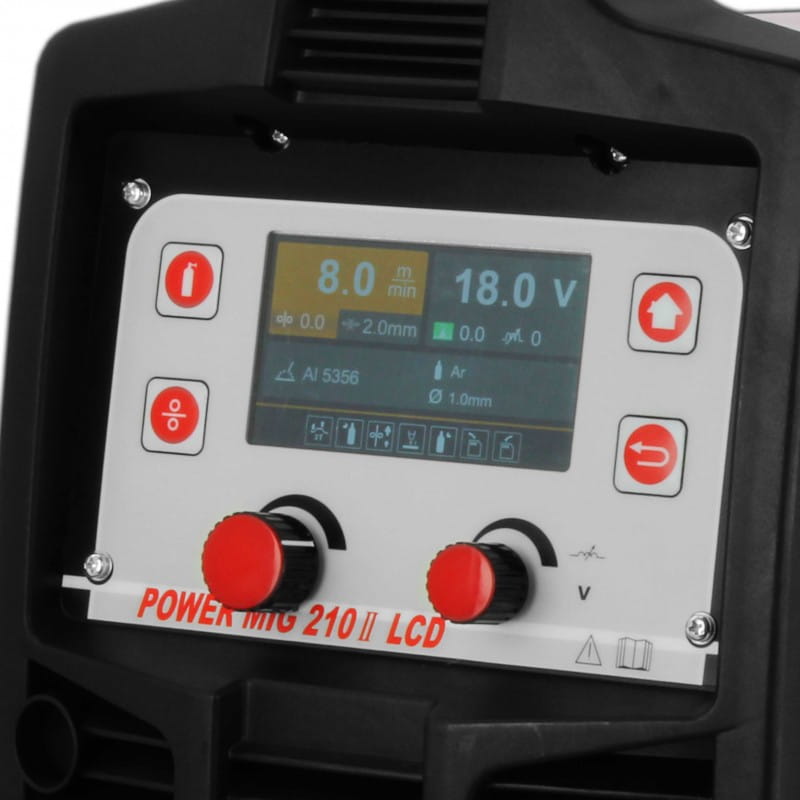

EASY TO USE, READABLE CONTROL PANEL

The easy-to-use control panel enables precise and smooth adjustment of parameters. The digital display shows the actual current during welding. The MIG 210 LCD semi-automatic welding machine has a graphical menu that facilitates operation and allows you to choose the type of material to be welded.

SMOOTH ADJUSTMENT OF WIRE FEED

Smooth regulation of the wire feed speed is supported by an additional potentiometer, which allows you to set the speed for different wire diameters.

TIG LIFT WELDING

For welding with this method it is necessary to use an additional TIG torch. A gas-cooled torch with 200A amperage and a shielding gas control valve is required.

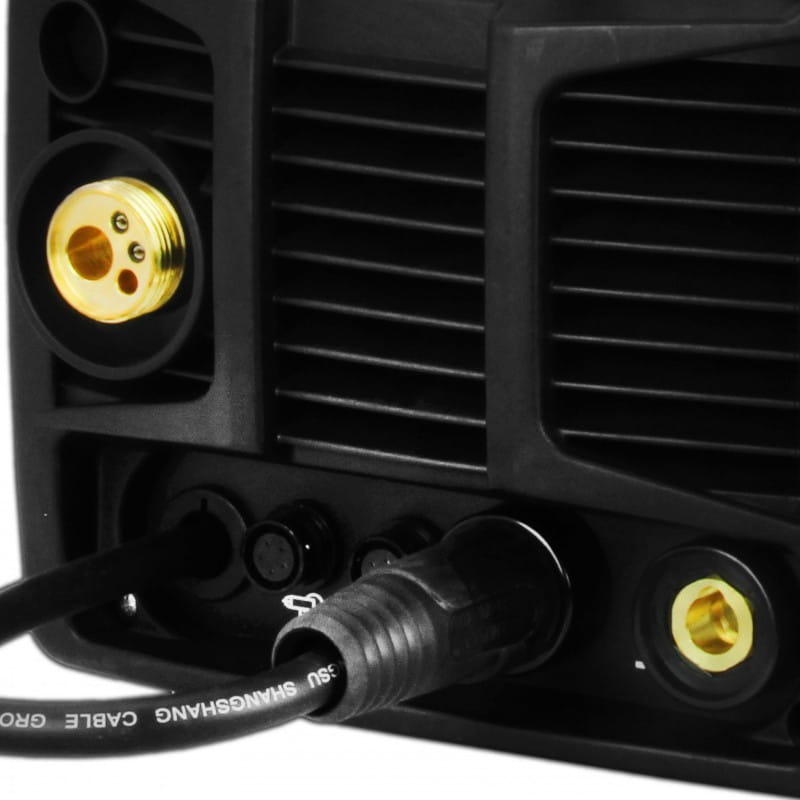

EUROCONNECTOR

Standard connection for welding torches, which enables the connection of various types of torches (e.g. prepared for Aluminum welding or Braze welding by replacing the Teflon insert and contact tip).

COOLING

The device has a fan cooling system, which significantly increases its efficiency.

WELDING OF ALUMINUM ALLOYS

Welding aluminum is not a simple activity, it requires experience, knowledge and certain practices from the welder, which will facilitate the execution of welds on aluminum elements.

Depending on the needs, appropriate voltage and inductance corrections should be made to obtain the desired effect.

Braze welding

The device enables braze welding, mainly used in the automotive industry to join galvanized sheets together.

SPOT WELDING

Time welding function, used for tacking workpieces, thanks to which it is possible to obtain equal length of welds.
