Weldman Plasma 60 Plasma Cutting

WELDMAN PLASMA CUTTER 60 PLASMA

| Brand: Weldman | Power supply: 400V | Cutting current: 60A | Efficiency: 60% | Max. cutting thickness: 25mm |

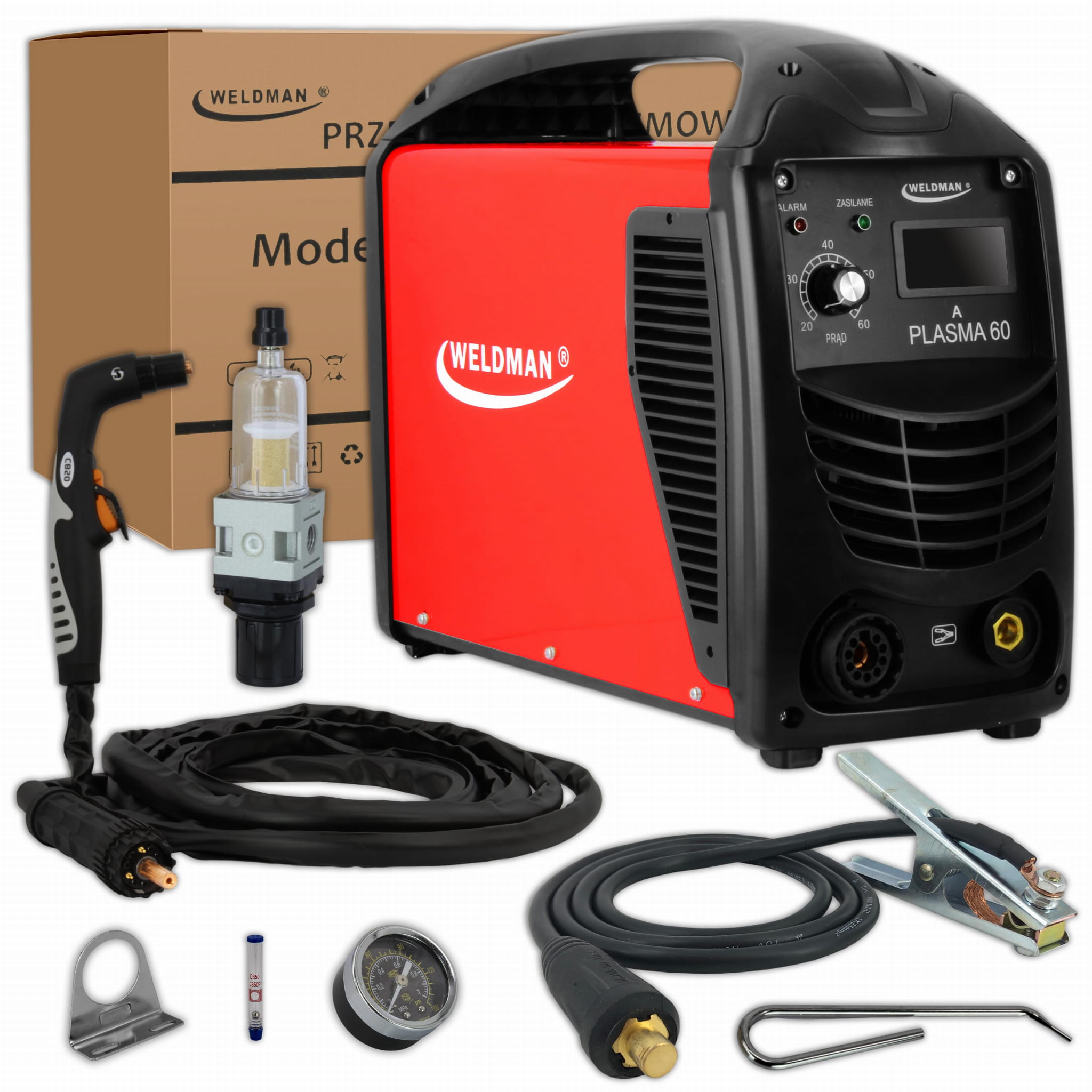

STANDARD EQUIPMENT FOR CUTTERS

• Weldman Plasma 60 plasma cutter
• 1.6 m power cord without plug
• 6 m cutting holder, type CB50, with a central pin
• Ground cable 1.6 m with a 200A clamp (DX50)
• Filter-reducer G ¼ ”for compressed air
• Rotameter for setting the air flow through the handle

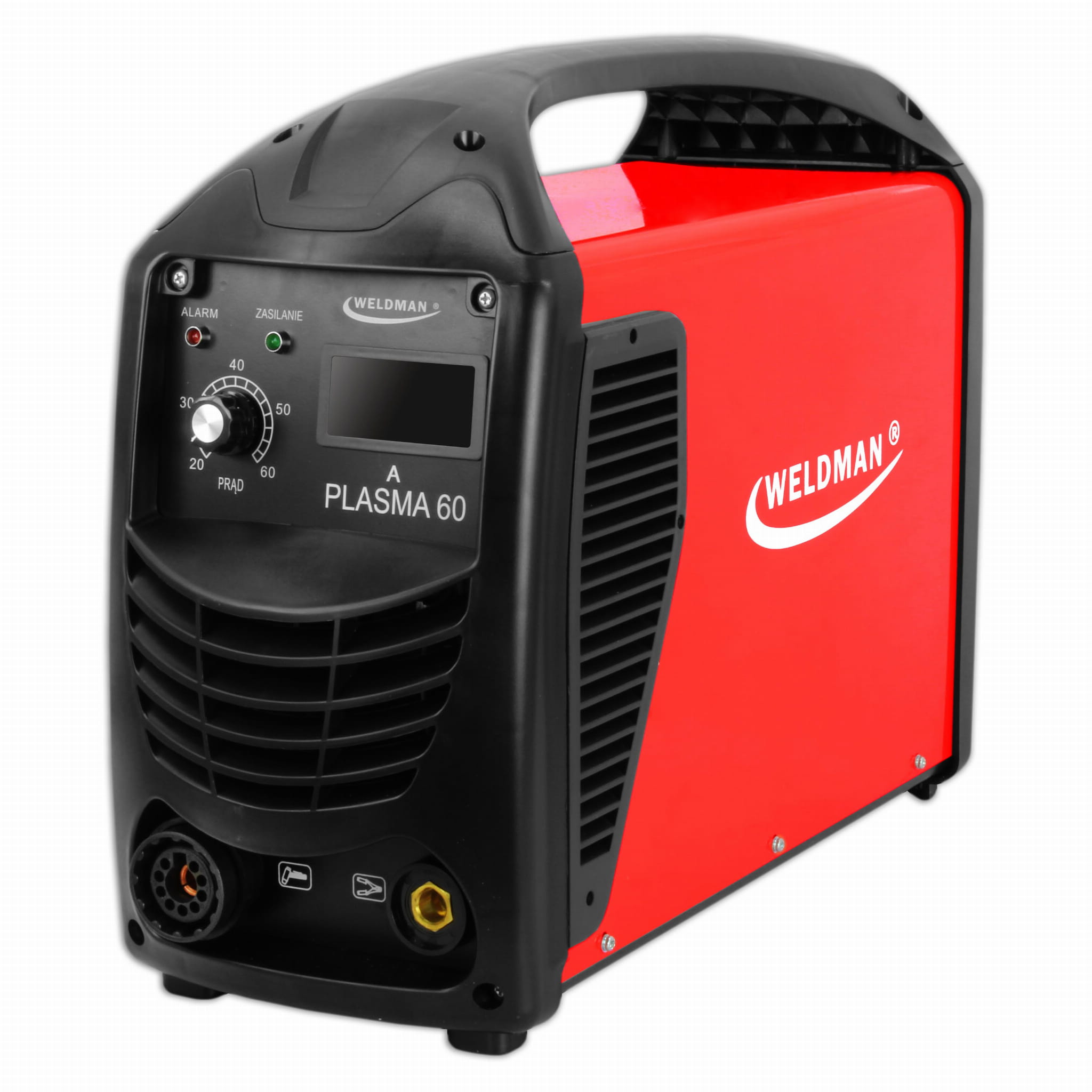

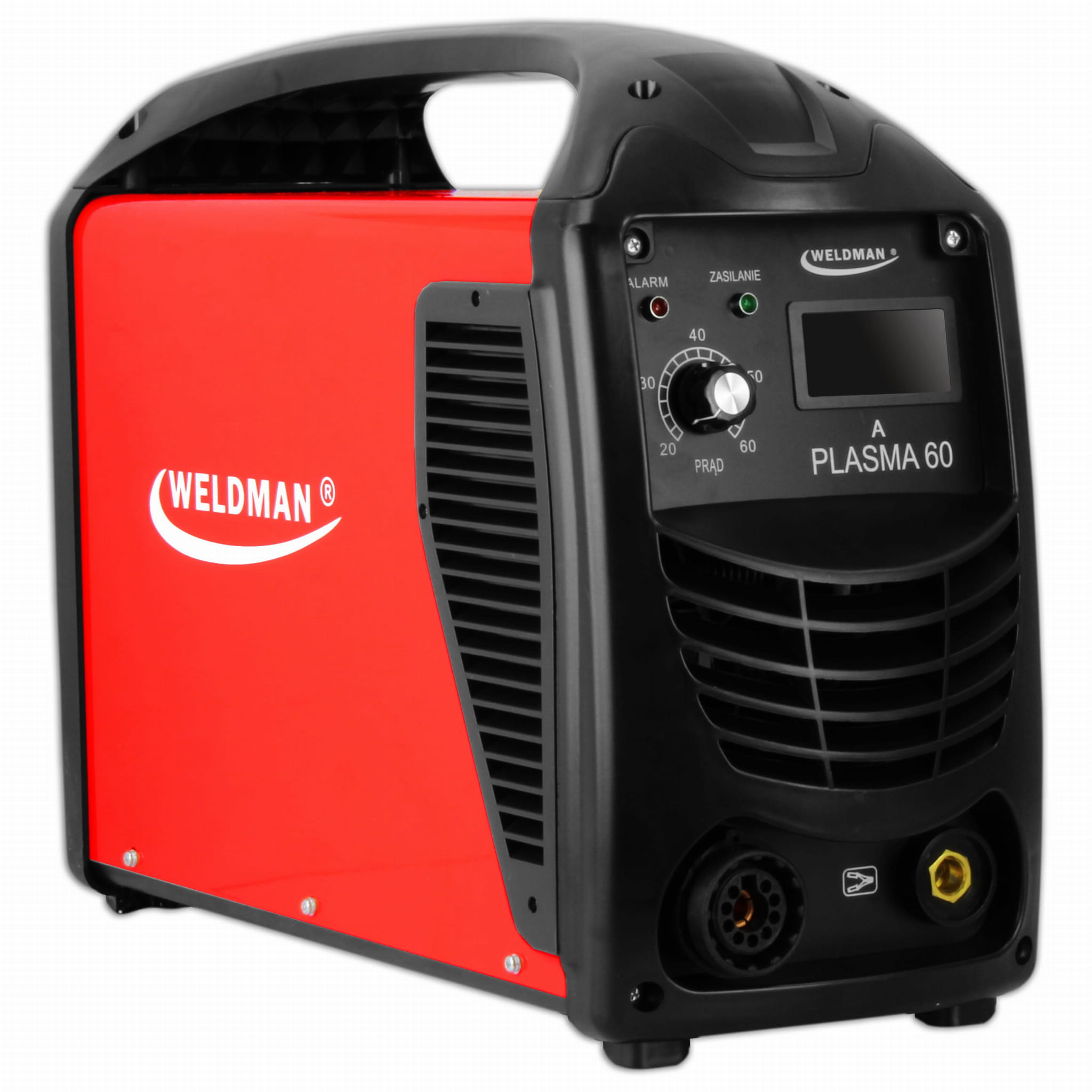

The device, which is the PLASMA 60 inverter plasma cutter, has been designed and made in modern technology, i.e. MOSFET.

The task of the cutter is to cut materials with plasma, which is done by hand. The inverter plasma cutter PLASMA 60 can easily handle cutting, without deforming materials made of stainless steel, carbon steel, cast iron materials and carbon steel, the thickness of which does not exceed 25 mm.

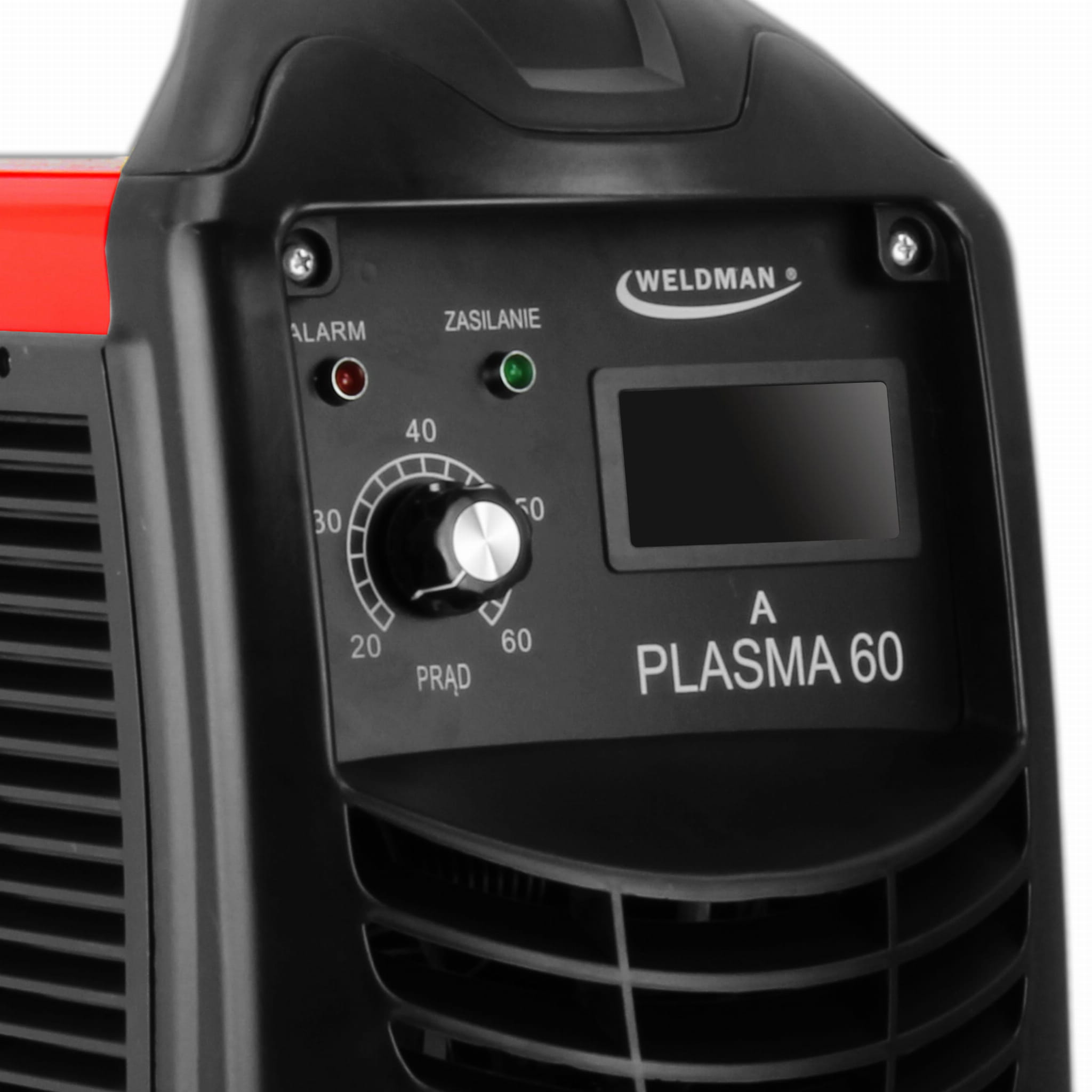

This product is equipped with a clear display that shows all the necessary parameters. What's more, the PLASMA 60 inverter plasma cutter has an electronically controlled cutting current regulation.

There are LED diodes on the panel which inform about switching off due to overload (red diode) or connection to the power supply (green diode).

A high voltage or high frequency current pulse (HF oscillating arc) strikes the cutting arc.

A very big advantage, appreciated by a wide group of people who use cutters, is their compactness. The PLASMA 60 inverter plasma cutter is characterized by a low weight and a handle that facilitates transport.

TECHNICAL DATA:

• Code: 103 304
• Device type: PLASMA 60
• Supply voltage [V]: 400
• Idle voltage [V]: 220
• Cutting current adjustment range [A]: 20-60
• Efficiency max at 40 ° C EN60974-1: 60A @ 60% 46A @ 100%
• Max cutting thickness [mm]: 25
• Air consumption [l / min]: 180
• Pressure [bar]: 5-6
• Protection class [IP]: 21S
• Dimensions [cm]: 54x22x40
• Weight [kg]: 18.5

MOSFET TECHNOLOGY

The inverter device made in the MOSFET technology to a certain extent has a positive temperature coefficient, which means that a more heavily loaded (heated) transistor somehow limits the current itself. The use of MOSFET technology significantly extends the reliable operation of welding equipment.

Proven temperature-stable transistors reduce electromagnetic interference, which affects the ratio and minimizes power losses and increases the efficiency of the device.

LEVEL OF SECURITY

The IP defines the degree to which the device is resistant to solid and water contamination entering the device. IP21S means that the device is suitable for operation in confined spaces and is not suitable for use in rain and snow.

PROTECTION AGAINST OVERHEATING

The source is equipped with a thermal, automatic overload switch. When the temperature of the cutter is too high, the protection will cut off the cutting current and the diode indicating overheating will light up. After the temperature has dropped, the switch will reset automatically.

INSULATION CLASS F

Type of insulation materials used, informing about the maximum operating temperature of the transformer. If it is exceeded in continuous operation, it shortens the life and failure-free operation time of the transformer. For class F 155 ° C.

MAXIMUM CUTTING THICKNESS 25mm

The value of the maximum cutting thickness has been established under optimal cutting conditions for ordinary quality carbon steel. In order to select the appropriate device, it is recommended to perform technological tests in real operating conditions and on a sample material sample.

WORK CYCLE

The duty cycle is based on a 10-minute period. 60% duty cycle means that after 6 minutes of operation, a 4-minute break is required. Duty cycle of 100% means that the device can work continuously without interruption.

INTUITIVE DISPLAY

The device panel with display is fully user-friendly and provides clear indications of parameters that must be clearly visible.

STRONG AND ROBUST CONSTRUCTION

The device casing is made of light and durable composites, resistant to all kinds of mechanical damage.

EASY TRANSPORT

Small dimensions and light design make the devices easy to take to any workplace. The devices are equipped with a strong handle that makes it easy to carry.

COOLING

The device has a fan cooling system, which significantly increases its efficiency
