Weldman Micro MIG 205

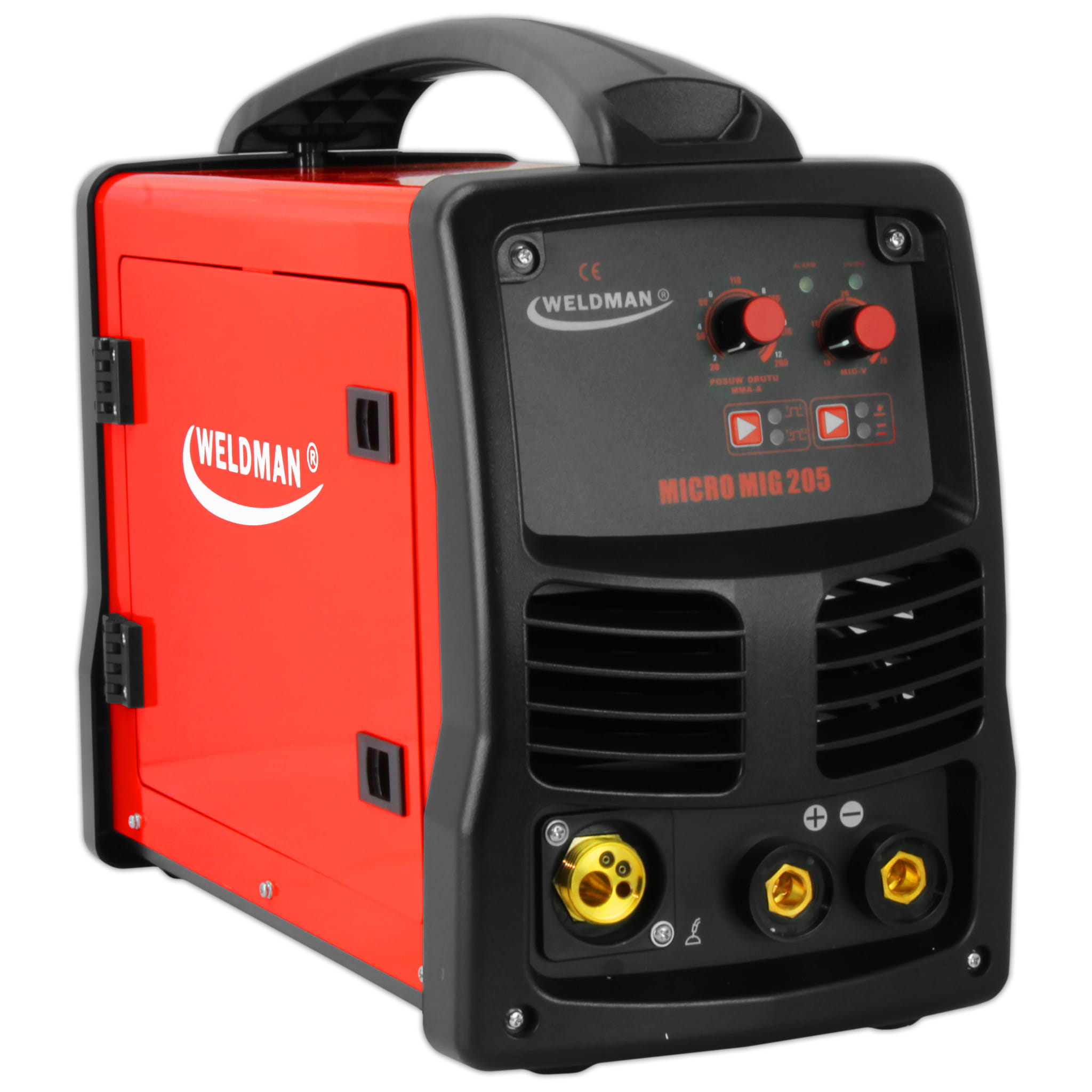

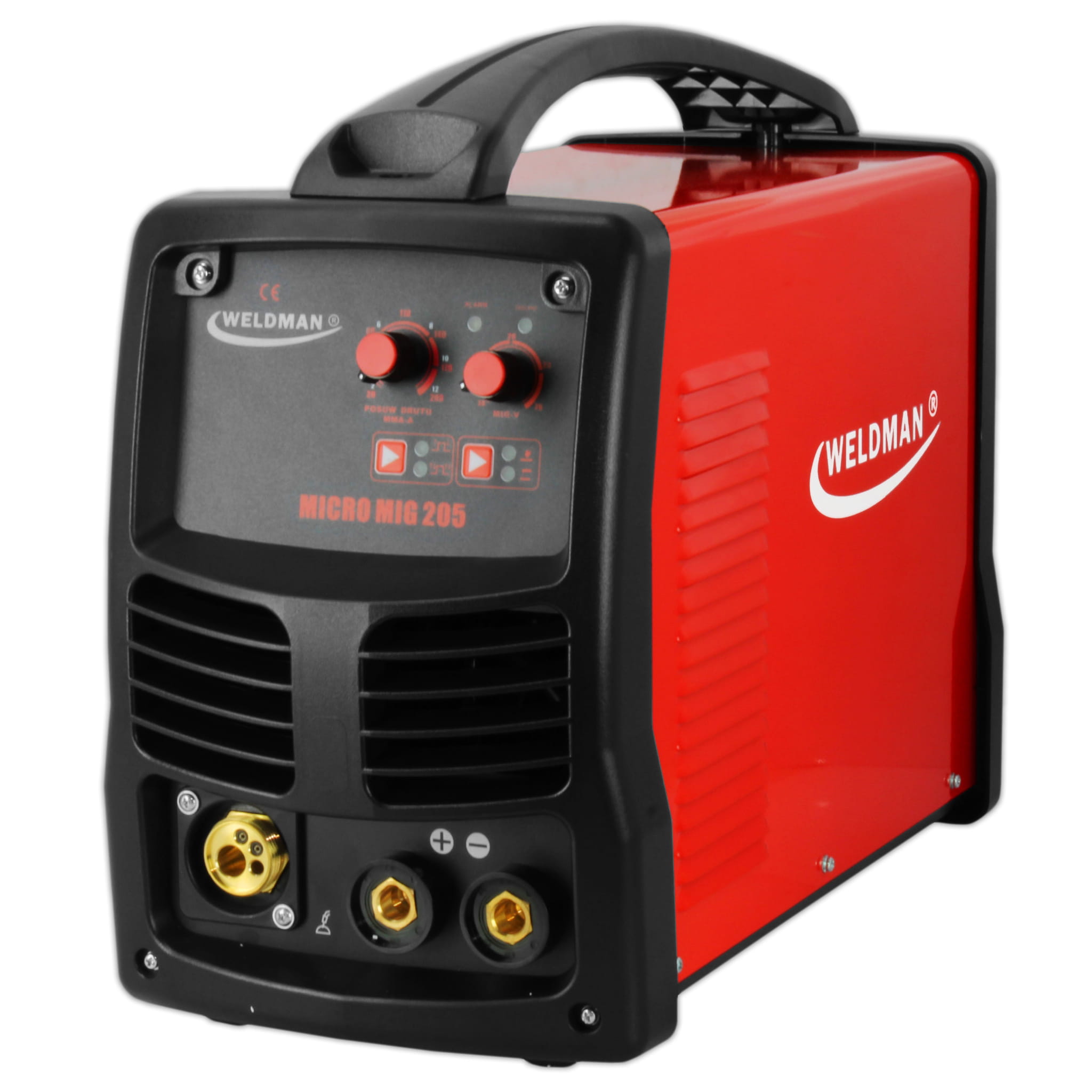

WELDMAN MICRO MIG 205 SEMI-AUTOMATIC WELDING MACHINE

Brand: WELDMAN | Welding methods: MIG / MAG, MMA | Power supply: 230V | Welding current: 200A | Efficiency: 60%

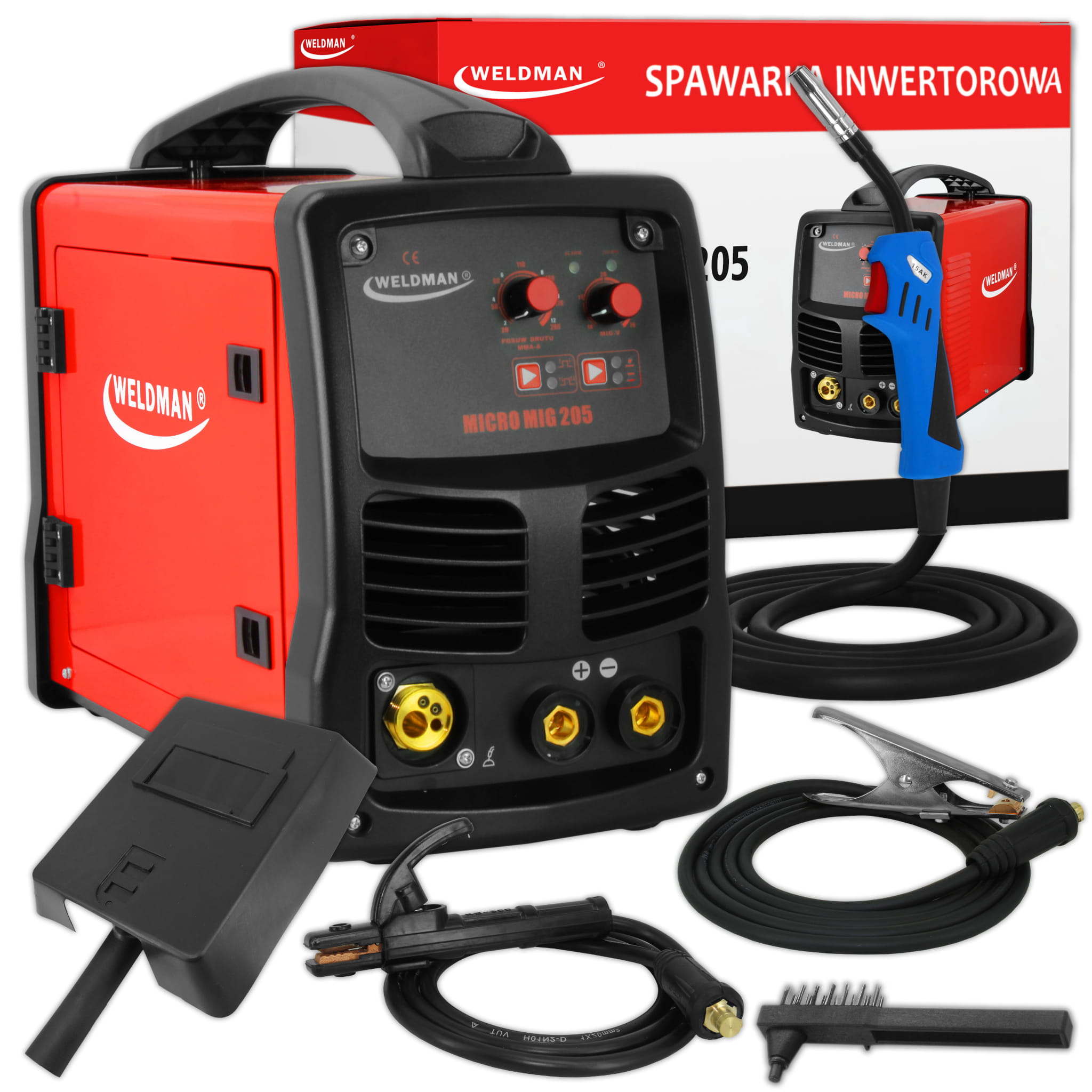

STANDARD EQUIPMENT

• Weldman MICRO MIG 205 welder
• Welding torch MB 15 AK 3m
• 2 m ground cable with 300A ground clamp (DX50)
• Electrode cable 2.5 m 200A (DX50)
• 2 m power cord without plug
• Welding mask
• Welding brush

WELDMAN MICRO MIG 205 , like other devices in this series, was designed and created on the basis of IGBT inverter technology.

Thanks to this solution, this product has numerous advantages. Most importantly, the Micro Mig 205 semi-automatic welding machine has received a number of security features, such as:

• Protection against excessive current concentration,
• Over voltage protection,
• Protection against overheating of the device.

The Micro Mig 205 semi-automatic welding machine enables welding with the following methods: MMA and MIG / MAG. The wire feeder it has offers the possibility of installing a spool up to 5 kg. Near the wire feeder there are sockets for changing the polarity of the handles. They must be replaced before welding without shielding gas (FLUX).

The Micro Mig 205 welder is equipped with an intuitive, easy-to-use control panel with a display and control switches. In addition, this device also has a Euro connector and a detachable ground cable and can be operated in 2-step / 4-step mode.

The semi-automatic welding machine is intended for both semi-professional and professional users.

TECHNICAL DATA:

• Supply voltage: 230V / 50Hz
• Power protection: 20 A
• Max MIG supply current: 23.8 A MMA: 27.8 A
• Power supply effective MIG: 18.4 A MMA: 21.5 A
• Idle voltage: 56V
• MIG MAG current adjustment range: 50A / 16.5V - 200A / 24V
• Duty cycle 200A: 60% | 155A: 100%
• Electrode diameter: 1.6mm - 4.0mm
• Steel wire diameter: 0.6mm - 1.0mm
• Wire feeder: 2 rolls
• Casing protection grade: IP21S
• Dimensions: 490x240x400 mm
• Weight: 14 kg

LEVEL OF SECURITY

The IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP21 means that the device is adapted to work in closed rooms.

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

PROTECTION AGAINST OVERHEATING

The IGBT module is protected against overheating by a protective system that switches off the machine's welding circuit. After a few minutes, the welding machine cools down to a temperature that allows it to be switched on again automatically.

MMA

A covered electrode method consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes, e.g. basic, cellulose, rutile or acid.

REVERSING POLARITY - WELDING WITHOUT GAS

Thanks to the variable polarity, it is possible to weld with the FLUX method with flux-cored wire without shielding gas. The wire is filled with a flux that produces protective gases during welding.

MIG / MAG

Gas-shielded arc welding is one of the most widely used processes for the production of welded structures.

2T / 4T

2T - Pressing the gun trigger button will cause gas to pre-flow, then strike the arc and start welding. When the button is released, the arc will be extinguished and gas will flow out.

4T - Pressing and releasing the welding gun button will pre-flow gas, then strike the arc and start welding. When the button is pressed and released again, the arc will be extinguished and the gas will flow out.

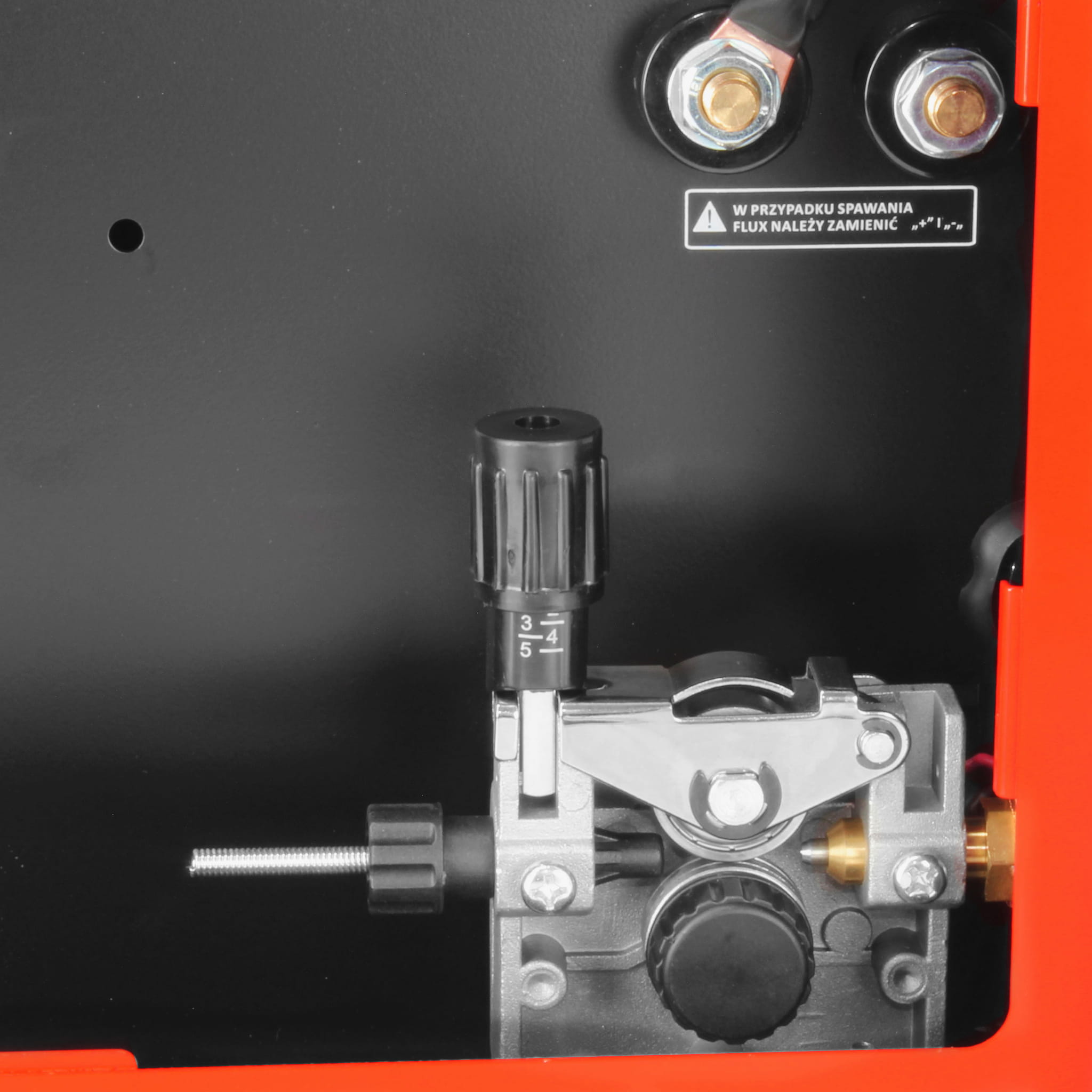

2 ROLL WIRE FEED

Professional feeder, has a powerful motor that allows for stable wire feeding without jamming. It is equipped with 2 drive rollers. It is designed for heavy-duty work.

WORK CYCLE

The duty cycle is based on a 10-minute period. 60% duty cycle means that after 6 minutes of operation, a 4-minute break is required. Duty cycle of 100% means that the device can work continuously without interruption.

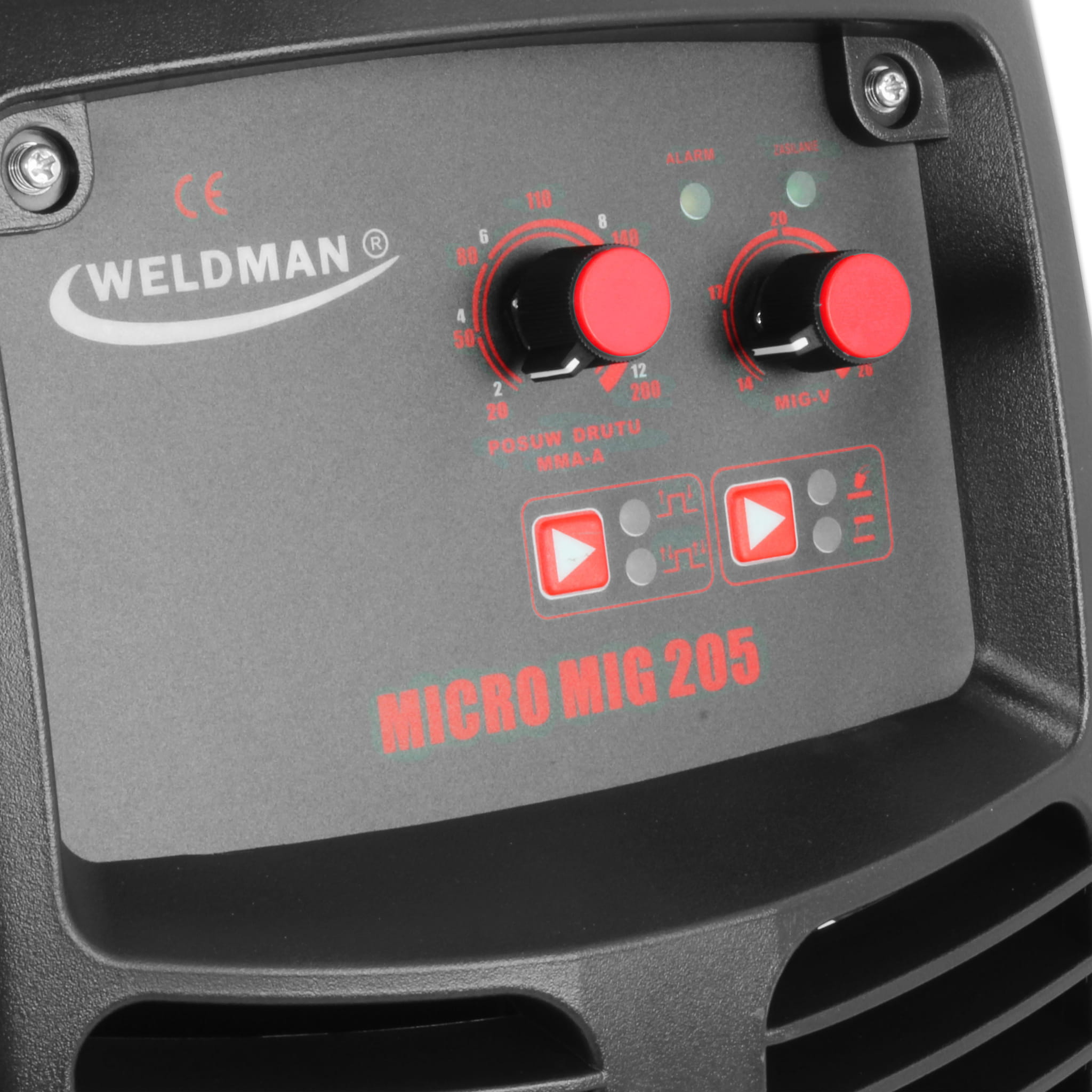

EASY TO USE, CLEAR CONTROL PANEL:

The easy-to-use control panel enables precise and smooth adjustment of parameters.

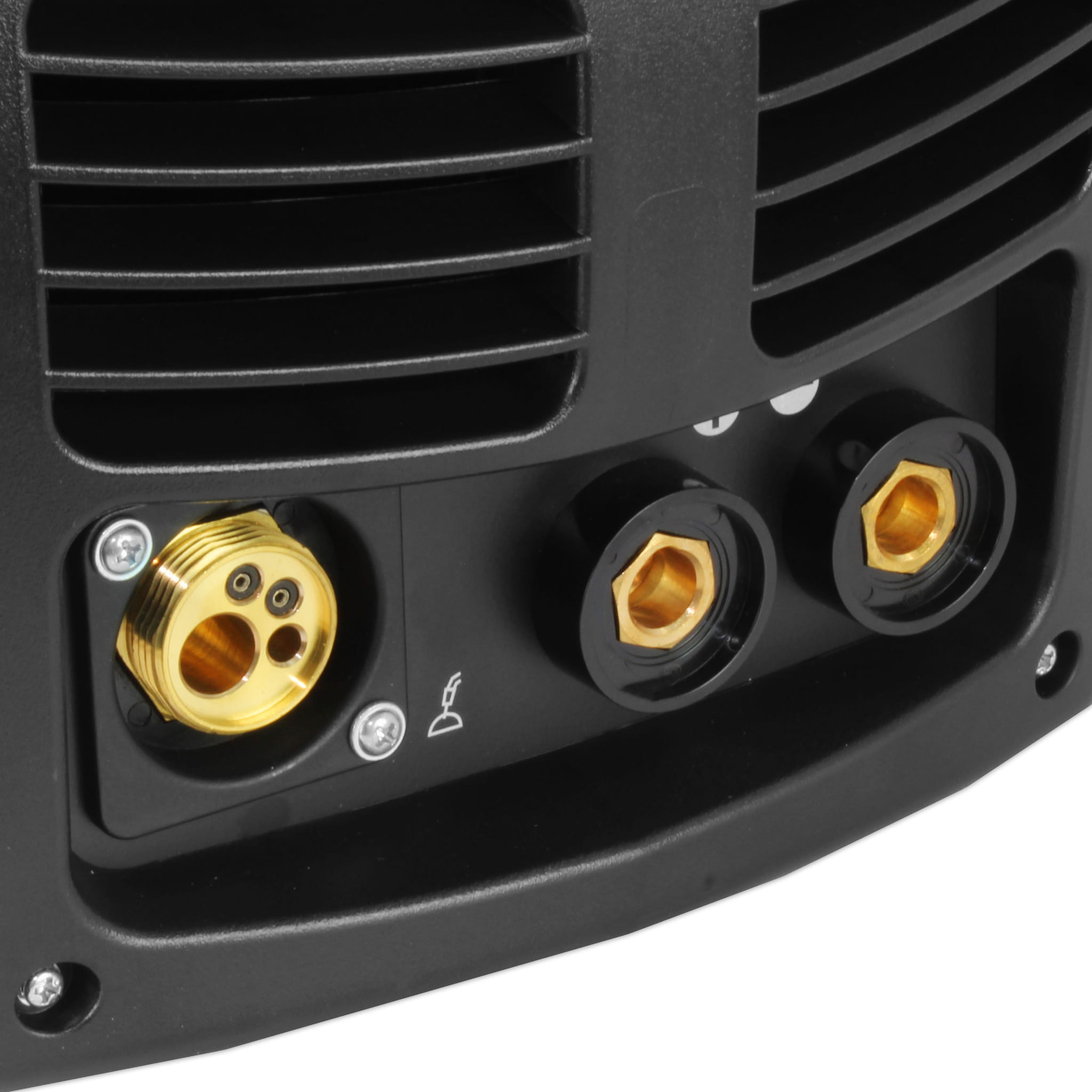

EUROCONNECTOR

Standard connection for welding torches, which enables the connection of various types of torches (e.g. prepared for aluminum welding by replacing the Teflon insert and contact tip).

STRONG AND SOLID CONSTRUCTION

The device casing is made of light and durable composites, resistant to all kinds of mechanical damage.

COOLING

The device has a fan cooling system, which significantly increases its efficiency.
