Weldman MIG TEC 200 LCD SYNERGY PAK (MMA, TIG)

MIGTEC 200 LCD SYNERGY SEMI-AUTOMATIC WELDING MACHINE - PACK

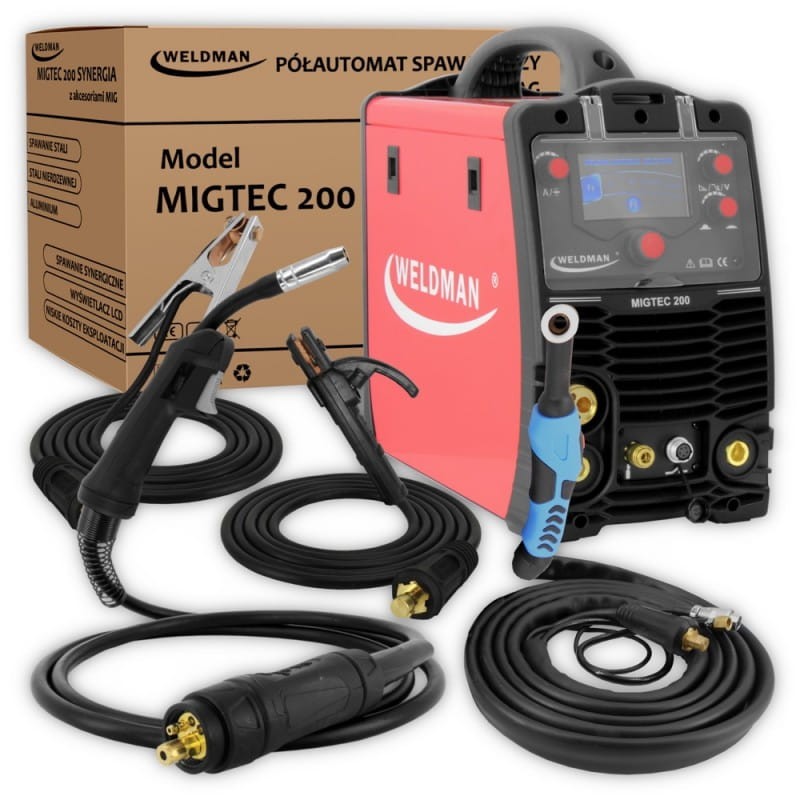

| Brand:  WELDMAN  | Welding methods:  MMA, MIG, TIG LIFT  |  Power supply:  230V  | Welding current:  200A  |  Efficiency:  25%  STANDARD EQUIPMENT

• Welder MIGTEC 200 LCD SYNERGY
• 3 m power cord with 230V plug
• welding holder MB 15 3 m
• 4 m ground cable with a 200A clamp (DX50)
• 3 m welding cable with 200A electrode holder
• welding torch 3 m TIG ECO GRIP
• gas connection (connector type 21)

MIGTEC MIG 200 LCD  , microprocessor-controlled, single-phase semi-automatic welding  machine , made in IGBT inverter technology for welding with the following methods:

• MIG / MAG  (shielded gas)
• MMA , i.e. welding with coated electrodes with direct current (DC),
• FLUX  (without gas shield), for welding with coated electrodes with direct current (DC) and by the method
• TIG Lift  with direct current (DC) with contact arc ignition.

Designed for welding with welding wires with a diameter of 0.6-1.2 mm, self-shielding wires 0.9 mm and with coated and tungsten electrodes with a diameter of up to 4 mm of low-carbon, low-alloy (MAG), alloyed (MIG) steel, aluminum and iron castings.

Thanks to its compact design, the MIGTEC MIG 200 LCD welder   will fulfill its task both during repair work in the halls and outside. The MIGTEC MIG 200 LCD welder  supports a spool up to a maximum of 5 kg D200.

The combination of  many  welding processes in one device and compact size make it possible to use it wherever  compactness and easy transport are required  (repairs or minor repairs in the field).

TECHNICAL DATA:

• Supply voltage [V]:  230
• Idle voltage [V]:  45
• Welding current adjustment range [A]:  MIG 10-200 TIG DC 10-200 MMA 10-200
• Efficiency max at 40 ° C EN 60974-1:  200A @ 25% 130A @ 100%
• Wire diameter [mm]:  0.6-1.2
• Protection class [IP]:  23
• Dimensions [cm]:  46x23x43
• Weight [kg]:  15.5

LEVEL OF SECURITY

The IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP21 means that the device is adapted to work in closed rooms.

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

PROTECTION AGAINST OVERHEATING

The IGBT module is protected against overheating by a protective system that switches off the machine's welding circuit. After a few minutes, the welding machine cools down to a temperature that allows it to be turned on again automatically.

WORK CYCLE

The duty cycle is based on a 10-minute period. Duty cycle of 25% means that after 2.5 minutes of operation, a 7.5 minute break is required. Duty cycle of 100% means that the device can work continuously without interruption.

POLAR CHANGE - WELDING WITHOUT GAS

Due to the variable polarity, it is possible to weld with flux-cored wire without shielding gas. The wire is filled with a flux that produces protective gases during welding.

SYNERGY

Welding with the MIG / MAG method using synergic settings. The device selects welding parameters depending on the selected type and thickness of the material. These parameters can be changed by the user in order to adjust the settings to their own needs.

Synergic welding 5 programs:

• FE (carbon steel),
• SS (stainless steel),
• AL. (aluminum),
• FCAW-S (self-shielding wire)
• FCAW-G (flux cored wire)

2 ROLL WIRE FEED

A professional feeder made of die-cast aluminum, has a powerful motor that allows for stable wire feeding without jamming. It is equipped with 2 drive rollers.

MMA

A covered electrode method consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes, e.g. basic, cellulose, rutile or acid.

ARC FORCE

Increasing or decreasing the length of the welding arc depending on the distance between the electrode and the material to be welded. It allows you to adjust the dynamics of the welding arc. Shortening the arc length is accompanied by an increase in the welding current, which stabilizes the arc.

ANTI STICK

It is a short circuit protection function. It lowers the welding current to the minimum value when the electrode sticks to the workpiece. This makes it easier to detach the electrode from the workpiece and protects the electrode holder against damage.

COOLING

The device has a fan cooling system, which significantly increases its efficiency.

EASY TO USE, CLEAR CONTROL PANEL:

The easy-to-use control panel enables precise and smooth adjustment of parameters. The digital display shows the actual current during welding.

SMOOTH ADJUSTMENT OF WIRE FEED

Smooth regulation of the wire feed speed is supported by an additional potentiometer, which allows you to set the speed for different wire diameters.

EUROCONNECTOR

Standard connection for welding torches, which enables the connection of various types of torches (e.g. prepared for Aluminum welding or Braze welding by replacing the Teflon insert and contact tip).

2T / 4T

• 2T - Pressing the gun trigger button will cause gas to pre-flow, then strike the arc and start welding. When the button is released, the arc will be extinguished and gas will flow out.
• 4T - Pressing and releasing the welding gun button will cause gas to pre-flow, then strike the arc and start welding. When the button is pressed and released again, the arc will be extinguished and the gas will flow out.
