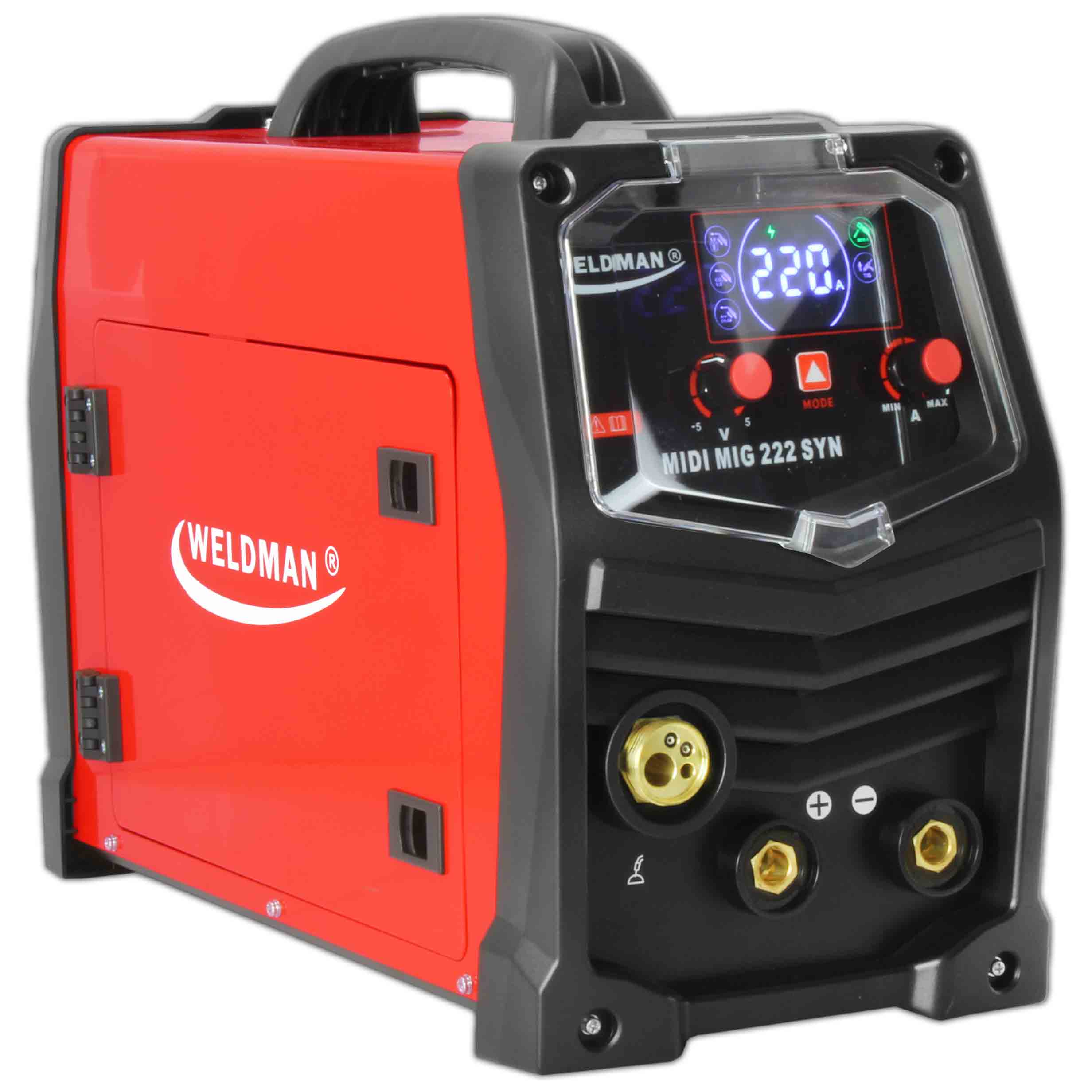

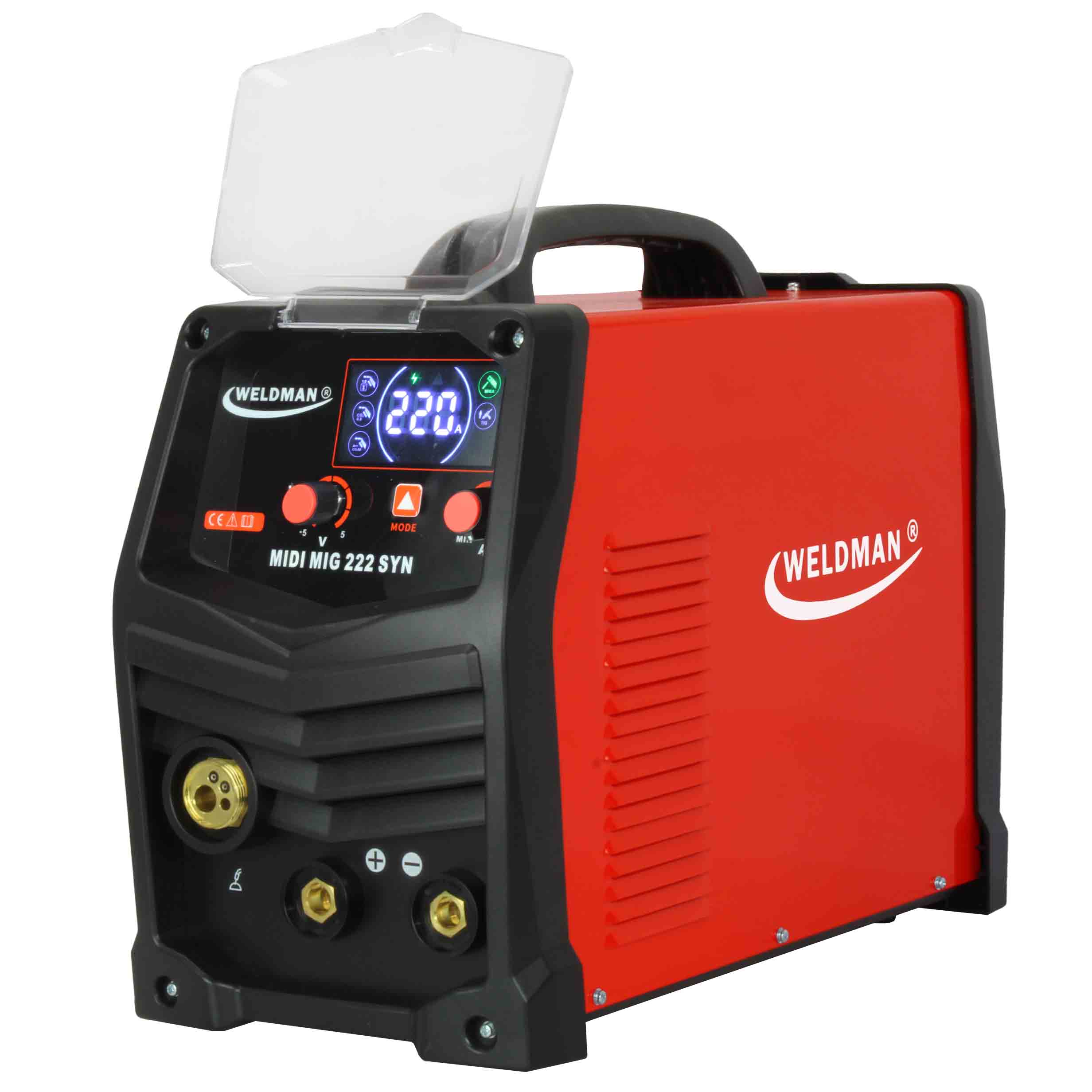

Weldman MIDI MIG 222 SYN

WELDMAN MIDI MIG 222 SYNERGY

Brand: WELDMAN | Welding methods: MIG / MAG, MMA, TIG LIFT | Power supply: 230V | Welding current: 220A | Efficiency: 60%

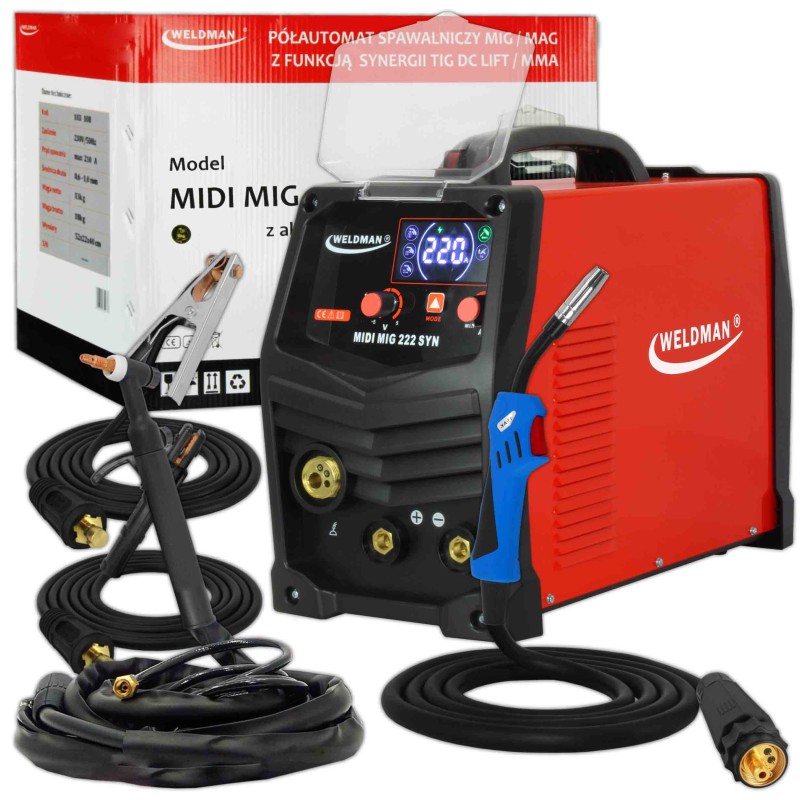

STANDARD EQUIPMENT

• Weldman Welder MIDI MIG 222 SYN
• Welding torch MB 15 AK 3m
• Welding torch TIG WP-26V with valve 4m (DX50)
• 2 m ground cable with 300A ground clamp (DX50)
• Cable with electrode holder 200A 2.5 m (DX50)
• Gas connection (8 mm technical hose connection)

WELDMAN MIDI MIG 220 SYN , like other devices in this series, has been designed and created on the basis of IGBT inverter technology.

Thanks to this solution, this product has numerous advantages. Most importantly, the semi-automatic welding machine has received a number of security features. The device enables welding with the following methods:

• MIG / MAG (shielded with CO2 inert gas)
• MIX (shielded with CO2 / Argon protective gas)
• FLUX (without gas shield)
• MMA (welding with DC coated electrodes)
• TIG DC LIFT (contact arc ignition)

and is designed for carbon steel, stainless steel, alloy steel, cast iron and aluminum.

The welder  is equipped with an intuitive, easy-to-use control panel, which has an LCD display and switches for control. In addition, this device also has a Euro connector. The built-in synergic system allows you to select welding parameters for less experienced users.

The semi-automatic welding machine is intended for both semi-professional and professional users.

TECHNICAL DATA:

• Power protection: 20 A
• Supply voltage [V]: 230
• Idle current voltage [V]: 56
• Welding current adjustment range [A]: MIG: 40-220 TIG: 10-220 MMA: 20-220
• Efficiency max at 40 ° C EN 60974-1 220A @ 60% 170 @ 100%
• Wire diameter [mm]: 0.6-1.0
• Max spool weight [kg]: 5
• Protection class [IP]: IP21
• Cooling: fan
• Insulation class: F.
• Dimensions [cm]: 52x22x40
• Weight [kg]: 13

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

LEVEL OF SECURITY

The IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP21 means that the device is adapted to work in closed rooms.

PROTECTION AGAINST OVERHEATING

The IGBT module is protected against overheating by a protective system that switches off the machine's welding circuit. After a few minutes, the welding machine cools down to a temperature that allows it to be turned on again automatically.

WORK CYCLE

The duty cycle is based on a 10-minute period. 60% duty cycle means that after 6 minutes of operation, a 4-minute break is required. Duty cycle of 100% means that the device can work continuously without interruption.

MMA

A covered electrode method consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes, e.g. basic, cellulose, rutile or acid.

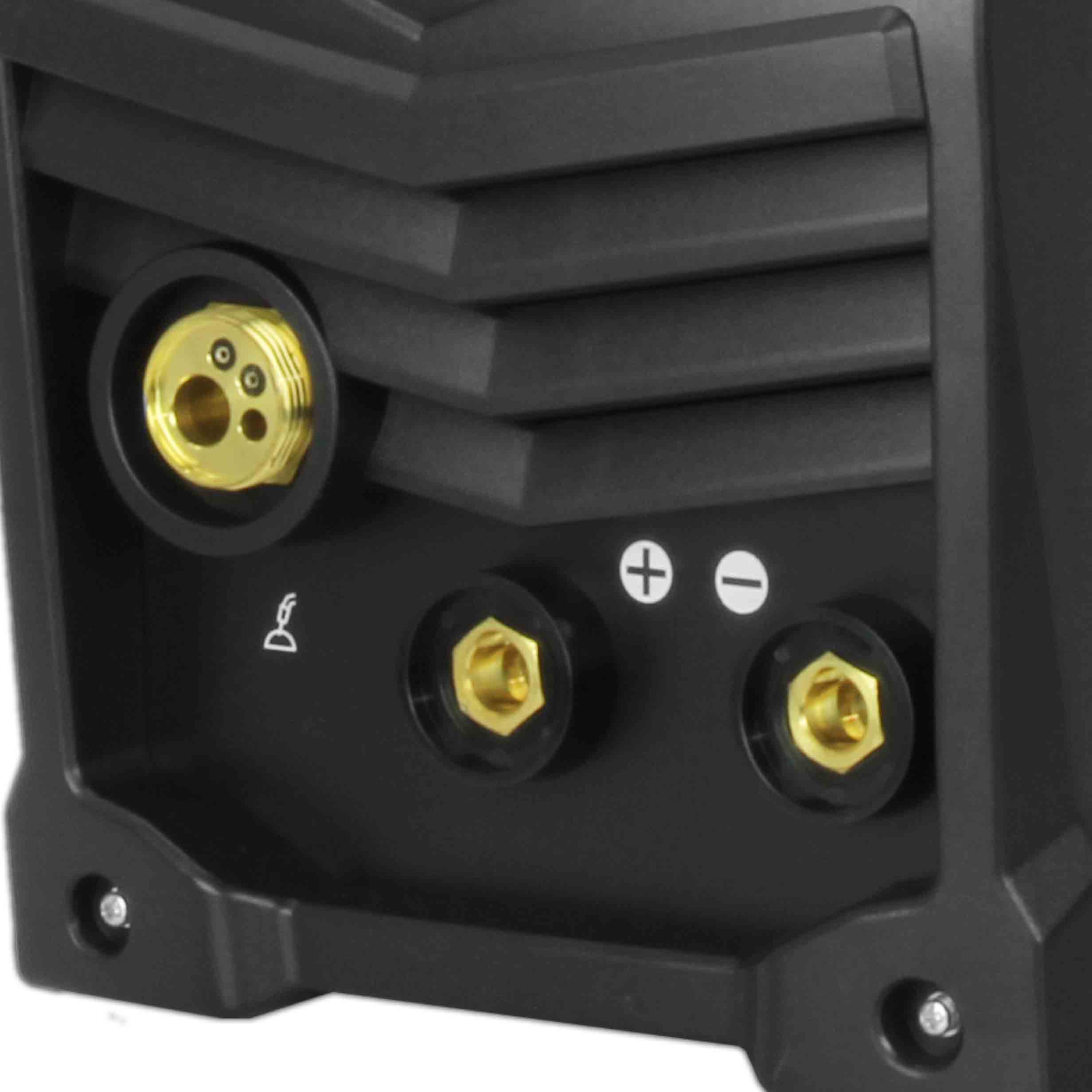

POLAR CHANGE - WELDING WITHOUT GAS

Due to the variable polarity, it is possible to weld with the FLUX method with flux-cored wire without shielding gas. The wire is filled with a flux that produces protective gases during welding.

MIG / MAG

Gas-shielded arc welding is one of the most commonly used processes for the production of welded structures.

SYNERGY

Welding with the MIG / MAG method using synergic settings. The device selects welding parameters depending on the selected type and thickness of the material. These parameters can be changed by the user in order to adjust the settings to their own needs.

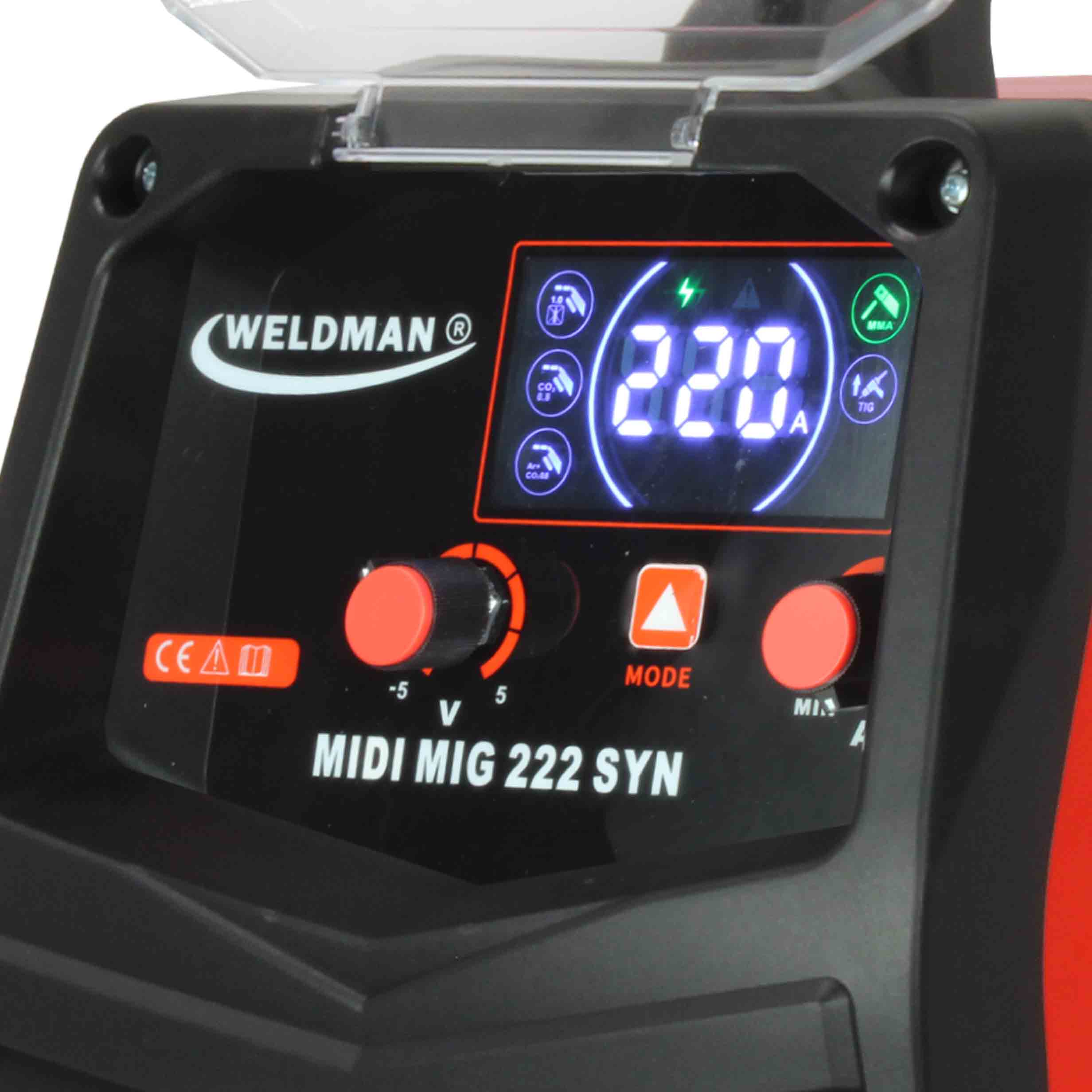

EASY TO USE, CLEAR CONTROL PANEL:

The easy-to-use control panel enables precise and smooth adjustment of parameters. The digital LCD display shows the actual current during welding. The semi-automatic welding machine has a menu that facilitates operation and allows you to choose the type of material to be welded.

TIG LIFT WELDING

For welding with this method it is necessary to use an additional TIG torch. A gas cooled torch with a current carrying capacity appropriate to the device, with a shielding gas control valve, is required.

The TIG LIFT torch is an additional option that can be purchased at our other auctions.

INSULATION CLASS F

The type of insulation materials used, informing about the maximum operating temperature of the transformer. Exceeding it during continuous operation shortens the life and failure-free operation time of the transformer. For class F 155 ° C.

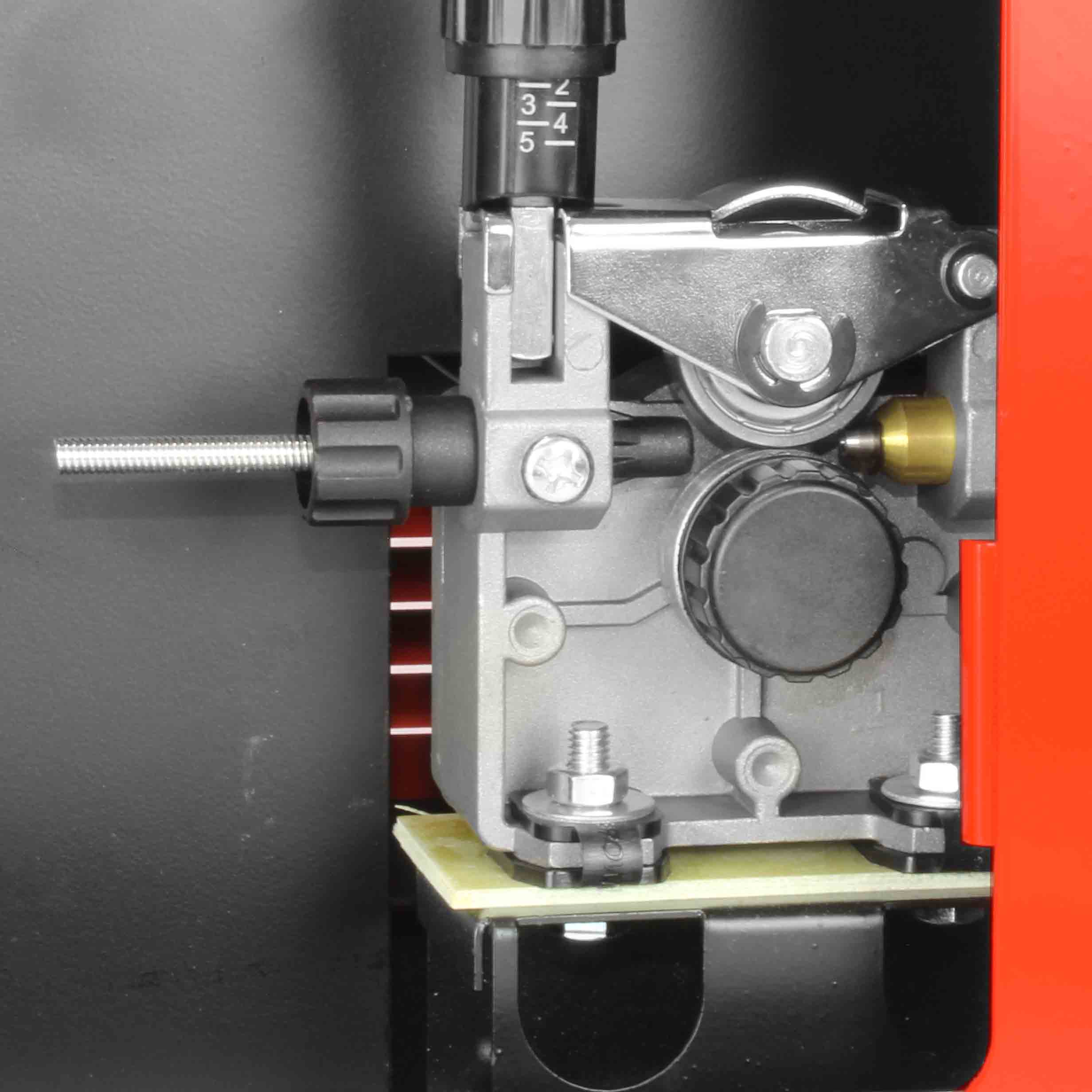

SMOOTH ADJUSTMENT OF WIRE FEED

Smooth regulation of the wire feed speed is supported by an additional potentiometer, which allows you to set the speed for different wire diameters.

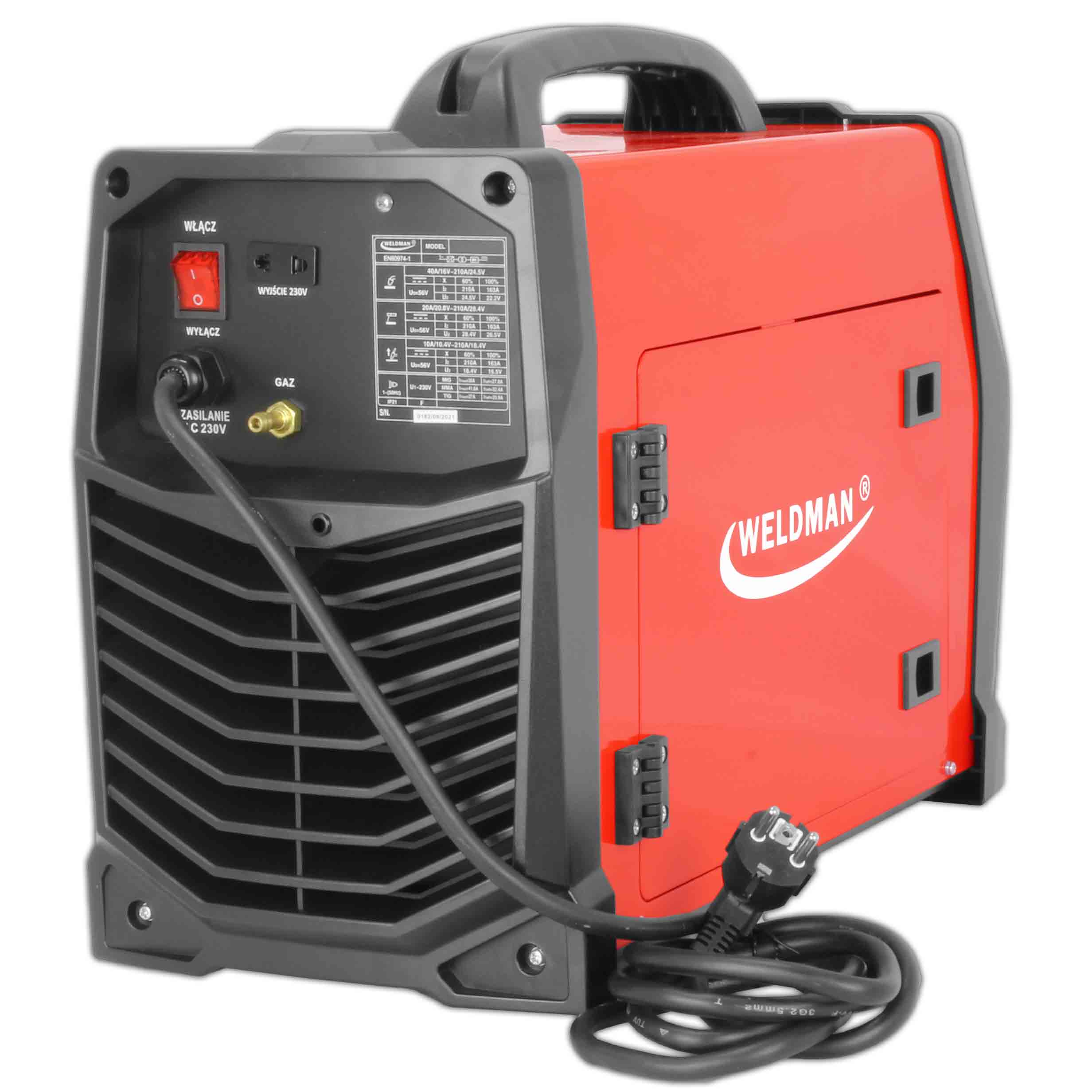

COOLING

The device has a fan cooling system, which significantly increases its efficiency.
