Weldman MIDI MIG 220 - set no.3

WELDMAN MIDI MIG 220 MMA -  WELDING KIT # 3

| Brand: Weldman | Welding methods: MIG / MAG, MMA | Power supply: 230V | Welding current: 220A | Efficiency: 60% |

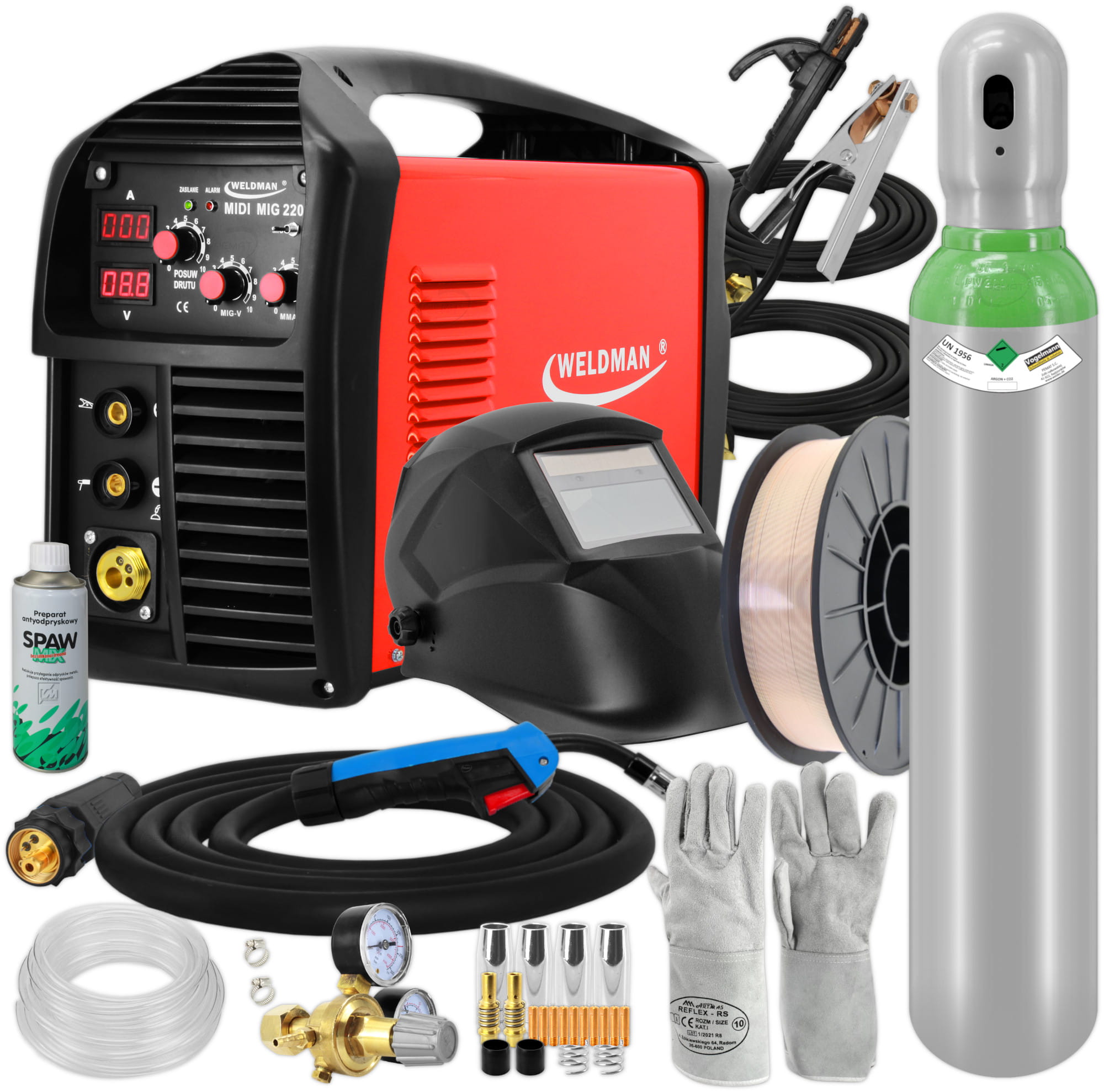

STANDARD EQUIPMENT

• Welder Weldman MIDI MIG 220
• MIG welding holder MB15 3m
• Electrode cable 2.5 m
• 2m mass cable with 200A clamp
• User manual

ADDITIONAL EQUIPMENT

• Welding helmet
• MIX Ar / CO2 gas bottle - 8l
• VM Exakt gas regulator
• 400ml anti-spatter spray
• Art.Mas Welding gloves
• 20-piece VM parts kit
• Welding wire SG2 5kg 0.8mm
• 3m Gas hose
• Zip tie 6-10mm - 2 pcs

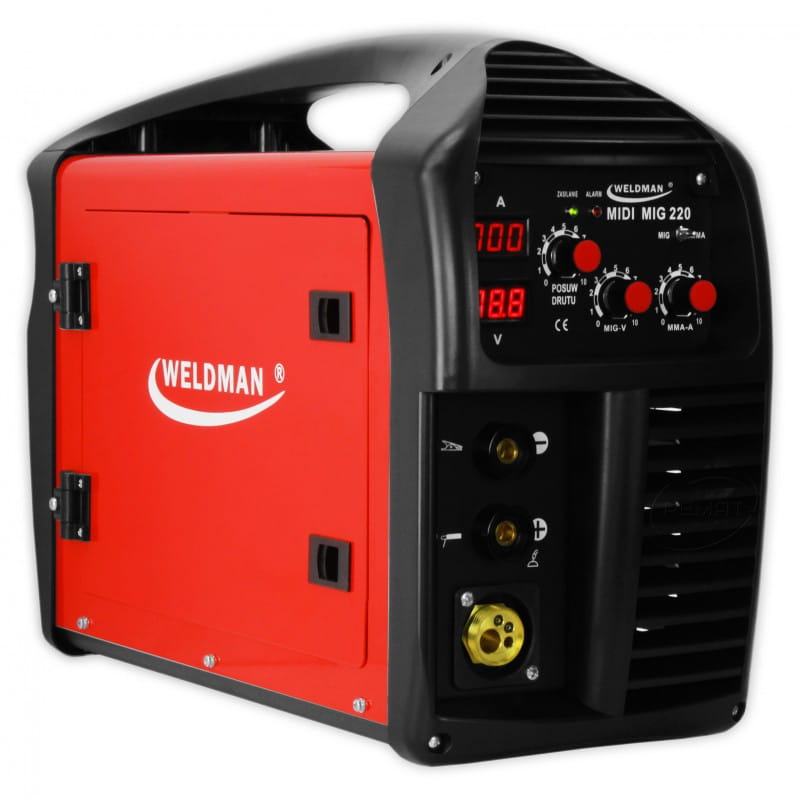

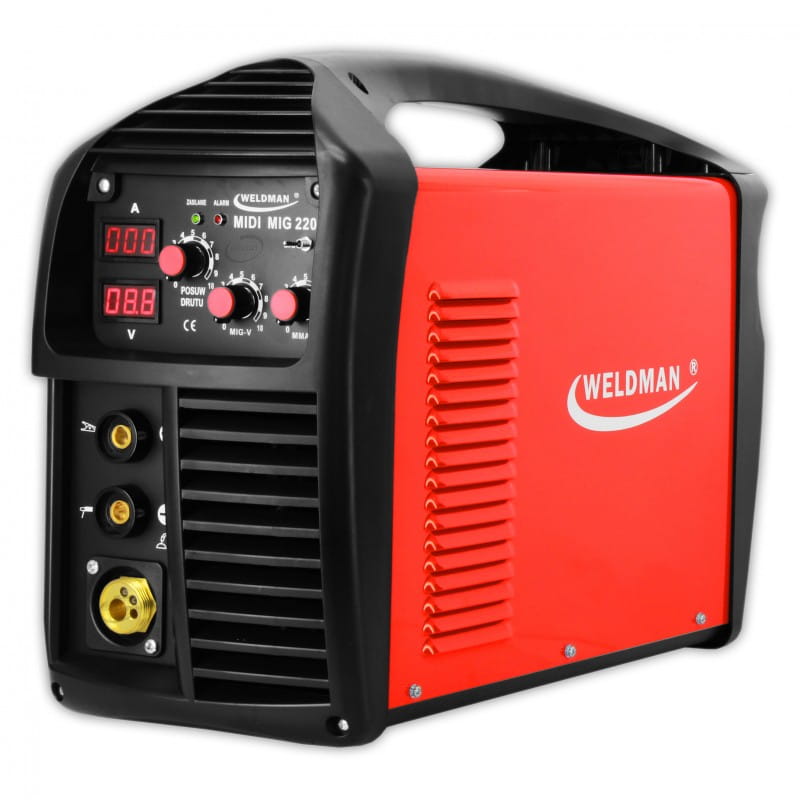

The Midi Mig 220 welder is characterized by a single-phase power supply and made according to the IGBT inverter technology.

This product is suitable for FLUX (without gas shield), MIG / MAG (gas shielded) and DC coated electrode welding.

The Midi Mig 220 semi-automatic welding machine has been designed for welding with 0.9 mm self-shielding wires, welding wires with a diameter of 0.6-1.0 mm, as well as with coated electrodes with a diameter of up to 4 mm.

TECHNICAL DATA

• Supply voltage [V]: AC 230 50Hz
• Power protection [A]: 25
• Manufacturing technology: IGBT
• Welding current [A]: MIG: 220 MMA: 200
• Duty cycle [%]: 60
• Welding voltage: 25V (MIG) / 24.4V (MMA)

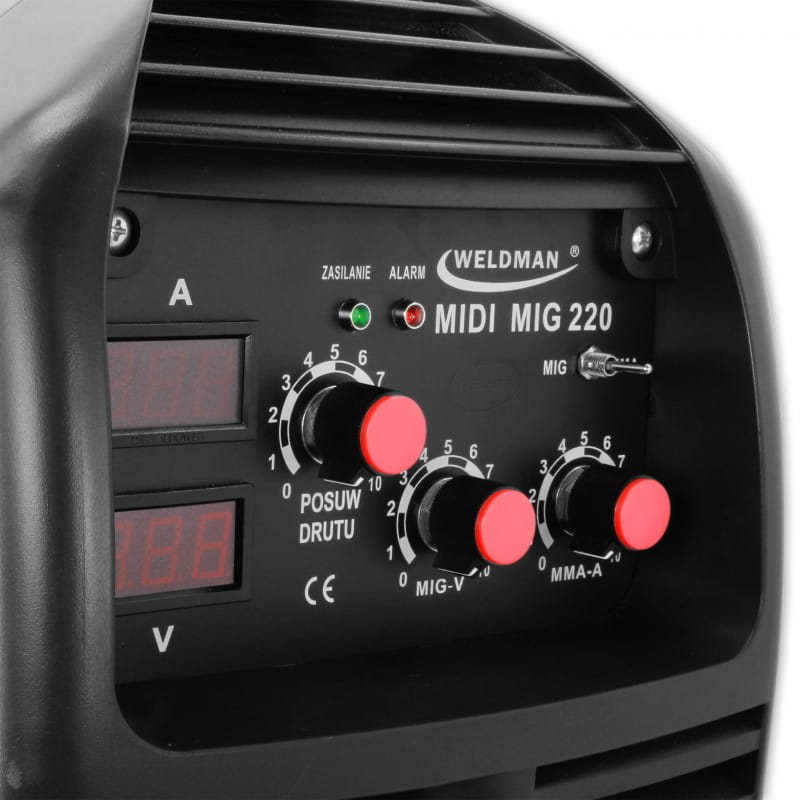

• Welding current control: Smooth
• Wed spool with wire [mm]: 100, 200
• Speed wire feed [m / min]: 2.5-13
• Weight [kg]: 19
• Dimensions [mm]: 550 x 240 x 420
• The degree of protection of the housing is IP21
• Socket Type: 10-25

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

REVERSING POLARITY - WELDING WITHOUT GAS

Due to the variable polarity, it is possible to weld with the FLUX method with flux-cored wire without shielding gas. The wire is filled with flux that produces protective gases during welding.

EUROCONNECTOR

Standard connection of welding torches, which enables the connection of various types of torches (e.g. prepared for aluminum welding or brazing by replacing the Teflon insert and contact tip)

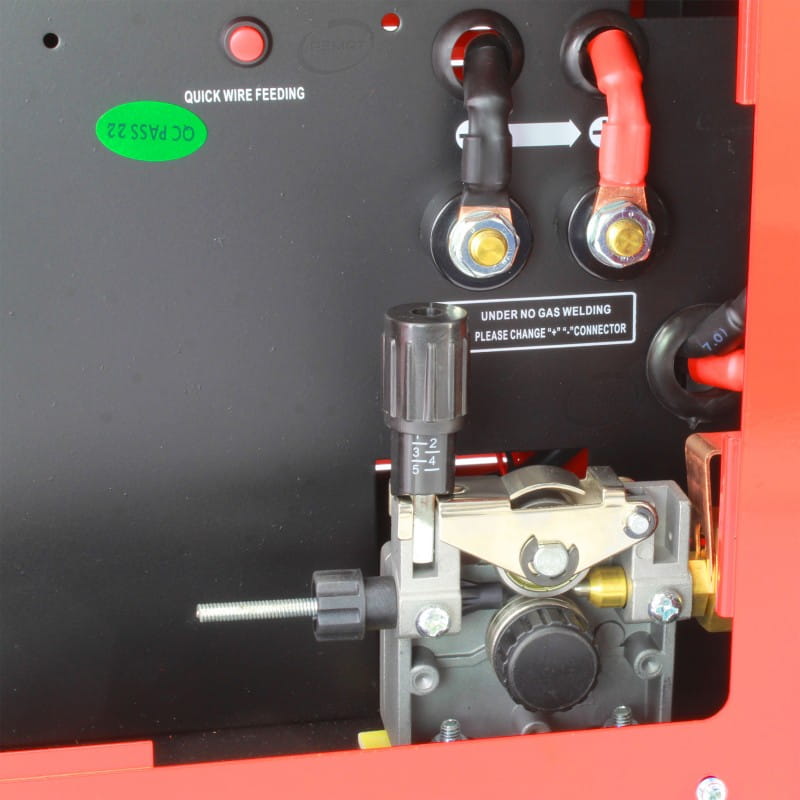

2 ROLL WIRE FEED

Professional feeder made of die-cast aluminum, has a powerful motor that allows for stable wire feeding without jamming. It is equipped with 2 drive rollers.

It is designed for heavy-duty work and for longer handles than plastic feeders, which cannot handle 4 or 5 meter handles.

LEVEL OF SECURITY

IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP21 means that the device is adapted to work in closed rooms.

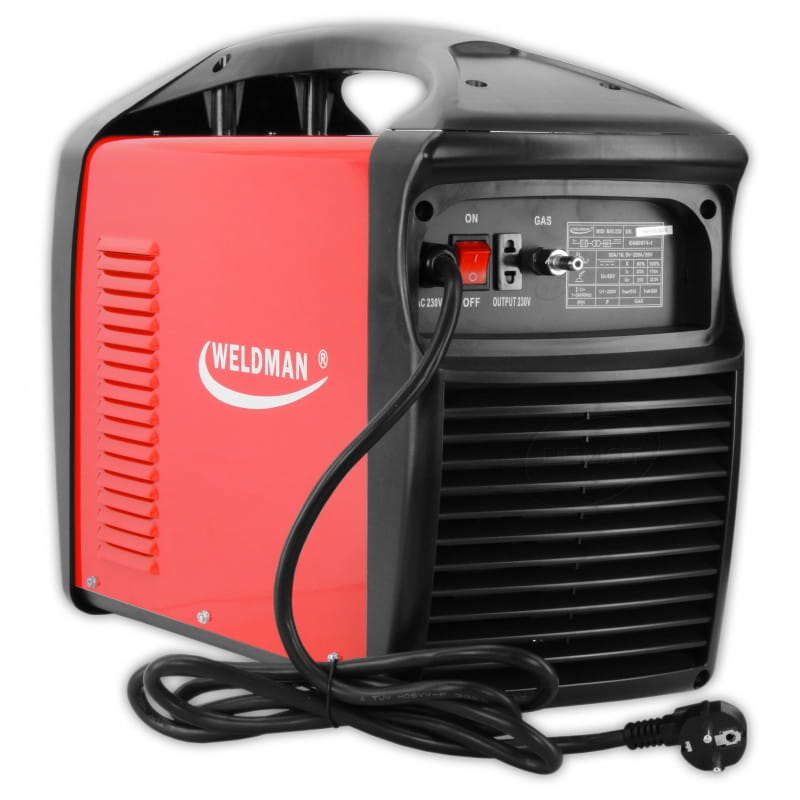

COOLING

The device has a fan cooling system, which significantly increases its efficiency.

WORK CYCLE

The duty cycle is based on a 10-minute period. 60% duty cycle means that after 6 minutes of operation, a 4-minute break is required. 100% duty cycle means that the device can work continuously without interruption
