Weldman ARC 203 - set no. 2

WELDMAN® ARC 203  - WELDING SET # 2

| Brand: Weldman | Welding methods: MMA | Power supply: 230V | Welding current: 200A | Efficiency: 60% |

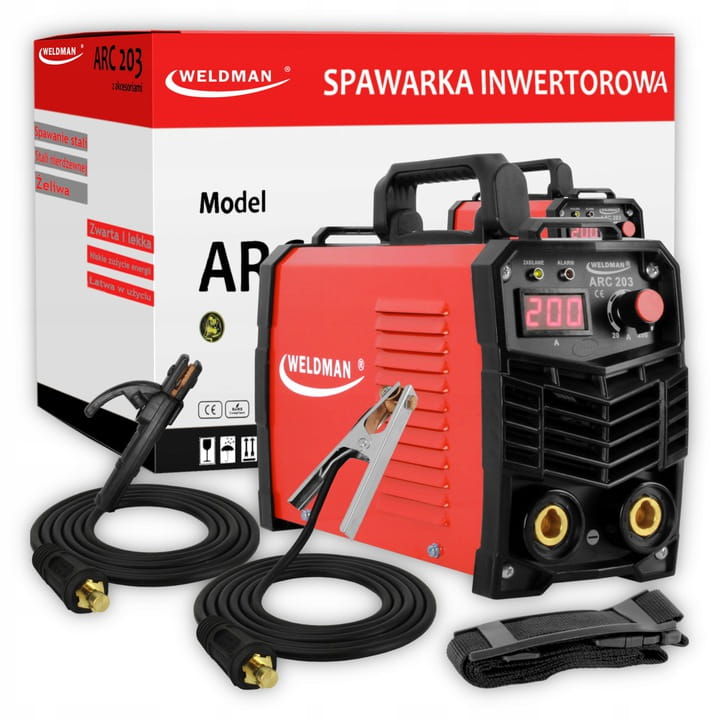

STANDARD EQUIPMENT

• Welder Weldman ARC 203
• Mass grip - 1.6 m
• Electrode holder - 2m
• User manual
• Warranty Card
• Welding shield

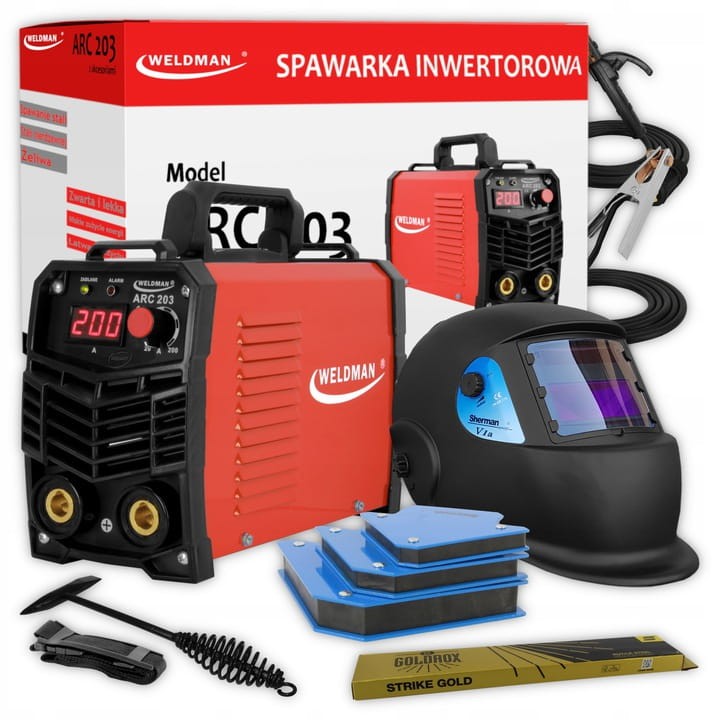

ADDITIONAL EQUIPMENT

• Sherman V1a welding helmet
• Welding angle small 12.5 kg
• Welding angle medium 25 kg
• Welding angle large 37.5 kg
• ESAB GoldRox electrodes 3.2mm 1kg
• Welding hammer

ARC 203 inverter welder for welding with coated electrodes with direct current (DC).

If you are one of the people who like proven and reliable products, be sure to read the following description of the ARC 203 inverter welding machine.

It is designed for welding with rutile and basic electrodes up to 4 mm of various grades of steel (low-carbon, low-alloy, stainless, etc.) and cast iron.

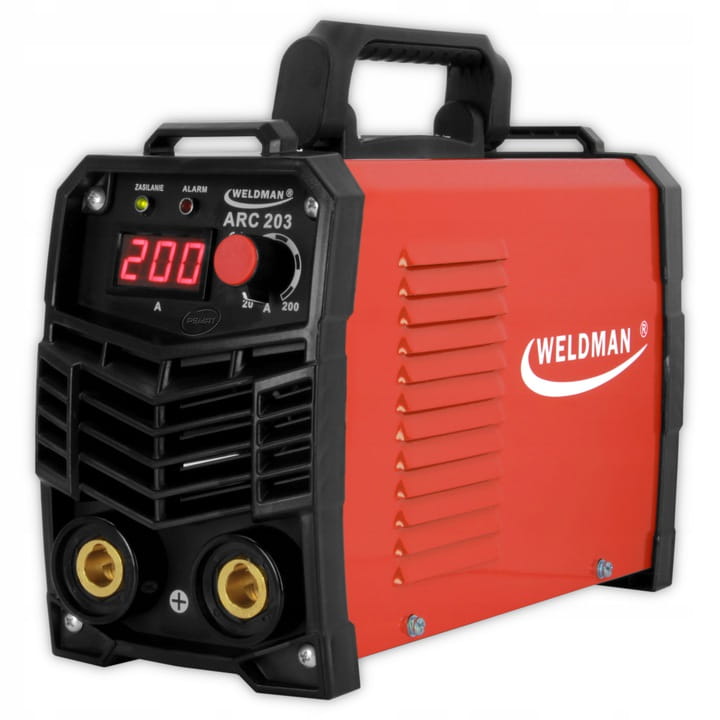

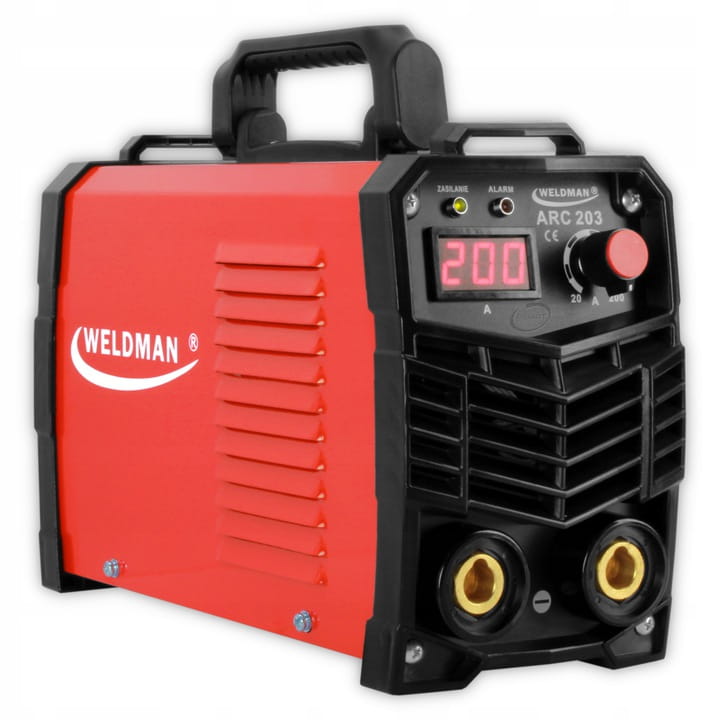

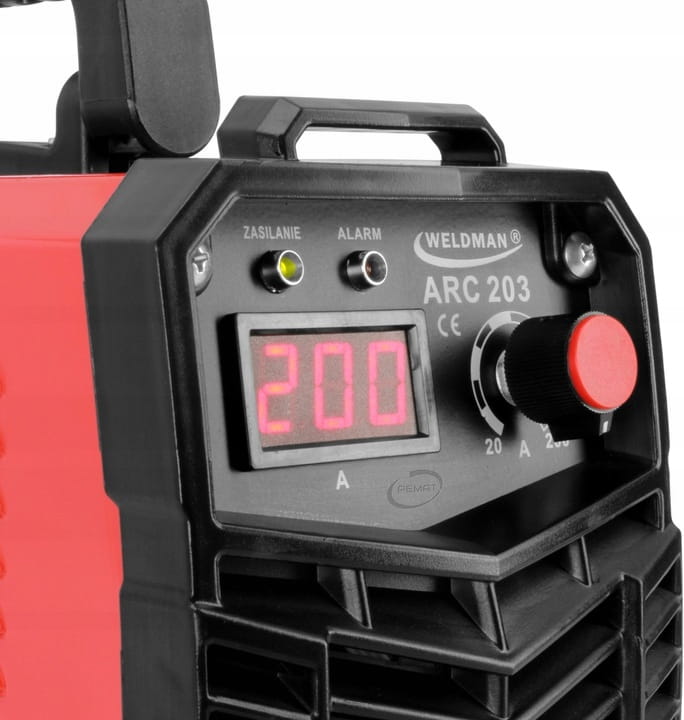

The Weldman ARC 203 welder has a digital display of the welding current, equipped with a simple lamp system.

LEDs LEDs on the front panel indicate the connection to power (green LED) or switched off due to overload (red LED).

During work, we will also certainly need an electronically controlled smooth regulation of the welding current and special protection of the equipment against overload.

TECHNICAL SPECIFICATIONS

• Supply voltage [V]: AC 230 50Hz
• Welding methods: MMA
• Manufacturing technology: IGBT
• Welding current [A]: 200
• Duty cycle [%]: 60
• Tension without load. [V]: 56
• Supply current [A]: 30
• Supply current ef. [A]: 23
• Welding current control: Smooth
• Weight [kg]: 3.5
• Dimensions (L x W x H) [mm]: 300 x 125 x 190

WORK CYCLE

The duty cycle is based on a 10-minute period. 60% duty cycle means that after 6 minutes of operation, a 4-minute break is required. 100% duty cycle means that the device can work continuously without interruption.

HOT START FUNCTION

The HOT START function is commonly known as hot start. It works when the arc is struck, causing the welding current to temporarily increase above the value set by the welder. HOT START is designed to prevent the electrode from sticking to the material and is a great help when starting the arc.

ANTI STICK FUNCTION

The ANTI STICK function is a short-circuit protection that reduces the welding current in case the electrode sticks to the workpiece. This makes it easier to detach and protects the device against damage.

ARC FORCE FUNCTION

ARC FORCE (arc dynamics): shortens the arc length when increasing the welding current, optimizing the transfer of the molten electrode drop to the workpiece, preventing the arc quenching when the electrode contacts the workpiece.
