Welder Fantasy Magic2 250A 4x4 LCD 400V

WELDER FANTASY MAGIC2 250A 4X4 LCD 400V

| Producer: Welder Fantasy | Welding methods: MMA, TIG LIFT, MIG | Power supply: 400V | Welding current: 250A | Efficiency: 60% |

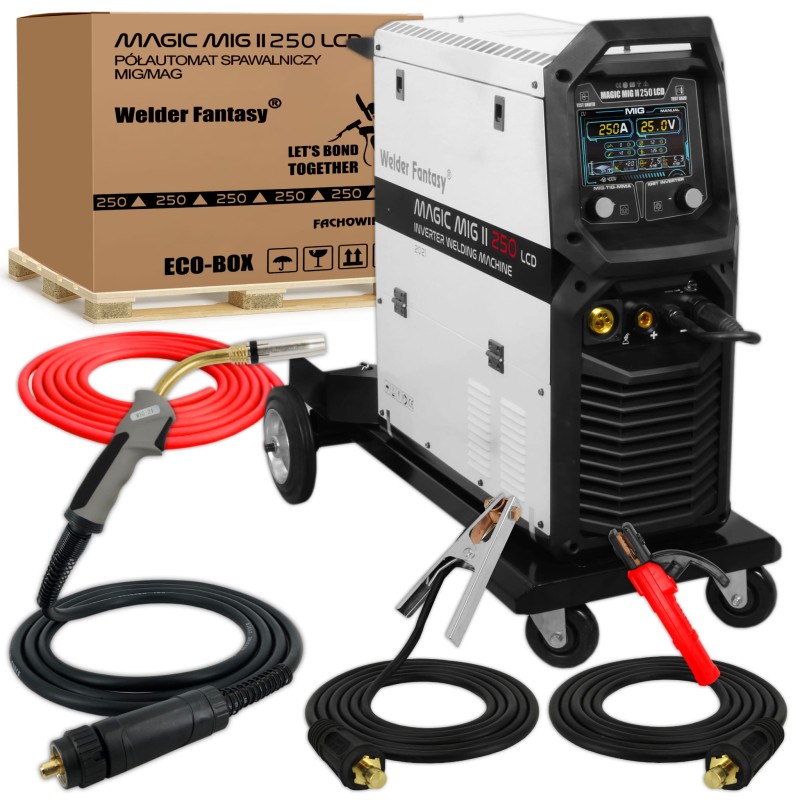

STANDARD EQUIPMENT:

• Welder Fantasy MAGIC MIG II 250 LCD 4x4,
• MIG / MAG welding torch 3m MB24 EURO,
• 2 rolls for steel wire 0.6 / 0.8
• 2 rolls for steel wire 1.0 / 1.2
• 2 rolls for aluminum wire 1.0 / 1.2
• 3m mass cable,
• 3m electrode cable,
• 5m gas hose,
• Manual and warranty card

WELDER FANTASY MAGIC2 250A 4X4 LCD

A modern, synergistic inverter source offering many possibilities in the performance of welding works. Its main advantages are the possibility of welding in synergic MIG / MAG mode.

Reliability and a wide range of applications of the devices make them satisfy even the most demanding users. Welder Fantasy MAGIC MIG II LCD 4x4 multifunction inverter semi-automatic welding machine is equipped with a 4-roll wire feeder. The device is designed for manual arc welding of metals and metal alloys using the following methods:

• MIG / MAG,
• FCAW
• TIG DC lift,
• MMA

An intuitive, easy-to-use control panel with a color display allows you to quickly set all the most important welding parameters. Thanks to the synergic settings, it is possible to automatically adjust the welding parameters to the diameter of the welding wire as well as the thickness and type of material.

The device has a smooth adjustment of voltage and welding current and is equipped with an overload thermal protection system that protects against excessive heating of the integrated circuits.

Thanks to the use of modern IGBT technology and high-quality components, Welder Fantasy MAGIC MIG II LCD 4x4 devices are ideal for professional welding works in industries such as automotive, metal structures and many others.

TECHNICAL DATA:

• Supply voltage [V]: 3 ~ 400
• Frequency [Hz]: 50
• Security [A]: 20
• Power consumption [kVA]: 9.2
• Power factor cosφ: 0.9
• Power cord diameter [mm2]: 4G 2.5

WELDING PARAMETERS:

• MMA welding current range [A]: 10 - 230
• TIG welding current range [A]: 10 - 250
• Welding current range MIG / MAG [A]: 50 - 250
• MMA output voltage [V]: 20.4-29.2
• TIG output voltage [V]: 10.4 - 20
• MIG / MAG output voltage [V]: 16.5 - 26.5
• Efficiency: 60% 250 A 100% 194 A.
• Welding wire diameter [mm]: 0.8 / 1.0 / 1.2
• Feeder type: 4R PROF.
• Wire spool diameter / weight: 200mm, 5kg; 300mm, 15kg

THE REMAINING:

• Insulation class: H.
• Housing protection class: IP21S
• Weight [kg]: 42
• Dimensions, height / width / length [mm]: 950/560/860

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

LEVEL OF SECURITY

The IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP21 means that the device is adapted to work in closed rooms.

MMA

A covered electrode method consisting of a metal core covered with a sheath. The welder feeds the electrode as it fuses to the workpiece so as to keep the arc of a constant length. The device allows welding with all types of electrodes, e.g. basic, cellulose, rutile or acid.

VRD

VRD (Voltage Reduction Device) function available in MMA mode. Increases safety and reduces the risk of electric shock.

ARC FORCE

Arc stabilization function by maintaining the voltage value of the welding arc regardless of its length and facilitating control of the amount of spatter.

PROTECTION AGAINST OVERHEATING

The IGBT module is protected against overheating by a protective system that switches off the machine's welding circuit. After a few minutes, the welding machine cools down to a temperature that allows it to be turned on again automatically.

MIG / MAG

Gas-shielded arc welding is one of the most widely used processes for the production of welded structures.

GAS-FREE WELDING

Thanks to the polarity reversal function, it is possible to weld without shielding gas with FCAW self-shielding wire. It is a method with the use of a self-shielding flux-cored wire for welding (in all positions) steel of normal and increased strength, not exceeding 510 MPa

REGULATION OF INDUCTION

It enables optimization of the arc characteristics depending on the thickness of the welded element as well as the welding method and conditions. This function is useful during MIG / MAG welding of thin elements, preventing them from burning out and brazing galvanized elements.

WORK CYCLE

The duty cycle is based on a 10-minute period. 60% duty cycle means that after 6 minutes of operation, a 4-minute break is required. Duty cycle of 100% means that the device can work continuously without interruption.

HOT START

At the moment of arc ignition, the welding current is temporarily increased in order to heat the material and the electrode at the contact point and to properly shape the penetration and the weld face in the initial stage of welding

SYNERGY

Welding with the MIG / MAG method using synergic settings. The device selects welding parameters depending on the selected type and thickness of the material. These parameters can be changed by the user in order to adjust the settings to their own needs.

TIG DC LIFT

Inert gas welding with a tungsten electrode. The use of this method enables the welding of all types of steel, i.e. carbon, alloy, stainless, acid-resistant steel, as well as copper alloys, e.g. bronze or brass.

2T / 4T

2T - Pressing the welding gun button will cause gas to pre-flow, then ignition the arc and start welding. When the button is released, the arc will be extinguished and gas will flow out.

4T - Pressing and releasing the welding gun button will pre-flow gas, then strike the arc and start welding. When the button is pressed and released again, the arc will be extinguished and the gas will flow out.

EUROCONNECTOR

Standard connection for welding torches, which enables the connection of various types of torches (e.g. prepared for aluminum welding by replacing the Teflon insert and contact tip).

SPOOL GUN

Possibility to use a SPOOL GUN type handle with a built-in wire feeder (the handle is not included in the set). The method enables welding with both gas shield and self-shielding wire without gas.
