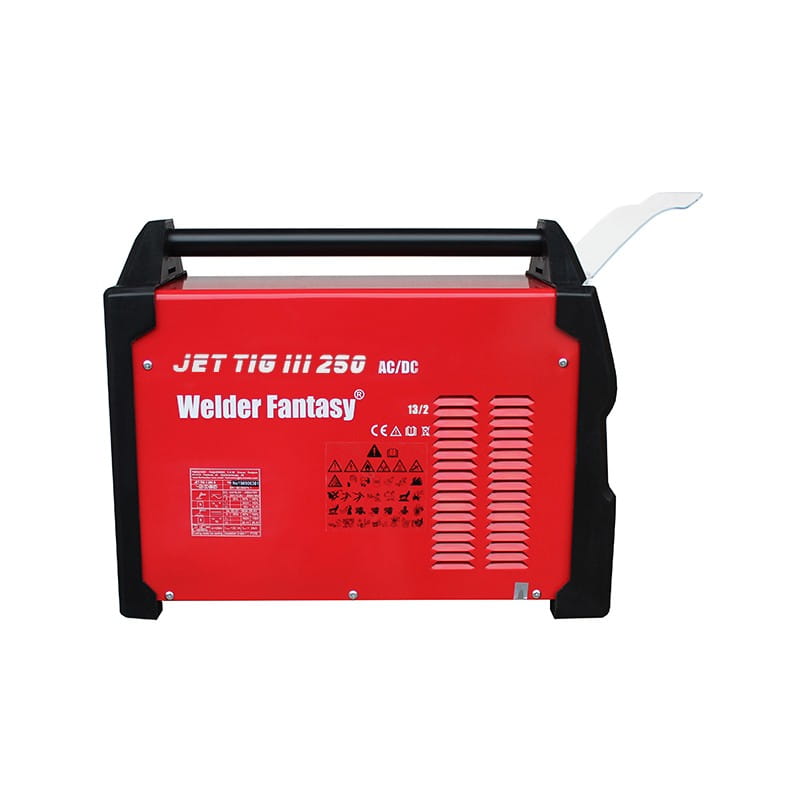

Welder Fantasy JET TIG III AC/DC 250 3in1 IGBT PFC PLASMA Inverter welder

Industrial devices Welder Fantasy JET TIG III are microprocessor welding sources based on IGBT technology, adapted to welding of carbon steel, stainless steel, acid resistant steel, copper, brass, magnesium, titanium, all aluminum alloys and plasma cutting.

Machines powered by 230 V are equipped with a PFC module (Power Factor Correction) - enabling the power factor to be increased to values ​​as close as possible to 1 in order to reduce losses in industrial lines.

The device of the highest class sets new standards among AC / DC welding machines, and the friendly control panel ensures selection of all necessary work parameters.

JET TIG III AC / DC 250 welder allows you to work in the following modes:

• MMA DC +
• MMA DC-
• MMA VRD DC +
• MMA VRD DC-
• TIG DC
• TIG DC PULS
• TIG AC
• TIG AC PULS
• PLASMA CUT

NEW ADDED PANEL FUNCTIONS:

• AC / DC EASY SETUP - POSSIBILITY TO USE SCHEDULED FACTORY SETTINGS
• NORMAL SETUP - WELDING PARAMETERS ADJUSTED ACCORDING TO INDIVIDUAL NEEDS
• POSSIBILITY OF CHOOSING THE FALI SHAPE:
• * ADVANCED SQUARE - rectangular
• * SOFT SQUARE - trapezoidal
• * TRIANGULAR - triangular
• * SINE - sinusoidal
• ADVANCED AC - MIXED CURRENT AC DC
• FULL MMA CONTROL
• PFC
• VRD
• HOT START TIME
• HOT START AMPS
• PLASMA CUTTING FUNCTION
• PLASMA PILOT ARC (HF)
• GAS TEST

FEATURES:

• compact, compact construction,
• small dimensions and low weight,
• IGBT transistors,
• 60% efficiency,

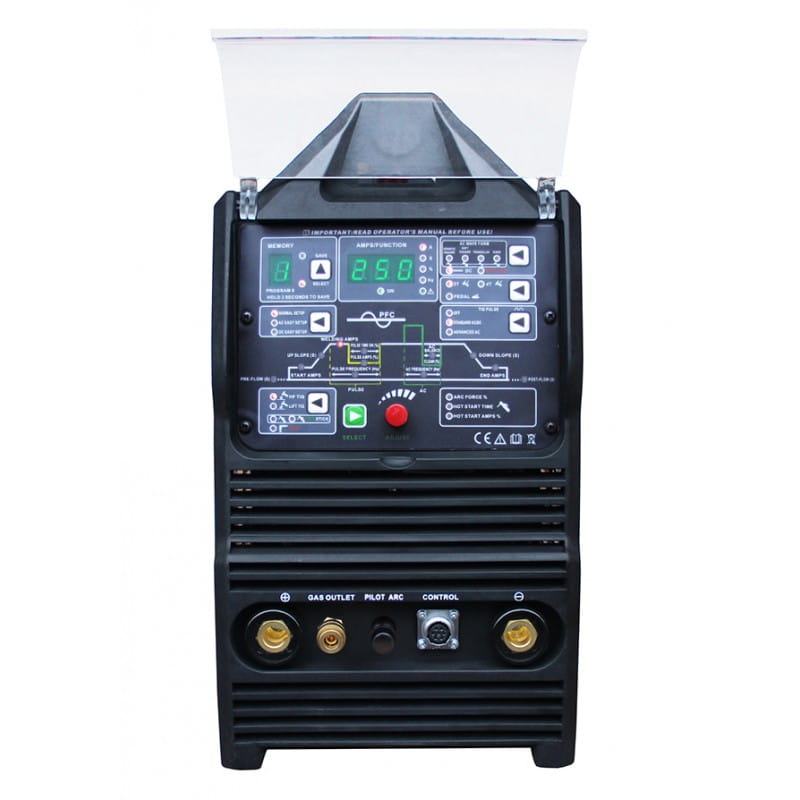

• easy to use control panel,
• LCD display of welding parameters,
• LCD display of an individual program,
• possibility to save full 9 programs,

A very wide range of welding functions:

• HF - the device is equipped with an ioniser, which allows for a contactless inspection of the welding arc.
• PRE and POST GAS - gas flow before and after welding.
• UP and DOWN SLOPE - rising and falling of the welding current.
• STANDARD AC / DC - pulse current function, is mainly used for welding thin elements (even 0.1mm thick), metals with a low melting point, e.g. lead, or welding in forced positions. Other advantages of pulsating current welding are a smaller zone of heat influence, higher stability of the welding arc and a greater depth of penetration and an improved appearance of the weld face.
• ADVANCED AC - AC DC mixed welding -. In a single cycle there is a transition between alternating current AC and DC with negative polarity DC (-). This cycle is repeated throughout the welding process. Mixed current welding is particularly useful when joining elements of different thicknesses. The noise emission is also reduced compared to AC welding.
• HOT START - a function that increases the current when the arc is ignited, facilitating the start of welding.
• ARC FORCE - a function that stabilizes the welding process, by maintaining the value of the welding arc, regardless of its length, and facilitates control over the amount of spatter.

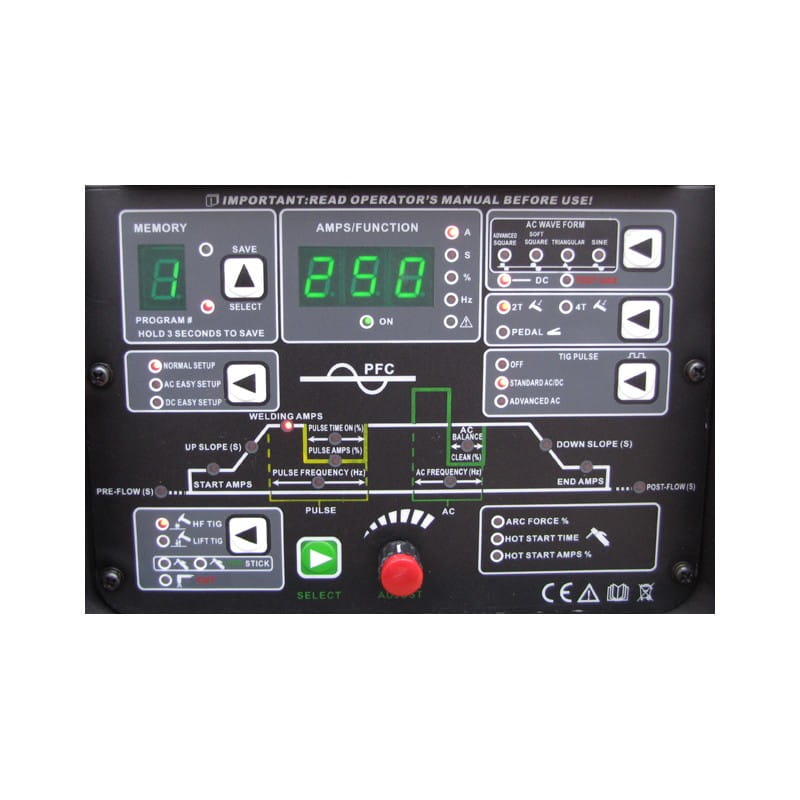

PANEL FUNCTIONS:

• MMA current,
• AC TIG current,
• TIG DC current, PULSE,
• pre-gas, post-gas,
• current rise and fall,
• HOT START,
• MMA ARC FORCE,
• 2-TAKT and 4-TAKT,
• HF contact and contact LIFT ignition,
• possibility of connecting a remote control,
• dual-function ADJUST knob (coarse and fine adjustment).

COMPLETE SET CONTAINS:

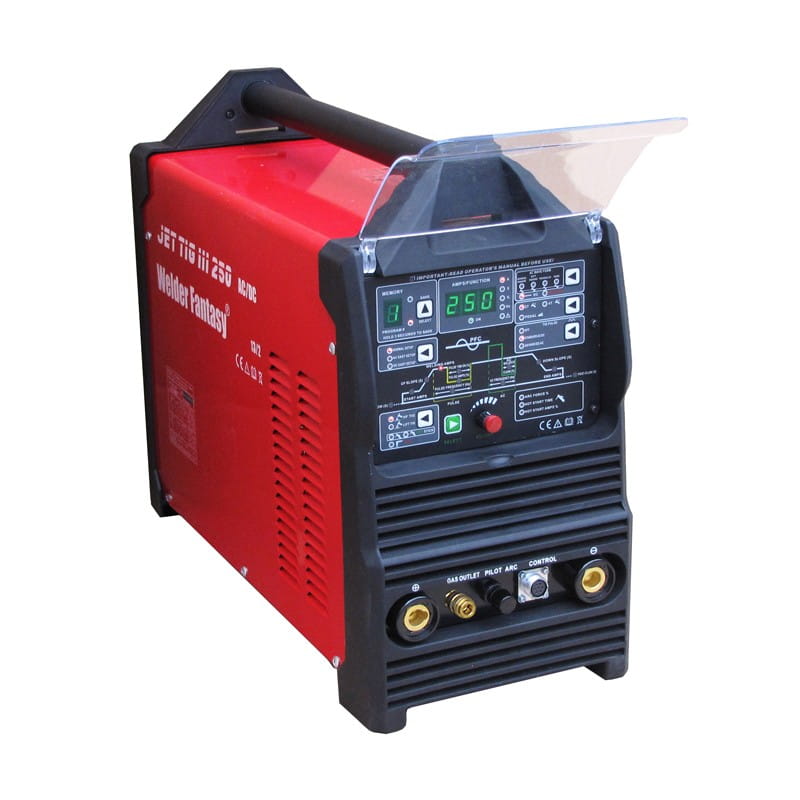

• Welder Fantasy JET TIG III AC / DC 250 IGBT welder,

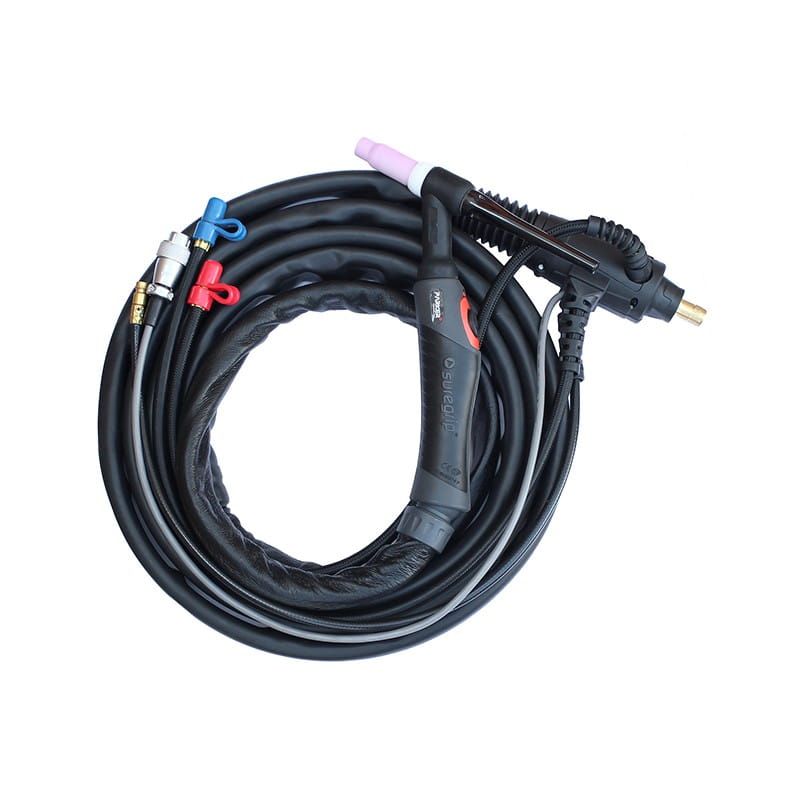

• TIG PARKER SUPERGRIP SGT18 FLEX TIG holder 4 m (NOTE: liquid-cooled handle, the set does not contain a radiator! Cooler is available under the code: 0550.02)

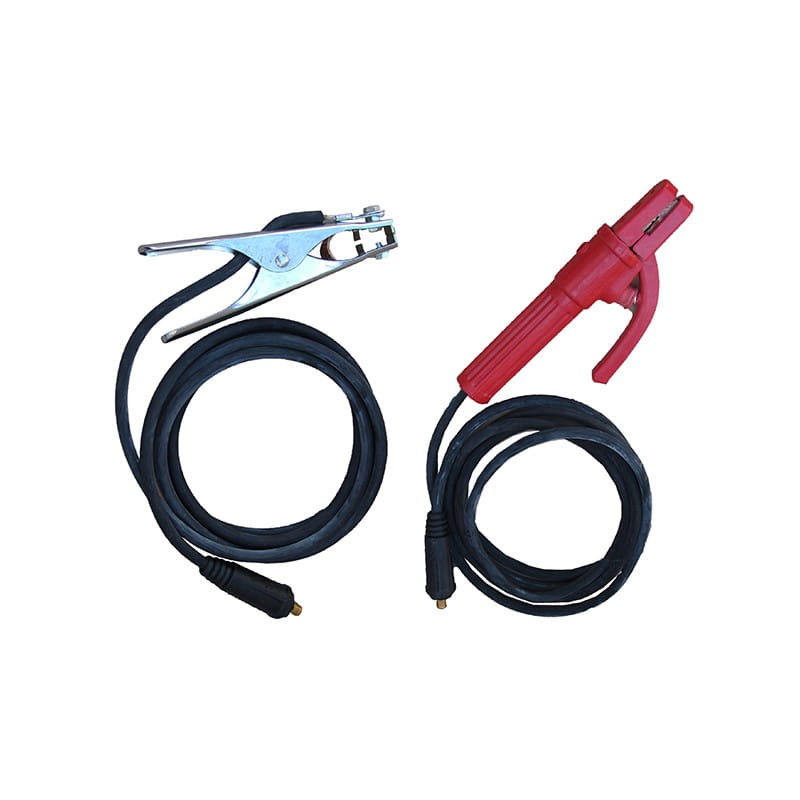

• mass holder 3m,
• electrode holder 3m,

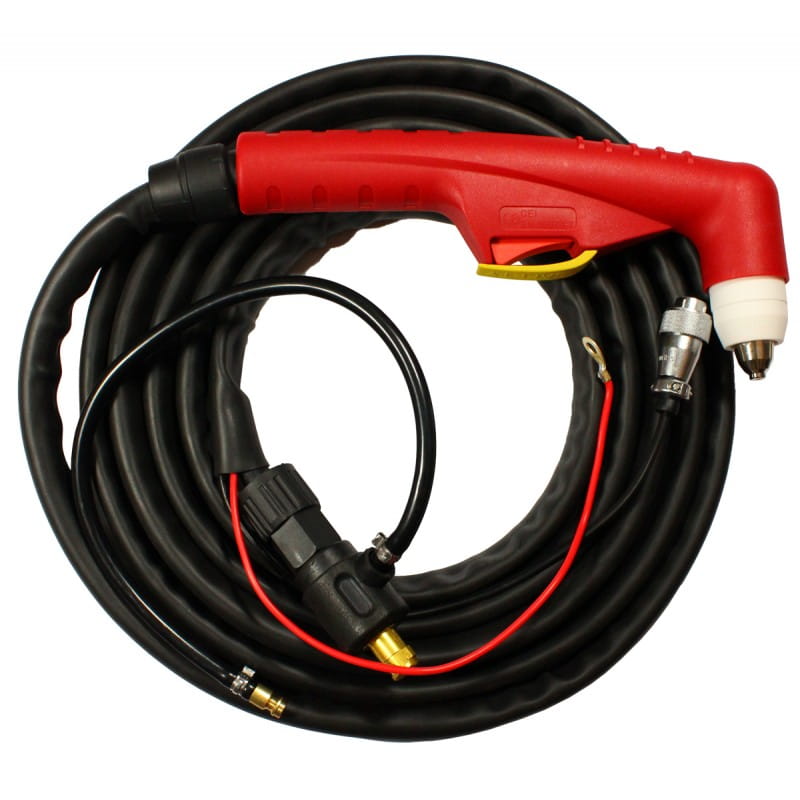

• plasma holder P80-4m,

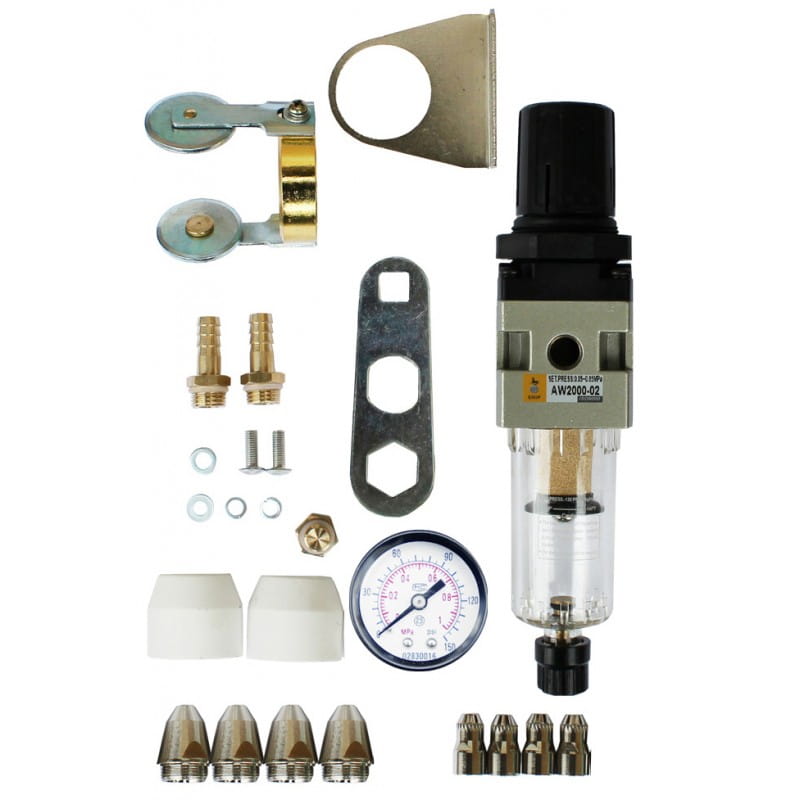

• additional operating elements (nozzles, connectors, sleeves, electrodes),
• trolley for plasma torch,
• filter-reducer of compressed air,
• instruction manual and warranty card.

TIG PARAMETERS

• Welding current range TIG DC 3-250 A
• Welding current range TIG AC 5-250 A
• Efficiency of TIG 60% 250 A
• Efficiency of TIG 100% 200 A
• Waveform waveform: rectangular, trapezoidal, triangular, sinusoidal
• AC current frequency adjustment 20-250 Hz
• Current balance in AC mode 5% -90%
• Gas initial / final mode AC / DC 0-25 / 0-50 s
• Initial / final current DC 5-200 / 3-200 A mode
• Initial / final current AC 5-200 A mode
• Rise / fall time AC / DC mode 0-25 s / 0-25 s
• Pulse base AC / DC 3-100%
• Pulse duration AC / DC 5% -95%
• Frequency of mixed current Advanced AC 0.1-10 Hz
• Pulsing current frequency DC standard 0.1-500 Hz
• Pulse frequency. Standard AC Square (rectangular) 0.1-250 Hz
• Pulse frequency. Standard AC Soft Square, Triangular, Sine 0.1-10 Hz
• Arc ignition function TIG HF (ionizer) / LIFT

MMA PARAMETERS

• Idle speed MMA / VRD MMA 70/21 V
• Welding current range MMA DC + / DC- 20-200 A
• MMA efficiency 60% 200 A
• MMA efficiency 100% 160 A
• ARC FORCE 0-100%
• HOT START TIME 0-2 sec
• HOT START AMPS 0-100%

PLASMA PARAMETERS

• Cutting current range: 20-60 A
• PLASMA efficiency 60%: 60 A
• Efficiency PLASMA 100%: 50 A
• Cutting thickness: 18 mm
• Air intake: 150-300 l / min
