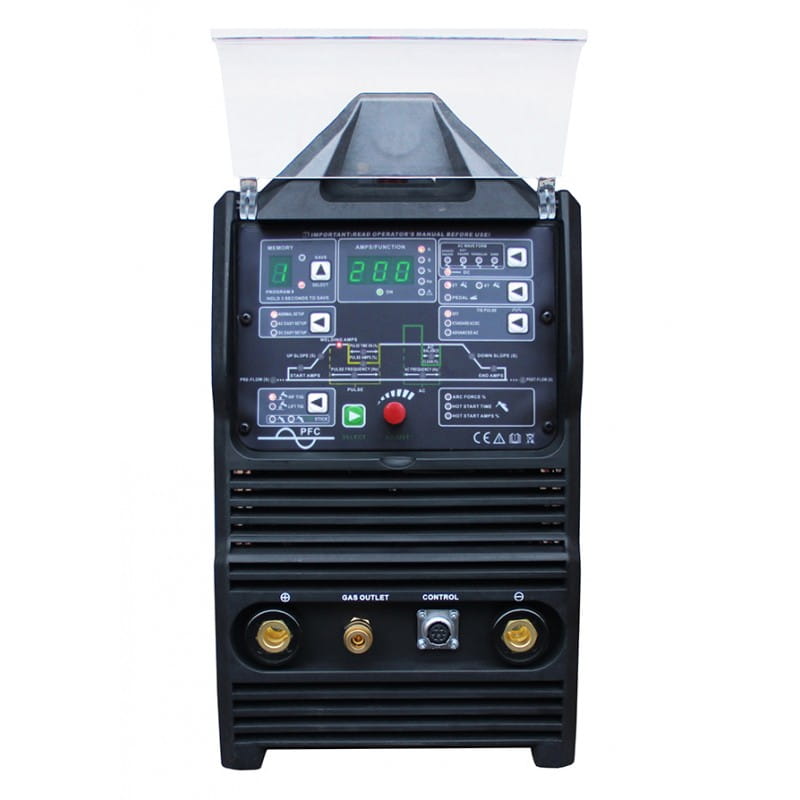

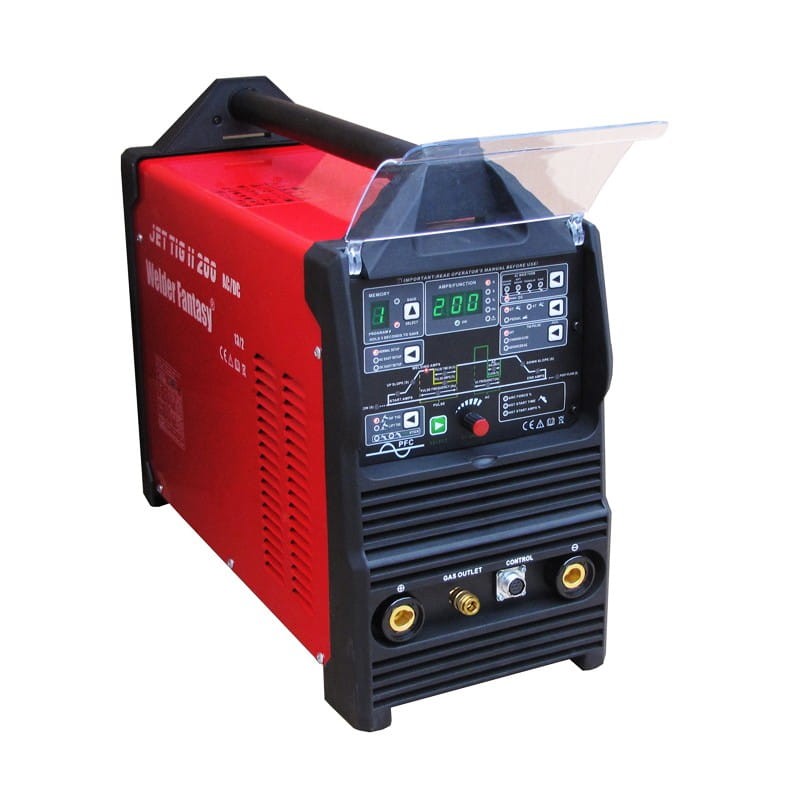

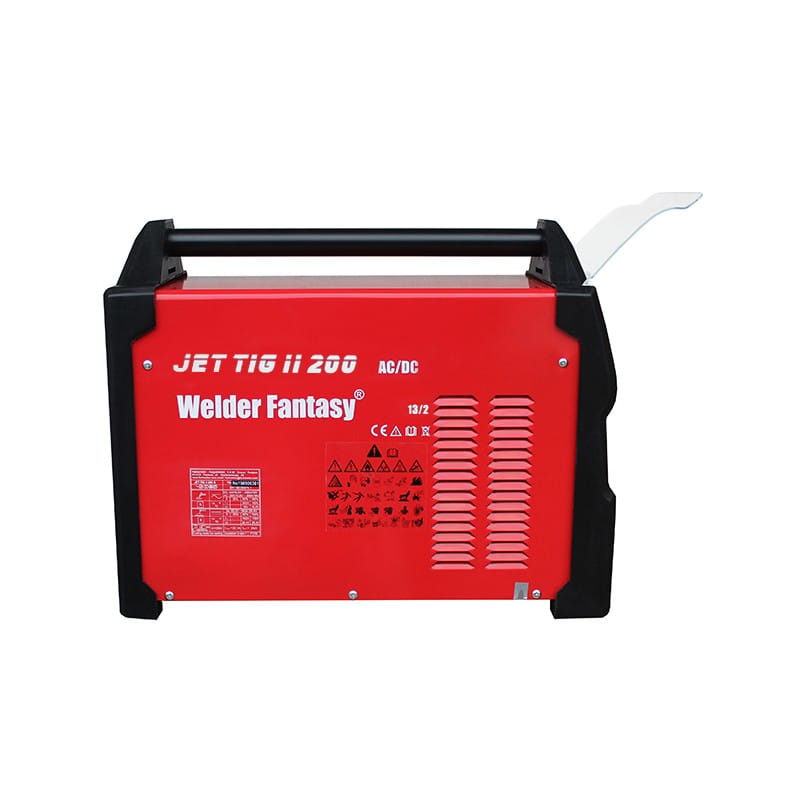

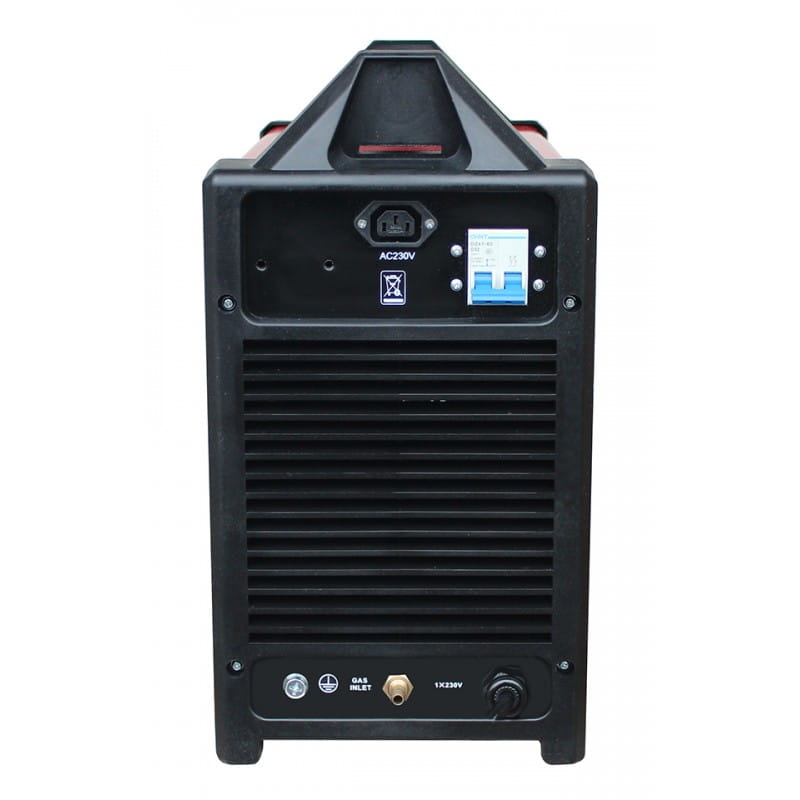

Welder Fantasy JET TIG II AC/DC 200 IGBT PFC Inverter welder

JET TIG II AC / DC 200 IGBT PFC Welder Fantasy WELDING MACHINE + Parker handle

| Producer: Welder Fantasy |  Welding methods: MMA, TIG | Power supply: 230V | Welding current: 200A | Efficiency: 60% |

COMPLETE SET INCLUDES:

• Welder Fantasy JET TIG II AC / DC 200 IGBT welder,

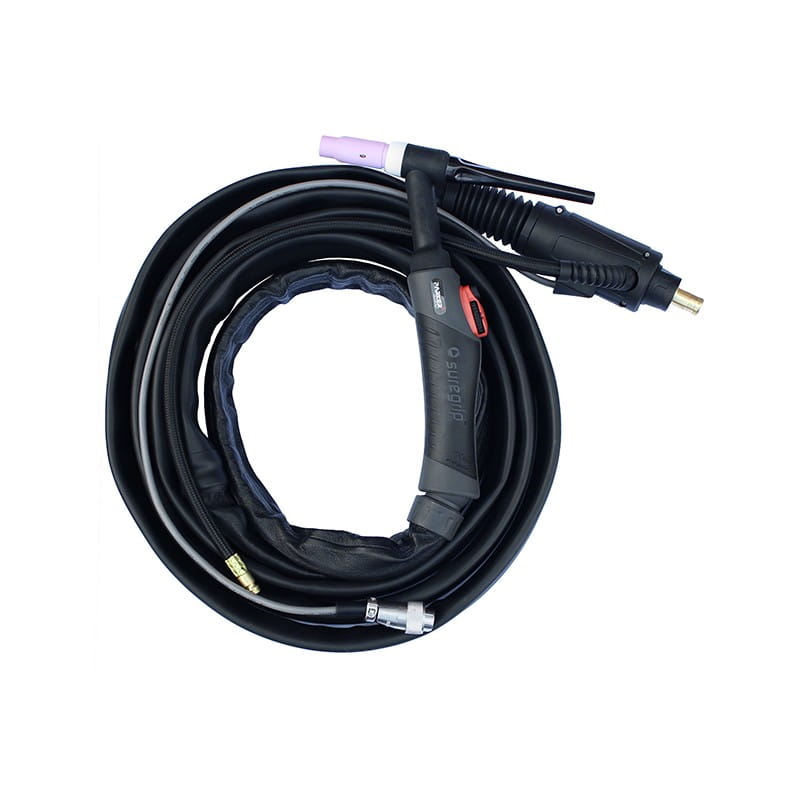

• welding holder PARKER SUREGRIP SGT26 FLEXTIG SRT 26-4m- with adjustable welding current,

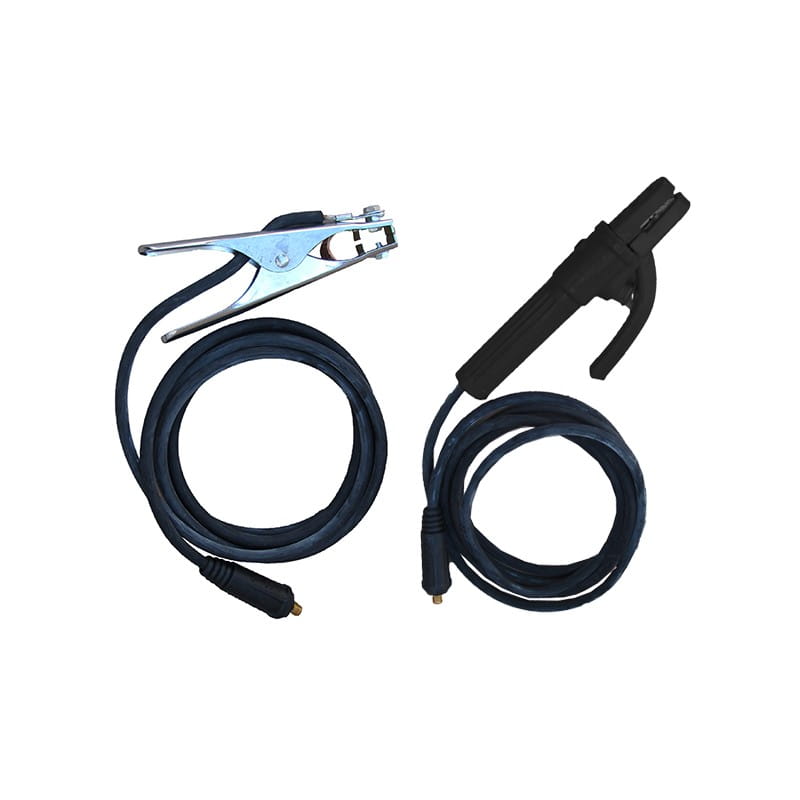

• mass holder 3m,
• 3m electrode holder,
• user manual in Polish and warranty card.

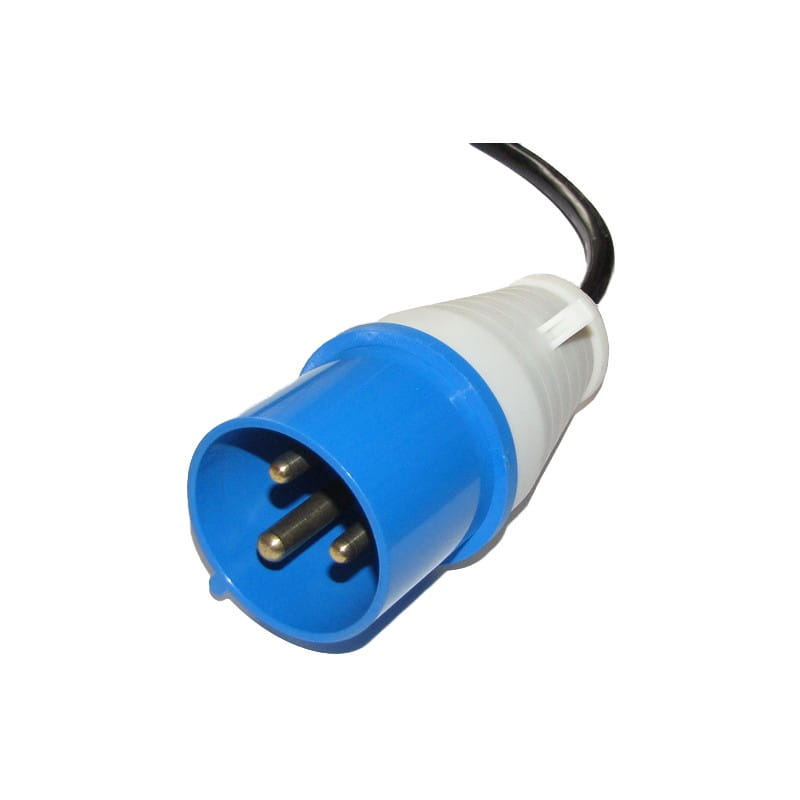

• The device is equipped with an industrial plug 230V 32A.

Industrial, inverter Welder Fantasy JET TIG II devices are microprocessor-based welding sources based on IGBT technology, suitable for welding carbon, stainless, acid-resistant steels, copper, brass, magnesium, titanium.

PFC (Power Factor Correction) - enabling the increase of the power factor to a value as close as possible to 1 in order to reduce losses in industrial lines.

DEVICE FEATURES:

• compact design,
• IGBT transistors,
• efficiency 60%,
• easy-to-use control panel,
• welding parameters LCD display,
• individual program LCD display,
• the ability to save the full 9 user programs,
• very wide range of welding functions

The device enables welding with the following methods:

• TIG DC lift-arc - In the TIG lift-arc mode, the arc is ignited when the electrode comes into contact with the workpiece. In TIG DC mode, the current is constant.
• TIG DC HF - eliminating the possibility of contamination of the weld with tungsten.
• TIG DC PULS lift-arc - arc ignition takes place through contact of the electrode with the material to be welded, the pulse function allows you to weld thin elements by periodically changing the current intensity.
• TIG DC PULS HF - non-contact HF ignition using an ionizer in the TIG DC PULS mode
• TIG AC lift-arc - a function that allows aluminum to be welded through the use of alternating current, which performs the cathodic cleaning function when welding aluminum.
• TIG AC HF - a similar function that allows aluminum welding with alternating current, ignition is made contactless by high-frequency current generated by the ionizer
• TIG AC PULS lift-arc - welding in this mode is a combination of alternating current and pulse, which allows you to weld very thin aluminum parts. The arc is struck by contact of the electrode with the welded material.
• TIG AC PULS HF - a function that enables welding of thin-thickness elements made of aluminum. Non-contact ignition thanks to the use of an ionizer.
• TIG AC + DC - This cycle is repeated throughout the welding process. Welding with mixed current is especially useful when joining elements of different thickness ..
• MMA DC + - The arc is ignited by touching the tip of the electrode to the workpiece. MMA DC + means positive polarity welding.
• MMA DC- - the difference between MMA DC + is that the polarity in MMA DC - mode is negative, so the heat distribution is opposite -
• MMA VRD DC- - available in MMA DC mode- VRD function, the difference is negative polarity.

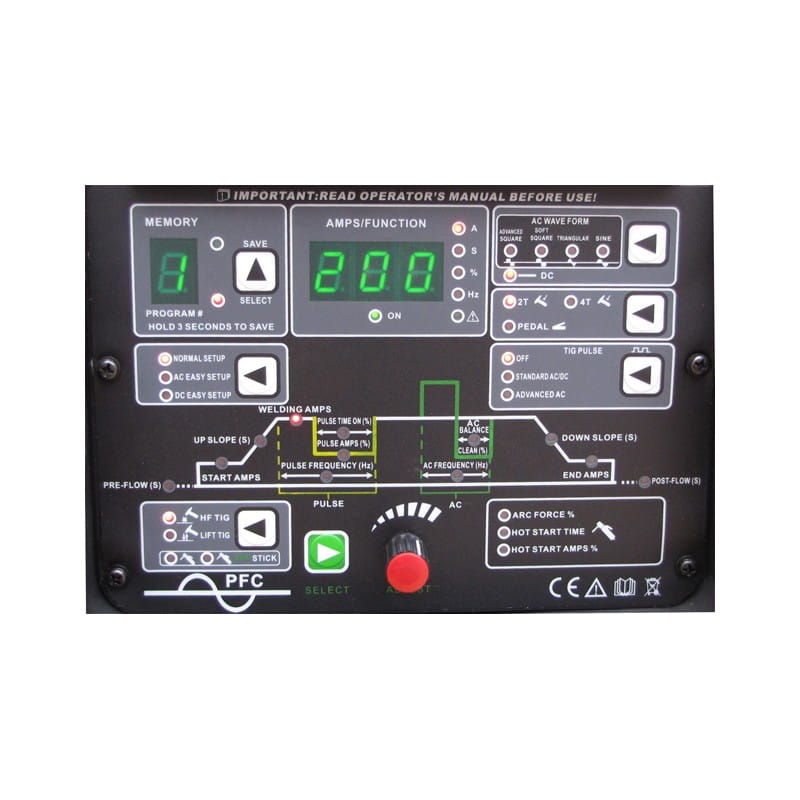

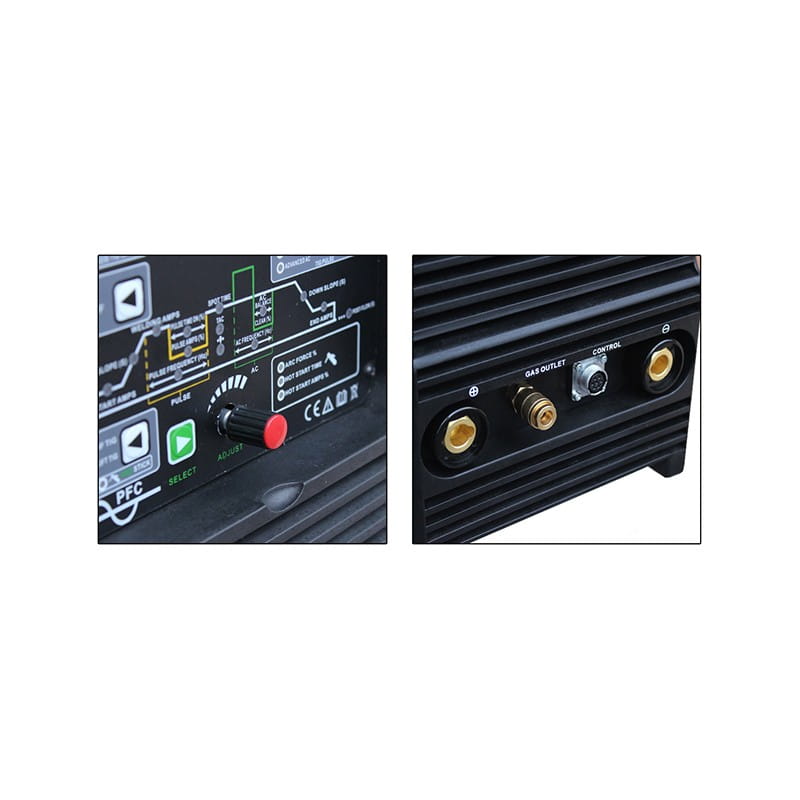

PANEL FUNCTIONS:

User-programmed factory settings for aluminum and steel welding (9 memory channels), waveform selection:

• ADVANCED SQUARE - rectangular shape of the alternating current wave allows for welding aluminum with the addition of magnesium
• SOFT SQUARE - a trapezoidal AC waveform is used for welding aluminum with silicon
• TRIANGULAR - setting the triangular current waveform is optimal for welding thin elements, including anodized aluminum
• SINE - sinusoidal waveform is recommended for welding 99.999% pure aluminum

AC / DC EASY SETUP - possibility to use pre-programmed factory settings.

NORMAL SETUP - welding parameters set according to individual needs.

HOT START - a function that increases the current when the welding arc strikes, making it easier to start welding.

ARC FORCE - short-circuit current control - causes that shortening the arc length is accompanied by an increase in the welding current, which stabilizes the arc.

HF - the device is equipped with an ionizer, which allows for contactless inspection of the welding arc.

PRE and POST GAS - gas flow before and after welding.

UP and DOWN SLOPE - rising and falling welding current.

PULSE - pulse welding mode.

VRD - Voltage Reduction Device - reduces the idle voltage. Increases safety and reduces the risk of electric shock.

PFC - Power Factor Correction - reducing power losses in transmission lines.

TECHNICAL DATA

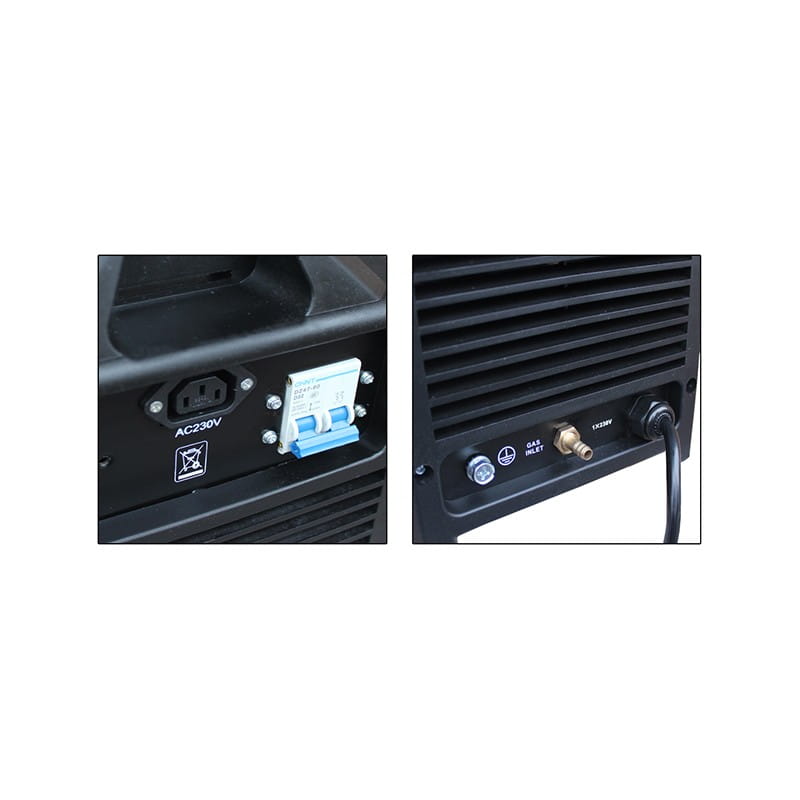

• Supply voltage: 1 ~ 230V 50 Hz
• TIG / MMA power consumption: 6 kVA
• Fuse, delayed, min .: 20 A.
• Insulation class: F.
• Housing protection degree: IP21S
• Dimensions: 575 * 230 * 435 mm
• Weight: 26 kg

TIG PARAMETERS

• TIG DC welding current range: 3-200 A
• TIG AC welding current range: 5-200 A
• TIG efficiency 60%: 200 A.
• TIG efficiency 100%: 160 A.
• Waveform waveform: rectangular, trapezoidal, triangular, sinusoidal
• AC current frequency regulation: 20-250 Hz
• Current balance in AC mode: 5% -90%
• Gas start / stop AC / DC mode: 0-25 / 0-50 sec
• Start / stop current DC mode: 5-200 / 3-200 A
• Start / end current AC mode: 5-200A
• Rise / Fall time AC / DC mode: 0-25s / 0-25s
• Pulse base AC / DC: 3-100%
• Pulse Duration AC / DC: 5% -95%
• Advanced AC mixed current frequency: 0.1-10 Hz
• Pulse current frequency Standard DC: 0.1-500 Hz
• Pulse frequency Standard AC Square (rectangular): 0.1-250 Hz
• Pulse frequency Standard AC Soft Square, Triangular, Sine: 0.1-10 Hz
• TIG arc ignition function: HF (ionizer) / LIFT

MMA PARAMETERS

• Idle voltage MMA / VRD MMA: 70 / 21V
• MMA DC + / DC- welding current range: 20-160 A
• MMA efficiency 60%: 160 A.
• 100% MMA efficiency: 130 A.
• ARC FORCE: 0-100%
• HOT START TIME: 0-2 sec
• HOT START AMPS: 0-100%
