Welder Fantasy Bi-Pulse 321 4x4 2in1

Welder Fantasy is a brand created by the FACHOWIEC company in 1991. TIG / MMA inverter welding machines, MIG / MAG welding semiautomatic machines, plasma cutters and other equipment designated for the Welder Fantasy brand have been recognized by thousands of workshops and enterprises in Poland and abroad for many years. The Welder Fantasy brand is:

• The highest quality of devices,
• Guarantee of reliability,
• High work parameters,
• Leader on the Polish market

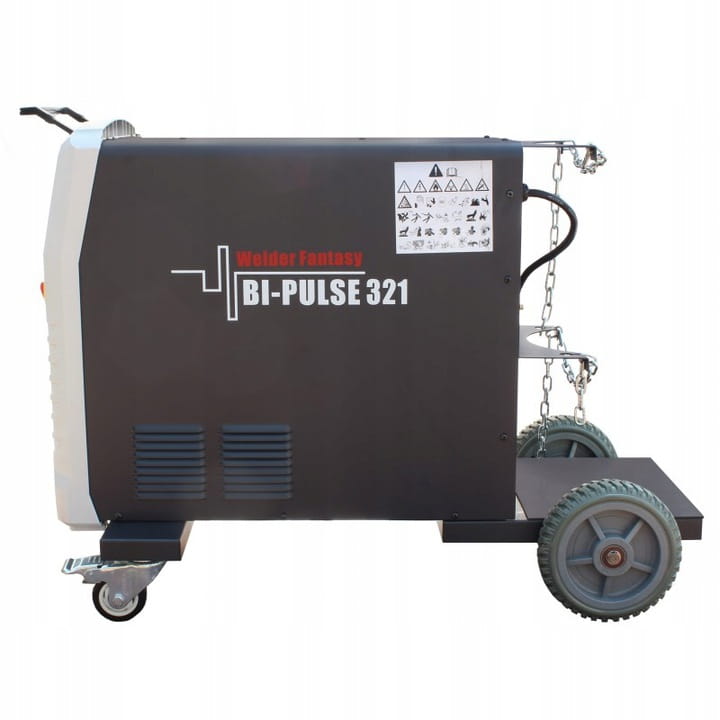

The Welder Fantasy BI-PULSE 321 is a modern, synergistic inverter source offering many possibilities while performing welding work. Its main advantages are the possibility of welding with the use of single or double pulsation current in MIG or MAG mode and the possibility of using synergistic settings.

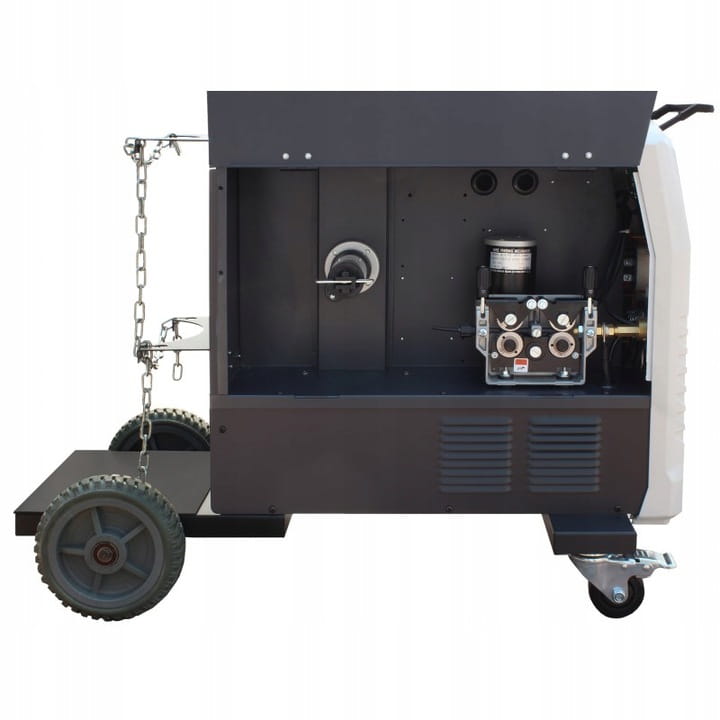

Reliability and a wide range of device applications make them satisfy even the most demanding users. Welder Fantasy BI-PULSE 321 multifunctional inverter semi-automatic welder, equipped with a 4-roll wire feeder, is designed for manual arc welding of metals and metal alloys by:

• MIG / MAG with the dual heartbeat option,
• MIG / MAG with the option of a single pulse,
• MIG / MAG - continuous welding,
• Spot welding SPOT,
• FCAW - self-shield wire welding,
• MMA

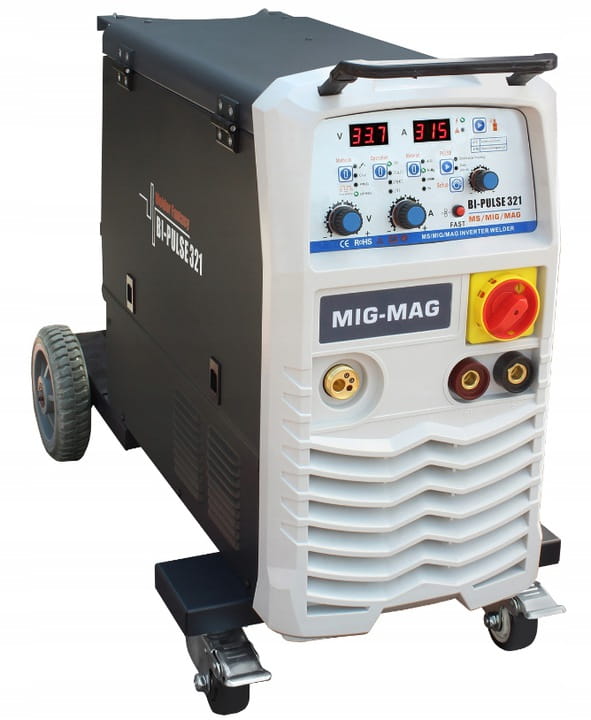

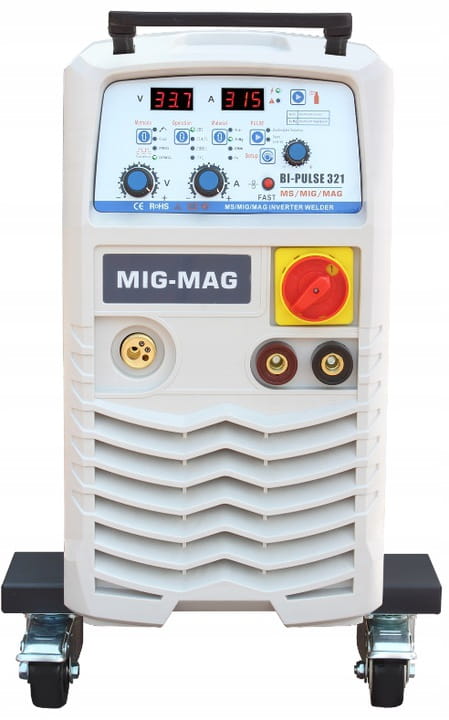

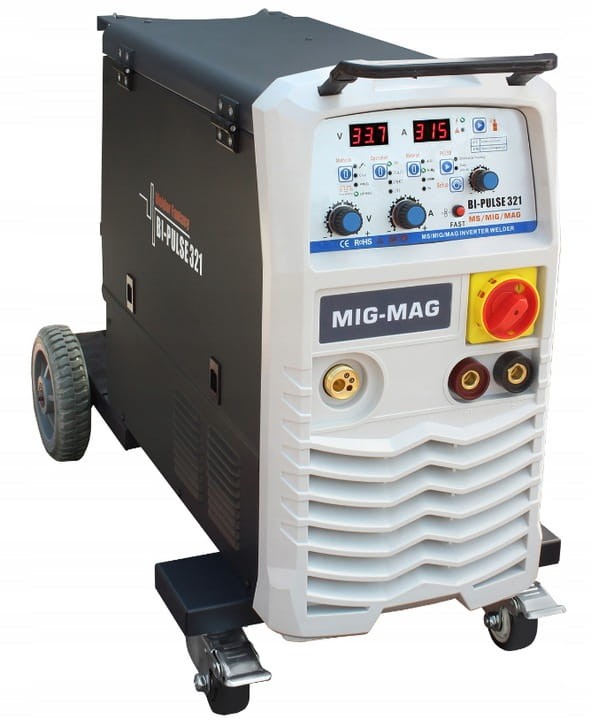

The intuitive, easy-to-use control panel allows you to quickly set all the most important welding parameters. Thanks to synergic settings, it is possible to automatically adjust the welding parameters to the wire diameter and shielding gas. After selecting the gas in which we want to weld, the display shows information on the welding wire diameters available in the program. The individual welding programs are detailed in the table below.

The device has a smooth voltage and current adjustment and is equipped with an overload thermal protection system protecting against excessive heating of integrated circuits.

Thanks to the use of modern IGBT technology and high-quality components, BI-PULSE 211 devices are ideally suited for professional welding work in industries such as automotive, metal constructions and many others.

IGBT technology - Insulated Gate Bipolar Transistor - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field effect transistors with high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

MIG / MAG - Arc welding in gas shields is one of the most commonly used processes of manufacturing welded structures. The semiautomatic welding process consists in melting the edges of the work piece and the material of the hot-melt electrode with the heat of the electric arc glowing between the electrode in the form of a solid wire and the welded detail in the inert gas or active gas shield.

MIG PULSE - an advanced form of welding, which uses the best of the forms of transfer of melted electrode material to a welded object. In contrast to short circuits, pulse welding does not create spatter or threaten with cold "bugs". Welding pulse positions are not limited because they are derivatives of globular or spray forms, and their use is definitely more efficient. By cooling the spray arc process, pulsed MIG is able to expand the welding range, and a smaller heat input does not cause problems with burning thin materials. MIG PULSE is one of the best welding processes for a wide range of metal applications and types.

MIG DOUBLE PULSE - Welding with the MIG / MAG method with a double pulse, we obtain a high level of appearance of the face (scales effect). In addition, the use of automatic wire feeding affects the welding performance. The MIG / MAG method with a double pulse allows you to adjust the current pulsation (pulse balance) and to adjust the wire feed speed. Thanks to this, we improve the appearance of the weld. When welding with the MIG / MAG method with a double pulse, current pulses occur in two ranges. The sequential circuit of our devices automatically combines two levels of pulses: hot and cold.

The benefits of using the MIG MAG method with a double pulse are:

• MIG / MAG welding with double pulse is faster than the TIG method.
• MIG / MAG welding with double pulse achieves high aesthetics as TIG.
• MIG / MAG welding with double pulse causes less deformation than TIG method.

AUTO - synergic settings - automatic adjustment of welding parameters such as welding arc voltage and current and wire feed speed. With one knob, the user adjusts all of the parameters listed at the same time.

FCAW - Thanks to the polarity reversal function, welding without shielding gas is possible with the FCAW self-shielding wire. It is a method using a self-shielding core wire for welding (in all positions) steel with normal and increased strength, not exceeding 510 MPa. The self-shielding wire can be used in single and multi-layer welding processes, using power sources with both flat and falling characteristics. The wire is intended for general production works, also in field conditions, and for welding structures that are not subject to impact requirements. Welding current DC (-).

MMA - a method in which a coated electrode is used, consisting of a metal core coated with a cover. The welder feeds the electrode as it fuses to the work piece to maintain a constant length arc and at the same time moves its melting end along the welding line. The device allows welding with all types of electrodes, eg alkaline, cellulose, rutile or acid.

MMA VRD - available in MMA mode, the VRD function (Voltage Reduction Device), which reduces the rest voltage (idling) of the secondary circuit of the device. Increases safety and reduces the risk of electric shock. The function switches the welding power supply on and off when the resistance between the electrode tip and the welding element is measured during welding.

Additional features:

• Regulation of inductance in the MIG / MAG method in the range -10 - 10 - Properly selected welding inductance contributes to the reduction of spatter. It depends on the diameter of the welding wire, the shielding gas used, the current and the welding position. The reduction of the inductance makes the arc more stable and concentrated, and the increase contributes to the formation of a more liquid pool and reduction of spatter. Properly selected is characterized by a stable arc, uniform transfer of liquid metal droplets, maintaining a constant size of the weld pool and a characteristic repetitive sound without splashes or explosions.
• Spot welding SPOT - time welding function, used for tacking details, thanks to which equal length of welding welds can be obtained.
• ignition of the arc through:

2T - two-stroke,

4T - four-act,

4Ts - four-tact special - used for welding aluminum alloys.

• adjustable heart rate in the range 0 - 5Hz,
• regulation of the pulse balance in the range of -10 - 10%,
• regulation of parameters U1, I1 - arc voltage and start current and U2, I2 - final voltage and current, i.e. filling the crater.
• BURN BACK - function preventing the electrode wire from being welded to the current terminal by temporarily extruding the wire after the welding process. The device allows you to set the burn back time in the range of 0-10s.
• HOT START - a function that facilitates the start of welding in both MMA and MIG / MAG modes. At the moment of the arc ignition, the welding current is temporarily increased in order to warm up the material and the electrode in the place of contact and the proper shape of the penetration and the weld face in the initial stage of welding.
• PRE GAS - adjustable shielding gas shielding time before welding in the range of 0 - 20s.
• POST GAS - regulation of the shifting gas flow time after welding in the range of 0 - 20s.
• ANTI STICK - function preventing sticking of the electrode to the material being welded in the MMA function.

COMPLETE SET CONTAINS:

• Power source Welder Fantasy model BI-PULSE 321,

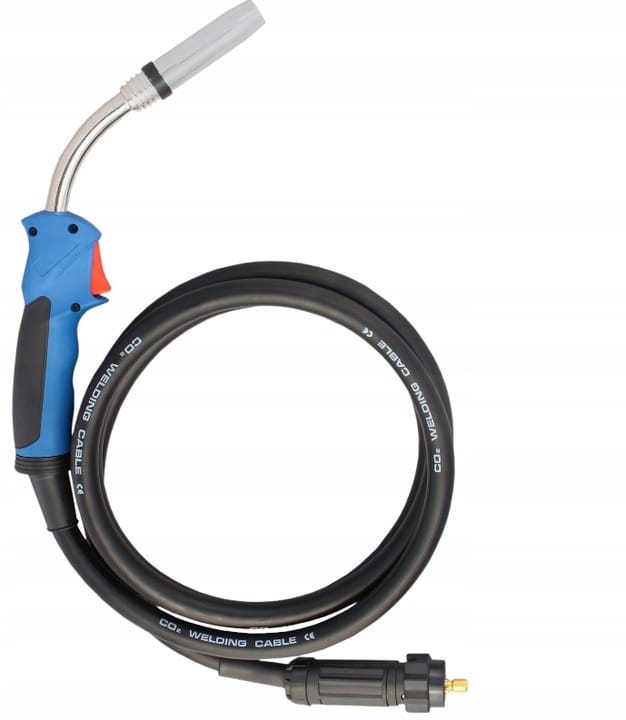

• MIG / MAG welding holder 3m EURO,
• 2.5 m ground cable,
• electrode wire 2.5 m,
• CO2 reducer / argon with preheater,
• 4 rollers for aluminum wire 1.0mm and 1.2mm,
• 4 rollers for aluminum wire 1.2mm and 1.6mm,
• 4 rollers for steel wire 1.0mm and 1.2mm,
• shielding gas line,
• instructions in the Polish language and warranty card.
