Welder Fantasy Bi-Pulse 211 4x4 2in1

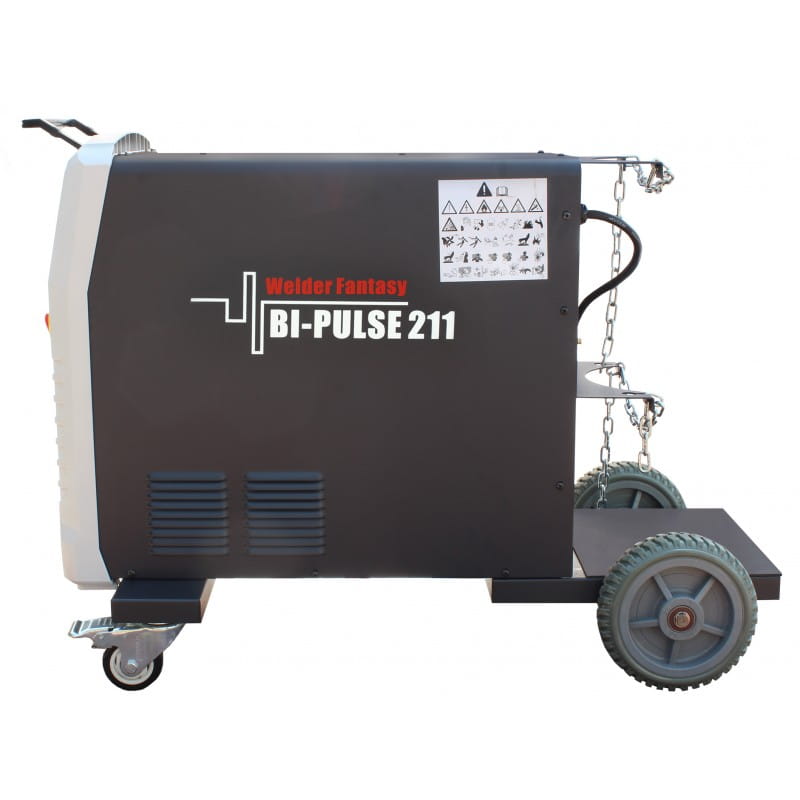

WELDER FANTASY BI-PULSE 211

| Brand: Welder Fantasy | Welding methods: MIG / MAG, MMA, FLUX  | Power supply: AC 230V | Welding current: 200A | Efficiency:  60% |

STANDARD EQUIPMENT

• Welder Fantasy power source, model BI-PULSE 211,

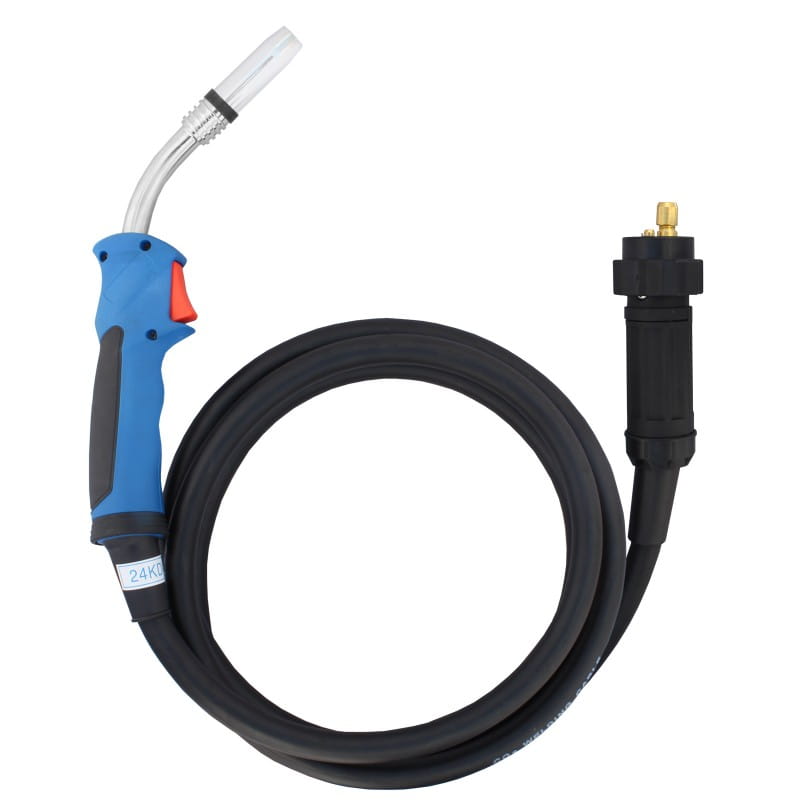

• MIG / MAG welding holder 3m EURO,

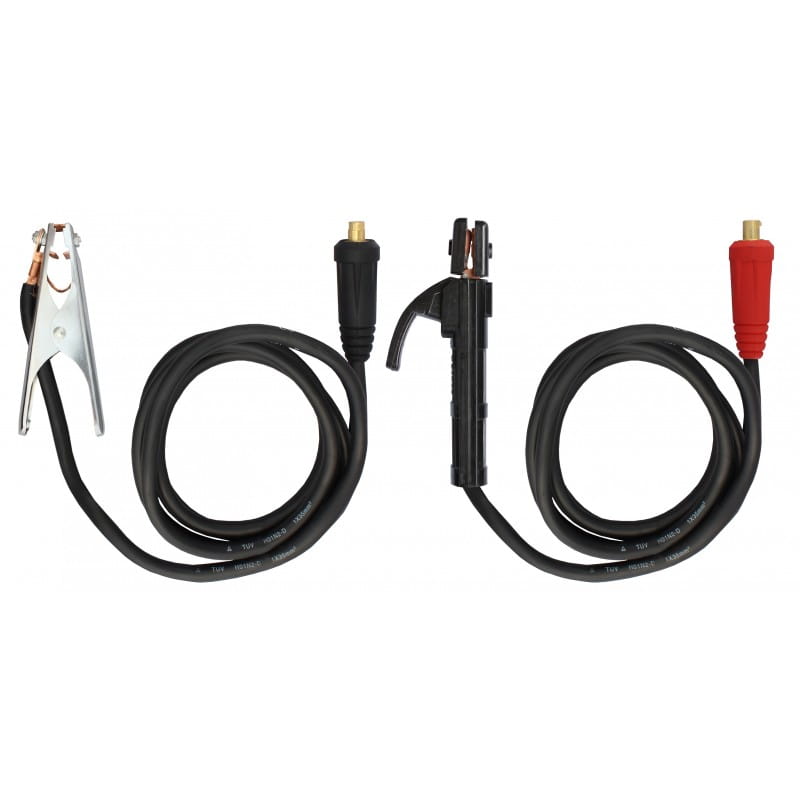

• mass cable 2.5m,
• 2.5 m electrode cable,

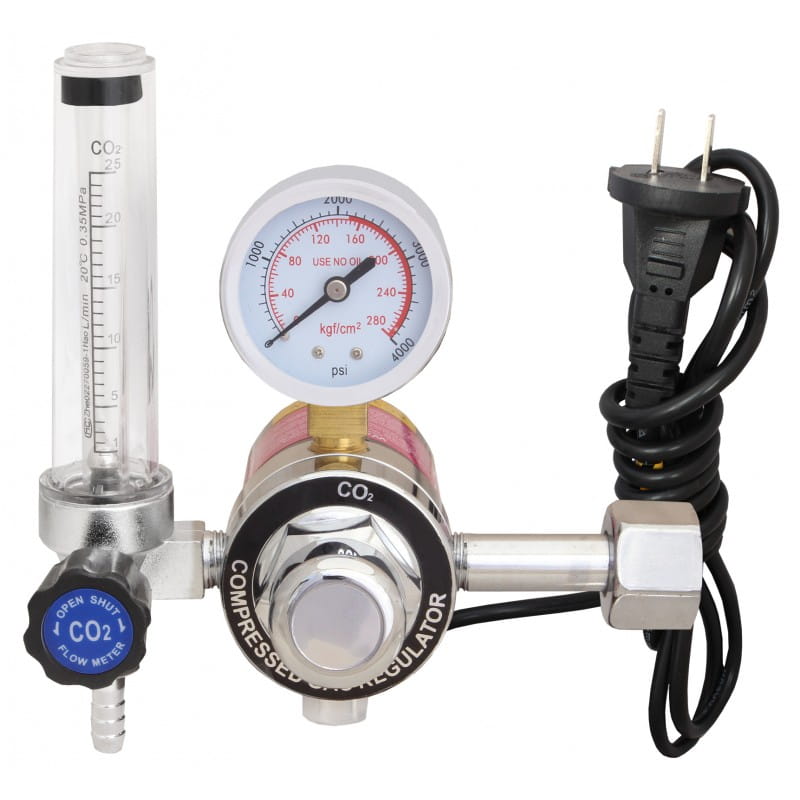

• CO2 / argon reducer with heater,

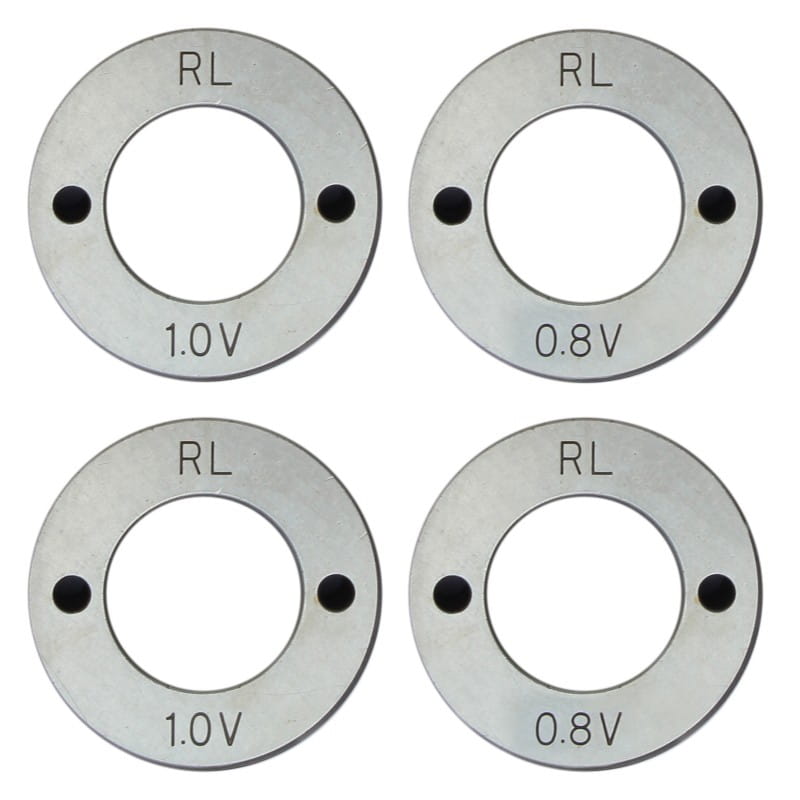

• 4 rolls of feeder for 1.0mm and 1.2mm aluminum wire,
• 4 feed rolls for 0.8mm and 1.0mm steel wire,

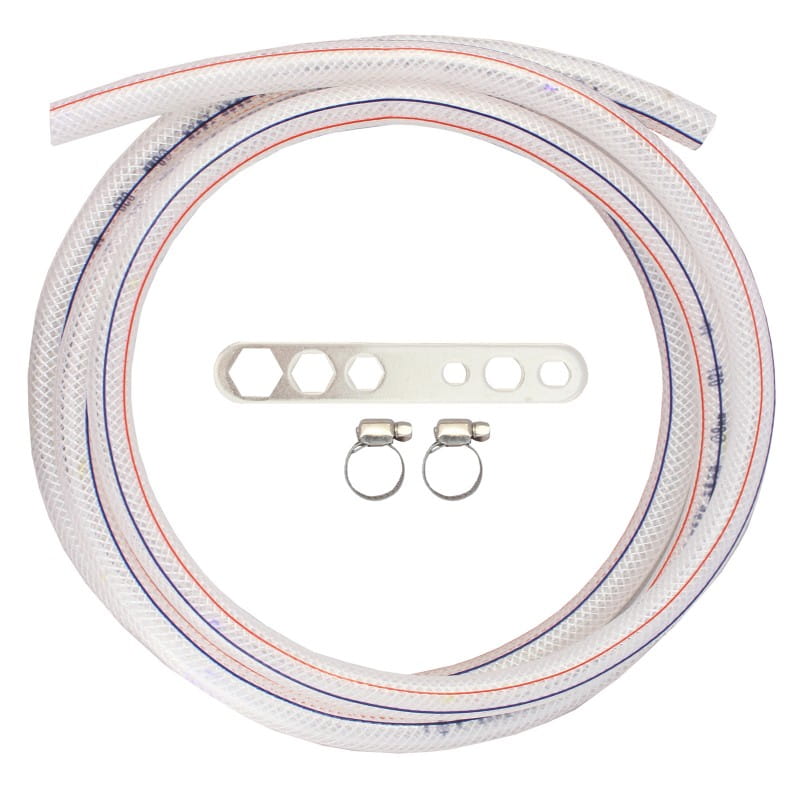

• shielding gas line,
• warranty card.

The  Welder Fantasy BI-PULSE 211 device  is a modern,  synergistic inverter source  that offers many possibilities in the performance of welding works. Its main advantages are the possibility of welding with the use of single or double pulsation current in MIG or MAG mode and the possibility of using synergic settings .

Reliability and a wide range of applications of the devices make them satisfy even the most demanding users.

Welder Fantasy BI-PULSE 211 multifunction inverter semi-automatic welding  machine, equipped with a 4-roll wire feeder,  is designed for manual arc welding of metals and metal alloys using the following methods:

• MIG / MAG with dual pulse option,
• MIG / MAG with single pulse option,
• MIG / MAG - continuous welding,
• Spot welding SPOT,
• FCAW - welding with self-shielding wire,
• MMA.

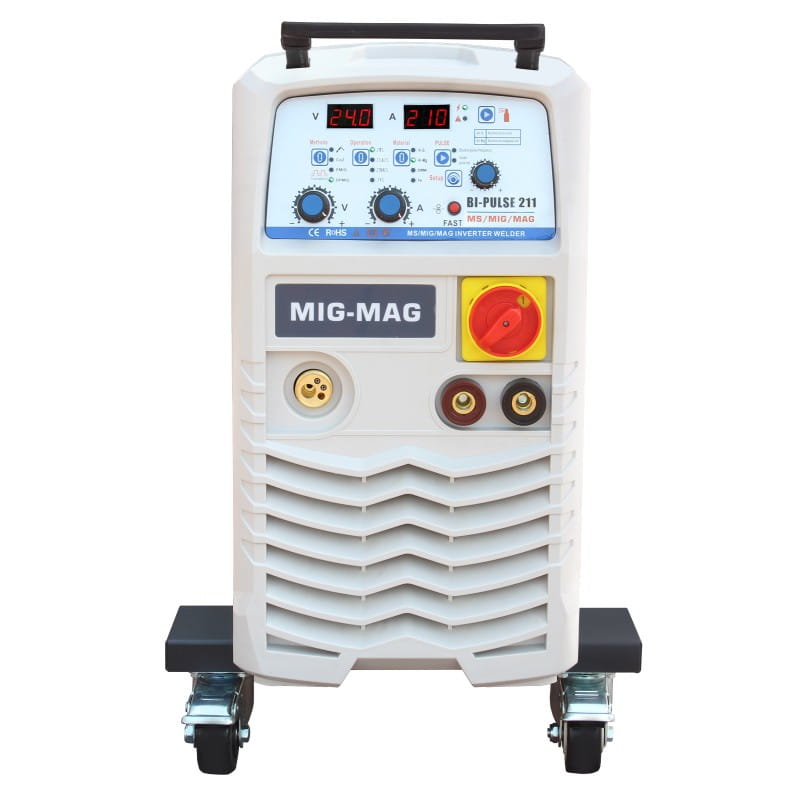

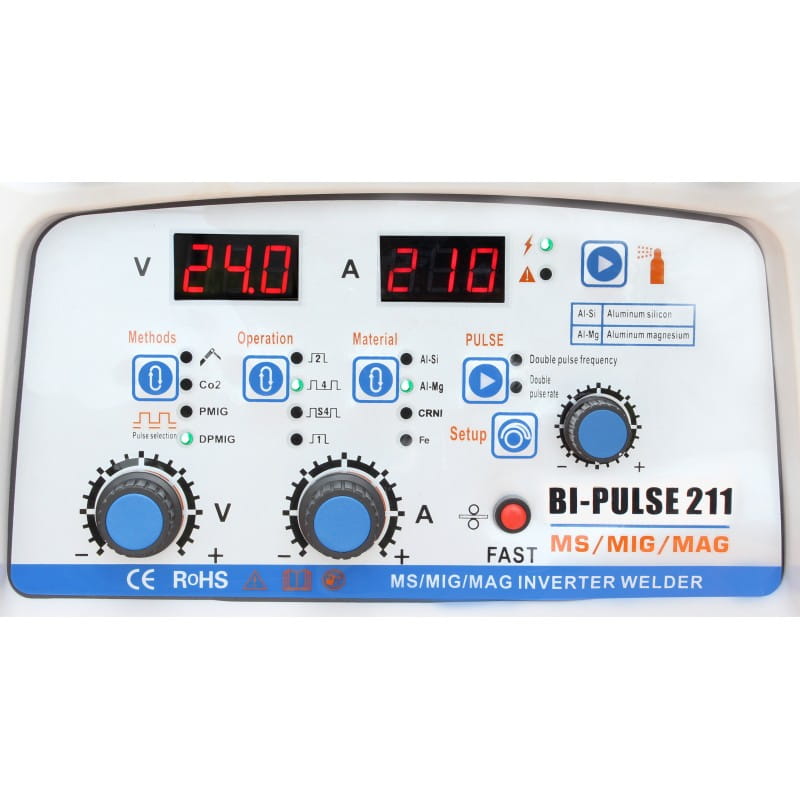

The intuitive, easy-to-use control panel allows you to quickly set all the most important welding parameters. Thanks to  the synergic settings,  it is possible to automatically adjust welding parameters to the diameter of the wire and shielding gas. After selecting the gas in which we want to weld, the display shows information about the diameters of the welding wire available in the program. The individual  welding programs  are detailed in the table below.

The device has smooth voltage and current regulation and is equipped with an overload thermal protection system that protects against excessive heating of the integrated circuits.

Thanks to the use of modern IGBT technology and high-quality components, BI-PULSE 211 devices are ideally suited for professional welding works in such industries as automotive, metal structures and many others.

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

MIG / MAG

Gas-shielded arc welding is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process consists in fusing the edges of the workpiece and the material of the consumable electrode with the heat of an electric arc glowing between the electrode in the form of a solid wire and the welded detail, in an inert or active gas shield.

MIG PULSE

An advanced form of welding that uses the best forms of transfer of the molten electrode material to the workpiece. Unlike short circuits, pulse welding does not produce spatter or risk a cold 'run-in'. Pulse welding positions are not limited as they are derivatives of globular or spray molds and their use is much more efficient. Thanks to the cooling of the spray arc process, pulsed MIG is able to extend the range of welding, and the lower heat input does not cause a problem with burning through thin materials. MIG PULSE is one of the best welding processes for a wide variety of metal applications and types.

DOUBLE FLASH PULSE

By welding with the MIG / MAG method with a double pulse, we obtain a high level of face appearance (scale effect). In addition, the use of automatic wire feeding affects the welding performance. The MIG / MAG method with double pulse allows you to adjust the pulsation of the current (pulse balance) and to adjust the wire feed speed. Thanks to this, we improve the appearance of the weld. During MIG / MAG welding with double pulse, the current pulses occur in two ranges. The sequencing system of our devices automatically combines two levels of pulses: hot and cold.

The benefits of using the MIG MAG method with double pulse are:

• Welding with the MIG / MAG method with double pulse is faster than with the TIG method.
• Welding with the MIG / MAG method with double pulse achieves high aesthetics as with the TIG method.
• Welding with the MIG / MAG method with double pulse causes less deformation than with the TIG method.

CAR

Synergic settings. In the AUTO mode, the user selects the basic welding parameters such as the type of material, thickness of the material to be welded, and the diameter of the welding wire. The other parameters are selected automatically by the device using the database of uploaded programs. The AUTO mode allows only continuous current welding - it is not possible to adjust the PULS and double PULS settings.

FCAW

Thanks to the polarity reversal function, it is possible to weld without shielding gas with FCAW self-shielding wire. It is a method with the use of a self-shielding flux-cored wire for welding (in all positions) steel of normal and increased strength, not exceeding 510 MPa. Self-shielding wire can be used in single-layer and multi-layer welding processes, using power sources with both flat and falling characteristics. The wire is intended for general production works, also in field conditions, and for welding structures that do not require impact strength. DC welding current (-).

MMA

A covered electrode method consisting of a metal core covered with a sheath. The welder feeds the electrode as it fuses to the workpiece so as to keep the arc of a constant length and at the same time moves its melting end along the welding line. The device allows welding with all types of electrodes, e.g. alkaline, cellulose, rutile or acid.

MMA VRD

VRD (Voltage Reduction Device) function available in MMA mode. This module reduces the idle voltage of the device's secondary circuit. Increases safety and reduces the risk of electric shock. The function turns the welding power off and on when the resistance between the electrode tips - welded element is measured during welding.

REGULATION OF INDUCTION IN THE MIG / MAG METHOD

Properly selected welding inductance reduces the amount of spatter. It depends on the diameter of the welding wire, the shielding gas used, the amperage and the welding position. Reducing the inductance makes the arc more stable and focused, while increasing the inductance produces a smoother pool and reduces spatter. Correctly selected, it is characterized by a stable arc, even transfer of liquid metal droplets, maintaining a constant size of the weld pool and a characteristic repetitive sound without splashes and explosions.

SPOT WELDING SPOT

Time welding function, used for tacking workpieces, thanks to which it is possible to obtain equal length of welds.

ARC IGNITION

• 2T - two-stroke,
• 4T - four-stroke,
• 4Ts - special four-stroke - used for welding aluminum alloys.

ADJUSTING THE PULSE FREQUENCY

In the range of 0 - 5Hz,

ADJUSTING THE PULSE BALANCE

In the range of -10 - 10%,

ADJUSTMENT OF U1, I1 PARAMETERS

Arc voltage and starting current, and U2, I2 - final current voltage and intensity, i.e. crater filling.

BURN BACK

A function that prevents the electrode wire from sticking to the contact tip by temporarily ejecting the wire after the welding process is finished. The device allows you to set the burn back time in the range of 0-10s.

HOT START

A function that facilitates the start of welding in both MMA and MIG / MAG modes. When the arc is struck, the welding current is temporarily increased in order to heat the material and the electrode at the point of contact and to properly shape the penetration and weld face in the initial stage of welding.

PRE GAS

Adjustment of the shielding gas flow time before welding in the range of 0 - 20s.

POST GAS

Adjustment of the time of the shielding gas flow after welding in the range of 0 - 20s.

ANTI STICK

MMA function to prevent sticking of the electrode to the material to be welded.

TECHNICAL SPECIFICATIONS

• Supply voltage [V]: 1 ~ 230
• Frequency [Hz]: 50/60
• Security [A]: 20c
• Power consumption [kVA]: 8
• Power fluctuation tolerance [%]: ± 10
• Welding current range MIG / MAG [A]: 25 - 200
• MMA welding current range [A]: 20 - 200 Duty cycle: 60% / 200A
• Welding wire diameter [mm]: 0.8 - 1.2

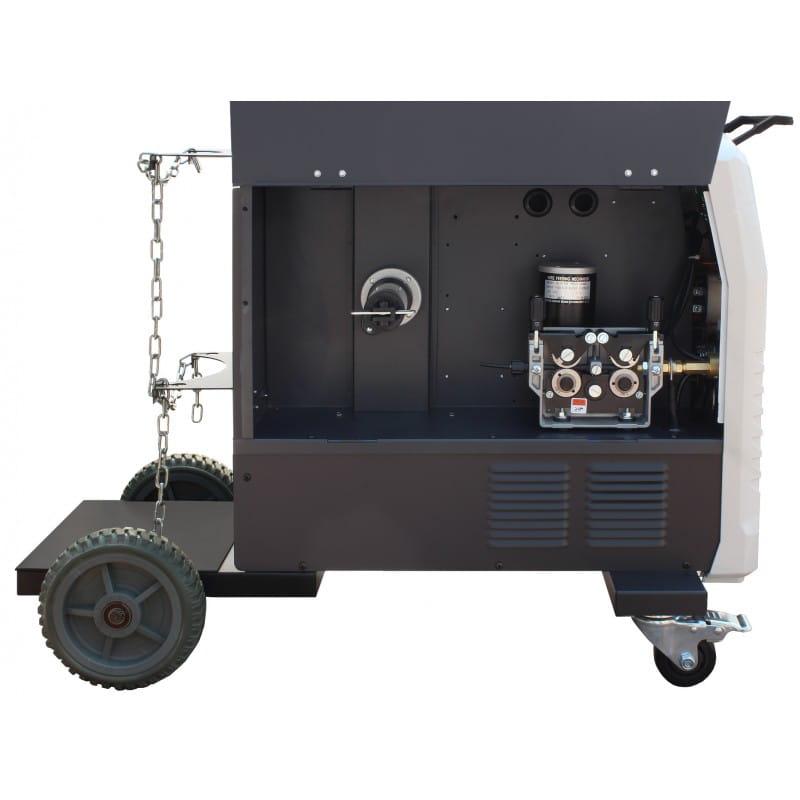

• Feeder type: 4R PROF.
• Wire spool diameter / weight: 200mm, 5kg; / 300mm, 15kg

OTHERS

• Insulation class: F.
• Housing protection class: IP21S
• Weight [kg]: 30
• Dimensions: height / width / length [mm]: 970/440/700
