Welder Fantasy Bi-POWER 210 AC/DC TIG

WELDER FANTASY BI-POWER 210 AC / DC

Brand: Welder Fantasy | Welding methods: TIG AC / DC, MMA | Power supply: 230V | Welding current: 200A | Efficiency: 30%

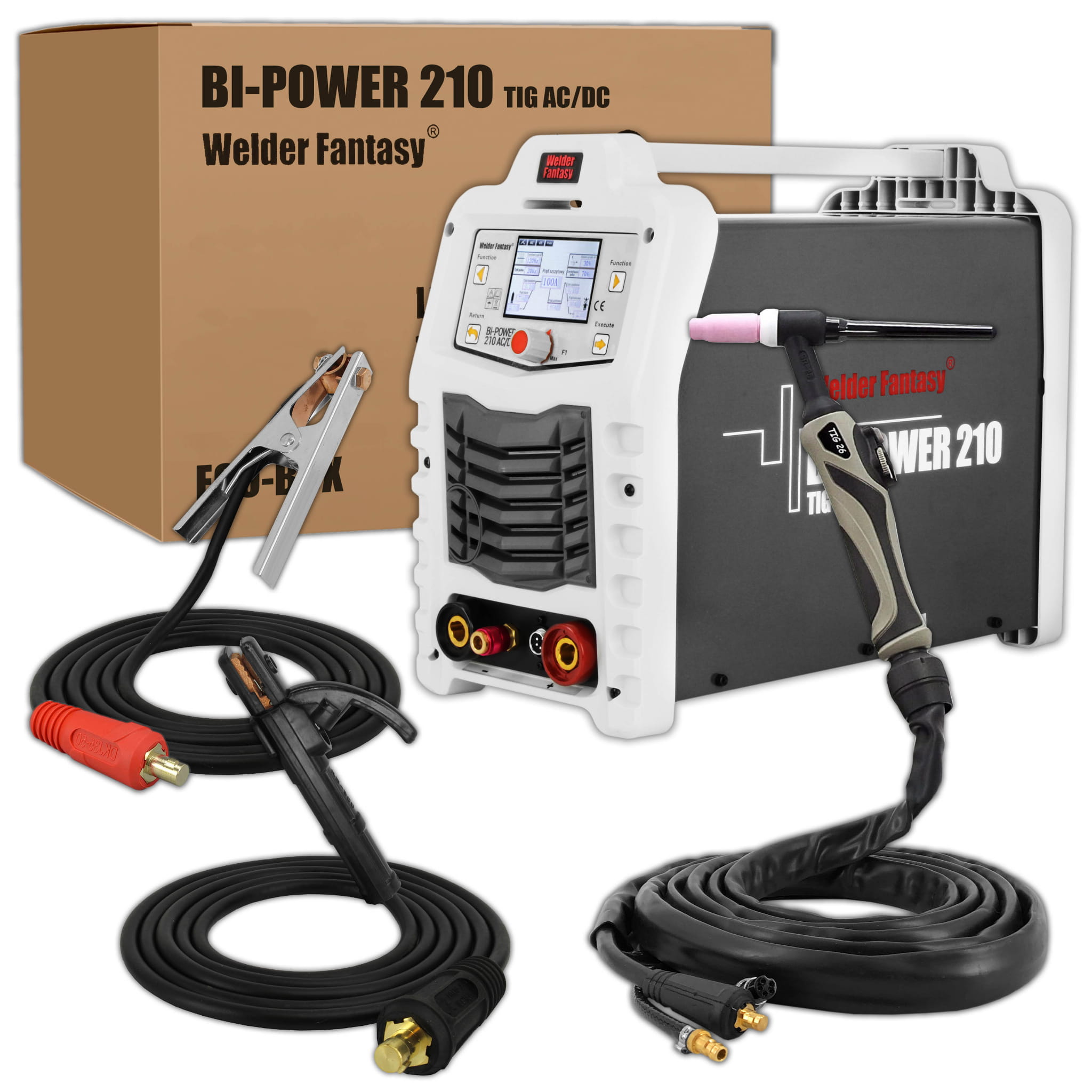

STANDARD EQUIPMENT:

• Welder Fantasy Welder BI-POWER TIG 210 AC / DC

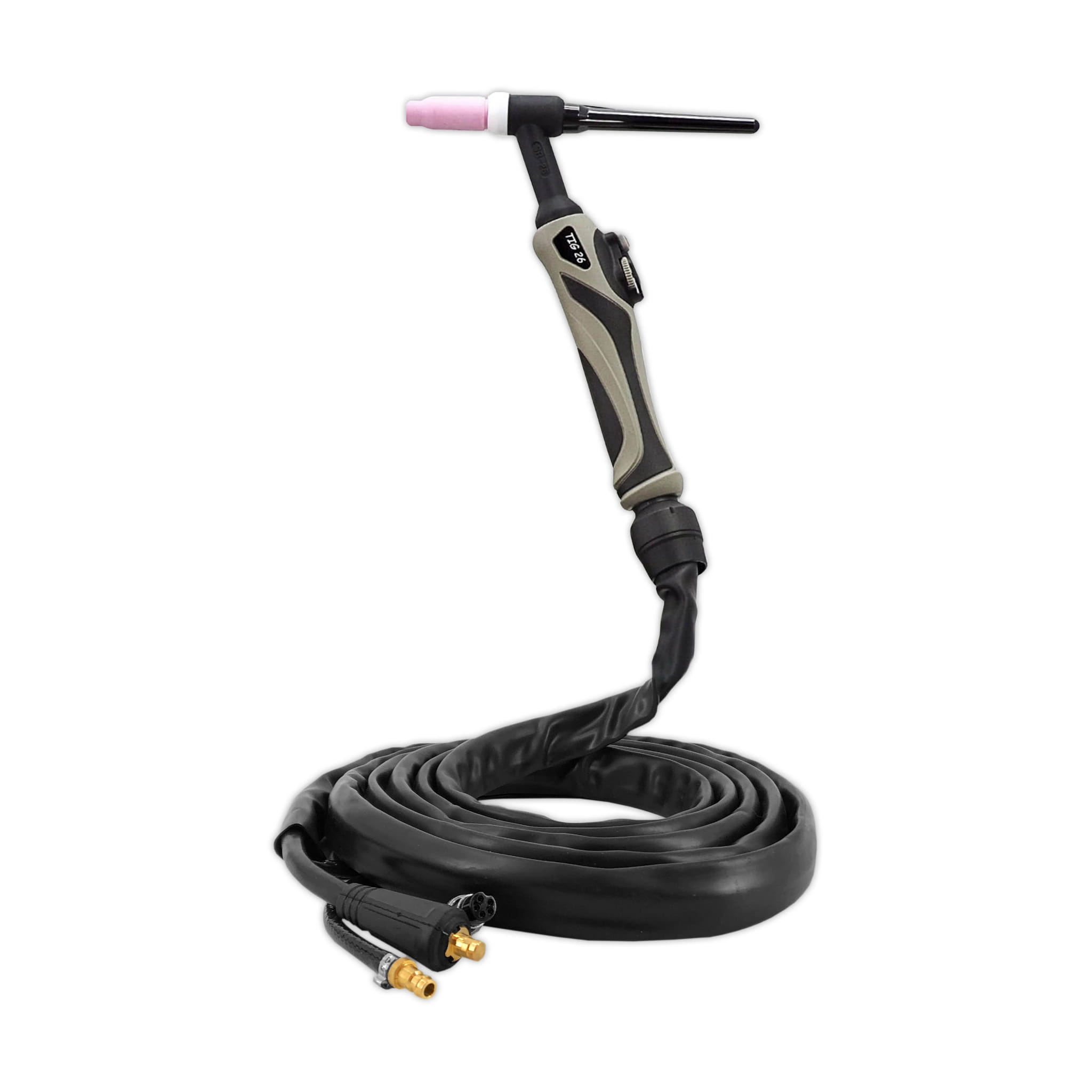

• TIG welding torch type SRT-26 with regulation in the handle
• Cable with mass holder
• Cable with electrode holder
• Manual in Polish and warranty card

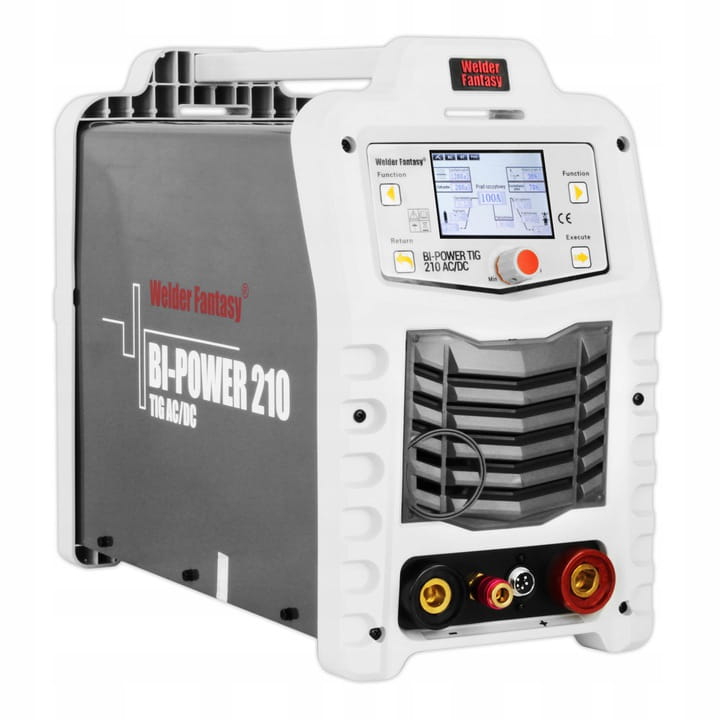

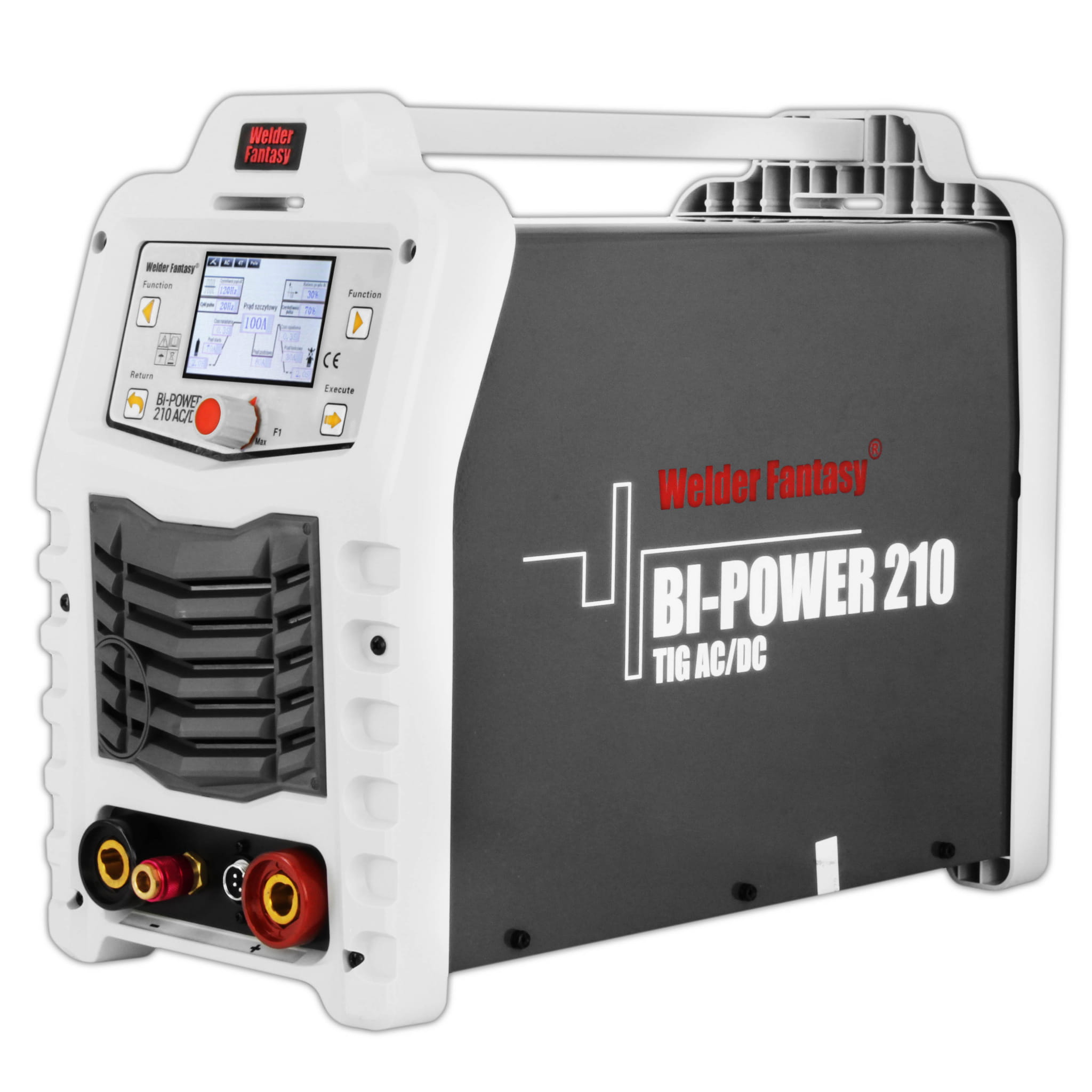

WELDER FANTASY BI-POWER TIG 210 AC / DC

Microprocessor-based welding source based on IGBT technology, suitable for welding carbon steel, stainless steel, acid-resistant steel, copper, brass, magnesium, titanium and all aluminum alloys.

Reliability and a wide range of applications of the devices make them satisfy even the most demanding users.

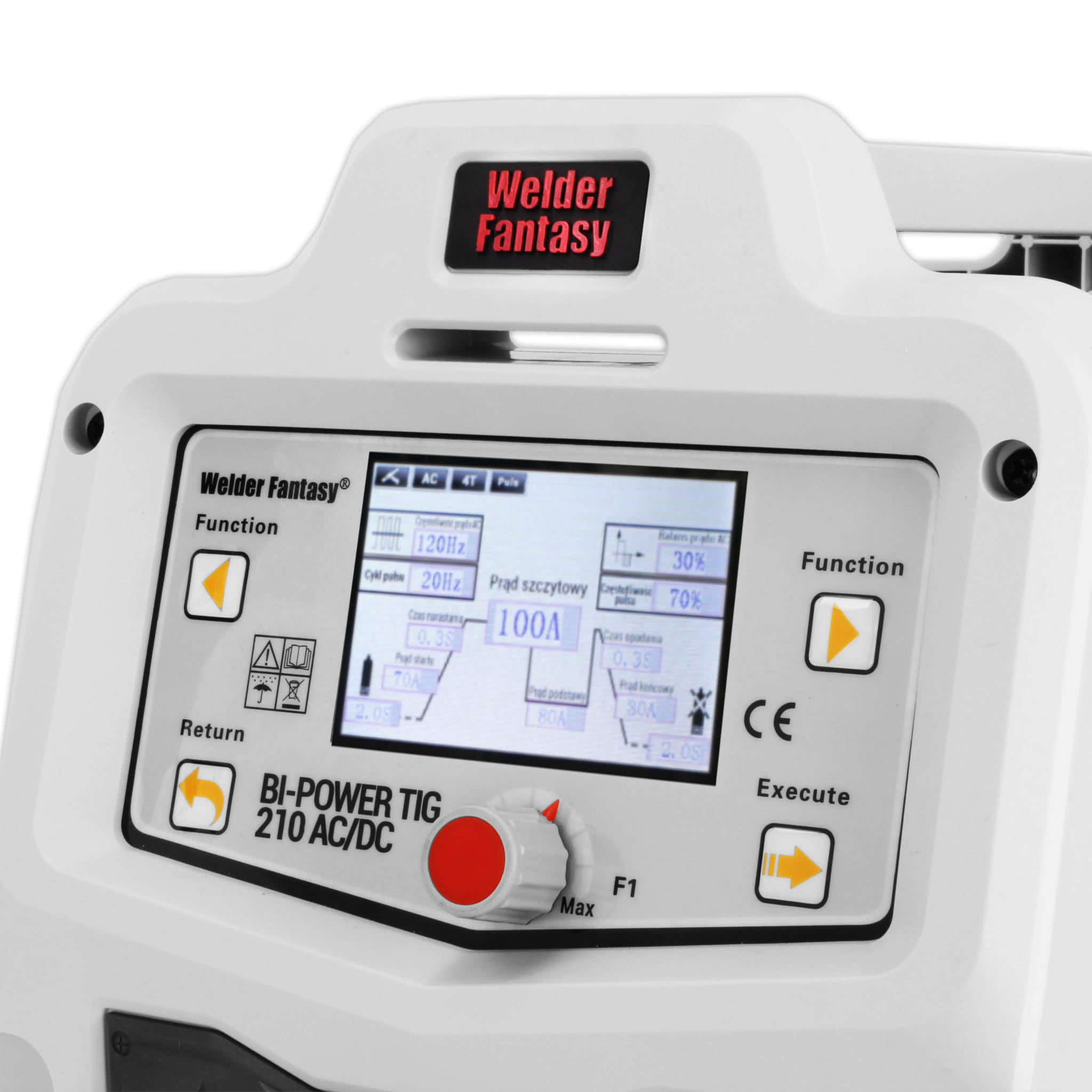

An intuitive, easy-to-use control panel with a color display allows you to quickly set all the most important welding parameters.

The device allows you to choose one of the four menu languages:

• Polish
• English
• German
• Russian

Thanks to the use of modern IGBT technology and high-quality components, Welder Fantasy BI-POWER TIG 210 AC / DC devices are ideal for professional welding works in industries such as automotive, metal structures and many others.

TECHNICAL DATA:

• Supply voltage [V]: 230V ± 10%
• Frequency [Hz]: 50
• Security [A]: 20
• Power consumption [kVA]: TIG: 6.2 / MMA: 9.6
• Welding current range [A] - TIG DC: 10–200 TIG AC: 10 200
• Efficiency [%] (at an ambient temperature of 40 ° C): 30% 200A; 60% 142A; 100% 110A
• AC waveform waveform: square, sinusoidal, triangle, rising triangle, falling triangle
• AC current frequency range [Hz]: 40-200
• AC balance [%]: 10-90
• Start / end gas in AC / DC mode [s]: 0-10 / 0-10
• Start / end current in DC mode [A]: 10-200
• Start / end current in AC mode [A]: 10-200
• DC pulse base current [A]: 10-190
• Pulse base AC current [A]: 10-190
• Pulse current frequency [Hz]: 1-200
• Pulse modulation [%]: 5-95
• TIG arc ignition function: HF (ionizer)
• Idle voltage [V]: 65
• MMA welding current range [A]: 30-200
• Arc Force [%]: 0-100
• Insulation class: F.
• Housing protection class: IP21S
• Weight [kg]: 15
• Dimensions, height / width / length [mm]: 550/320/480

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

LEVEL OF SECURITY

The IP defines the degree to which the device is resistant to solid and water contamination entering the device. IP21S means that the device is suitable for operation in confined spaces and is not suitable for use in rain and snow.

MMA

A covered electrode method consisting of a metal core covered with a sheath. The welder feeds the electrode as it fuses to the workpiece so as to keep the arc of a constant length.

ARC FORCE

Arc stabilization function by maintaining the voltage value of the welding arc regardless of its length and facilitating control of the amount of spatter.

HOT START

At the moment of arc ignition, the welding current is temporarily increased in order to heat the material and the electrode at the point of contact and to properly shape the penetration and the weld face at the initial stage of welding

MMA DC +

The arc is struck by touching the tip of the electrode to the welded material. MMA DC + means welding with positive polarity - more heat is generated in the material and less heat is generated in the electrode.

MMA DC-

The difference between MMA DC + is that the polarity in the MMA DC - mode is negative, so the heat distribution is opposite - more heat is released on the electrode and less heat is generated in the welded material.

MMA VRD DC +

Increases safety and reduces the risk of electric shock. The function switches the welding power off and on when the resistance between the electrode tips - welded element is measured during welding.

MMA VRD DC-

Available in MMA DC- mode, the VRD (Voltage Reduction Device) function works in the same way as MMA VRD DC +, the difference is negative polarity.

TIG AUTO

Synergic settings. In the AUTO mode, the user selects the basic welding parameters such as the type of material and the thickness of the material to be welded. The other parameters are selected automatically by the device using the database of uploaded programs.

TIG DC HF

In order to completely eliminate the possibility of contamination of the weld with tungsten, it is recommended that the electrode does not touch the workpiece; for this purpose, contactless arc ignition is used with the use of high-frequency discharges generated by the ionizer built into the device.

TIG DC PULS HF

HF non-contact ignition with ionizer in TIG DC PULS mode.

TIG AC HF

A similar function that allows aluminum to be welded with alternating current, ignition is made contactless by the high-frequency current generated by the ionizer

TIG AC PULS HF

A function that enables welding of thin-thickness elements made of aluminum. Non-contact ignition thanks to the use of an ionizer.

WAVE SHAPE CHOICE

The device allows you to choose from the following AC waveforms:

• The rectangular shape of the AC wave allows you to weld aluminum with the addition of magnesium
• The AC trapezoidal waveform is used to weld aluminum with silicon
• The triangular current waveform is optimal for welding thin parts, including anodized aluminum
• The sinusoidal waveform is recommended for welding 99.999% pure aluminum

2T / 4T

• 2T - Pressing the gun trigger button will cause gas to pre-flow, then strike the arc and start welding. When the button is released, the arc will be extinguished and gas will flow out.
• 4T - Pressing and releasing the welding gun button will pre-flow gas, then strike the arc and start welding. When the button is pressed and released again, the arc will be extinguished and the gas will flow out.

RISE TIME

Time in which the welding current rises from the starting current to the set welding current value.

DOWNTIME

Time for the downslope of the welding current from the set value to zero or the value of the crater current.

PRE GAS

Adjustment of the shielding gas flow time before welding.

POST GAS

Post-welding shielding gas flow time adjustment.

COOLING

The device has a fan cooling system, which significantly increases its efficiency.
