⚡ VULCANE EXPRESS 471 brazing torch set

VULCANE EXPRESS 471 by Guilbert Express is a professional, mobile set for brazing and soft soldering, intended primarily for refrigeration, HVAC air-conditioning, heating and plumbing installers.

The torch is designed for work where mobility, rapid achievement of operating temperature and ease of use are important. MAP Pro gas cartridges eliminate the need for heavy oxy-fuel sets, large cylinders and long hoses.

✅ Key advantages of the VULCANE EXPRESS 471 set

• High-temperature TURBO swirling flame – intensive, even heating of the component enables brazed joints to be made efficiently.
• Brazing pipes up to Ø 28 mm – three interchangeable tips allow the torch output to be matched to the diameter of the installation being worked on.
• ANTYFLARA system – the built-in valve enables safe, stable torch operation in different positions.
• Tool-free tip replacement – tips can be changed without using spanners.
• Automatic trigger lock – improves comfort during longer periods of work.
• Mobile MAP Pro gas supply – without heavy oxygen cylinders, regulators or trailing hoses.
• Rapid achievement of operating temperature – particularly useful during servicing and installation work.
• Complete set in a case – the torch, tips, gas and spare components can be conveniently stored and transported together.

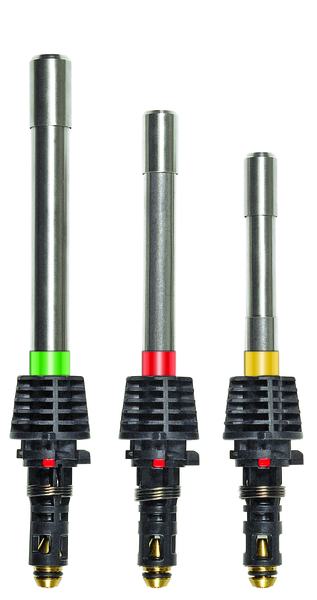

✅ Three tips for different pipe diameters

The VULCANE EXPRESS 471 set contains three tips with different outputs, allowing the user to select the appropriate flame for the task:

• up to Ø 14 mm – gas consumption 153 g/h, output 2.1 kW,
• up to Ø 22 mm – gas consumption 200 g/h, output 2.74 kW,
• up to Ø 28 mm – gas consumption 253 g/h, output 3.47 kW.

The TURBO tips produce a concentrated swirling flame that effectively surrounds the heated component and quickly brings the joint to the temperature required for brazing.

✅ A mobile alternative to oxy-fuel sets

VULCANE EXPRESS 471 was created for professionals carrying out installation and servicing work at different locations. The supply from compact MAP Pro cylinders significantly facilitates equipment transport and helps reduce the amount of equipment needed at the workstation.

The absence of a heavy oxygen cylinder and long hoses means greater freedom of movement, particularly when working on ladders, in plant rooms, service shafts and other areas with limited space.

✅ ANTYFLARA system – operation in different positions

The built-in ANTYFLARA valve allows stable torch operation even when its position changes. This is particularly important when brazing installations at different angles, where access to the joint may be restricted.

✅ Applications

The VULCANE EXPRESS 471 set is suitable for professional installation and servicing work such as:

• brazing refrigeration systems,
• installation and servicing of HVAC air-conditioning systems,
• brazing heating systems,
• work on plumbing installations,
• brazing copper pipes,
• brazing and soft soldering,
• installation and repair work requiring a mobile source of intense heat.

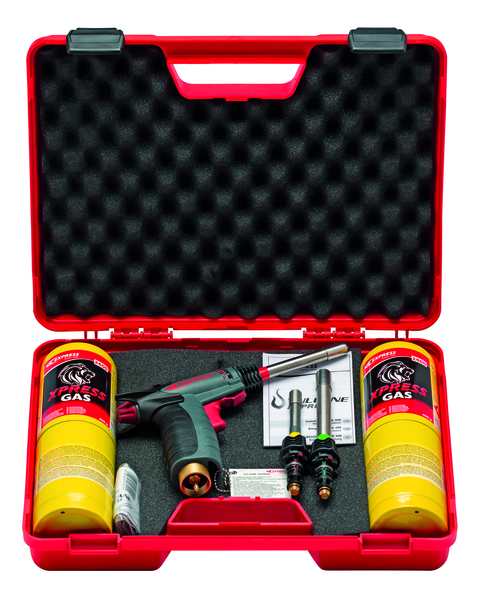

✅ Set contents

• tip for brazing up to Ø 14 mm – 153 g/h, 2.1 kW,
• tip for brazing up to Ø 22 mm – 200 g/h, 2.74 kW,
• tip for brazing up to Ø 28 mm – 253 g/h, 3.47 kW,
• 2 MAP Pro gas cylinders with 1" thread,

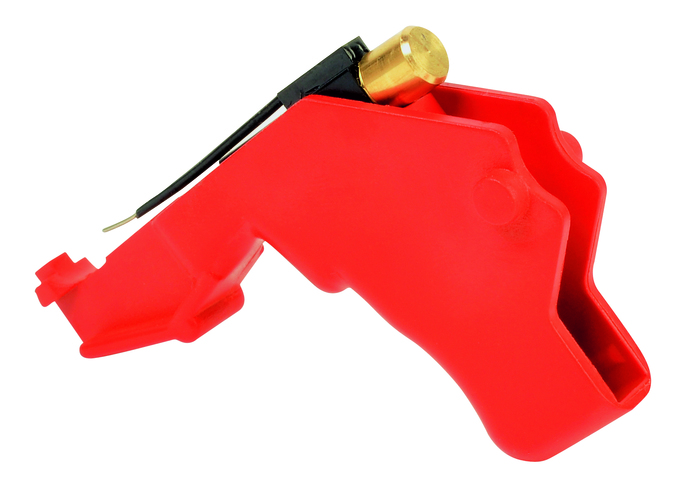

• spare piezo igniter,

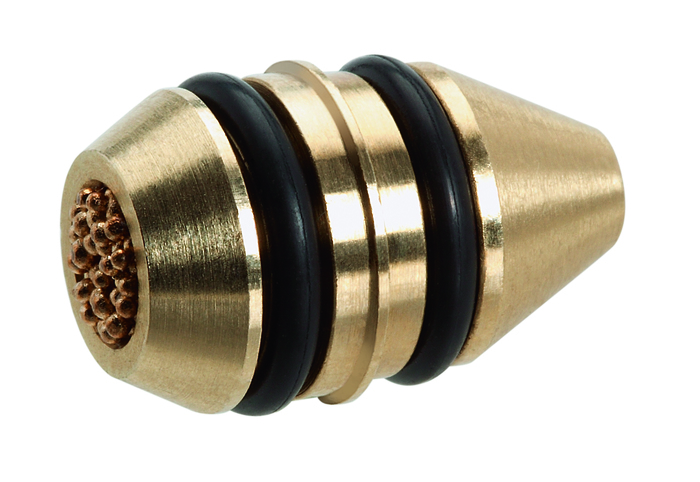

• spare gas injector for the 2.74 kW / Ø 22 mm tip,
• red carrying case.

✅ VULCANE EXPRESS 471 in practice

See the presentation of the set and how the torch works:
