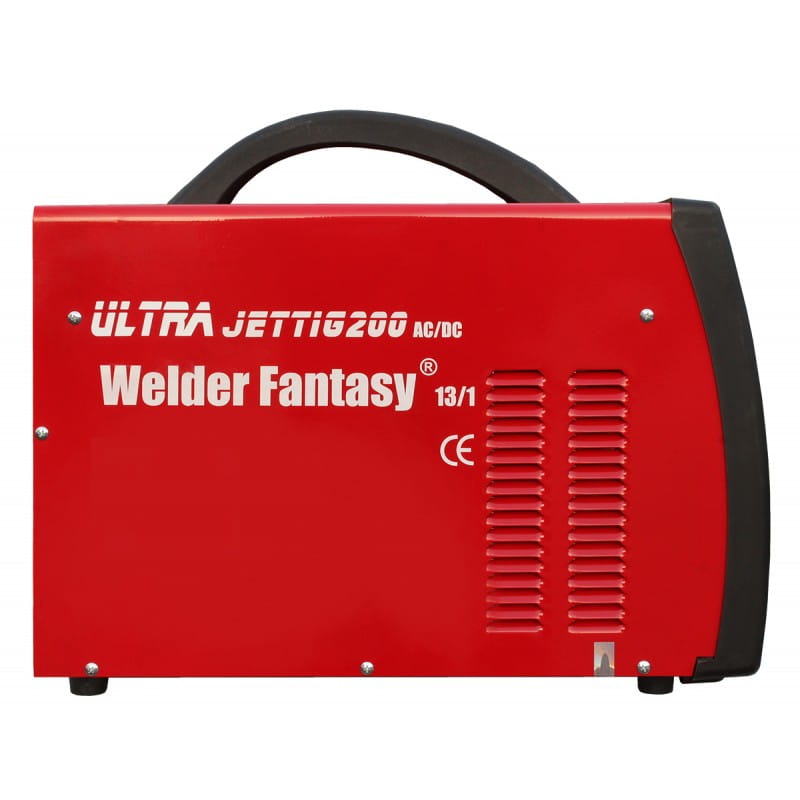

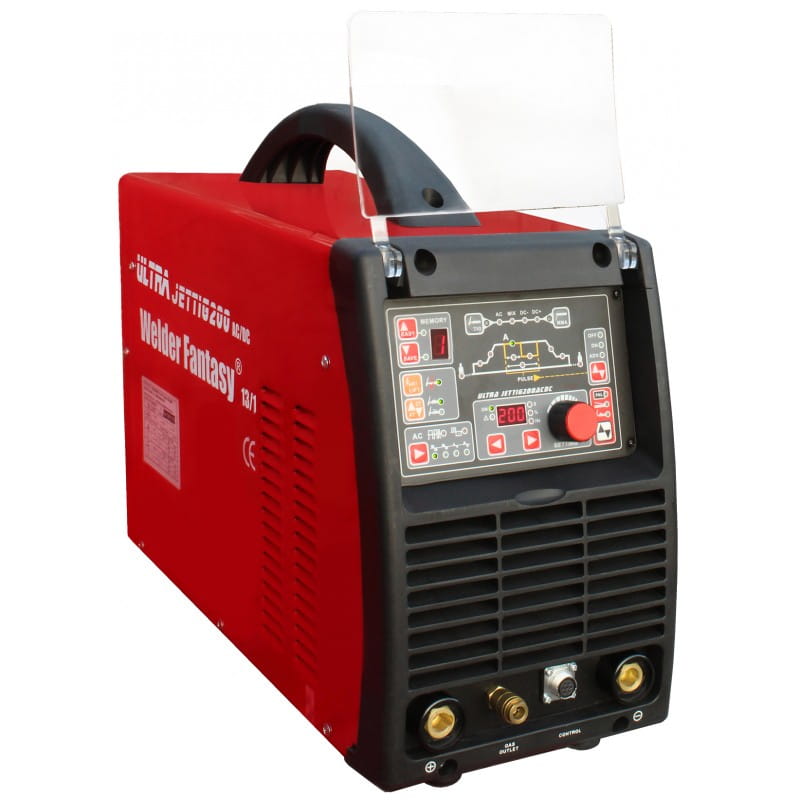

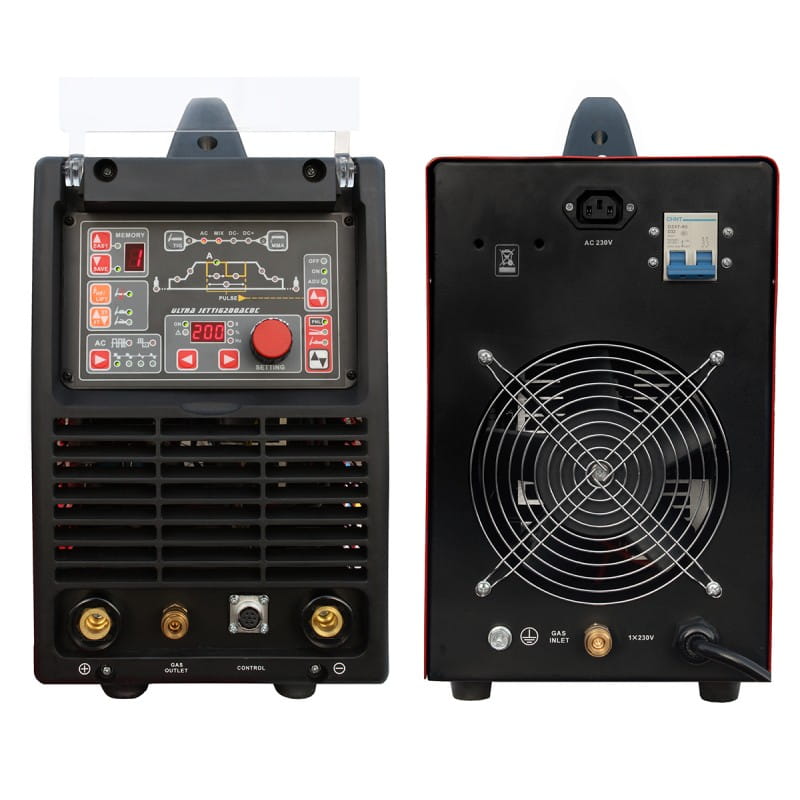

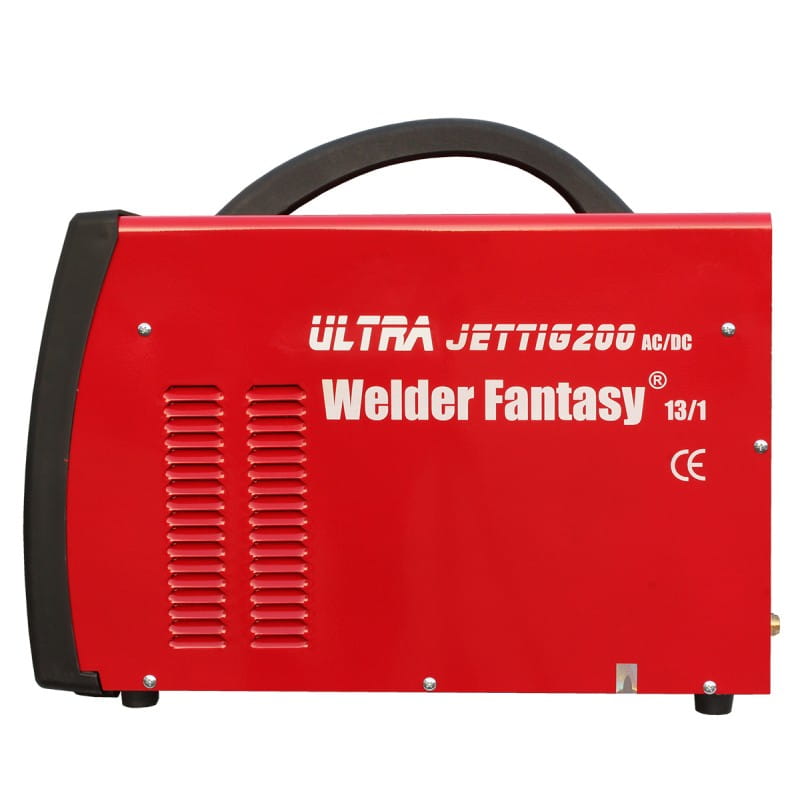

ULTRA JET TIG AC/DC 200 IGBT Welder Fantasy + torch Parker

Industrial, inverter Welder Fantasy ULTRA JET TIG devices are microprocessor welding sources based on IGBT technology, adapted for welding carbon, stainless, acid-resistant steel, copper, brass, magnesium, titanium, as well as all weldable aluminum alloys.

The highest class device sets new standards among AC / DC welding machines, and the friendly control panel ensures selection of all necessary operating parameters.

The ULTRA JET TIG AC / DC 200 welder allows you to work in the following modes:

• TIG DC + / DC-
• TIG PULS DC + / DC-
• TIG AC
• TIG AC PULS
• TIG MIX (AC + DC)
• MMA

ARC IGNITION:

• Through the LIFT-ARC system (2T and 4T)
• Non-contact HF (2T and 4T)
• Remote control pedal (2T and 4T)

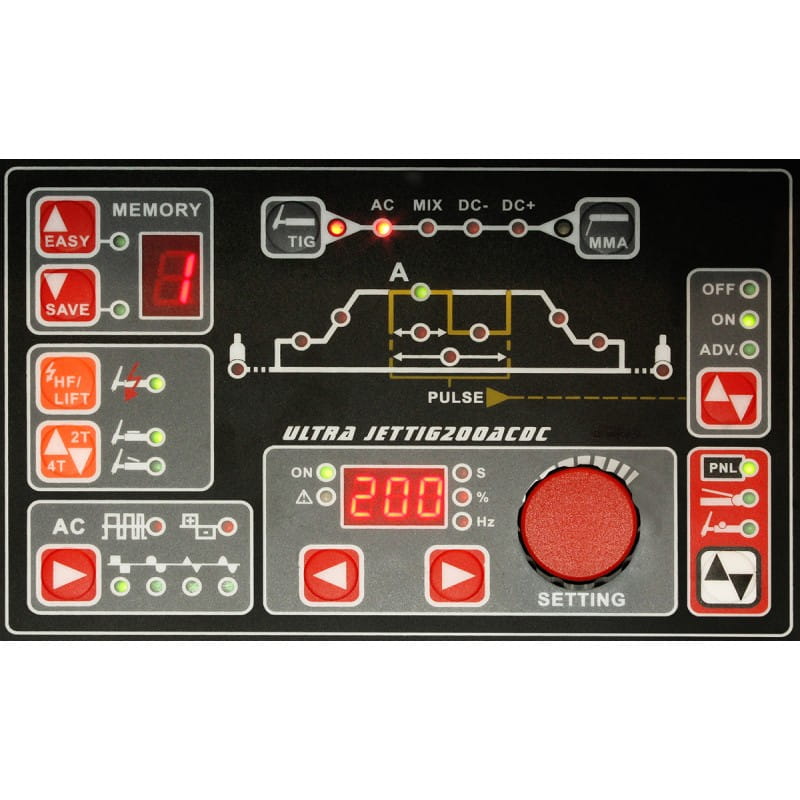

PANEL FUNCTIONS:

- Option to use user-programmed factory settings for welding aluminum and steel (9 memory channels)

- Choice of wave shape:

• ADVANCED SQUARE - rectangular
• SOFT SQUARE - trapezoidal
• TRIANGULAR - triangular
• SINE - sinusoidal

- TIG MIX - AC + DC mixed current

- ARC FORCE

- HF - the device is equipped with an ionizer, which allows contactless looking into the welding arc.

- PRE and POST GAS - gas flow before and after welding.

- UP and DOWN SLOPE - welding current rise and fall.

- TIG MIX - AC DC- mixed welding. In a single cycle, there is a transition between AC and DC with negative DC polarity (-). This cycle is repeated throughout the welding process. Mixed current welding is especially useful when joining elements of different thickness. Noise emissions are also reduced compared to AC welding.

- pre-gas,

- post-gas,

- current rise and fall,

- 2-TAKT and 4-TAKT,

- HF contactless striking and LIFT rubbing,

- remote control connection option - control pedal, handle with potentiometer,

- dual-function ADJUST knob (coarse and fine adjustment),

TECHNICAL SPECIFICATIONS:

• Supply voltage AC 230V / 50Hz (industrial plug) protection 20 A type C
• Dimensions 570x235x450 mm
• Weight: 27 kg
• Insulation class IP21S

DC MMA:

• Open circuit voltage 70V (≤20V with VRD active)
• Welding current range 5-160A
• Output current 160A
• 60% efficiency

AC TIG

• Idle voltage 70V
• Welding current range 5-200A
• Current range START / END 5-150% / 5-95%
• AC current balance 10% -70%
• AC frequency range 30-250 Hz
• 60% efficiency

TIG PULSE

• DC 5-200A pulsating current range
• 60% efficiency
• Rise / fall time 0-10s
• Pulse frequency
• DC 0.1-500 Hz
• ADV SQUARE 0.1-250 Hz
• SOFT SQUARE 0.1-10 Hz
• TRIANGULAR 0.1-10 Hz
• SINE WAVE 0.1-10 Hz
• Pulse modulation 5% -95%
• Current range START / END 5-150% / 5-95%
• Duration of Pre flow 0-25s
• Duration of Post flow 0-25s
• HF / LIFT arc ignition

DEVICE FEATURES:

• compact, compact design,
• small dimensions and low weight,
• IGBT transistors,
• 60% efficiency
• easy to use control panel,
• LCD display of welding parameters,
• individual program LCD display,
• the ability to save full 9 user programs,
• very wide selection of welding functions

COMPLETE KIT INCLUDES:

• Welder Fantasy ULTRA JET TIG AC / DC 200 IGBT welding machine,

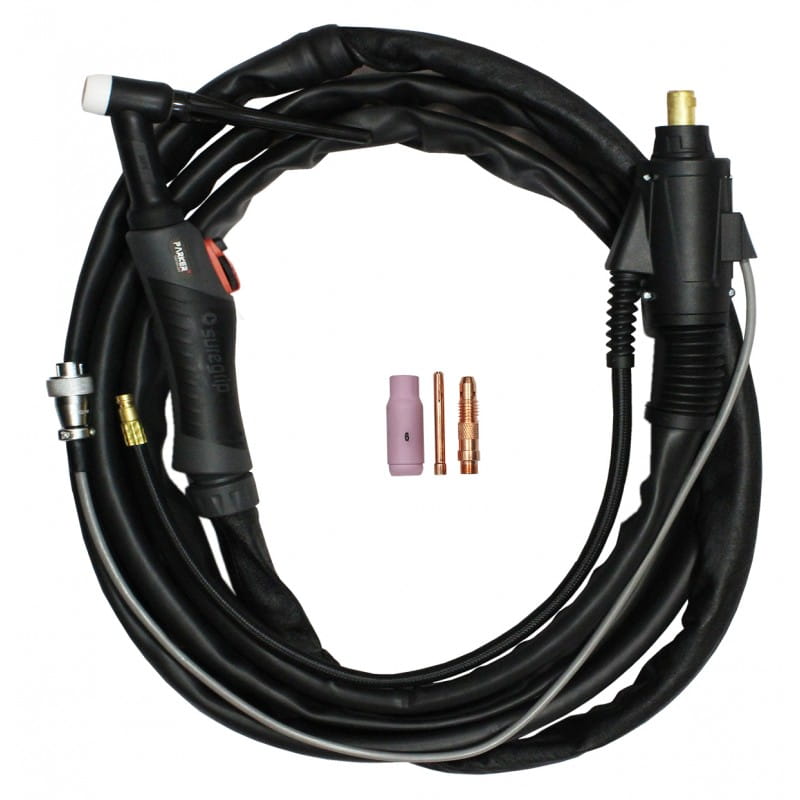

• PARKER SUREGRIP SGT26 FLEX TIG SRT 26-4m welding torch - with adjustable welding current,

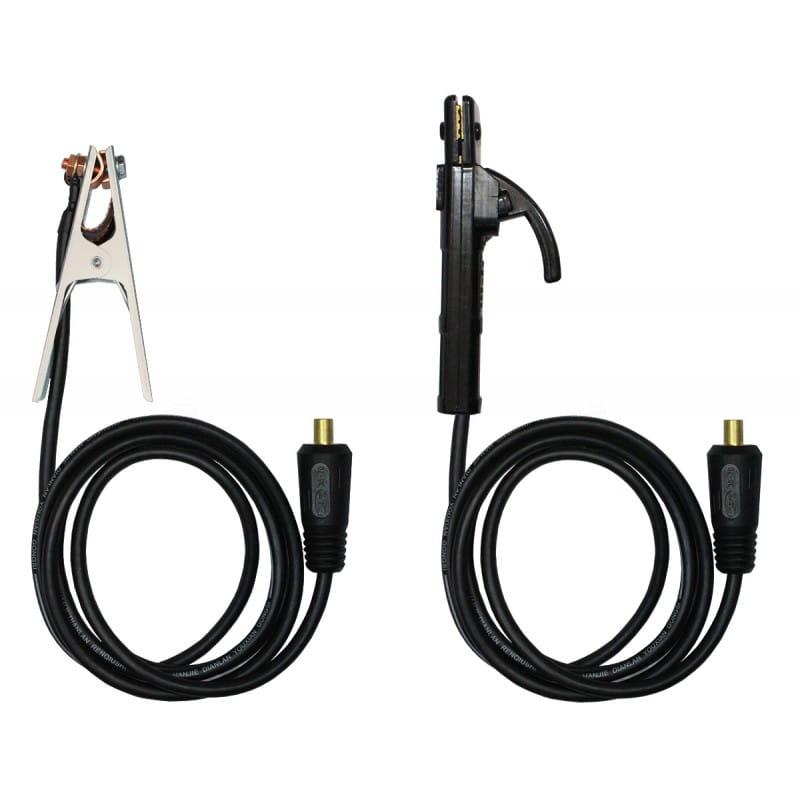

• 2.5 m ground handle,
• 2.5 m electrode holder,
• additional consumables,
• user manual and warranty card.
