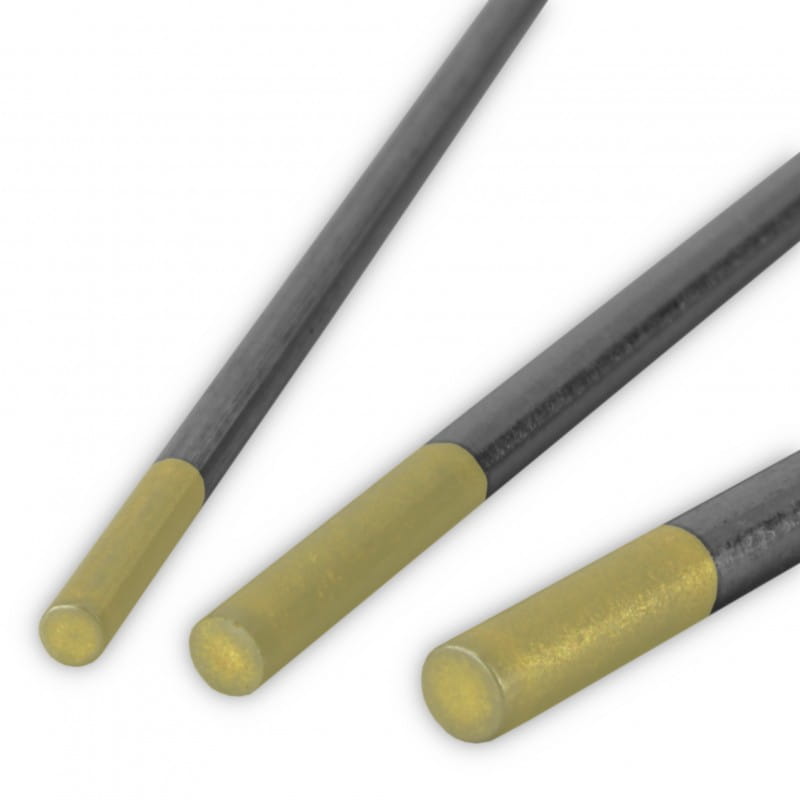

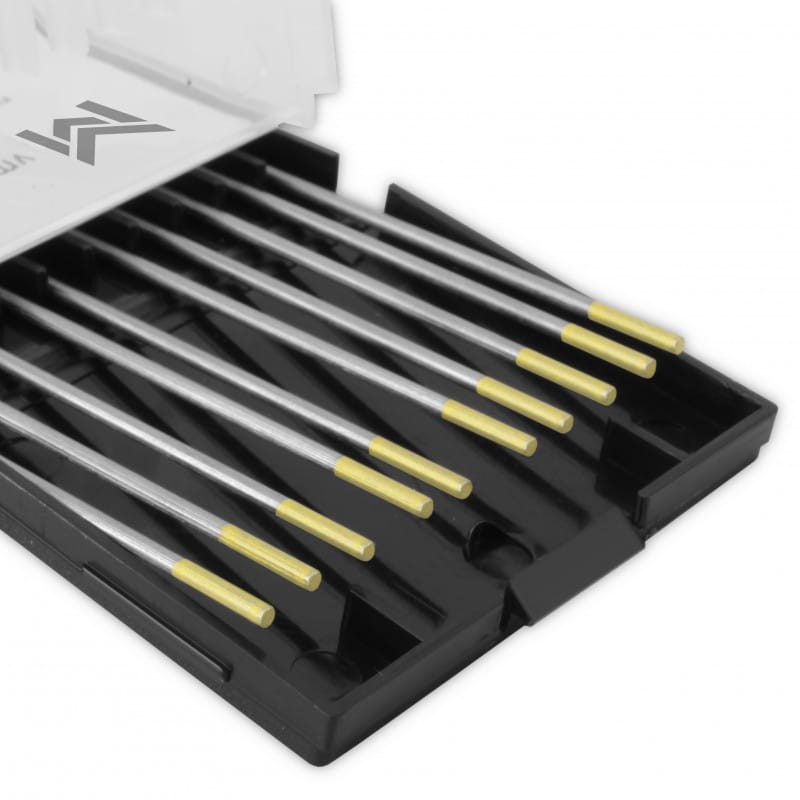

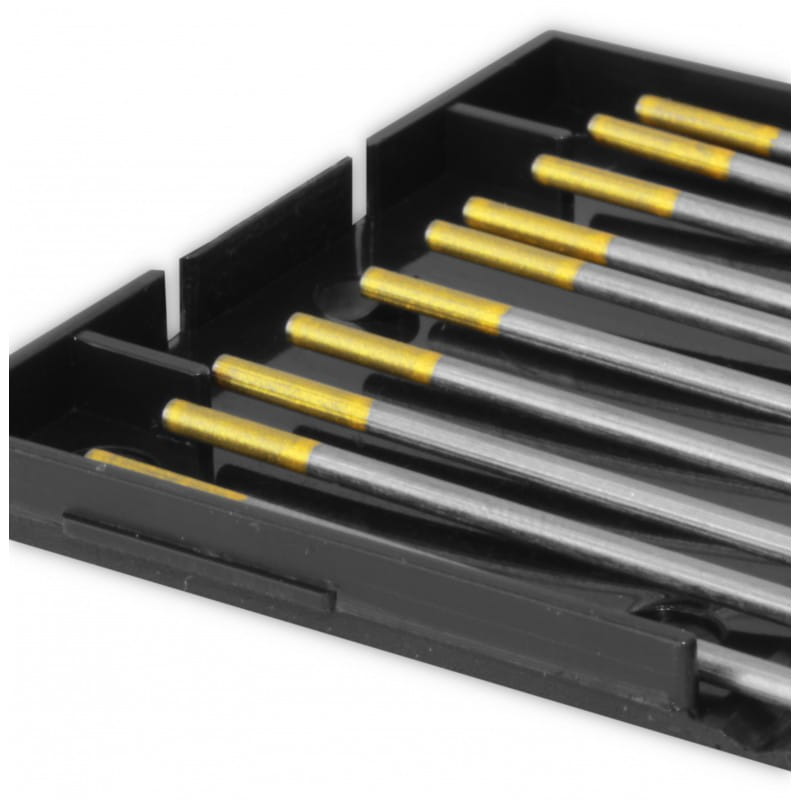

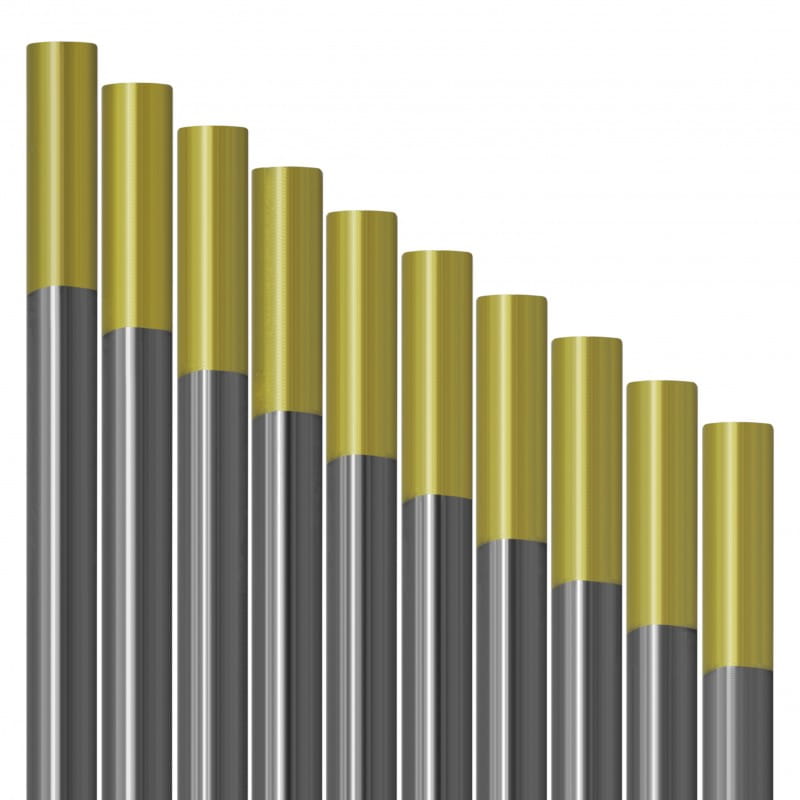

Tungsten electrodes 3.2mm gold TIG (pack of 10) Vogelmann

VOGELMANN TUNGSTEN ELECTRODES WL-15 GOLD - PACK OF 10 PIECES!

| Brand:  Vogelmann  | Diameter : ⌀3,2mm | Length:  175mm  | Made:  98.5% (W), 1.5% (La)  | Reference:  WL-15  |

APPLICATION.

The non-consumable welding electrode is used in TIG welding.

Welding takes place in a gas shield (inert gas).

UNIVERSAL.

Tungsten electrodes with 1.5% lanthanum, no radioactive thorium.

Used for welding ordinary steel, stainless steel, aluminum alloys, magnesium alloys, titanium, nickel and copper.

AC / DC CURRENT.

The gold electrode works well on AC or DC current with the electrode connected to the negative pole of the power source and pointed to a point, or can be ball terminated for use with AC with a sinusoidal energy wave.

Lanthanum tungsten electrodes hold the pointed end well, which is an advantage for DC or AC welding of steel and stainless steel from sources that produce rectangular energy waves.

HIGH DURABILITY.

They are characterized by extremely easy arc ignition. Due to the low operating temperature, they enable higher load parameters and provide a longer service life compared to thoriated electrodes.

Very good ignition and re-ignition properties. High durability and quality of the weld. Excellent in terms of high current. High arc stability.

TECHNICAL SPECIFICATIONS.

• Symbol: WL-15
• Diameter: 3.2mm
• Length: 175 mm
• Welding current: constant (DC), alternating (AC)
• Material: 98.5% Tungsten (W), 1.5% Lanthanum (La)

COMPATIBILITY.

The electrodes fit the most popular TIG welding torches on the market:

• SR-9 or WP-9
• SR-17 or WP-17
• SR-18 or WP-18
• SR-20 or WP-20
• SR-26 or WP-26
