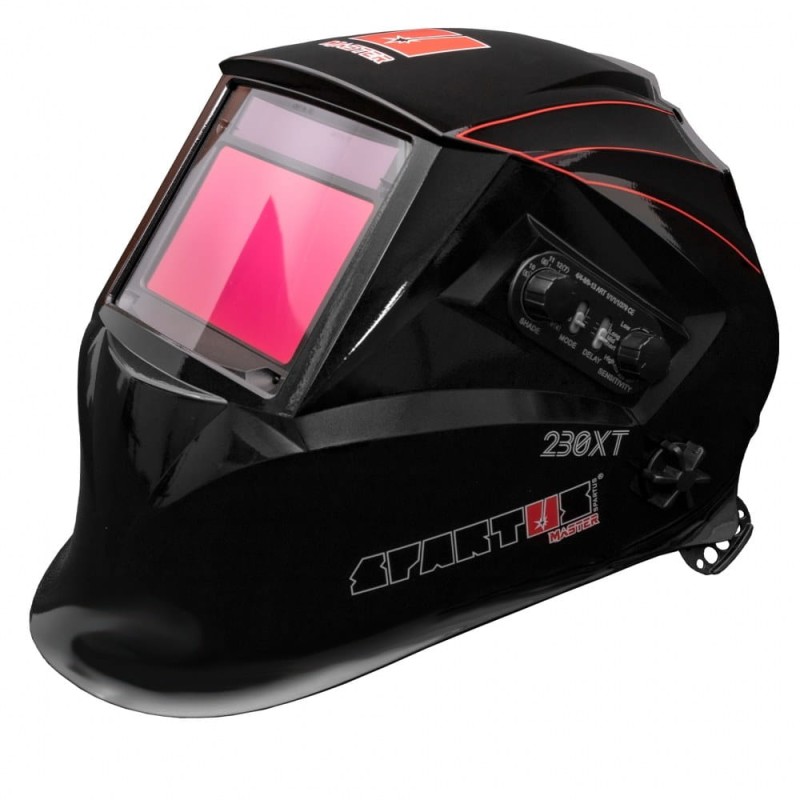

Spartus Master 230XT True Color

WELDING HELMET SPARTUS MASTER 230XT

| Brand: Spartus | Filter class: 1/1/1/1 | Shade range: DIN 4 - 13 | Number of sensors: 4 | Field of view: 100 x 65mm | Grinding: YES |

It is designed to protect the eyes and face of the welder against harmful radiation and welding spatter. The helmet has an automatic filter with the highest optical class 1/1/1/1 and a large field of view of 100x65mm.

Perfect for welding:

• MIG / MAG,
• TIG
• MMA.

Response time - 1/30 000s is guaranteed thanks to the use of 4 very sensitive sensors, which are an important factor when welding with low currents.

External control makes it easy to set the filter parameters while working without removing the helmet. Thanks to them, we can control the shade status (DIN 4 -8 / DIN 9-13), sensitivity, delay and switch the helmet's operating mode to grinding.

The multi-stage headband adjustment allows not only a perfect fit, but also setting the appropriate distance between the filter and the welder's eyes. The Master 230XT helmet is a guarantee of comfortable and long-lasting work without feeling tired.

FUNCTIONS:

• POWER SUPPLY - the mask is powered by a solar panel, and has a battery that can be replaced.
• DELAY - after completing the welding process, the visor window changes automatically from dark to light, but only after the delay time set by the user. The delay time compensates for the afterglow effect on the workpiece.
• SENSIVITY - under normal welding conditions, sensitivity should always be set to the maximum value. In exceptional cases, e.g. when welding in a very bright place, the sensitivity of the mask can be reduced.
• SHADING - smooth shade adjustment is controlled from the panel on the left side of the helmet.
• TEST - function on the internal panel that allows you to check the correct operation of the filter.
• TRUE COLOR - A useful function that allows the welder to see the actual colors during welding, have a sharper image and better visibility.

FEATURES AND BENEFITS

• Full face protection - provides protection for the face, chin, throat, ears and head, enabling welding in all positions.
• Light body - ensures comfort of use for a long time and reduces fatigue.
• The complete helmet weighs 480 g, which makes it one of the lightest helmets on the market.

TECHNICAL DATA:

• Application: MIG / MAG, TIG, MMA arc welding
• Active field of view size: 100 x 65mm
• Filter dimensions: 122 x 125 x 9mm
• Filter class: 1/1/1/1
• Number of sensors: 4
• Shading (standby): DIN 4
• Shading (operation status): DIN 4 - 8 or DIN 9 - 13
• Degree of protection against UV / IR: up to DIN16
• Blackout time: 1 / 30,000s
• Lightening time: 0.25 - 0.8s
• Power: battery and solar cells
• Grinding function: yes
• Filter adjustment: external
• Weight: 480g
