Spartus EasyTIG 200P AC/DC

SPARTUS EasyTIG 200P AC/DC

Brand: Spartus | Welding methods: TIG AC/DC, MMA AC/DC | Power supply: 230V | Welding current: 200A | Efficiency: 35%

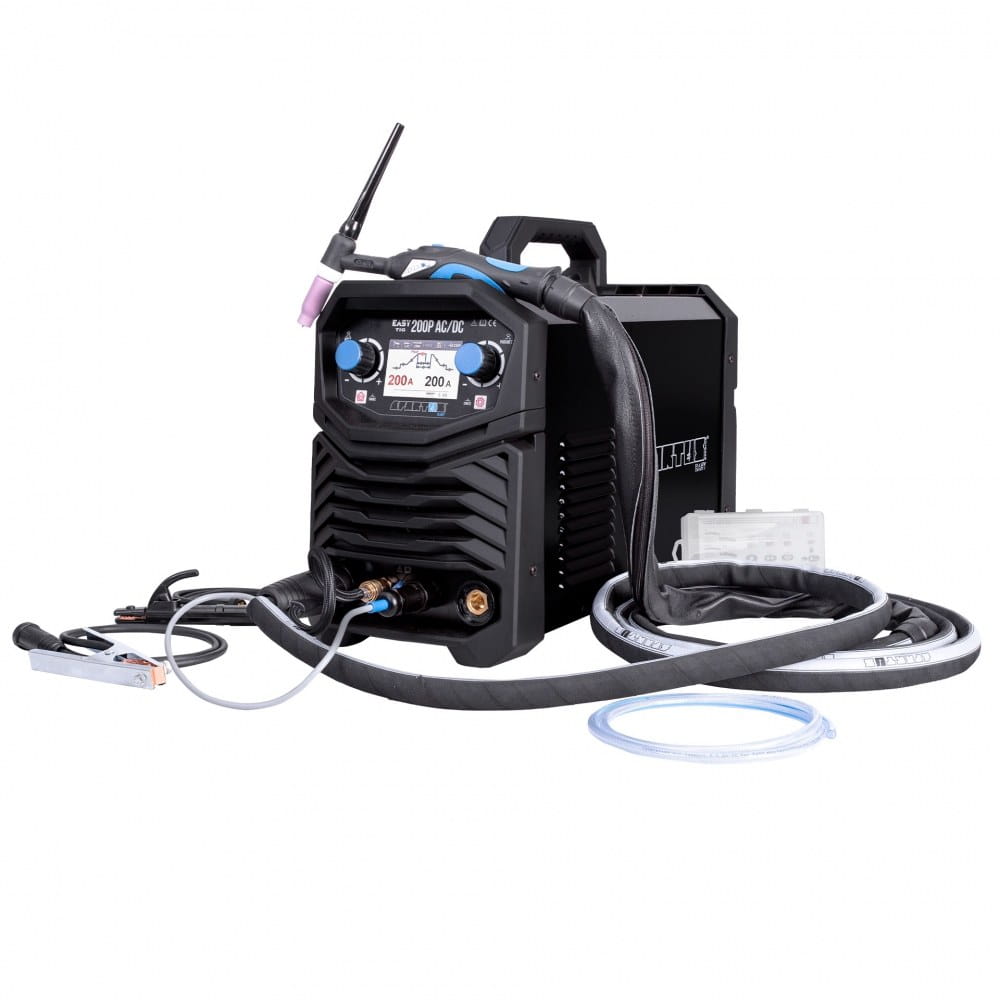

STANDARD EQUIPMENT

• Spartus EasyTIG 200P AC/DC welding machine
• TIG SPE 17 1B 4m torch
• TIG kit with torch parts
• Electrode holder
• Ground cable
• Gas hose
• User manual

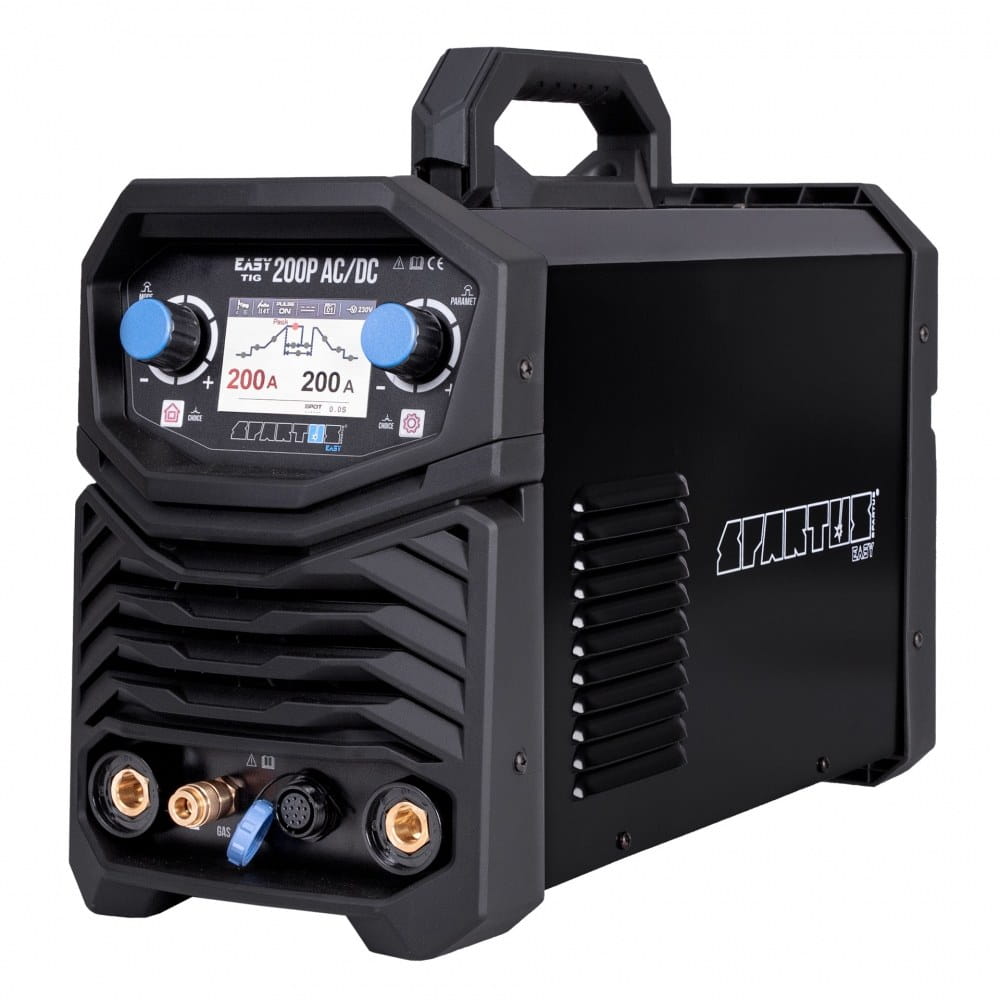

SPARTUS® EasyTIG 200P AC/DC

Digitally controlled, inverter welder, constructed on the basis of IGBT transistors and PWM technology. It enables welding using the following methods: TIG AC/DC and MMA AC/DC. It is powered from a single-phase 230V network.

The device gives the possibility of arc ignition in two methods TIG HF and TIG Lift.

In addition, it has a built-in pulse welding function, which is extremely useful when connecting very thin elements.

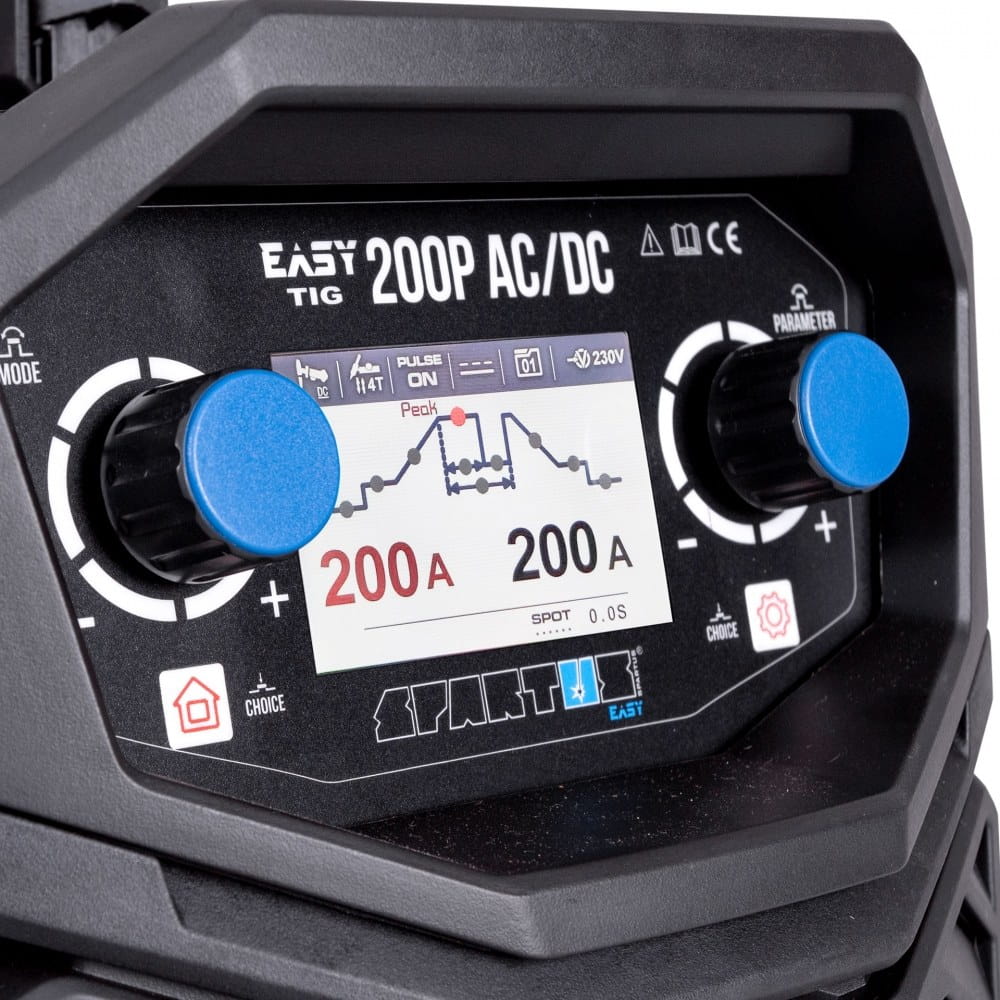

A simple function panel allows for precise control of all the most important welding parameters. The modern display, using the graph of the TIG function, facilitates the management of advanced parameters.

SPARTUS® EasyTIG 200P AC/DC is a device designed and manufactured for field operation. Despite its small size and weight, it allows for advanced TIG welding.

Examples of applications: field repair work, workshop work, light construction, maintenance.

TECHNICAL DATA:

• Supply voltage: ~1× 230V ± 10% 50 / 60 Hz
• TIG welding current: AC HF 10 - 200A / AC Lift 30 - 200A / DC 10 - 200A
• TIG duty cycle: 35%
• Pre-gas: 0 - 1s
• Post gas: 0.1 - 10s
• Current rise time: 0 - 5s
• Current fall time: 0 - 5s
• TIG Pulse: yes
• Pulse current: 10 - 200A
• Pulse width: 5 - 100%
• Pulse frequency: 0.5 - 200Hz
• AC current frequency: 40 - 250
• AC Balance: 20 - 80%
• 2T/4T working mode: yes
• Arc ignition: HF, no HF
• MMA welding current: 10 - 200A
• ArcForce: yes
• HotStart: yes
• Idle voltage: 60V
• Current consumption: TIG 36 / MMA 43A
• Power factor (cosφ): 0.73
• Efficiency η: 85
• Insulation class: H
• Degree of protection: IP21S
• Weight: 11
• Dimensions: 490 x 225 x 340mm

IGBT TECHNOLOGY

The basis for the construction of the welder's electrical energy conversion system are electronic systems made in IGBT technology, enabling operation in the frequency range above 200 kHz.

LEVEL OF SECURITY

IP defines the degree to which the device is resistant to the penetration of solid and water contaminants. IP21S means that the device is adapted to work in closed rooms.

OVERHEAT PROTECTION

The IGBT module is protected against overheating by a protective installation that disables the welding circuit of the device. After a few minutes, the welder cools down to a temperature that allows it to restart automatically.

WORK CYCLE

The duty cycle is based on a 10-minute period. A 35% duty cycle means that after 3.5 minutes of operation, a 7.5-minute break is required. 100% duty cycle means that the device can work continuously without interruption.

MMA

A method that uses a coated electrode, consisting of a metal core covered with a sheath. The welder feeds the electrode as it melts into the workpiece so as to maintain a constant arc length.

HOT START

The function is designed to prevent the electrode from sticking to the material and is a great help when striking the arc. In the case of welding small elements, it is recommended to disable this function, as it may cause burnout of the welded material.

ARC FORCE

Allows you to adjust the dynamics of the welding arc. Shortening the arc length is accompanied by an increase in the welding current, which stabilizes the arc.

Decreasing the value gives a soft arc and shallower depth of penetration, while increasing the value causes deeper penetration and the possibility of short arc welding.

POSITION CURRENT 10-200A

The current responsible for maintaining the welding process, the lower value of the current pulse. It makes it easier to control the amount of heat introduced into the material.

START CURRENT

Current appearing in the circuit after pressing the button in the handle of the handle. The higher the starting current, the easier it is to strike the arc.

However, when welding thin sheets, too high a value of the starting current can lead to burning of the sheet. In some welding modes, the current does not increase to heat the workpiece.

TIG AC/DC

Enables TIG welding with alternating current. It is required for welding aluminum and its alloys. MMA - a function that enables MMA welding, i.e. welding with a coated electrode. This increases the possibilities and versatility of the device.

GAS PREFLOW TIME 0 - 1s.

Time from pressing the button in the handle of the torch and opening the gas valve until the arc is ignited. Normally it should be longer than 0.5s to supply shielding gas to the torch nozzle outlet to shield the welding start and tungsten electrode.

GAS POST-FLOW TIME 0.1 - 10s.

Time from extinguishing the arc to closing the gas valve to shield the solidifying weld pool from air and to cool the tungsten electrode. Too short post-flow time may result in oxidation of the weld. When welding in TIG AC (alternating current) mode, this time should be longer.

RISE TIME 0 - 5s.

Welding current rise time from the initial current to the set welding current value.

DOWNLOAD TIME 0 – 5s.

The time for the welding current to fall from the set value to zero or the value of the crater current.

PULSE TIG

The function affects the shape of the weld and the focus of the arc. Pulse welding also allows you to reduce the amount of heat supplied to the material and is used when welding thin materials.

HF - NON-CONTACT ARC STARTING

The SPARTUS® EasyTIG 200P AC/DC device is equipped with an ionizer that enables contactless arc ignition.

PULSE FREQUENCY 0.5 – 200Hz

The frequency at which the current pulse value changes between the welding current and the base current.

AC FREQUENCY 40 - 250

This function is useful when welding aluminum. The higher the frequency, the better the quality of the weld and the better the focus of the arc.

AC BALANCE 10 - 80%

The ratio of the duration of the positive phase of the current to the negative one. Reducing the balance introduces more heat into the material, resulting in a narrower weld and deeper penetration, while reducing the heat load on the tungsten electrode.

Increasing the balance introduces less heat into the material, resulting in better cleaning, a wider weld and shallower fusion, but significantly stresses the tungsten electrode.

PULSE WIDTH 5 - 100%

The duration of the pulse allows you to adjust the penetration depth. Increasing the width increases the depth of penetration, reducing the amount of heat introduced into the material, reducing the risk of burning through thinner sheets or smaller components.

2T / 4T WORKING MODE

2T - Two-stroke mode - pressing the button in the handle of the handle turns on the ionizer and ignites the arc. Welding is carried out with the button pressed.

4T - Four-stroke mode - pressing the button in the handle of the handle will turn on the ionizer and ignite the arc, then release the button and weld with the button released. Pressing the button again will end welding.

AC WAVE SHAPE SELECTION

• Sine wave - Classic wave, similar to transformer welders, preferred by older welders.
• Square Wave - Universal, most commonly used waveform for welding any material. Generates more heat in the welding zone, greater penetration than other shapes.
• Triangular wave - Preferred especially when welding thin materials

STRONG AND SOLID CONSTRUCTION

The housing of the device is made of light and durable composites, resistant to all kinds of mechanical damage.

COOLING

The device has a fan cooling system, which significantly increases its efficiency.
