Spartus EasyMIG 375

SPARTUS INVERTER WELDING MACHINE - EASYMIG 375 PACKAGE

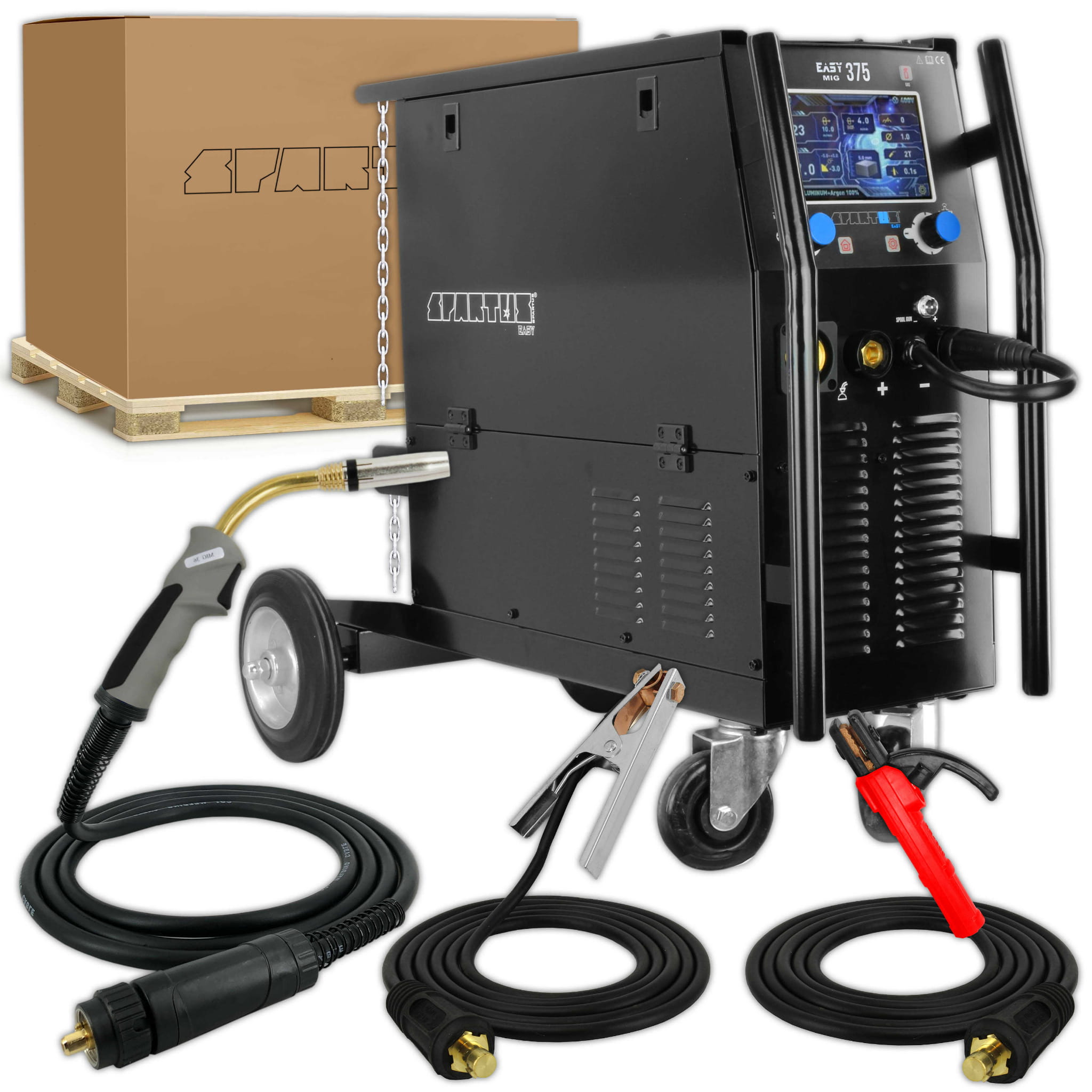

STANDARD EQUIPMENT:

• Welder SPARTUS® EasyMIG 375
• SPARTUS® Easy 360 3m torch
• 2 x roller 1.0-1.2V fi30
• Electrode holder
• Mass cable
• Gas hose
• User manual

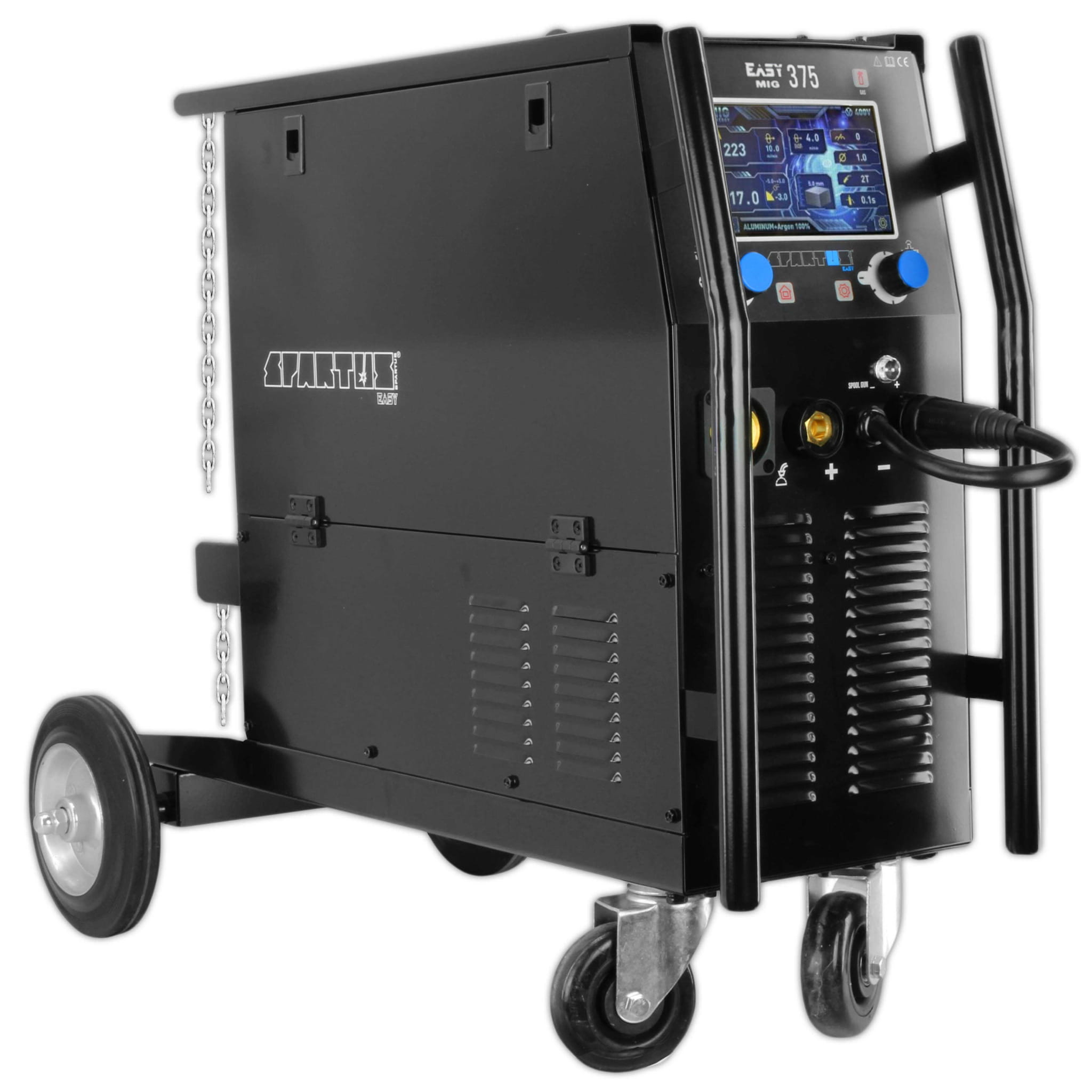

SPARTUS® EasyMIG 375

It is a modern, inverter semi-automatic welding machine, constructed on the basis of IGBT transistors. It has the function:

• MIG / MAG shielded by inert and active gases,
• Covered electrode MMA,
• TIG Lift with frictional arc ignition.
• FLUX easy polarity change allows welding with self-shielding wire without gas

The maximum welding current for MIG and TIG methods is 350A and for MMA - 300A. The device is powered from a three-phase 400V network.

The device is equipped with synergic programs for MIG / MAG welding with steel wires in the diameter range of 0.8 - 1.2 mm. Additionally, it has the ability to manually correct the set parameters.

SPARTUS® EasyMIG 375 has a number of functions supporting the welding process: 2T / 4T operating mode, inductance adjustment, Burn Back, Slow Feed, Hot Start, Arc Force, VRD.

SPARTUS® EasyMIG 375 is a compact, designed primarily for efficient welding of various types of steel structures.

TECHNICAL DATA:

• Supply voltage: ~ 3 × 400V ± 10% 50/60 Hz
• MIG welding current: 50 - 350A
• MIG duty cycle: 60%
• Working output voltage: 9.9 - 35V
• Wire feed speed: 0.8 - 16m / min
• Wire spool: ≤ 15kg / ∅200 / 300mm
• Wire diameter: 0.8 / 1.0 / 1.2mm
• TIG welding current: 10 - 350A
• MMA welding current: 10 - 300A
• Current consumption: MIG 21 / MMA 19 / TIG 16A
• Power factor (cosφ): 0.93
• Efficiency η: 80%
• Insulation class: H.
• Protection degree : IP21S
• Weight: 37kg
• Dimensions: 920 x 480 x735mm

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

LEVEL OF SECURITY

The IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP21 means that the device is adapted to work in closed rooms.

PROTECTION AGAINST OVERHEATING

The IGBT module is protected against overheating by a protective system that switches off the machine's welding circuit. After a few minutes, the welding machine cools down to a temperature that allows it to be turned on again automatically.

WORK CYCLE

The duty cycle is based on a 10-minute period. 60% duty cycle means that after 6 minutes of operation, a 4-minute break is required. Duty cycle of 100% means that the device can work continuously without interruption.

MMA

A covered electrode method consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes, e.g. basic, cellulose, rutile or acid.

ARC FORCE

Increasing or decreasing the length of the welding arc depending on the distance between the electrode and the material to be welded. It allows you to adjust the dynamics of the welding arc. Shortening the arc length is accompanied by an increase in the welding current, which stabilizes the arc.

VRD

The VRD function lowers the voltage in no-load condition. The correct voltage is not restored until just before the arc is struck. This minimizes the risk of electric shock, but in some cases may make the arc difficult to ignite.

HOT START

The purpose of this function is to prevent the electrode from sticking to the material and is a great help when striking the arc. It works when the arc is struck, causing the welding current to temporarily increase above the value set by the welder.

REVERSING POLARITY - WELDING WITHOUT GAS

Thanks to the variable polarity, it is possible to weld with the FLUX method with flux-cored wire without shielding gas. The wire is filled with a flux that produces protective gases during welding.

SYNERGY

Welding with the MIG / MAG method using synergic settings. The device selects welding parameters depending on the selected type and thickness of the material. These parameters can be changed by the user in order to adjust the settings to their own needs. Many programs have been prepared for synergic welding, including the braze welding program.

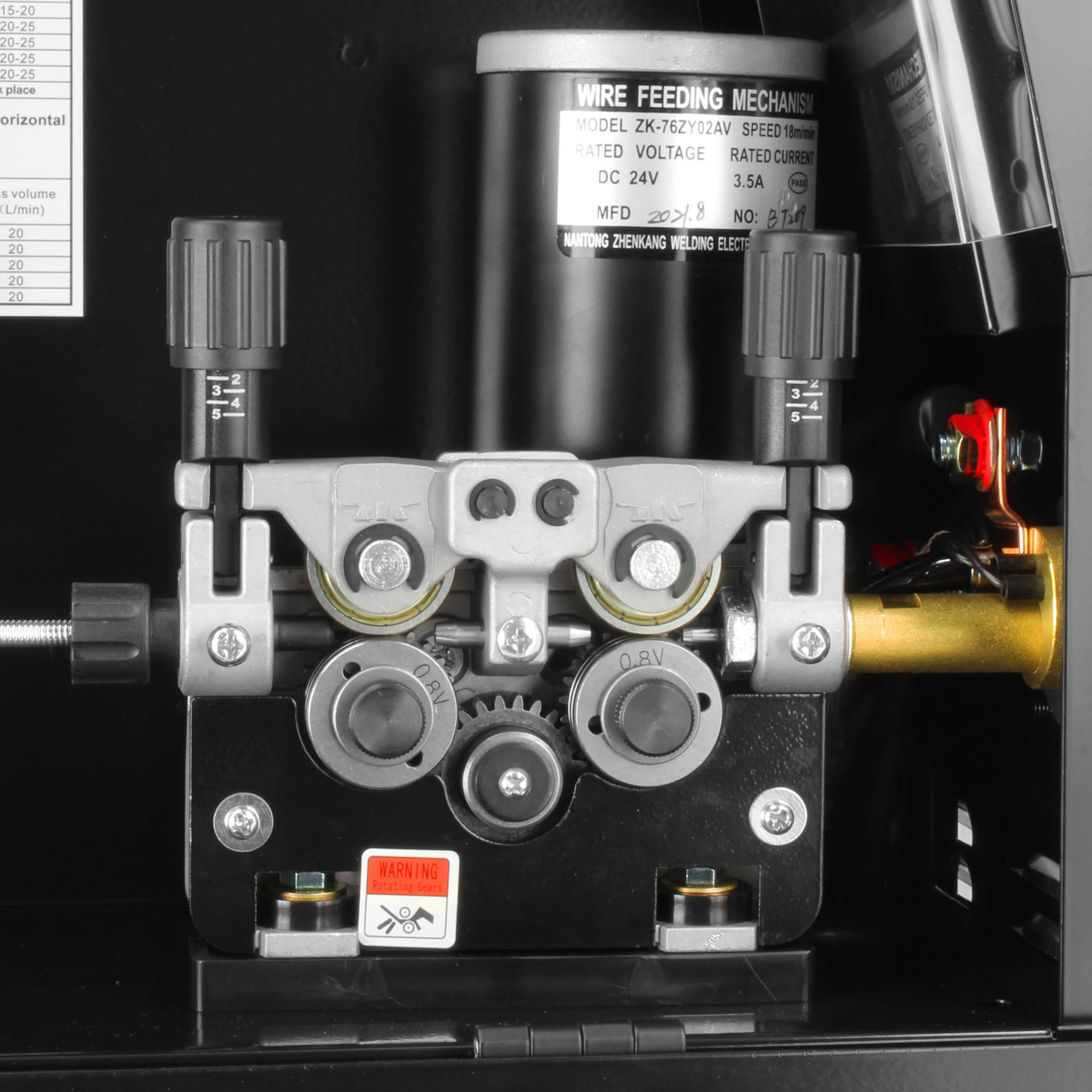

4 ROLL WIRE FEED

Professional four-roller feeder ensures stable welding wire feeding. It has a powerful motor that allows for stable wire feeding without jamming.

It is designed for heavy-duty work and for longer handles than plastic feeders that cannot handle 4 or 5 meter handles.

SMOOTH ADJUSTMENT OF WIRE FEED

Smooth regulation of the wire feed speed is supported by an additional potentiometer, which allows you to set the speed for different wire diameters.

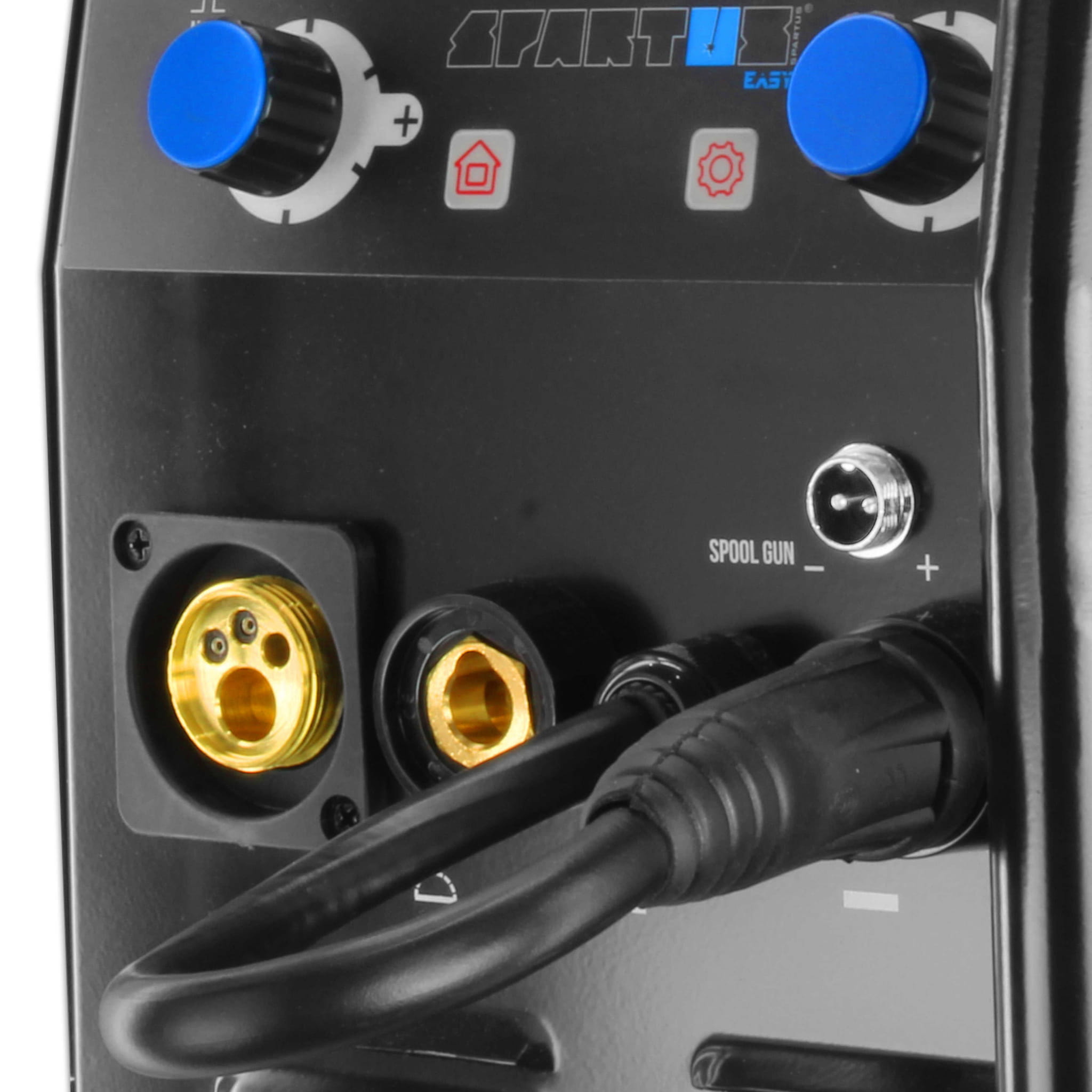

EUROCONNECTOR

Standard connection for welding torches, which enables the connection of various types of torches (e.g. prepared for aluminum welding by replacing the Teflon insert and contact tip).

REGULATION OF INDUCTION

It enables optimization of the arc characteristics depending on the thickness of the welded element as well as the welding method and conditions. This function is useful during MIG / MAG welding of thin elements, preventing them from burning out and brazing galvanized elements.

2T / 4T

2T - Pressing the welding gun button will cause gas to pre-flow, then ignition the arc and start welding. When the button is released, the arc will be extinguished and gas will flow out.

4T - Pressing and releasing the welding gun button will pre-flow gas, then strike the arc and start welding. When the button is pressed and released again, the arc will be extinguished and gas will flow out.

WELDING OF ALUMINUM ALLOYS

Welding aluminum is not a simple activity, it requires experience, knowledge and certain practices from the welder, which will facilitate the execution of welds on aluminum elements.

Depending on the needs, appropriate voltage and inductance corrections should be made to obtain the desired effect.

BURN BACK

Precise regulation of the burn-back time of the end of the welding wire eliminates the risk of the welding wire sticking to the contact tip.

SLOW FEED

It is a function of the so-called soft start-up of the wire feeder, especially recommended for welding with high currents and high wire feed speeds.

SMOOTH ADJUSTMENT OF WIRE FEED

Smooth regulation of the wire feed speed is supported by an additional potentiometer, which allows you to set the speed for different wire diameters.

COOLING

The device has a fan cooling system, which significantly increases its efficiency.

INSULATION CLASS F

The type of insulation materials used, informing about the maximum operating temperature of the transformer. If it is exceeded in continuous operation, it shortens the life and failure-free operation time of the transformer. For class F 155 ° C.

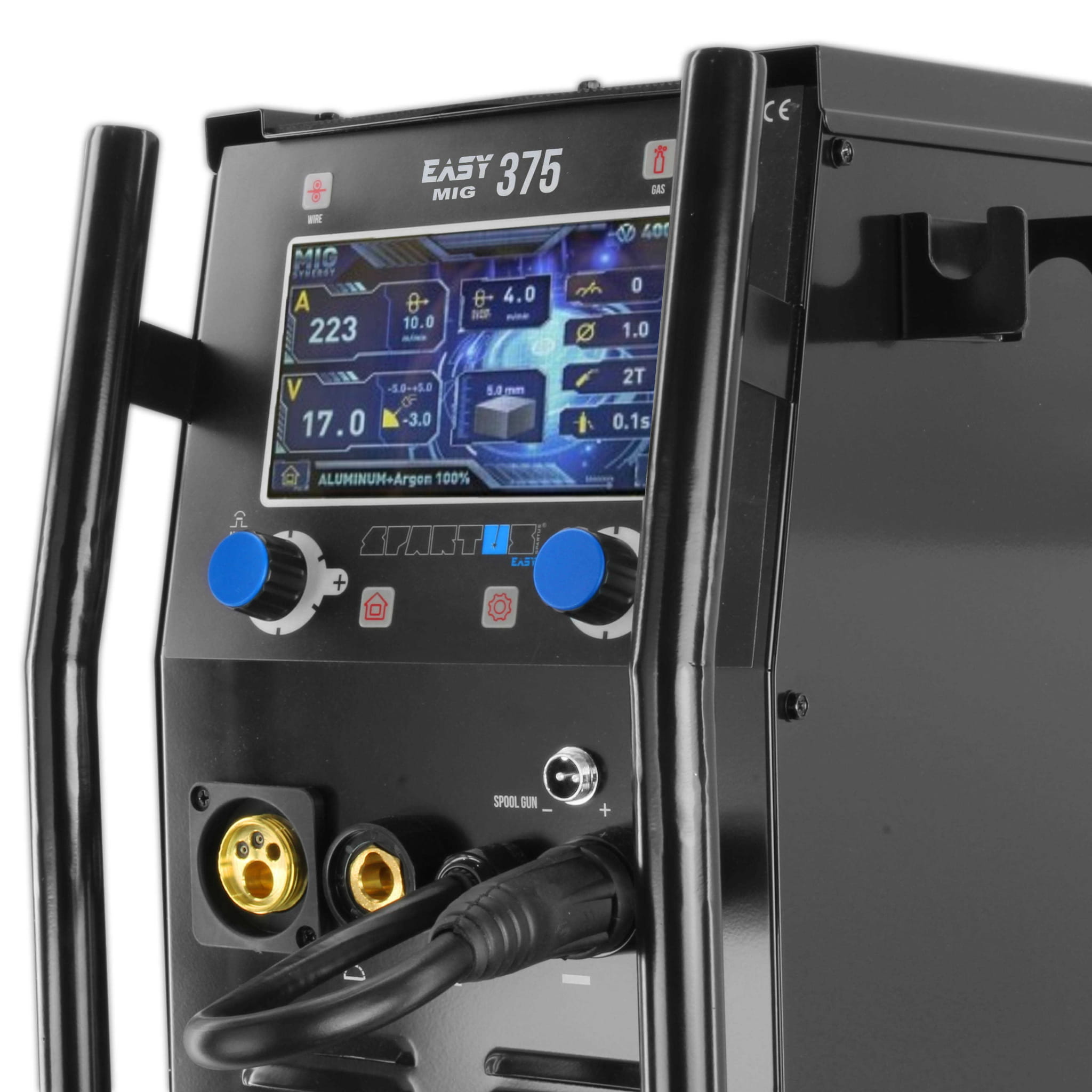

EASY TO USE, CLEAR CONTROL PANEL:

The easy-to-use control panel enables precise and smooth adjustment of parameters. The digital display shows the actual current during welding. The semi-automatic welding machine has a menu that facilitates operation and allows you to choose the type of material to be welded.

WIRE TEST

Pressing the wire feed button will start the wire feed motor without starting the flow of shielding gas. The power source also starts, but does not supply welding current.

TIG LIFT WELDING

For welding with this method it is necessary to use an additional TIG torch. A gas cooled torch with a current carrying capacity appropriate to the device, with a shielding gas control valve, is required.

The TIG LIFT torch is an additional option that can be purchased at our other auctions.
