Spartus EasyARC 205

SPARTUS ®  EasyARC 205

| Brand: Spartus | Welding methods:  MMA, TIG Lift DC  | Power supply: 230V | Welding current:  200A | Efficiency:  60% |

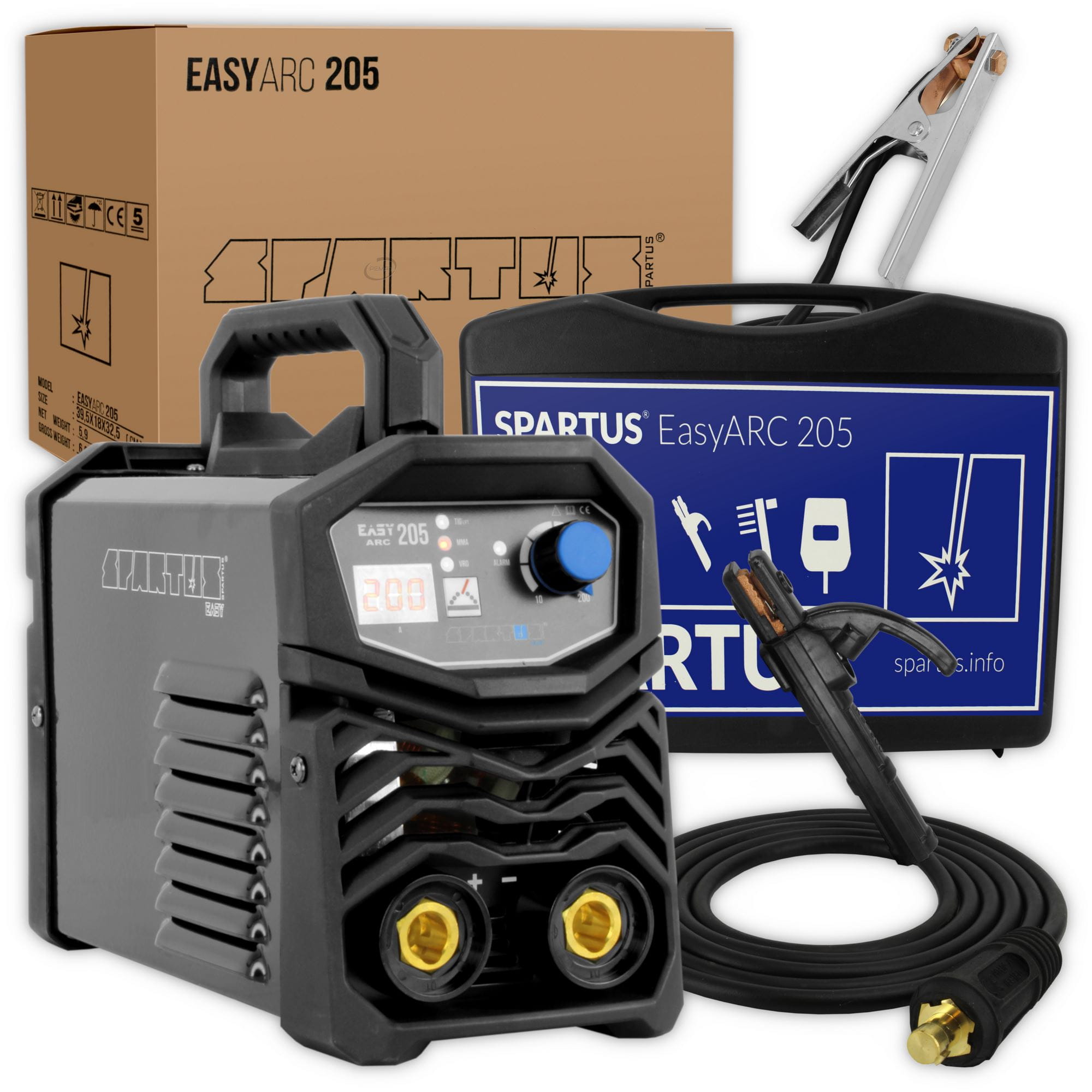

STANDARD EQUIPMENT

• EasyARC 205 welder
• electrode holder
• mass cable,
• suitcase
• welding shield
• hammer with a brush
• shoulder strap
• user manual

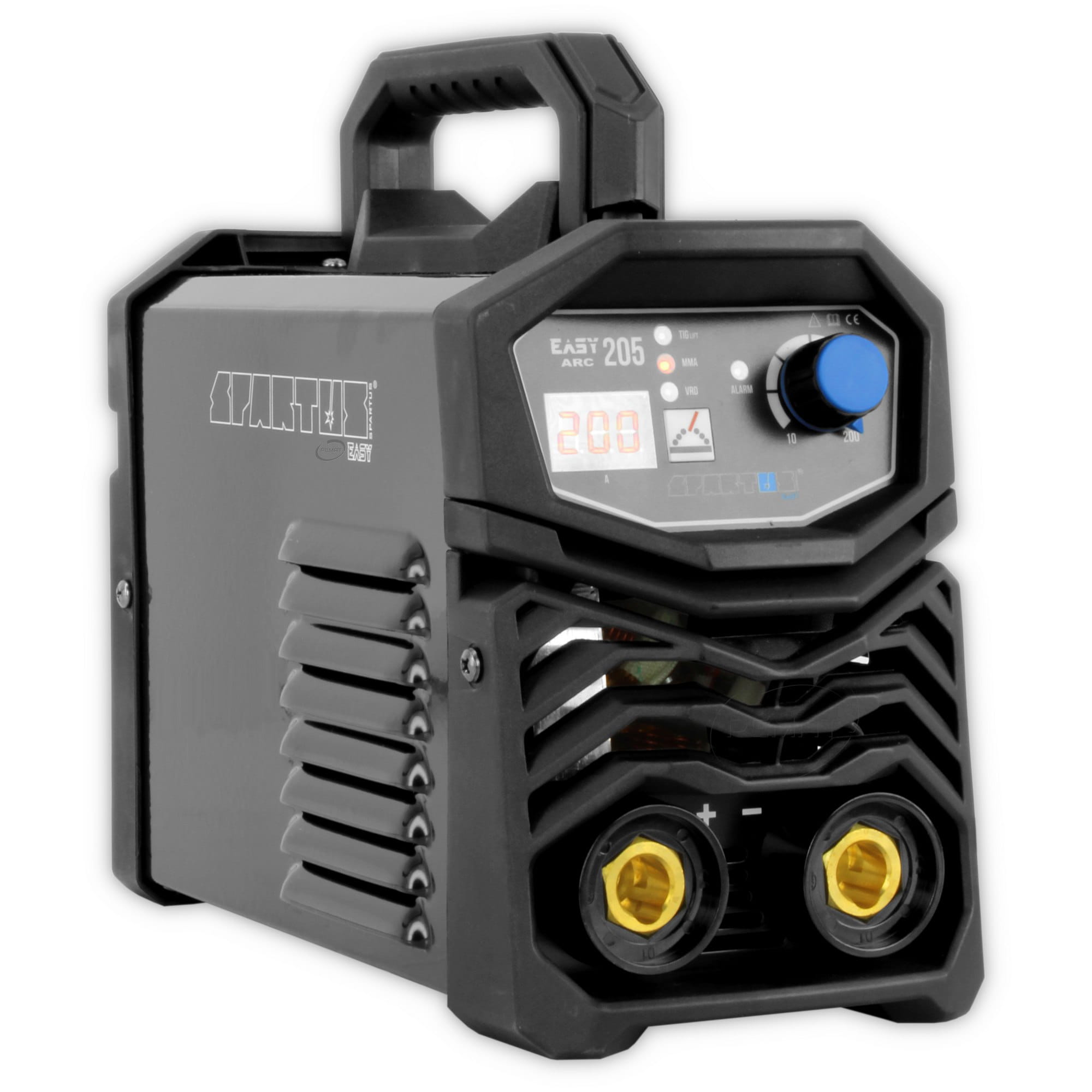

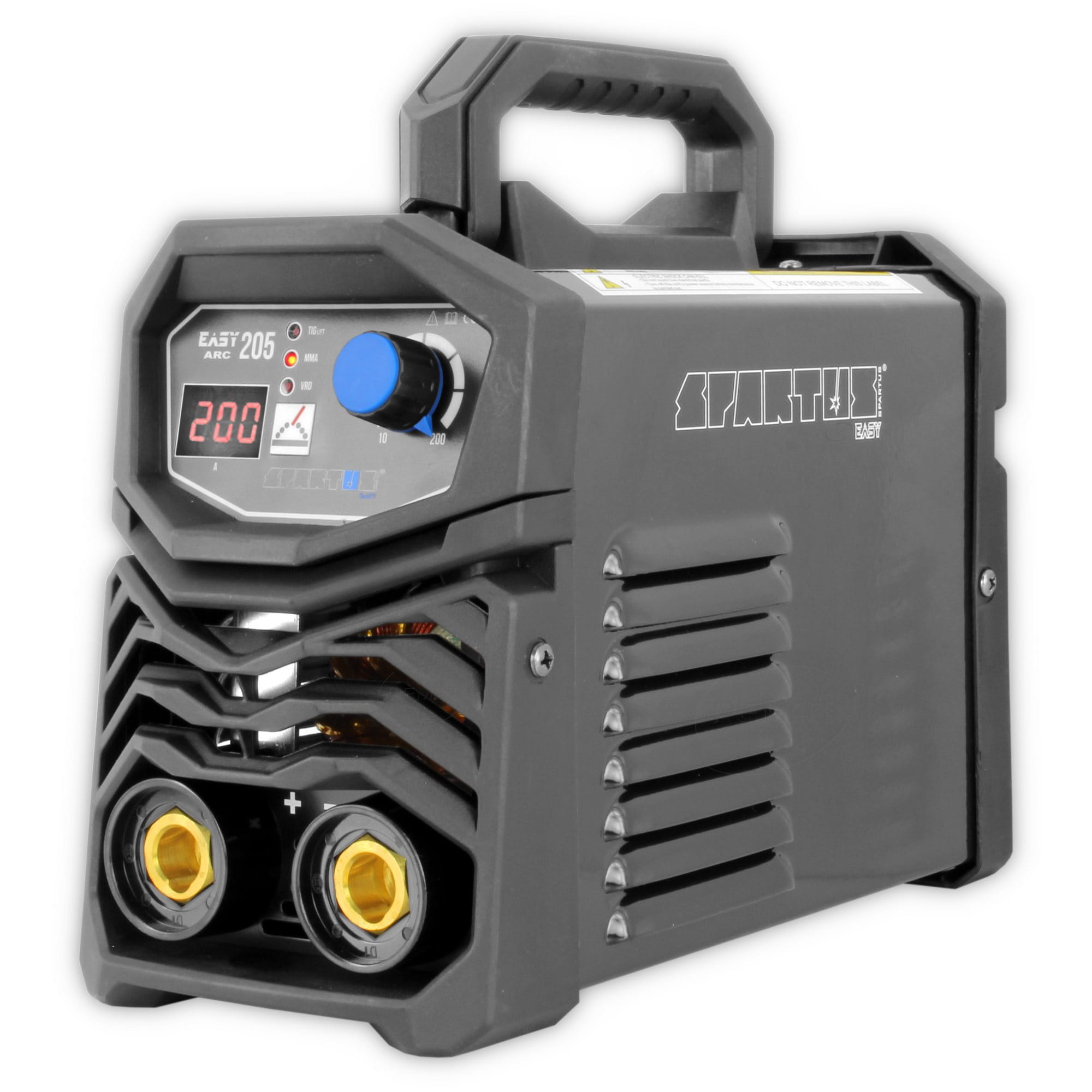

SPARTUS® EasyARC 205

The device is characterized by the highest class welding performance and reliability, a small size welder based on inverter technology with the use of IGBT power transistors.

• Arc welding with a coated electrode (MMA),
• Arc welding with coated electrode (MMA) in VRD mode,
• Arc welding with a non-consumable electrode in an inert gas shield (TIG LIFT).

EasyARC 205 has a simple and legible function panel, where the welding current is adjusted with one large knob.

The welder with accessories can be placed in a handy case included in the set.

Application example: renovation works in the field, workshop works.

TECHNICAL DATA:

• Supply voltage: ~ 1 × 230V ± 10% 50/60 Hz
• MMA welding current: 10 - 200A
• MMA Duty Cycle: 60%
• Idle voltage: 82V
• VRD: yes
• TIG Lift : yes
• Current consumption: 42A
• Power factor (cosφ): 0.76
• Efficiency η: 85%
• Insulation class: H.
• Protection degree: IP21S
• Weight: 4 kg
• Dimensions: 270 x 130 x 200 mm

CONDITIONS DURING WORK, TRANSPORT AND STORAGE:

• Ambient temperature during operation: from -10 ° C to + 40 ° C
• Relative air humidity: up to 50% at + 40 ° C up to 90% at + 20 ° C
• Surrounding air: free from excessive amounts of dust, acids, corrosive gases, etc. or substances other than those generated by the welding process
• Maximum slope of the ground: not more than 10 °
• Ambient temperature during transport and storage: -20 ° C to + 55 ° C

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

LEVEL OF SECURITY

The IP defines the degree to which the device is resistant to solid and water contamination entering the device. IP21S means that the device is suitable for operation in confined spaces and is not suitable for use in rain and snow.

PROTECTION AGAINST OVERHEATING

The power source is equipped with a thermal automatic overload switch. When the temperature of the welding machine is too high, the protection disconnects the welding current and the overheating diode lights up. After the temperature has dropped, the switch will reset automatically.

COOLING

The device has a fan cooling system, which significantly increases its efficiency.

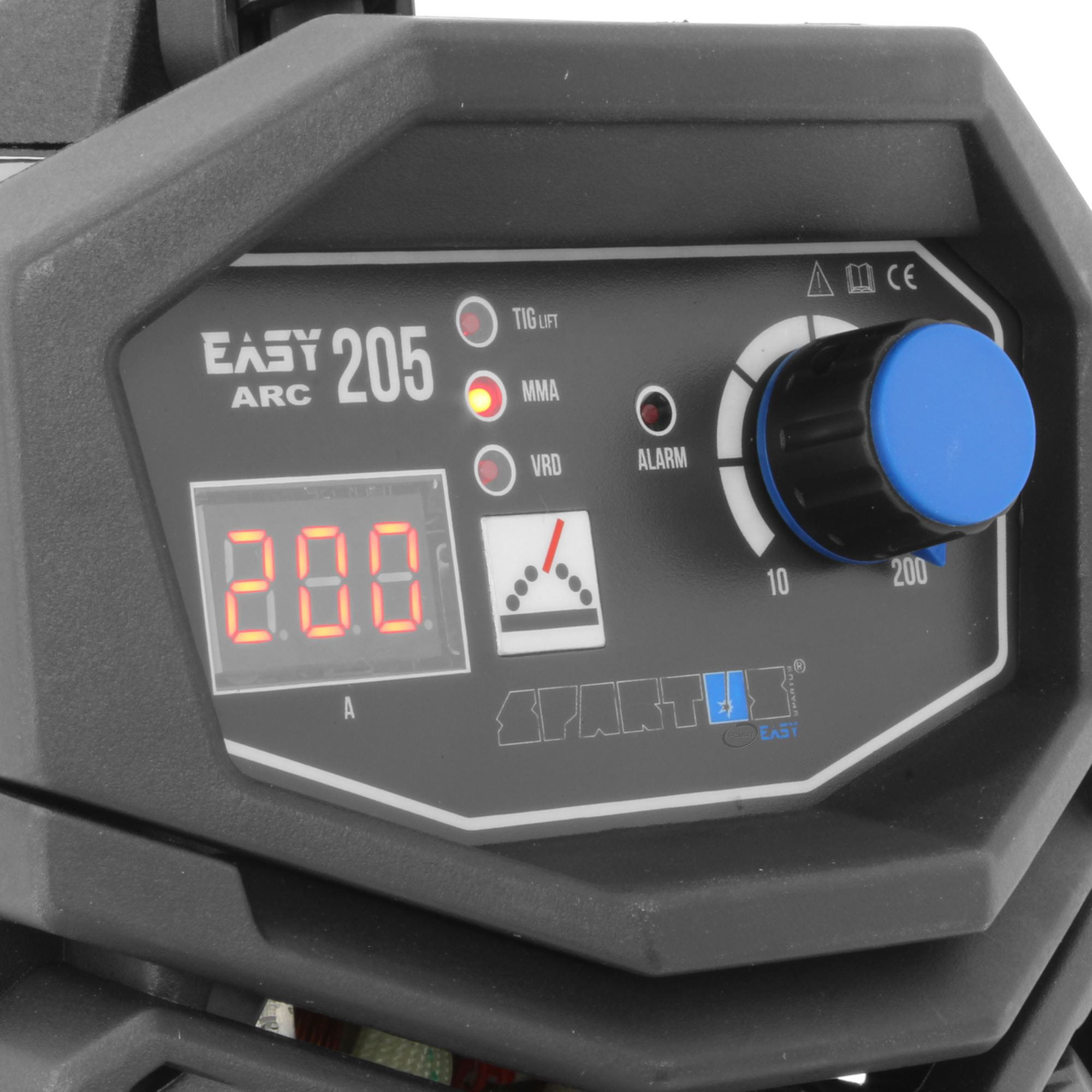

EASY TO USE, CLEAR CONTROL PANEL:

The easy-to-use control panel enables precise and smooth adjustment of parameters. The digital display shows the actual current during welding.

MMA

A covered electrode method consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes, e.g. basic, cellulose, rutile or acid.

WORK CYCLE

The duty cycle is based on a 10-minute period. 60% duty cycle means that after 6 minutes of operation, a 6-minute break is required. Duty cycle of 100% means that the device can work continuously without interruption.

EASY TRANSPORT

Small dimensions and lightweight design make the EasyARC 205 devices easy to take to any workplace. The devices are equipped with a strong handle and a shoulder strap for easy portability.

VRD FUNCTION

Activate / deactivate the VRD function. This function lowers the voltage in no-load condition. The correct voltage is not restored until just before the arc is struck. This minimizes the risk of electric shock, but in some cases may make the arc difficult to ignite.

TIG DC LIFT

Welding with a tungsten electrode in an inert gas shield using a handle with a gas valve in the handle. The arc is struck by rubbing, similar to MMA ignition.
