Sherman WRC 300B Welding Water Cooler

SHERMAN WRC 300B WELDING COOLER

Producer: Sherman | Power: 370W | Power supply: 230V | Productivity: 8l / min | Capacity: 6l

The WRC 300B cooler is a fully professional device designed for liquid cooling of MIG / MAG and TIG welding guns and other components and devices that require cooling in a closed circuit. The cooler is designed for continuous operation.

The cooler with the holder creates a closed circuit, enabling the operation of welding devices regardless of water availability and reducing its consumption. The use of a cooler also extends the service life of the welding torches.

The device can cooperate with all Sherman welding machines and similar devices from other companies. The cooler is equipped with a flow sensor with visual and audible alarm.

TECHNICAL DATA:

• Catalog number: WRC300B
• Supply voltage [V]: AC 230 50Hz
• Pump power [W]: 370
• Cooling liquid flow [l / min]: 8
• Cooling liquid pressure [MPa]: 0.3
• Rated cooling capacity [kW (1l / min)]: 1.6
• Tank capacity [l] : 6
• Time [kg]: 14
• Dimensions (L x W x H) [mm] : 450 x 260 x 340

LEVEL OF SECURITY

IP defines the extent to which the device is resistant to solid and water contamination entering the interior. IP21S means that the device is suitable for operation in confined spaces and is not suitable for storage or use in rain and snow

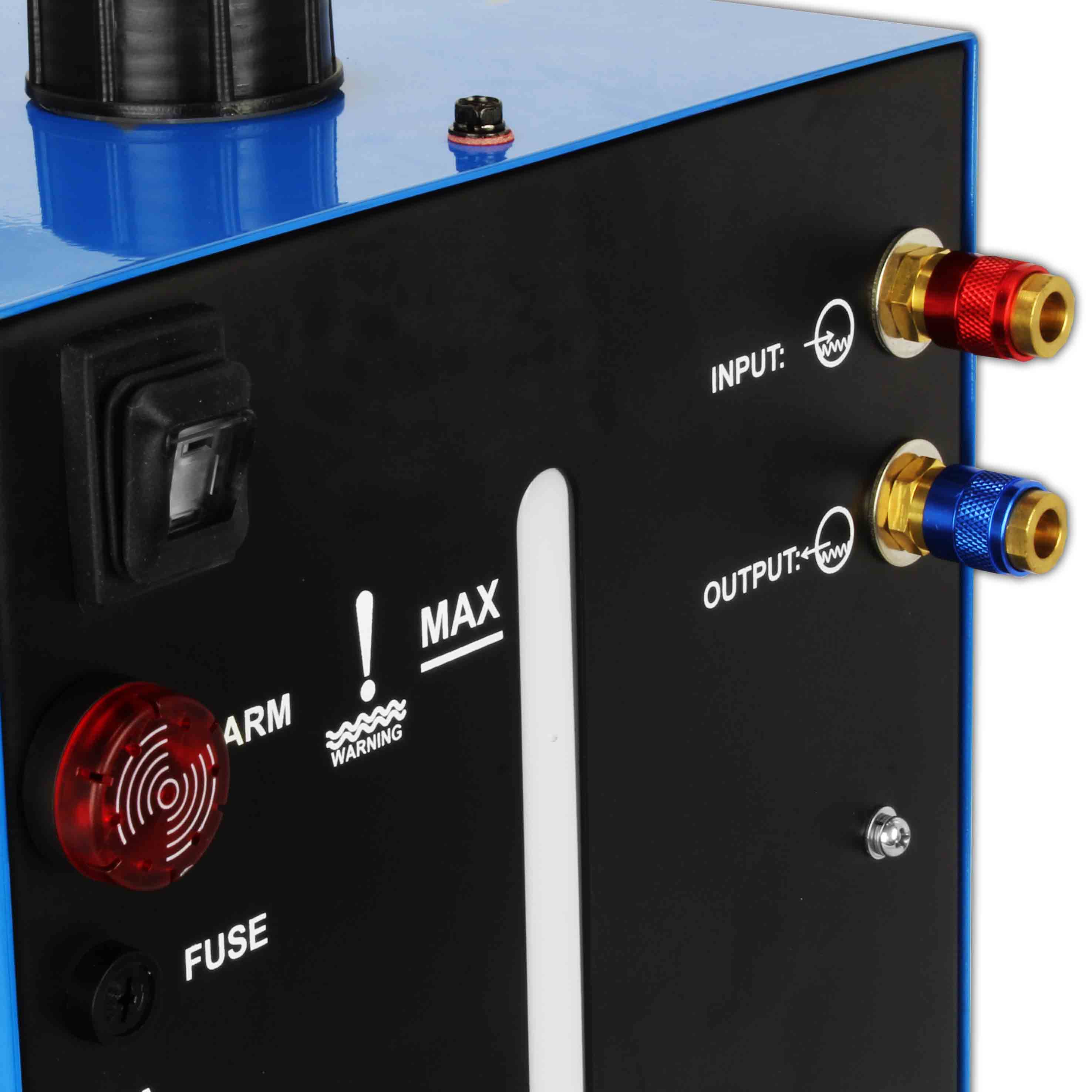

ALARM

The device is equipped with a coolant flow sensor. In the event of no or too low liquid flow, an audible alarm will sound and the ALARM diode on the front panel will flash. In this case, stop work immediately and remove the cause of the alarm.

HEAT EXCHANGER

The use of a copper coil and a stainless steel pump significantly increase the cooling efficiency and extend the life of the device.

STRONG AND SOLID CONSTRUCTION

The radiator casing is made of light and durable materials, resistant to all kinds of mechanical damage.
