Sherman TIG 215P AC/DC Welder
Regular price:
product unavailable
add to wish list
Description

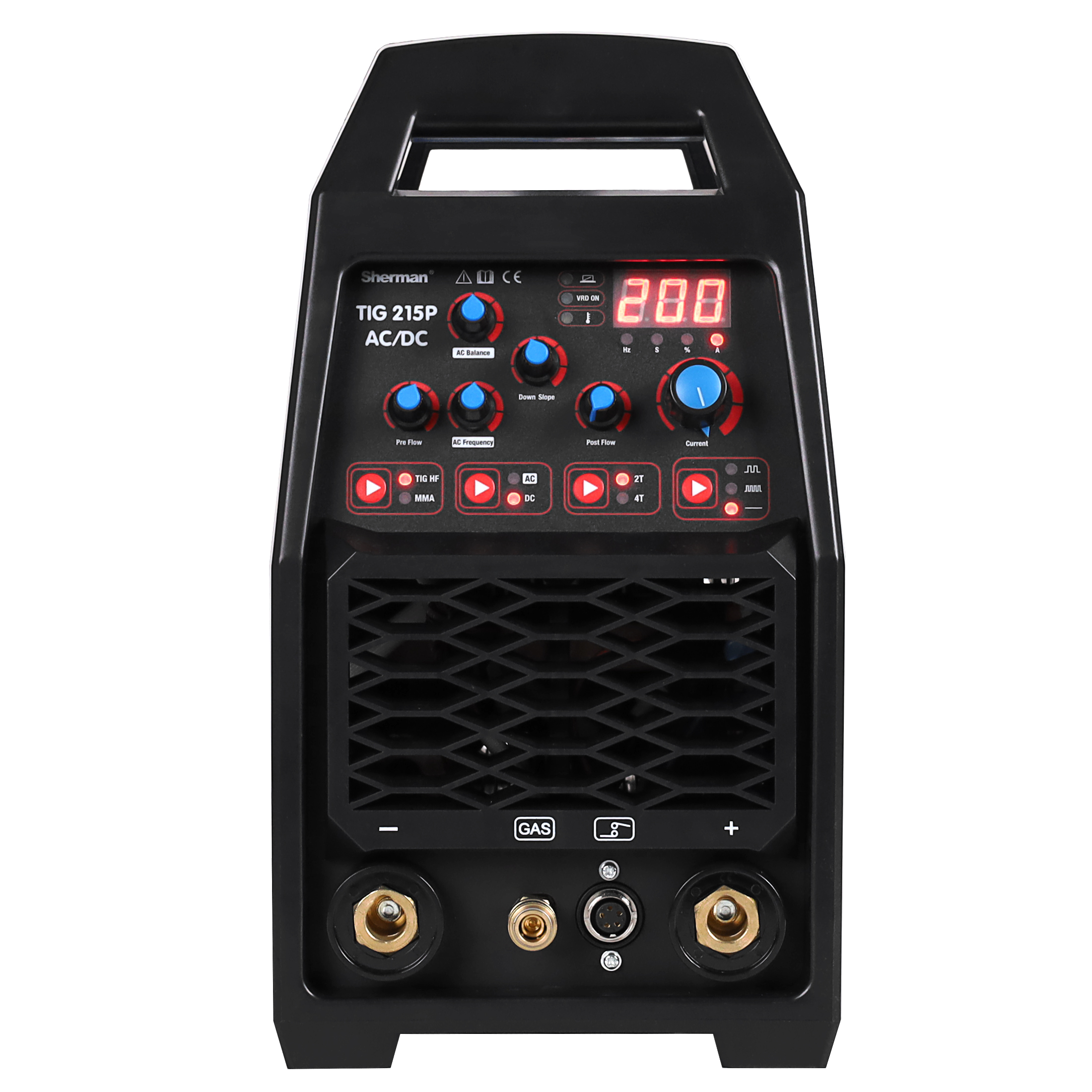

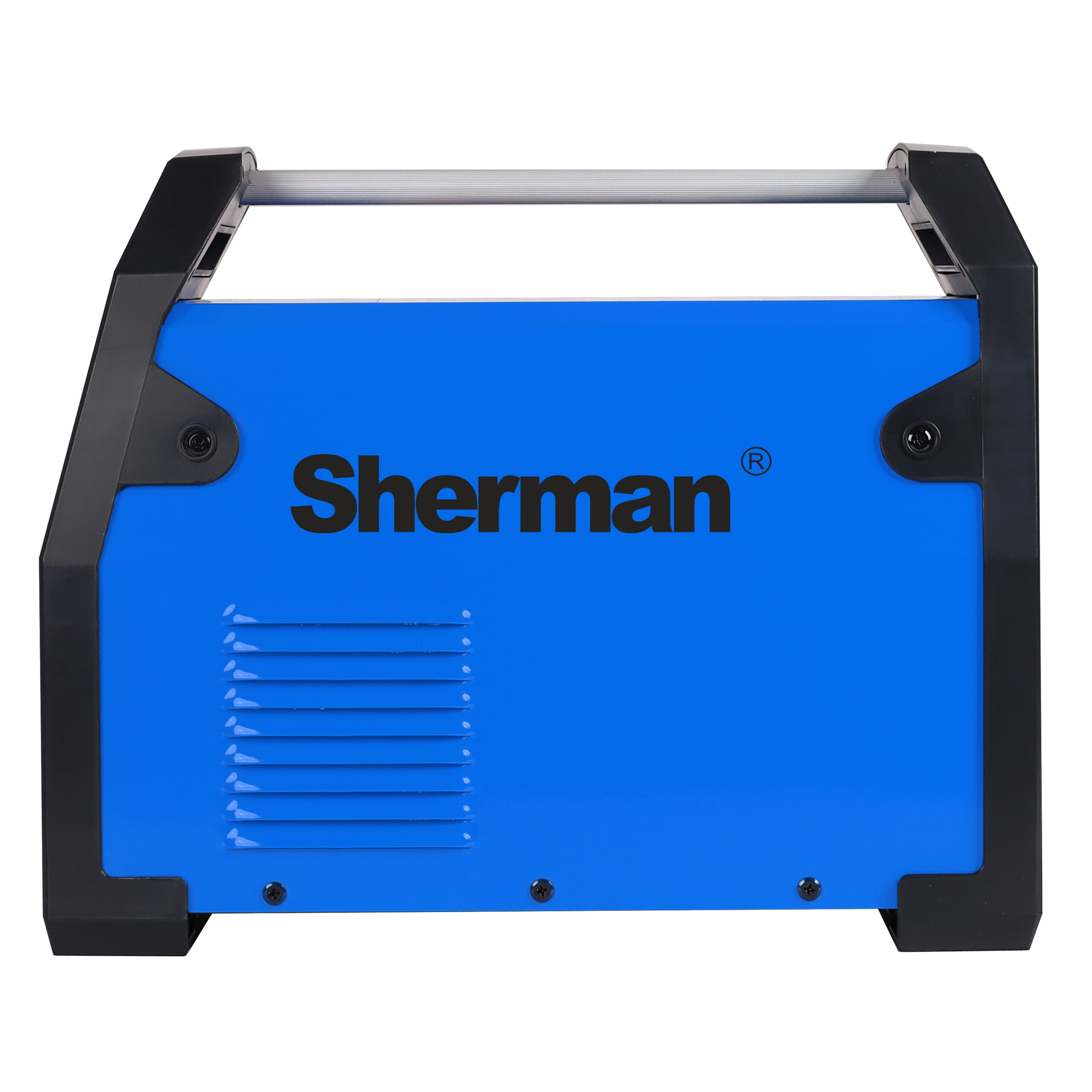

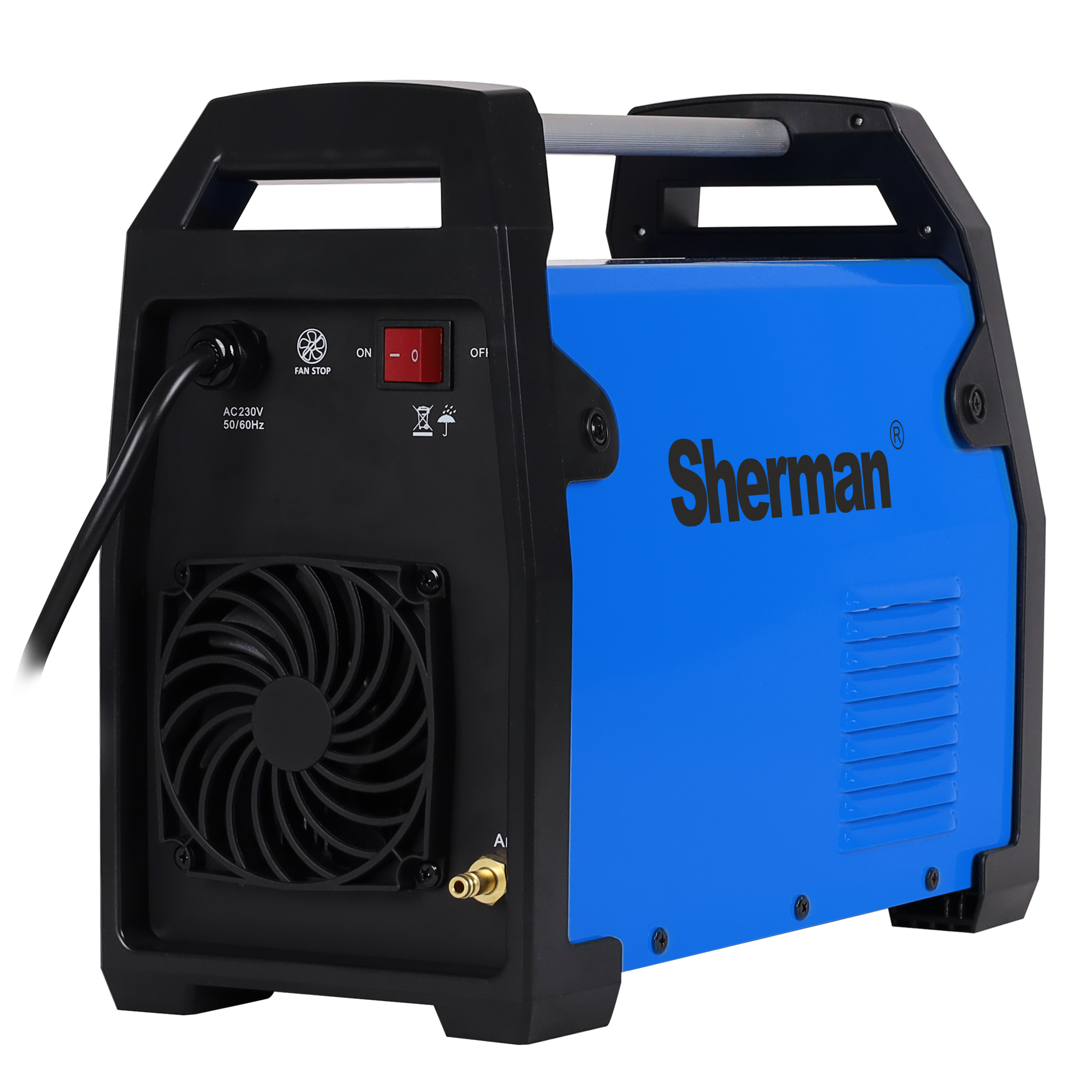

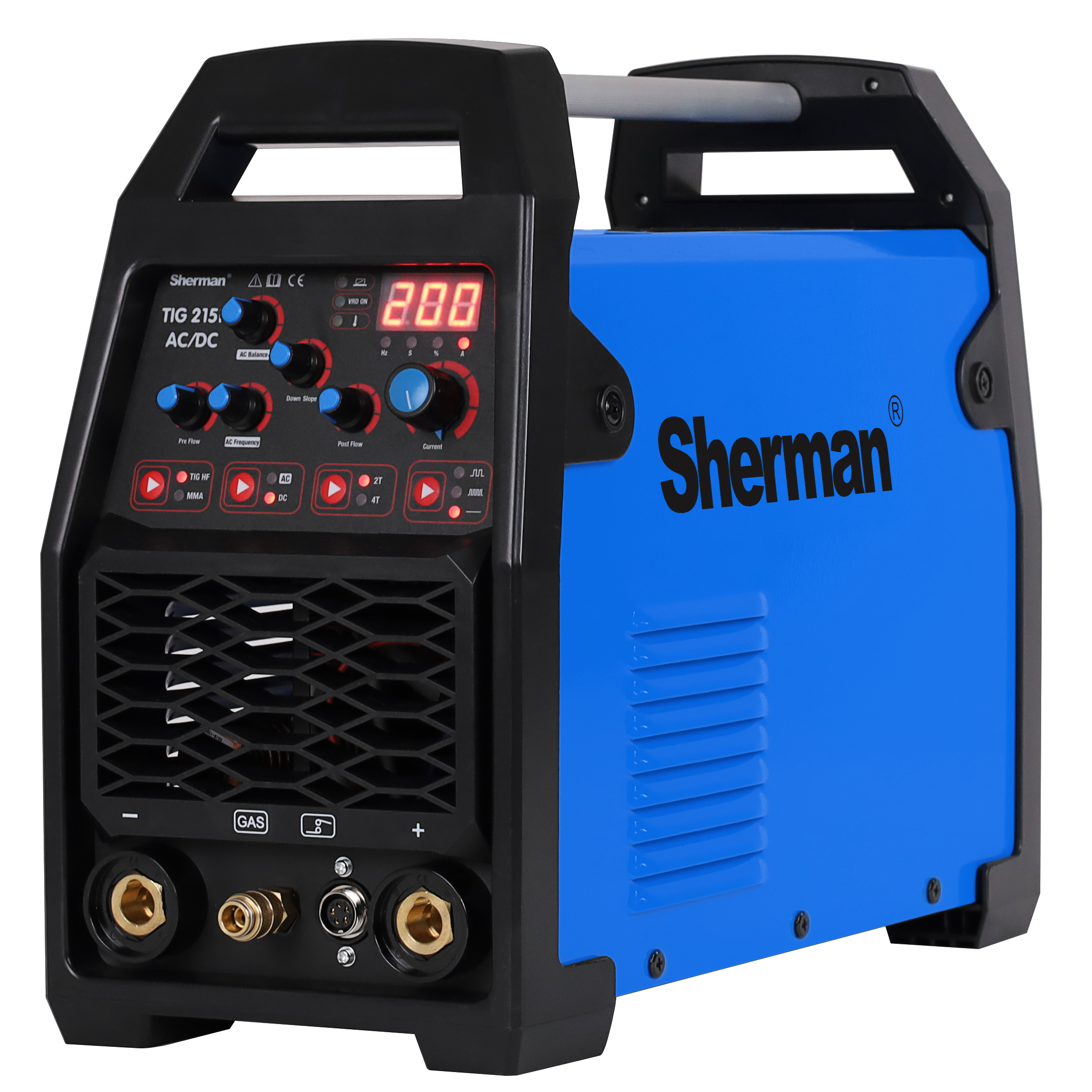

⚡ Sherman TIG 215P AC/DC Inverter Welder
The Sherman TIG 215P AC/DC is a multi-process inverter welder designed for TIG AC, TIG DC and MMA welding. It enables DC welding of steel, copper and its alloys, as well as AC welding of aluminium and its alloys.
The unit provides a maximum welding current of 200 A for TIG and 160 A for MMA. TIG arc ignition is contactless, using an HF igniter. Process parameter adjustment includes AC frequency and AC balance, gas pre-flow and gas post-flow, and current downslope time.
✅ Supported welding processes
- TIG AC – welding aluminium and its alloys with a non-consumable electrode in an argon shield.
- TIG DC – welding steel, copper and its alloys with a non-consumable electrode in an argon shield.
- TIG DC Pulse – pulsed-current welding at a frequency of 0.8 Hz or 150 Hz.
- MMA – DC welding of structural steels with a coated electrode.
✅ Key functions
- contactless TIG arc ignition using an HF igniter,
- 2T or 4T torch control mode selection,
- AC frequency adjustment from 20–300 Hz,
- AC balance adjustment from 20–80%,
- gas pre-flow adjustment from 0.1–3 s,
- gas post-flow adjustment from 1–15 s,
- current downslope time adjustment from 0–25 s,
- TIG DC current pulsing at a frequency of 0.8 Hz or 150 Hz,
- VRD function limiting open-circuit voltage in MMA mode,
- thermal protection with automatic reset after the unit has cooled down,

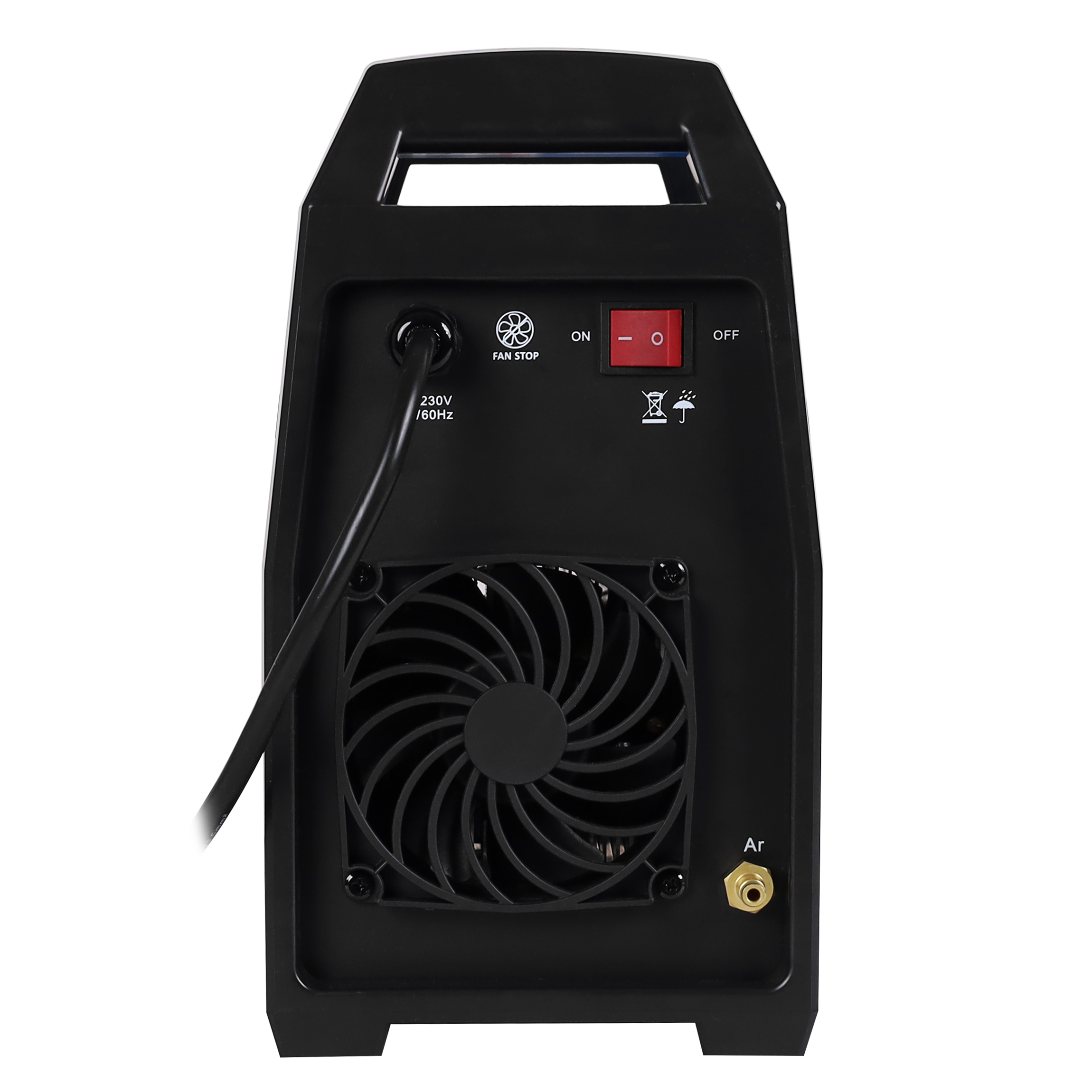

- Fan Stop function that switches off the fan after welding has finished and the unit has cooled down,
- remote current adjustment using an optional foot pedal,

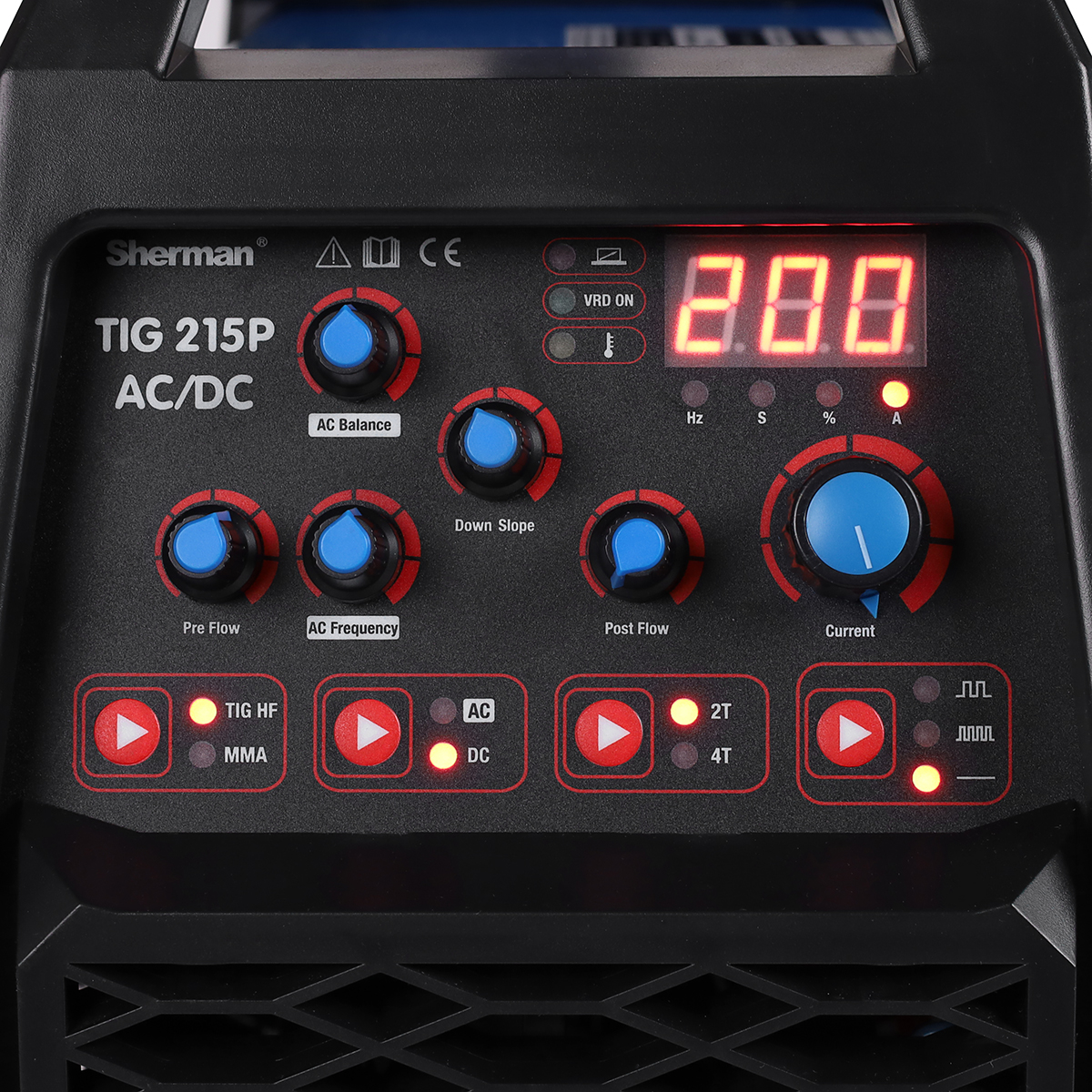

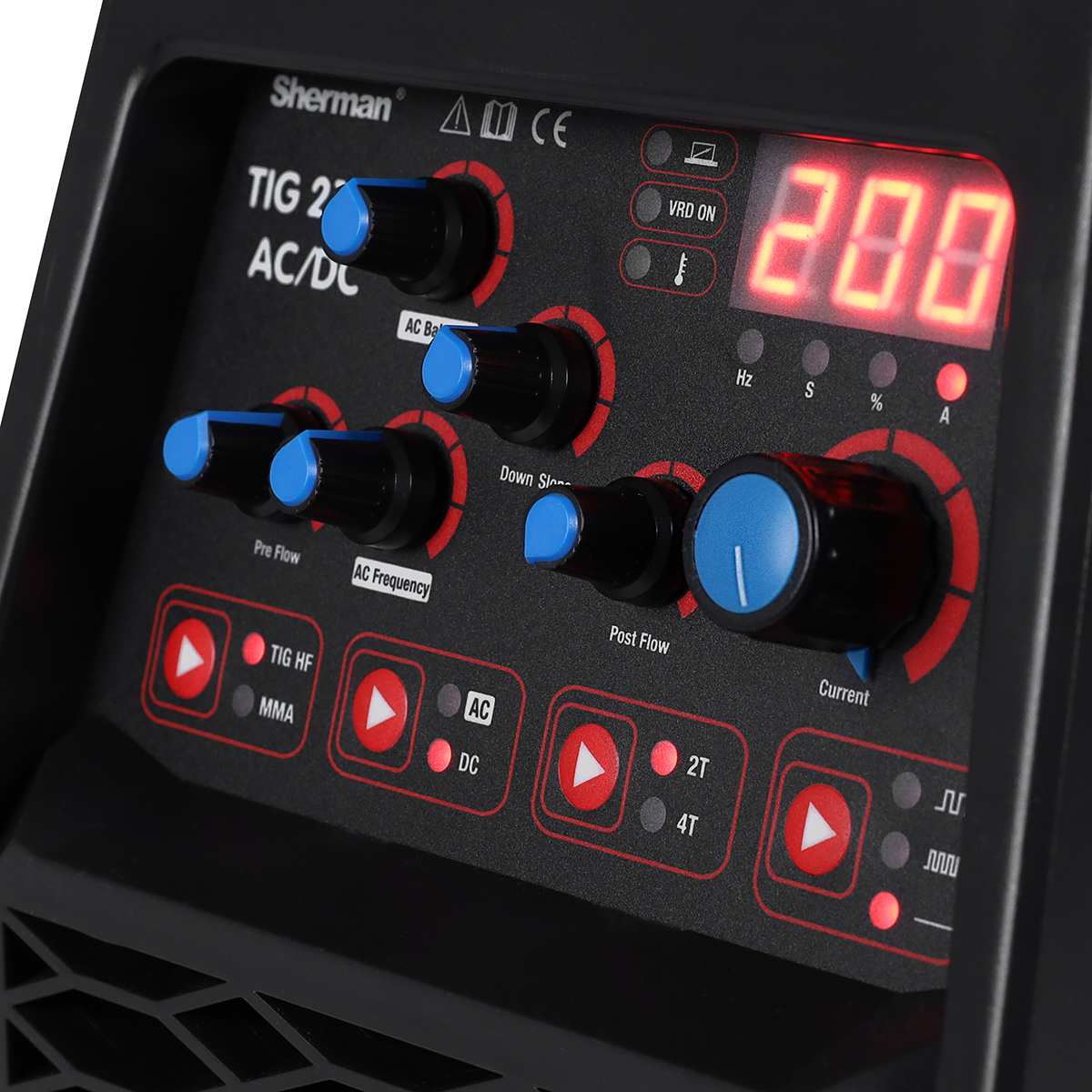

- display showing the welding current and adjustable parameter values.
✅ TIG AC process adjustment
Adjusting the AC frequency makes it possible to change the arc shape and the way thermal energy is concentrated. A higher frequency provides a more focused and stable arc, while a lower frequency produces a wider and softer arc.
Adjusting the AC balance sets the time ratio between the alternating-current half-cycles. This makes it possible to adjust the penetration depth, weld width and cleaning action when welding aluminium.
✅ Pulsing and weld termination control
Pulsing in TIG DC mode helps control heat input, reduce thermal distortion and weld thin materials. The operator can select pulsing at a frequency of 0.8 Hz or 150 Hz, or weld without pulsing.
The adjustable current downslope time enables the current to be gradually reduced before the arc is extinguished. This supports controlled solidification of the weld pool and reduces end-crater formation.
✅ Shielding gas control

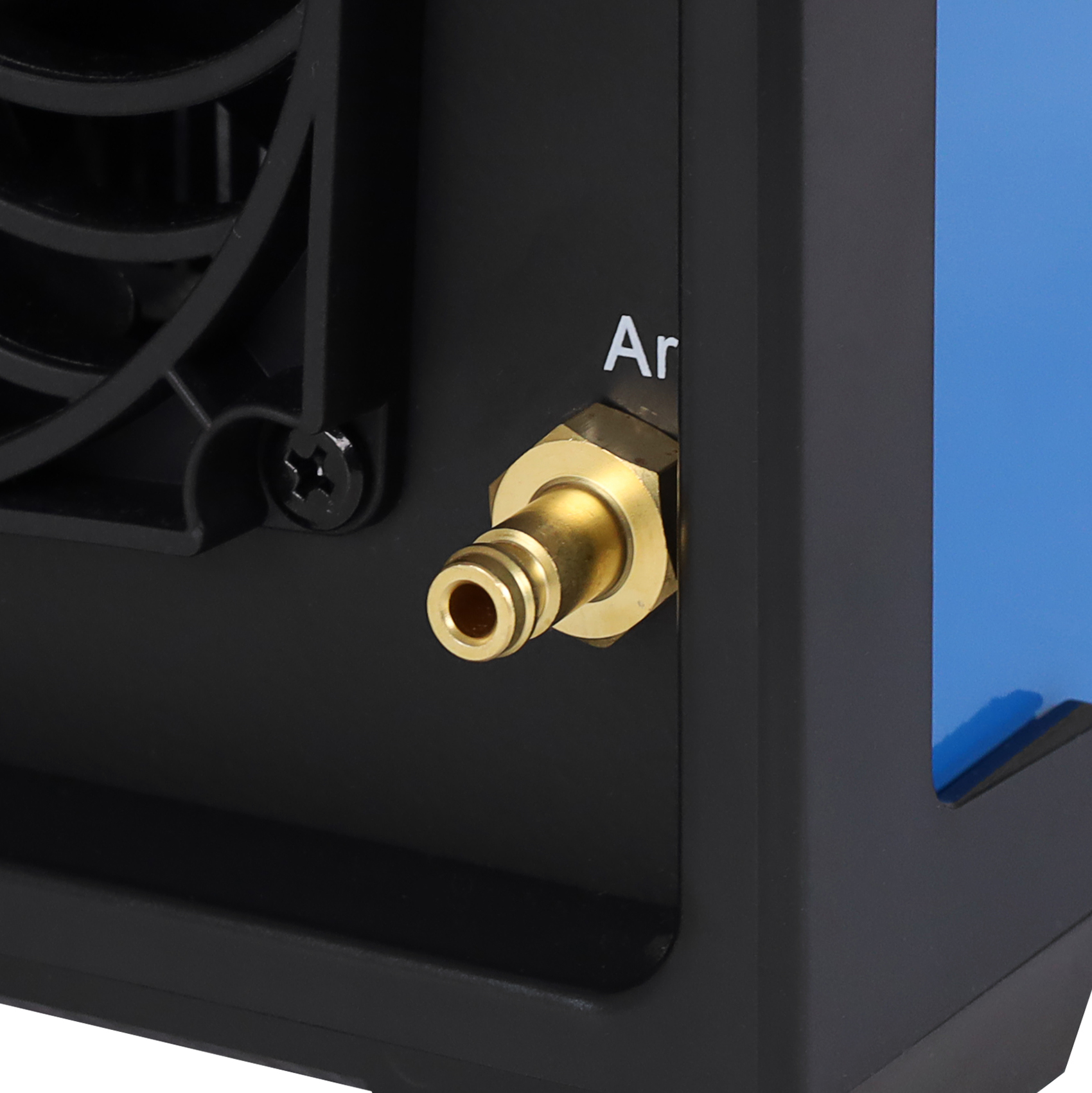

Gas pre-flow adjustment makes it possible to purge air from the torch before arc ignition, helping to protect the electrode and welding area. Adjustable gas post-flow protects the weld and tungsten electrode against oxidation after welding and also assists electrode cooling.
✅ Welder technical data
| Model | TIG 215P AC/DC |
| Supply voltage | AC 230 V, 50 Hz |
| Welding processes | TIG AC, TIG DC, TIG DC Pulse, MMA |
| TIG welding current | 10–200 A |
| MMA welding current | 20–160 A |
| Rated TIG welding current and duty cycle | 200 A / 60% |
| Rated MMA welding current and duty cycle | 160 A / 60% |
| Open-circuit voltage | 68 V |
| Maximum current consumption | 38.8 A |
| Mains protection | 25 A, time-delay |
| TIG arc ignition | Contactless HF |
| Torch control modes | 2T / 4T |
| Degree of protection | IP21S |
| Dimensions | 420 × 195 × 345 mm |
| Weight | 8.8 kg |
✅ TIG parameter adjustment ranges
| Gas pre-flow | 0.1–3 s |
| Gas post-flow | 1–15 s |
| Current downslope | 0–25 s |
| AC frequency | 20–300 Hz |
| AC balance | 20–80% |
| TIG DC pulse frequency | 0.8 Hz or 150 Hz |

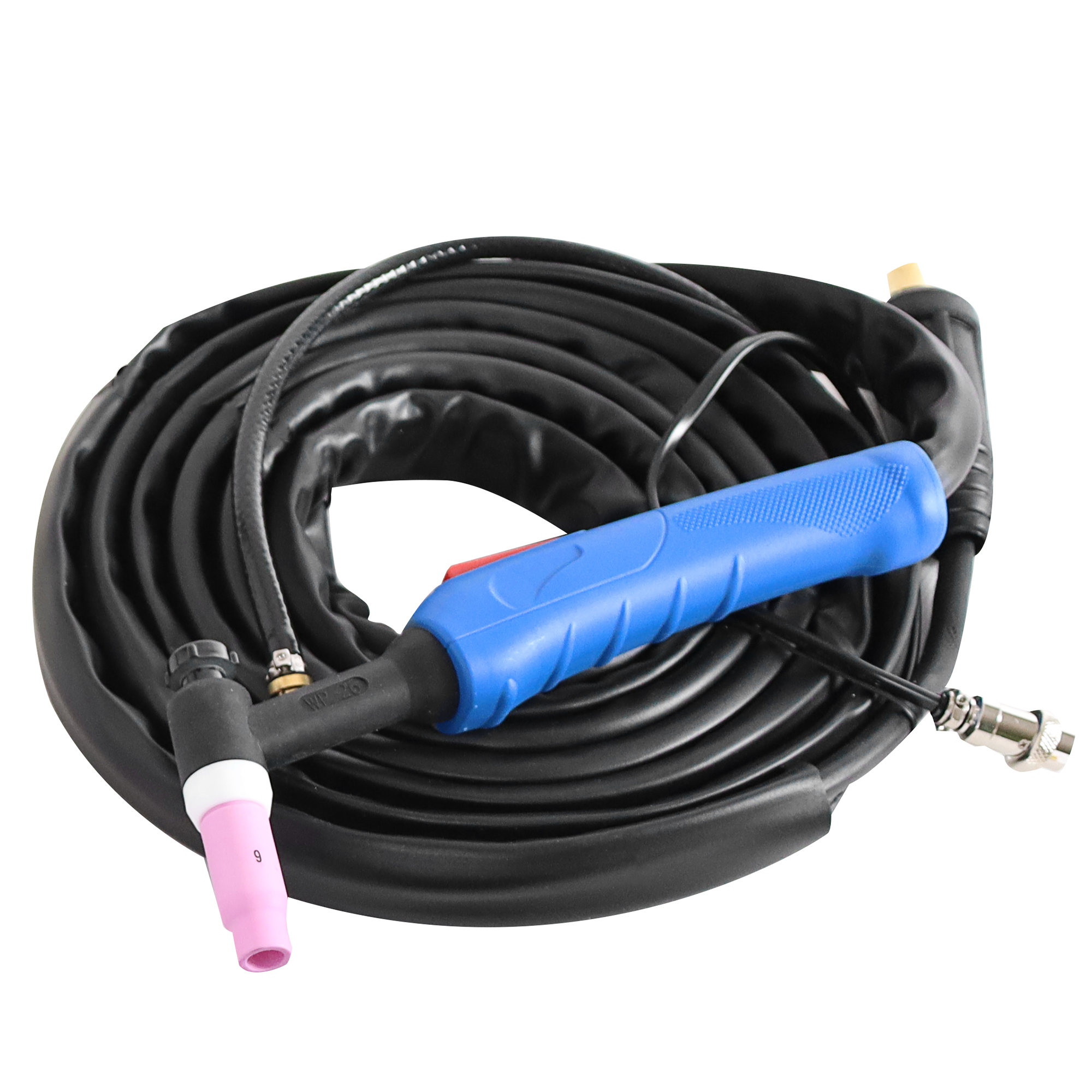

✅ T-26 TIG Welding Torch
| Torch type | T-26 |
| Maximum current capacity | 200 A |
| Gas flow | 10–20 l/min |
| Arc ignition | Contactless HF |
| Length | 4 m |
✅ Standard equipment
- TIG 215P AC/DC welding power source – 1 pc.,
- T-26 TIG welding torch – 1 pc.,

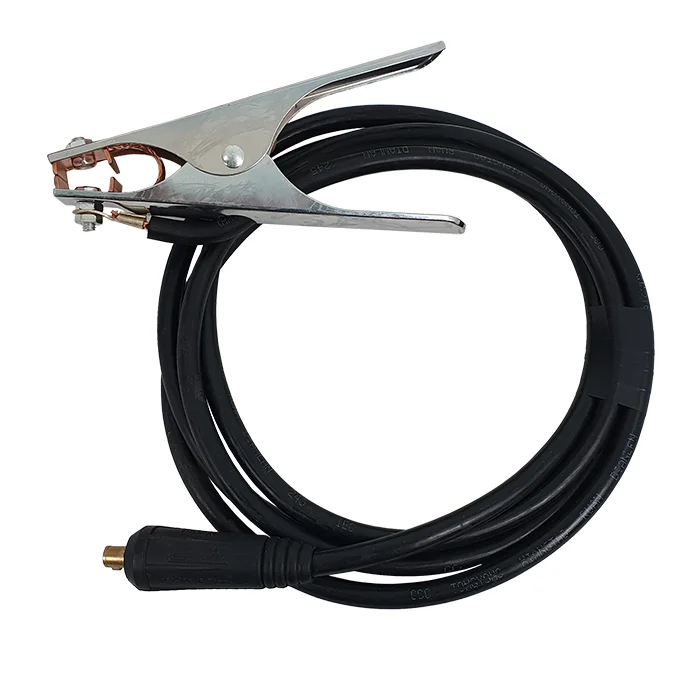

- welding return lead with clamp – 1 pc.,

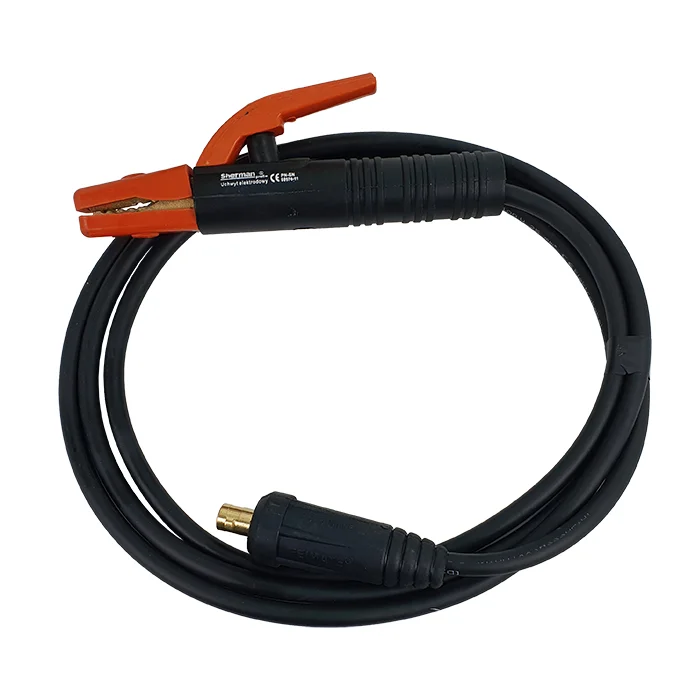

- electrode lead – 1 pc.,
- shielding gas hose – 1 pc.,
- operating instructions – 1 pc.,
- packaging – 1 pc.
✅ Operating conditions
The unit is designed for indoor operation. The IP21S degree of protection means that the welder must not be used in the rain. The workplace should be free from corrosive substances, excessive dust and high humidity. Do not position the unit near operating grinders or obstruct the ventilation openings.
| Permissible supply voltage variation | No more than 10% |
| Ambient temperature | From −10°C to +40°C |
| Atmospheric pressure | 860–1060 hPa |
| Maximum relative humidity | 80% |
| Maximum altitude above sea level | 1000 m |
✅ Safety information
The welder should be operated by people with suitable qualifications who are familiar with the safety rules applicable to TIG and MMA welding. Appropriate protective clothing, gloves, footwear and a welding helmet with a suitably selected filter must be worn during operation.
The unit must be connected to a fully functional, single-phase, three-wire 230 V, 50 Hz installation with an earthed neutral point and 25 A time-delay protection. Do not operate the welder with the covers removed or in areas with an explosion or fire hazard, and do not use the power source to thaw frozen pipes.
