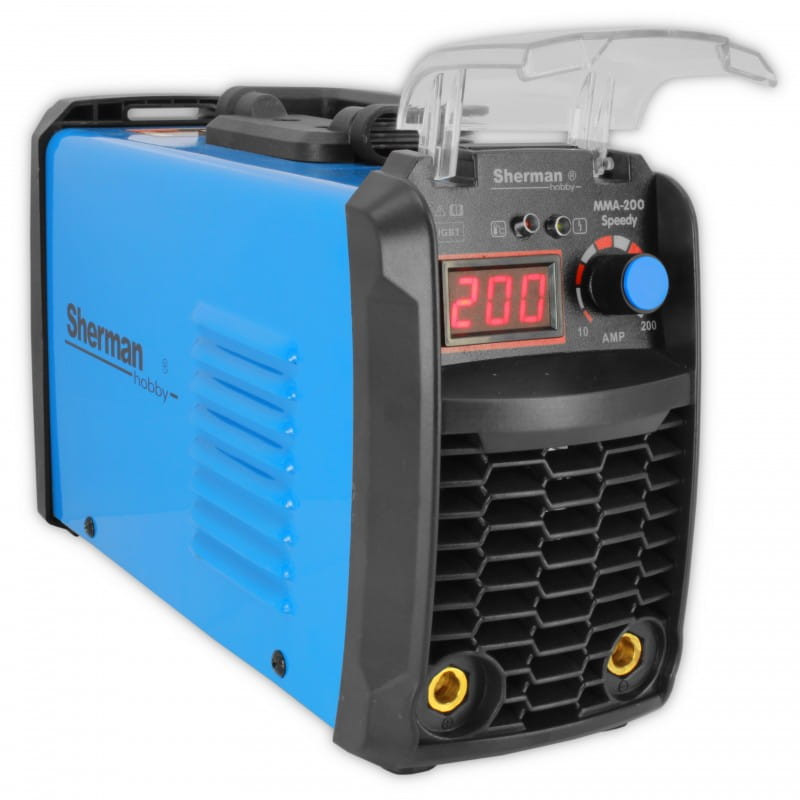

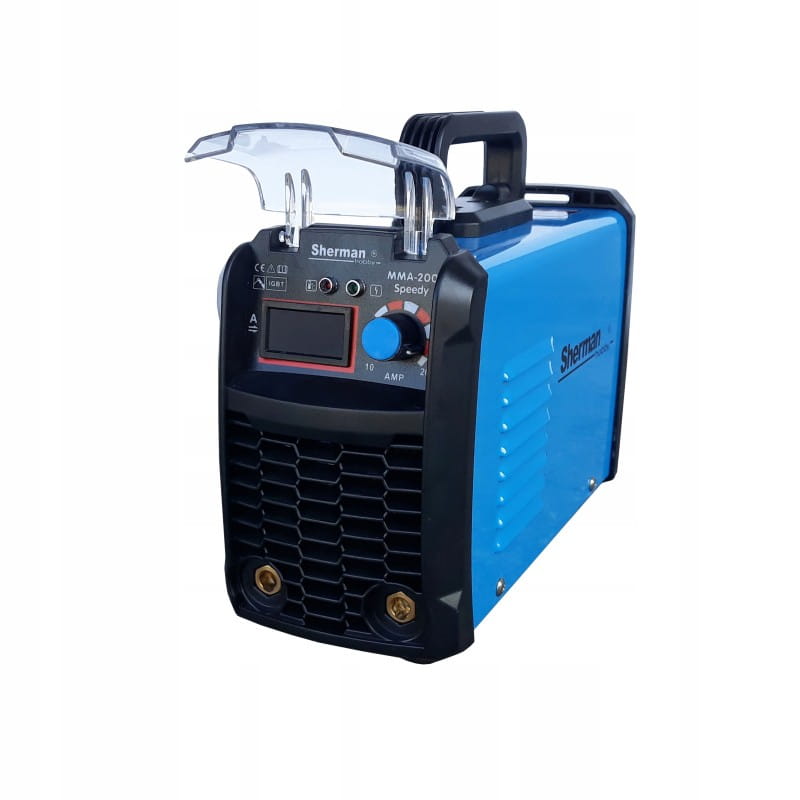

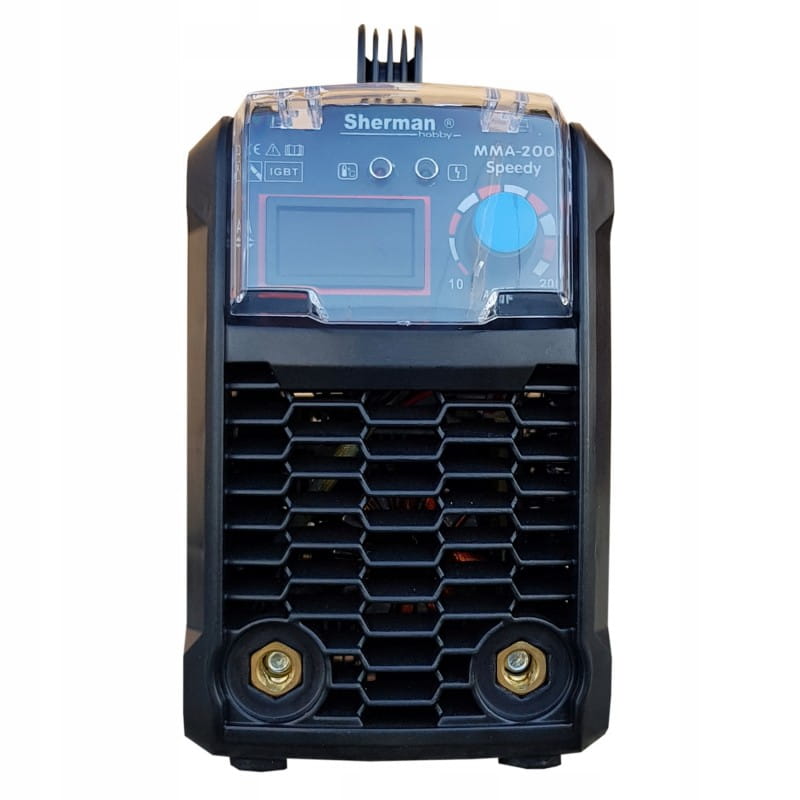

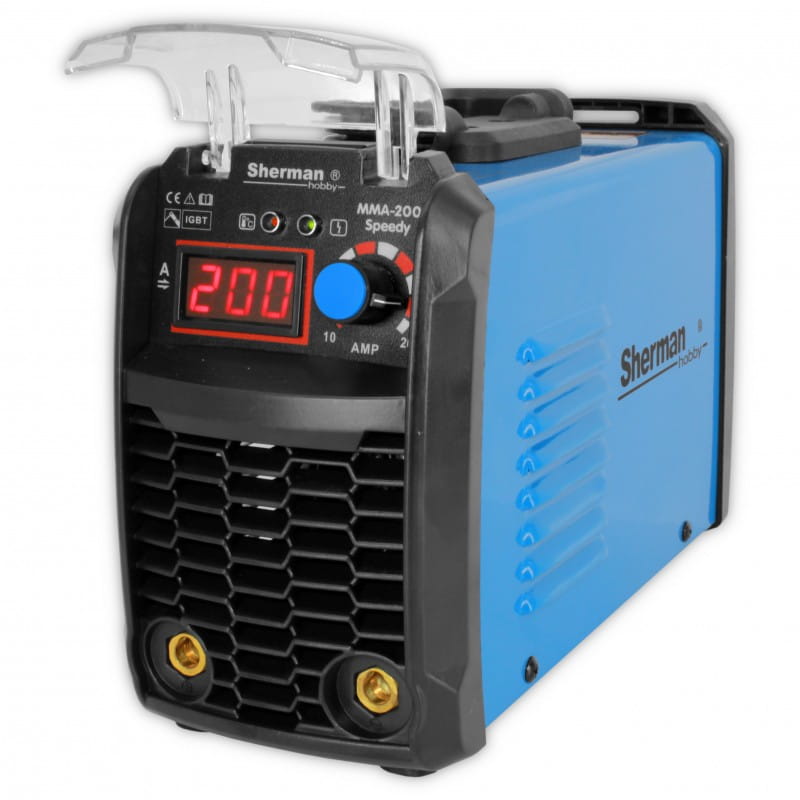

Sherman MMA 200 Speedy Inverter welder

SHERMAN® HOBBY MMA 200 SPEEDY - INVERTER WELDING MACHINE

| Brand: SHERMAN | Welding methods: MMA, TIG LIFT | Power supply: 230V | Welding current: 200A | Efficiency: 60% |

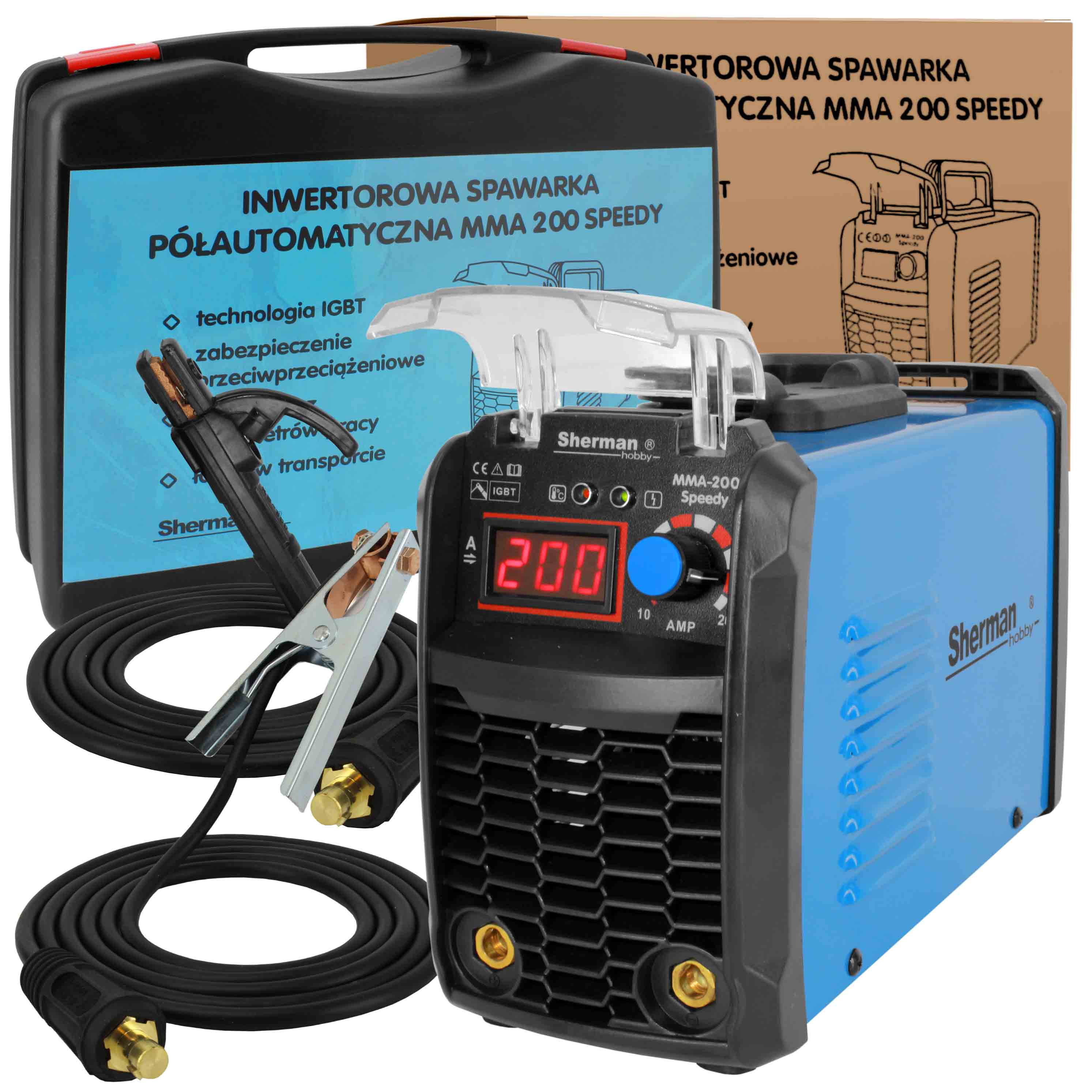

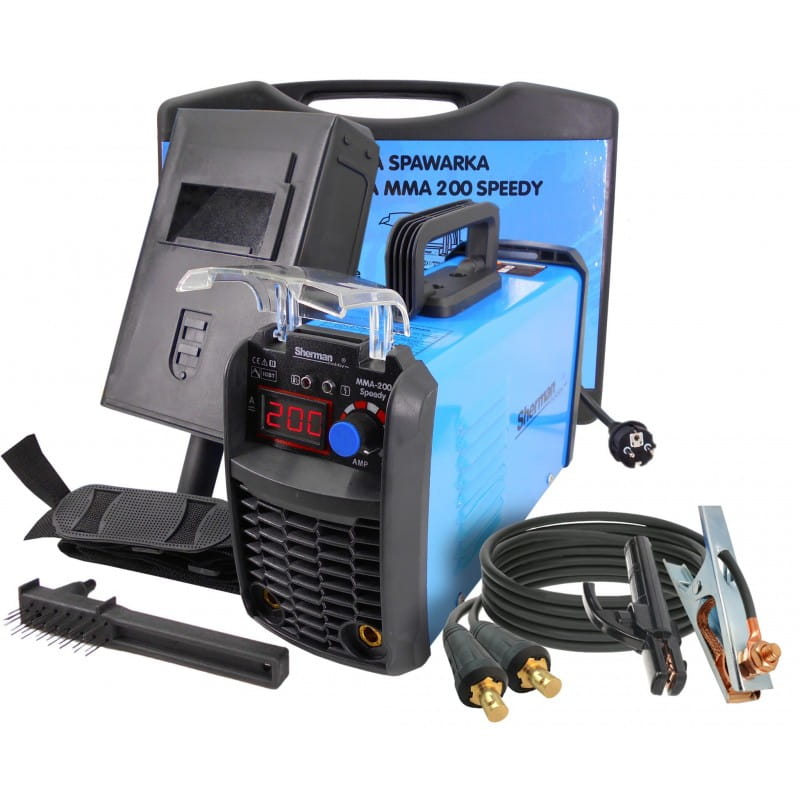

STANDARD EQUIPMENT

• Sherman MMA Speedy 200 welder
• Mass holder - 2m
• Electrode holder - 2m
• User manual
• Warranty Card
• Hammer-brush

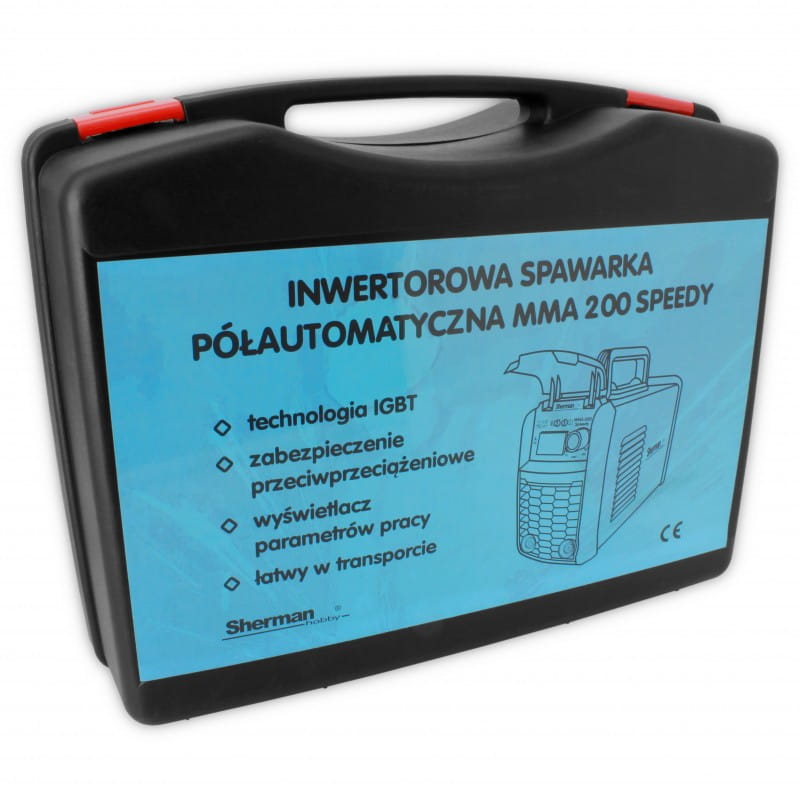

• Transport case
• Welding shield

MMA 200 Speedy welding rectifier is used for manual direct current welding of structural steels with coated electrodes (MMA method).

It is an inverter device, manufactured from the most technologically advanced components made in the IGBT technology.

The welder is equipped with the automatic HOT START functions for easy ignition and ANTI STICK for easy removal of the electrode in case of sticking and protecting against damage to the device.

The welder is used in closed or roofed rooms, not exposed to direct weather conditions. It is designed for casual and amateur work.

TECHNICAL SPECIFICATIONS

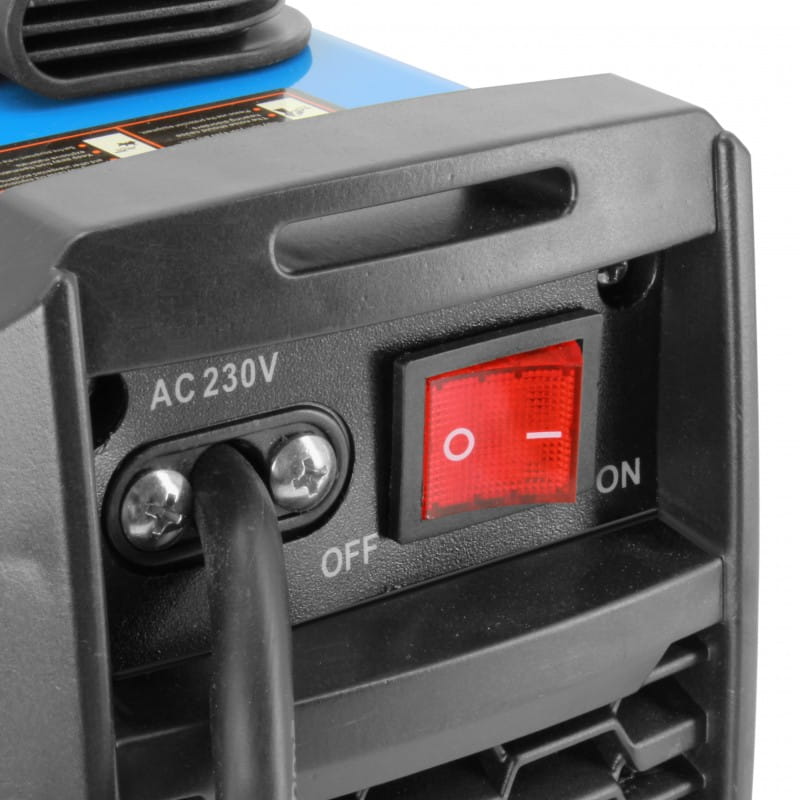

• Supply voltage [V]: AC 230 50Hz
• Welding methods: MMA
• Manufacturing technology: IGBT
• Welding current [A]: 200
• Duty cycle [%]: 60
• Tension without load. [V]: 60
• Max. current consumption [A]: 32
• Max. power consumption [kVA]: 5.3
• Welding current control: Smooth
• Weight [kg]: 5.8
• Dimensions (L x W x H) [mm]: 320 x 125 x 200
• Functions: Hot Start, Anti-Stick

WORK CYCLE

The duty cycle is based on a 10-minute period. 60% duty cycle means that after 6 minutes of operation of the device, a 4-minute break is required. 100% duty cycle means that the device can work continuously without interruption.

LEVEL OF SECURITY

The IP determines the degree to which the device is resistant to solid and water contamination entering the device. IP21S means that the device is suitable for operation in confined spaces and is not suitable for use in rain and snow.

HOT START FUNCTION

The HOT START function is commonly known as hot start. It works when the arc is struck, causing the welding current to temporarily increase above the value set by the welder. HOT START is designed to prevent the electrode from sticking to the material and is a great help when starting the arc.

ANTI STICK FUNCTION

The ANTI STICK function is a short-circuit protection that reduces the welding current when the electrode sticks to the workpiece. This makes it easier to detach and protects the device against damage.
