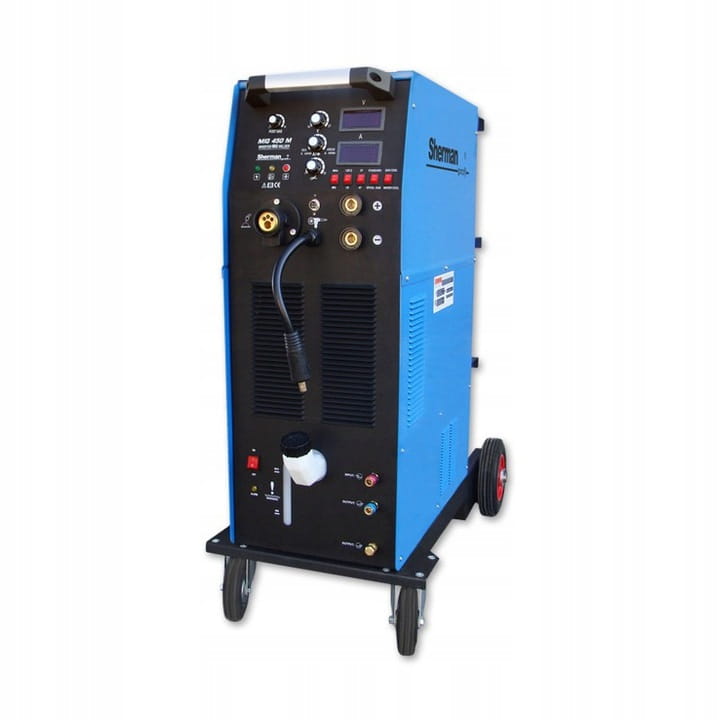

Sherman MIG 450M/4R Inverter welder
Regular price:
product unavailable
add to wish list
Description
The MIG 450M semi-automatic welder is an inverter device designed for manual welding of steel and non-ferrous metals with a coated electrode (MMA method), as well as MIG / MAG method using a standard MIG / MAG welding torch cooled with liquid up to 500A (standard included) or 360A gas ( option) and a Spool Gun holder (optional). Allows MIG / MAG welding using both standard wires in the protective gas shield and self-shielding powder wires.
The device is used in closed or roofed rooms, not exposed to direct effects of weather.
The MIG 450M welder is powered from a 3x400V three-phase network and works with D200 (5 kg) and D300 (15 kg) wire spools. The device is equipped with an integrated radiator and a liquid-cooled MIG / MAG welding holder.
Functions:
- 2T / 4T
- Regulation of inductance

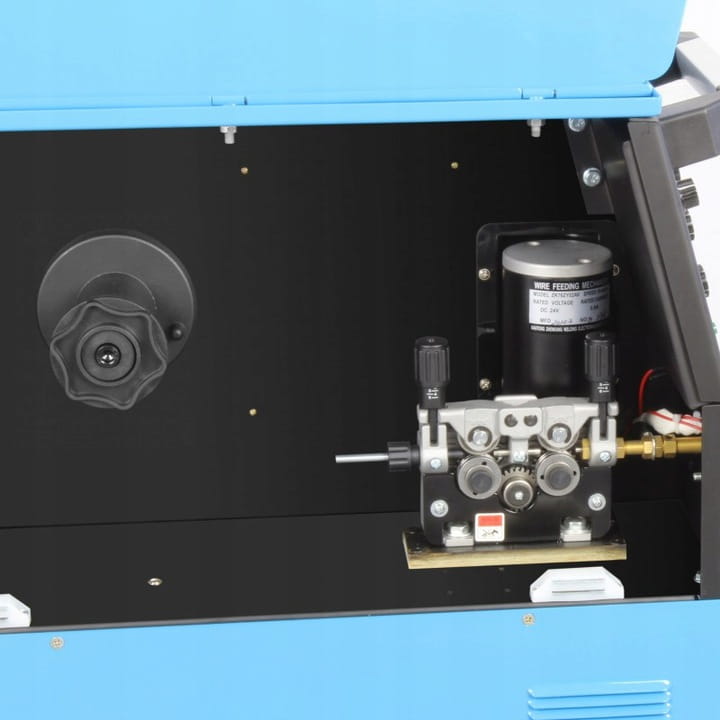

- 4-roll feeder
- Spool Gun option
- Integrated cooler
Technical data:
- Catalog number SINW-MIG450M
- AC voltage 3x400 50Hz
- Welding methods - MIG, MMA
- IGBT technology
- Welding current 450A
- 60% duty cycle
- Max. current consumption 32A (MIG) / 31A (MMA)
- Max. power consumption 24.7 kVA
- Wire feeding speed - 2 - 24 m / min
- Coolant flow 8.0 l / min
- Coolant pressure 0.3 MPa
- Tank capacity 6l
- Smooth welding current regulation
- Avg. reel with wire 200, 300 mm
- Weight 89 kg
- Dimensions 950 x 460 x 1000 mm
Set contains:
- MIG 450M / 4R Sherman welder

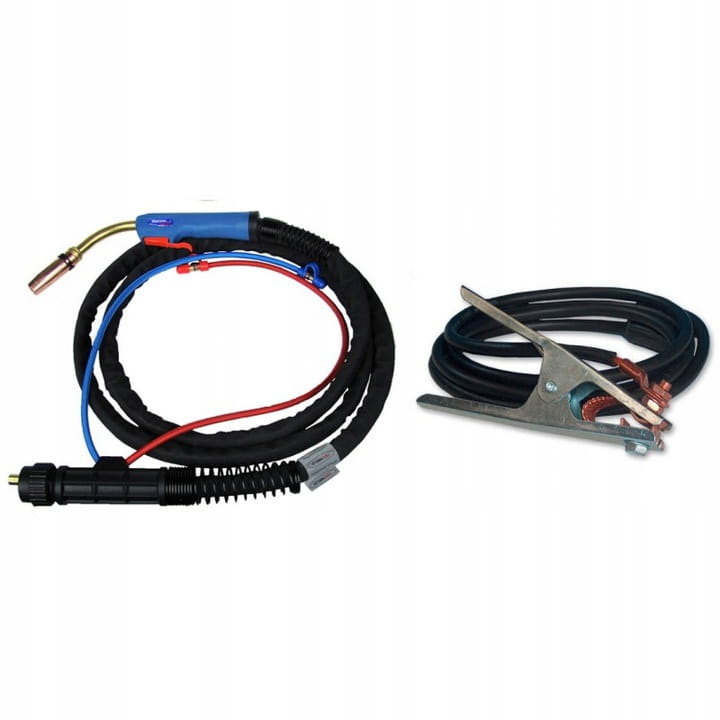

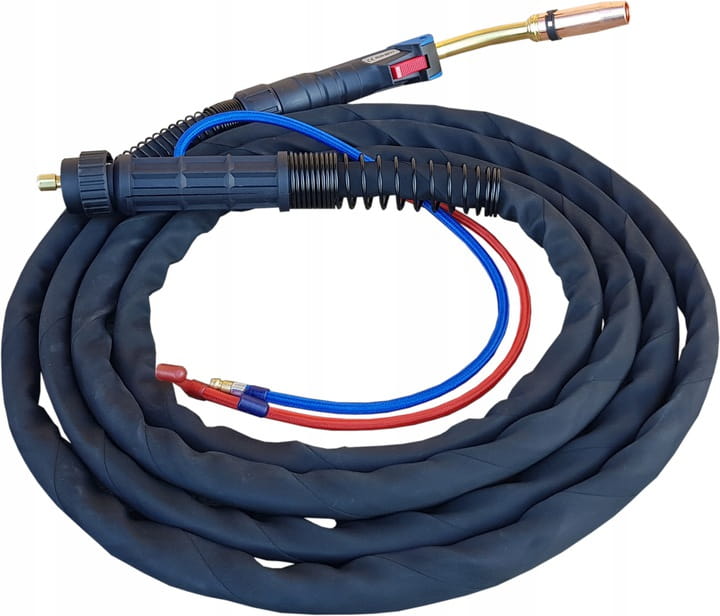

- TW-501 welding holder 5m
- Mass line
- User manual in Polish
- Warranty Card
- Receipt or VAT invoice
