Sherman MIG 180FL - Welding kit #1
Regular price:
product unavailable
add to wish list
Description

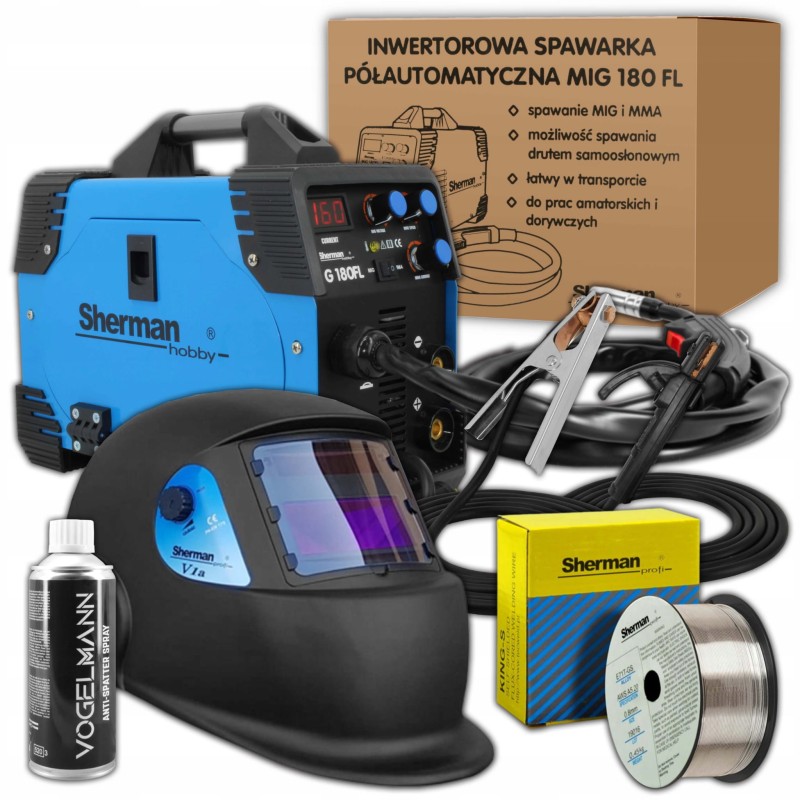

SHERMAN MIG 180FL - WELDING KIT #1
| Brand: SHERMAN| Welding methods: MIG/MAG, MMA, FLUX | Power: 230V | Welding current: 180A | Efficiency: 60% |
STANDARD ACCESSORIES

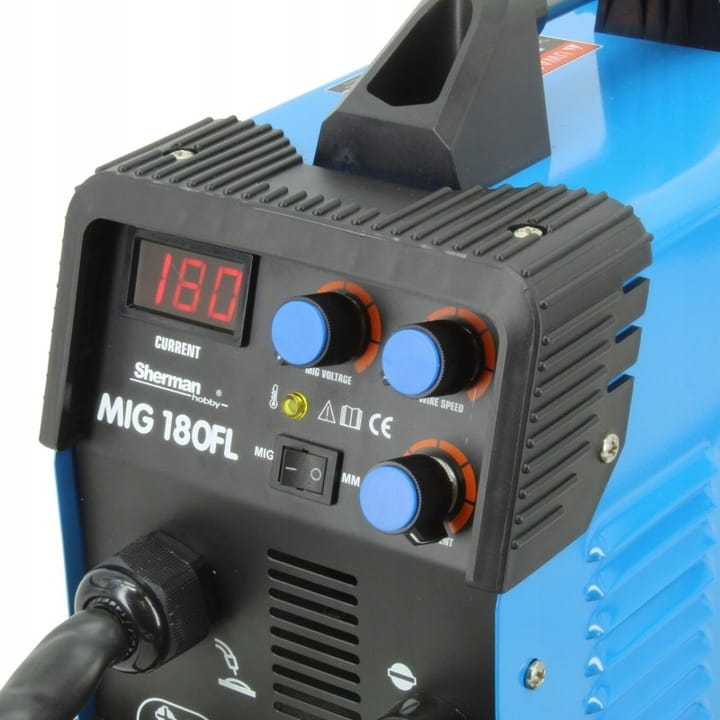

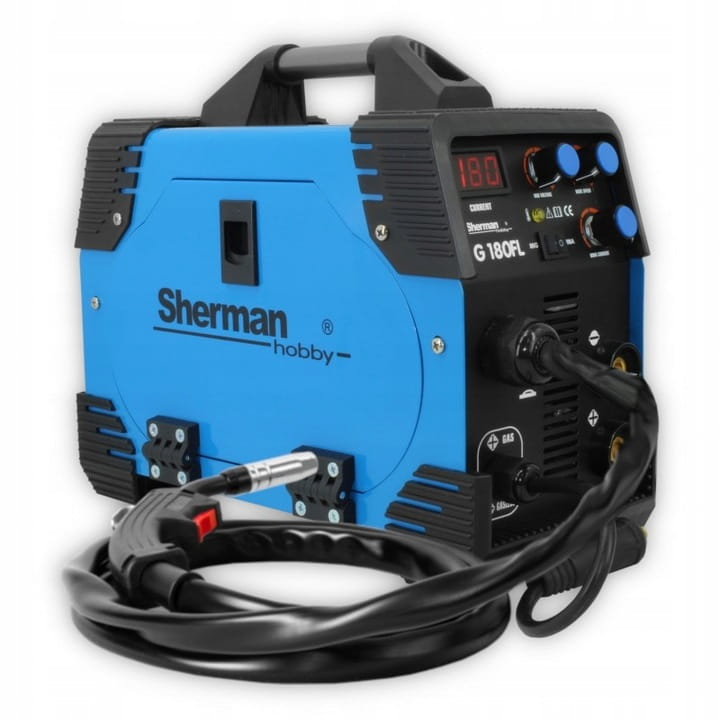

- Sherman MIG 180FL
- Welding gun TW-14/2m
- Electrode lead
- Ground cable
ADDITIONAL EQUIPMENT:

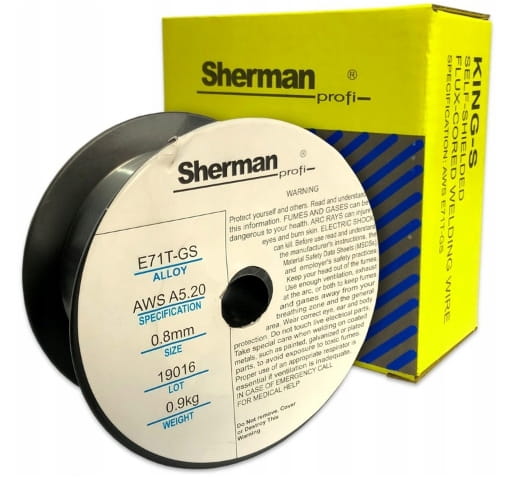

- Sherman Self-shielding wire 0.9kg - 1 piece

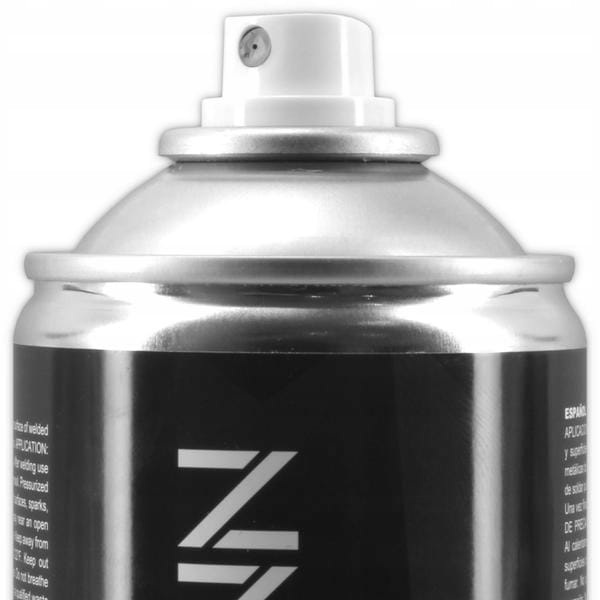

- Vogelmann Anti-spatter spray 400m

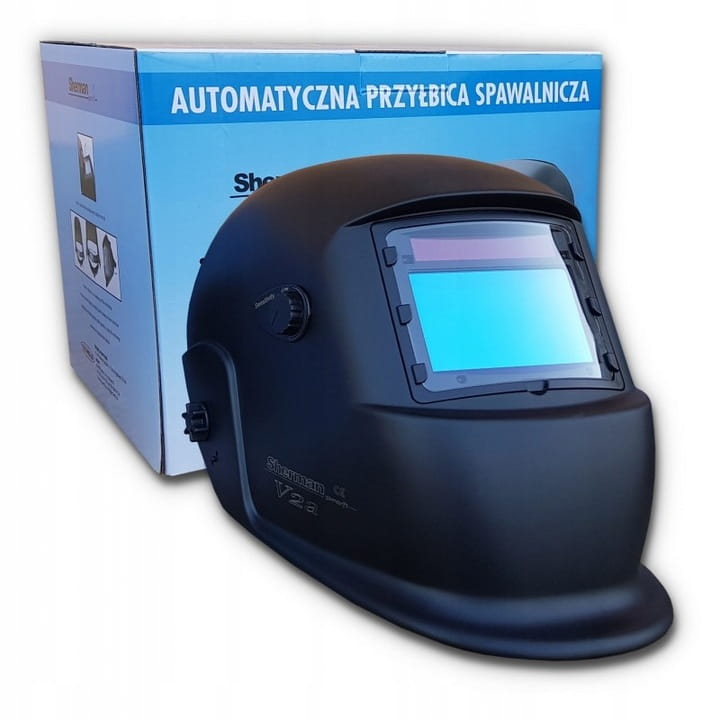

- Sherman Welding helmet V2a
TECHNICAL PARAMETERS:
- Max. welding current [A]: 180
- Welding current range [A]: MIG: 40 - 180 A, MMA: 25 - 160 A
- Current [A] / duty cycle [%]: MIG: 180 A / 60%, MMA: 160 A / 60%< /span>
- Power consumption: 6.1 [kVa]
- Power [V]: 230
- Protection rating: IP21
- Type of wire feeder: internal 2 rolls
- Wire spool: 1.00 kg / D100
- Cooling:gas
- Current regulation: Smooth
PHYSICAL PARAMETERS
- Weight: 6.5 [kg]
- Height: 250 [cm]
- Width: 155 [cm]
- Length: 330 [cm]
IGBT TECHNOLOGY
Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with the high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.
PROTECTION LEVEL
IP determines the degree to which the device is resistant to solid and water contamination. IP21 means that the device is adapted to work in closed rooms.
COOLING
The device has a cooling system with a fan, which significantly increases its efficiency.
OVERHEAT PROTECTION
The power source is equipped with a thermal automatic overload switch. When the temperature of the welder is too high, the protection will cut off the welding current and the diode will light up indicating overheating. After the temperature drops, the circuit breaker will be automatically reset.
Do not disconnect the power during this time as the continuously running fan cools the internal heat sinks to faster temperature reduction. After restarting, remember to limit the welding parameters for further continuous operation of the device.
WORK CYCLE
The duty cycle is based on a 10-minute period. Duty cycle 60% means that a 4-minute break is required after 6 minutes of the device's operation. work cyclecy 100% means that the device can work continuously without interruptions.
CHANGE POLARITY - WELDING WITHOUT GAS
Thanks to the variable polarity, it is possible to weld using the FLUX method with flux-cored wire without shielding gas. The wire is filled with a flux that produces protective gases during welding.
