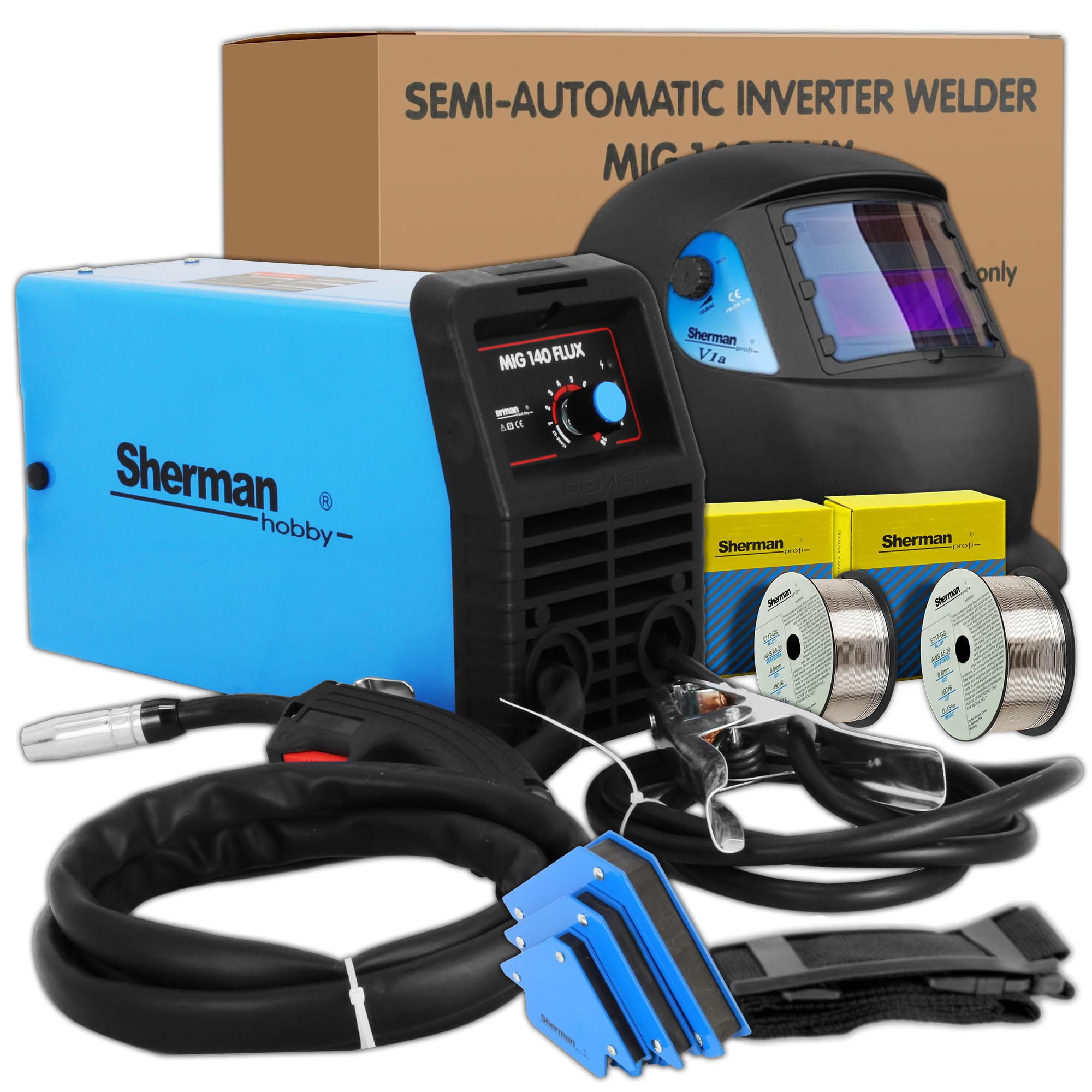

Sherman MIG 140 FLUX welder - set #3

STANDARD ACCESSORIES:

• Sherman MIG 140 FLUX inverter welder
• TW-14/2m welding gun
• Ground cable

ADDITIONAL EQUIPMENT

• Sherman Welding helmet V1a
• Sherman Self-shielding wire 0.45kg 0.8mm - 2 pieces
• Welding square small 12.5 kg
• Welding square medium 25 kg
• Welding square large 37.5 kg

The MIG 140 FLUX welder is designed exclusively for gas-free welding with self-shielding flux-cored steel wire, so there is no need for a gas cylinder. span>

The welding machine is made in inverter technology IGBT, which allowed for a significant reduction in its weight and dimensions.

The equipment is recommended mainly for hobby applications. The device is extremely easy to use, the wire feed speed is selected automatically.

Very small dimensions, low weight and shoulder strap make the welder very convenient to transport and store.

The device has a two-roll wire feeder and a 1kg/100mm spool mount. The welding torch and ground cable are permanently mounted.

This device is designed and manufactured for field use. Small, light and versatile. Ideal for welding steel.

TECHNICAL SPECIFICATIONS:

• Part number:7812681
• Supply voltage [V]: AC 230 50Hz
• Welding methods: MIG
• Execution technology: IGBT
• Welding current[A]: 100
• Duty cycle[%]: 60
• Max. current consumption [A]: 14
• Max. power consumption[kVA]: 2.6
• Welding current adjustment: Smooth
• Avg. spool with wire [mm]: 100
• Speed. wire feed[m/min]: ---
• Weight [kg]: 4.5
• Dimensions (L x W x H)[mm]: 320 x 120 x 186

IGBT TECHNOLOGY

The basis of the welder's electricity conversion system are electronic systems made in IGBT technology, enabling operation in the frequency range above 200kHz.

PROTECTION LEVEL

IP determines the extent to which the device is resistant to solid and water contamination. IP23S means that the device is adapted to work indoors and is not suitable for use in rain and snow.

WORK CYCLE

The duty cycle is based on a 10-minute period. Duty cycle 60% means that after 6 minutes          a 4-minute break is required. 100% duty cycle means that the device can work continuously without interruptions.

2 ROLL WIRE FEEDER

Small and simple feeder, which allows for stable wire feeding. It has adjustable clamping force.

CONTINUOUS WIRE FEED ADJUSTMENT

Smooth adjustment of the wire feed speed is supported by an additional potentiometer that allows you to set the speed for different wire diameters.

OVERHEAT PROTECTION

The power source is equipped with a thermal, automatic switch overload. When the temperature of the welder is too high, the protection will disconnect the welding current and the diode will light up indicating overheating. After the temperature drops, the circuit breaker will automatically reset.

Do not disconnect the power during this time, as the continuously operating fan cools the device's internal heat sinks to lower the temperature faster.

After restart, remember to limit welding parameters for continued operation of the device.

STRONG AND SOLID CONSTRUCTION

The housing of the device is made of light and durable composites, resistant to all kinds of mechanical damage.

WELDING WITHOUT GAS

Can be welded using the FLUX method with flux-cored wire without shielding gas. The wire is filled with a flux that produces protective gases during welding.

self-shielding cored wire is intended for welding ordinary and high-strength carbon steels not exceeding 510 MPa. Gasless welding wire.

It is used in prefabrication, construction, production of tanks, agricultural equipment, etc. It is used both in the production and repair of devices.

Self-shielding wire is an additional option that can be purchased on our other auctions!

EASY TRANSPORT

Small dimensions and lightweight design make the devices easy to take to any workplace. The device is equipped with a strong shoulder strap that makes it easy to carry.

COOLING

The device has a cooling system fan which significantly increases its efficiency.
