Sherman DIGIMIG 215 Dualpulse

SHERMAN DIGIMIG 215 DUALPULSE

| Brand: SHERMAN | Welding methods: MIG / MAG, MMA, TIG LIFT | Power supply: 230V | Welding current : 200A | Efficiency: 60% |

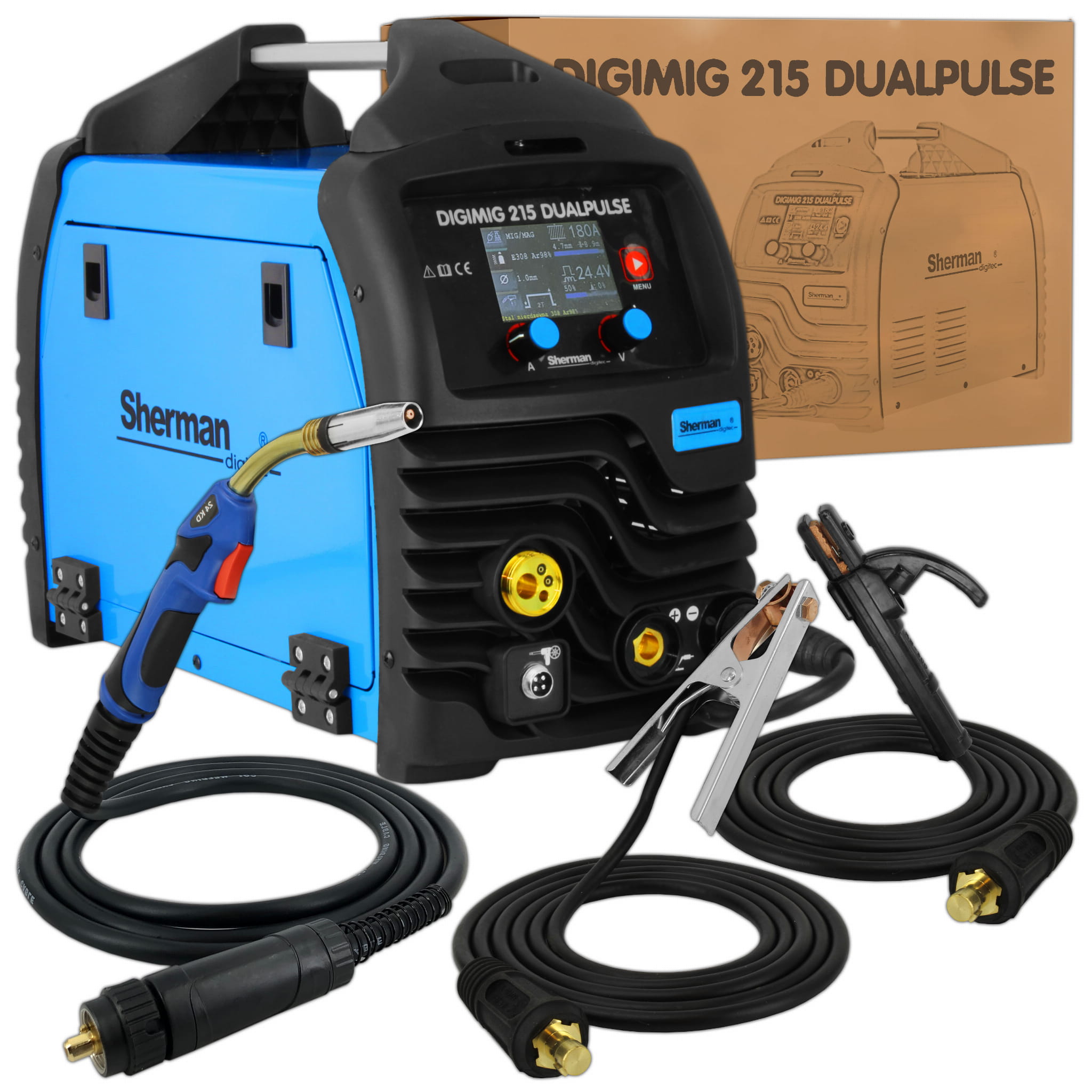

STANDARD EQUIPMENT

• Sherman DIGIMIG 215 DUALPULSE welding machine
• MIG welding torch TW-24 / 3m
• Electrode cable
• Mass cable
• Welding shield
• Hammer with a brush
• Steel insert
• Roller for steel

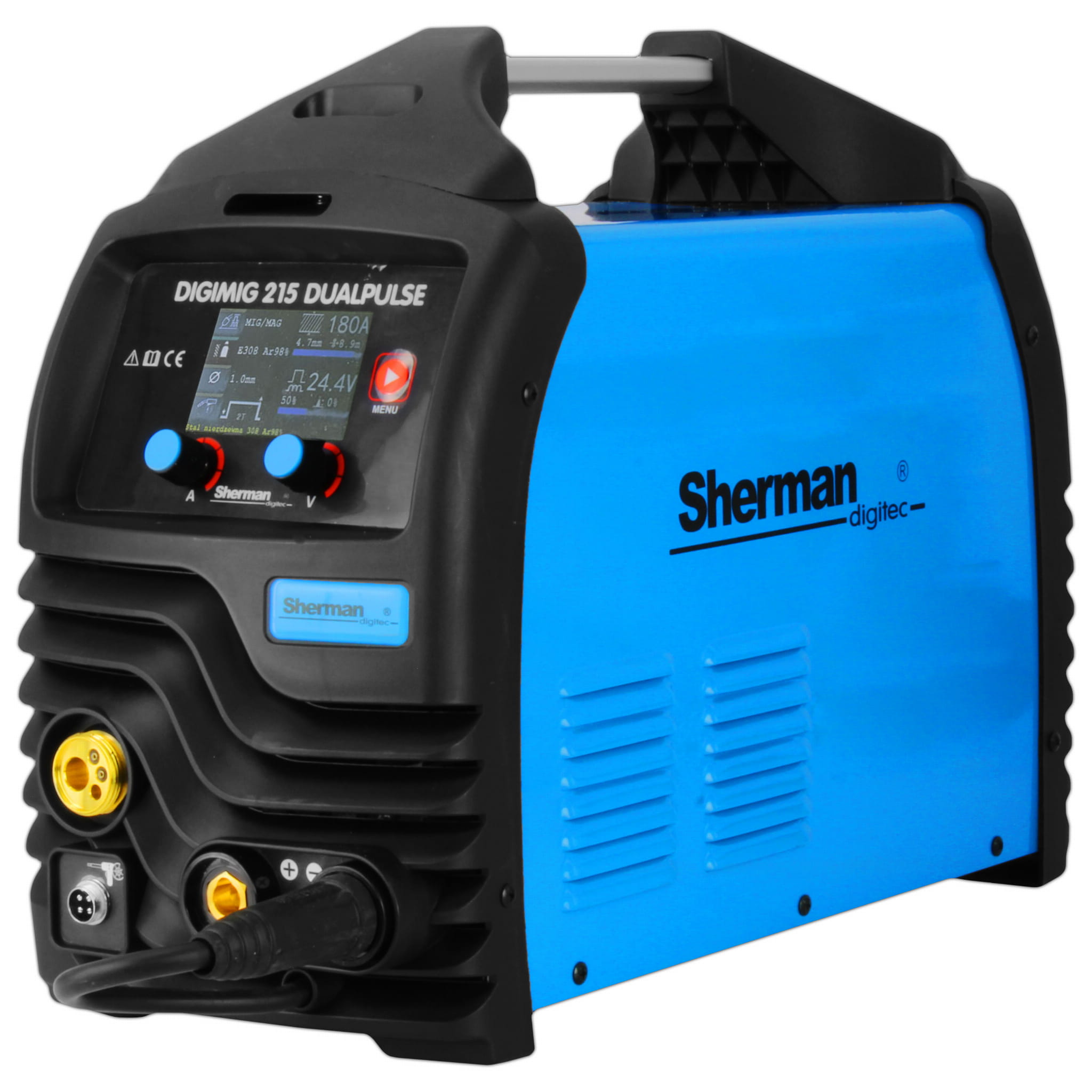

SYNERGIC DIGIMIG 215 DUALPULSE WELDING MACHINE

It is used for manual welding of steel and non-ferrous metals. It allows welding with MMA (coated electrode), TIG Lift, and MIG / MAG methods, synergic settings are used, simplifying operation and allowing the use of the welding machine by people with less experience and hobbyists.

A very wide range of welding voltage correction allows you to apply your own settings. Due to the change of polarity, the device allows you to weld with the MIG / MAG method using both standard wires in a protective gas shield and self-shielding flux-cored wires.

The welder allows you to connect a Spool Gun (SG) with a mini wire feeder and a D100 spool of steel or colored wire.

The device is made in IGBT technology, which allows for a significant reduction in the weight and dimensions of the welding machine and an increase in efficiency while reducing energy consumption.

The welder is used in closed or roofed rooms, not exposed to direct weather conditions.

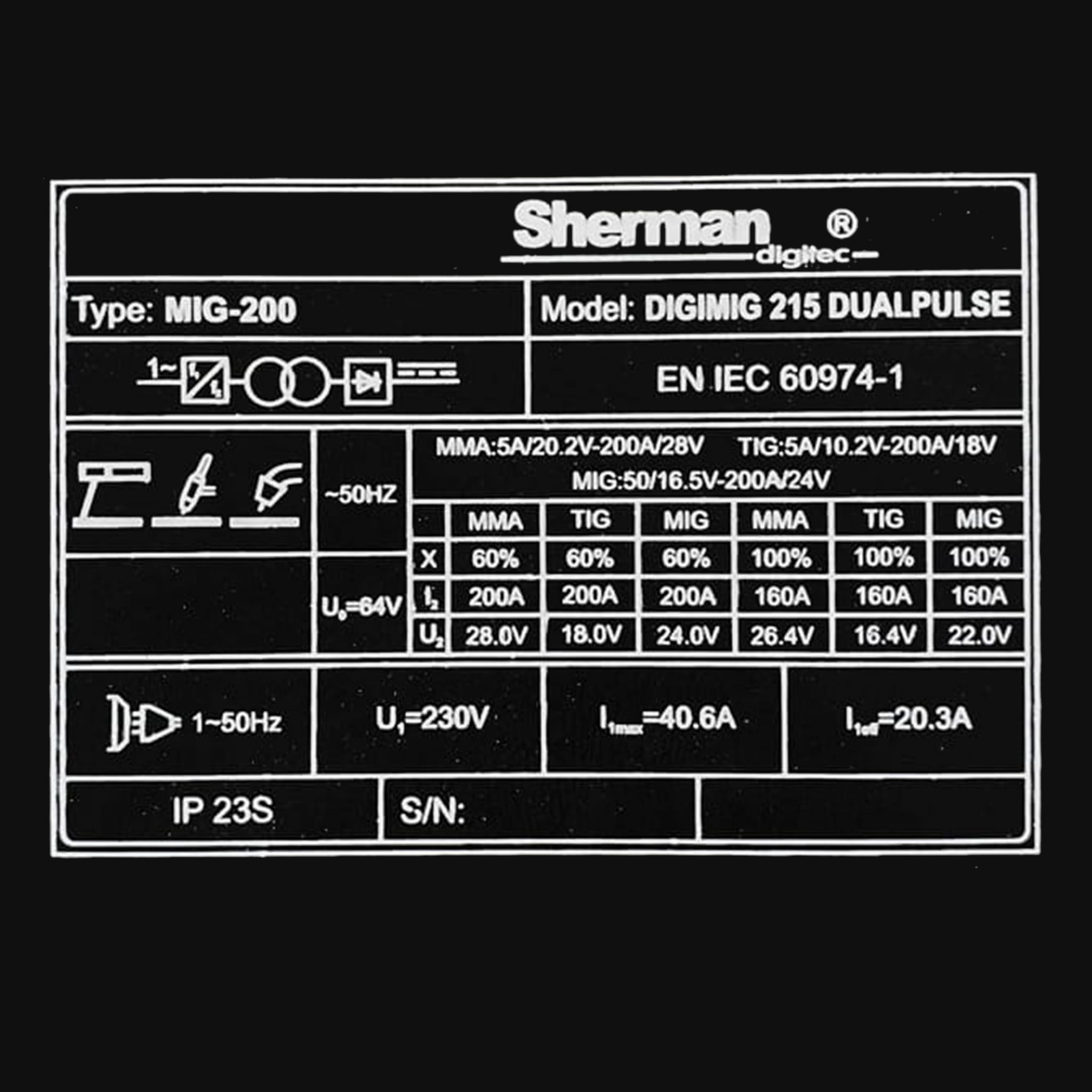

TECHNICAL DATA:

• Catalog number: 7812202
• Supply voltage [V] : AC 230 50Hz
• Welding methods: MIG, MMA, Lift TIG, braze welding
• Manufacturing technology: IGBT
• Welding current [A]: MIG: 200 MMA: 200 TIG: 200
• Duty cycle [%]: 60
• Max. current consumption [A]: 40.6
• Max. power consumption [kVA]: 7.7
• Welding current control: Smooth
• Wed spool with wire [mm]: 100, 200
• Weight [kg]: 15
• Dimensions (L x W x H) [mm]: 490 x 220 x 375

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

LEVEL OF SECURITY

The IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP23S means that the device is adapted to work in closed rooms.

PROTECTION AGAINST OVERHEATING

The IGBT module is protected against overheating by a protective system that switches off the machine's welding circuit. After a few minutes, the welding machine cools down to a temperature that allows it to be turned on again automatically.

WORK CYCLE

The duty cycle is based on a 10-minute period. 60% duty cycle means that after 6 minutes of operation, a 4-minute break is required. Duty cycle of 100% means that the device can work continuously without interruption.

MMA

A covered electrode method consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes, e.g. basic, cellulose, rutile or acid.

HOT START

The purpose of this function is to prevent the electrode from sticking to the material and is a great help when striking the arc. It works when the arc is struck, causing the welding current to temporarily increase above the value set by the welder.

REVERSING POLARITY - WELDING WITHOUT GAS

Thanks to the variable polarity, it is possible to weld with the FLUX method with flux-cored wire without shielding gas. The wire is filled with a flux that produces protective gases during welding.

SYNERGY

Welding with the MIG / MAG method using synergic settings. The device selects welding parameters depending on the selected type and thickness of the material. These parameters can be changed by the user in order to adjust the settings to their own needs. Many programs have been prepared for synergic welding, including the braze welding program.

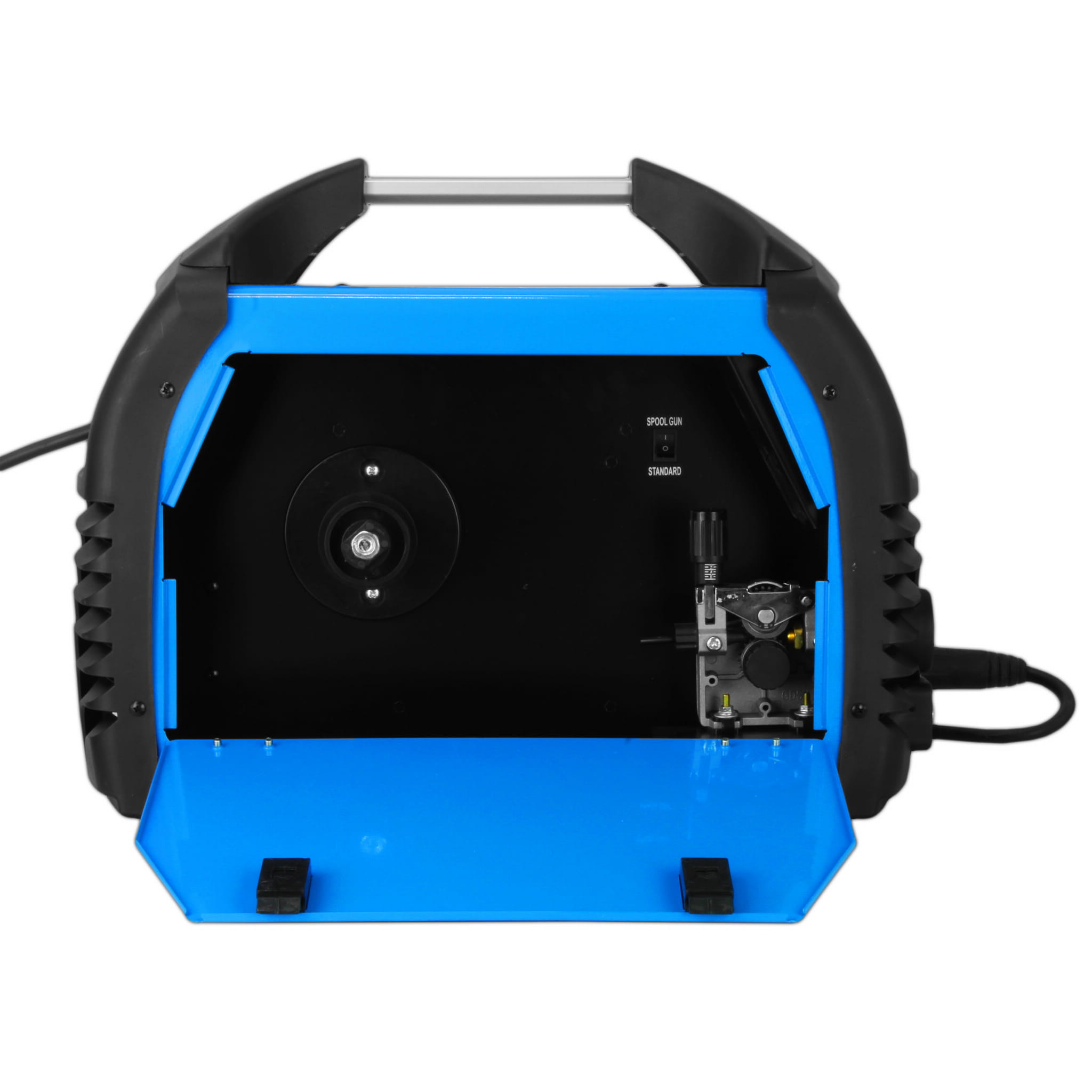

2 ROLL WIRE FEED

Professional feeder made of die-cast aluminum, has a powerful motor that allows for stable wire feeding without jamming. It is equipped with 2 drive rollers.

MIG PULSE

An advanced form of welding that uses the best forms of transfer of the molten electrode material to the workpiece. Unlike short circuits, pulse welding does not produce spatter or risk a cold "run-in".

Thanks to the cooling of the spray arc process, pulsed MIG is able to extend the range of welding, and the lower heat input does not cause a problem with burning through thin materials. MIG PULSE is one of the best welding processes for a wide variety of metal applications and types.

DOUBLE FLASH PULSE

The MIG / MAG method with double pulse allows you to adjust the pulsation of the current (pulse balance) and to adjust the wire feed speed. Thanks to this, we improve the appearance of the weld. During MIG / MAG welding with double pulse, current pulses occur in two ranges.

REGULATION OF INDUCTION

It enables optimization of the arc characteristics depending on the thickness of the welded element as well as the welding method and conditions. This function is useful during MIG / MAG welding of thin elements, preventing them from burning out and brazing galvanized elements.

2T / 4T

2T - Pressing the gun trigger button will cause gas to pre-flow, then strike the arc and start welding. When the button is released, the arc will be extinguished and gas will flow out.

4T - Pressing and releasing the welding gun button will pre-flow gas, then strike the arc and start welding. When the button is pressed and released again, the arc will be extinguished and the gas will flow out.

S2T / S4T

S2T - non-latched special - after pressing the button, gas will flow out at the time set by the user and the welding arc will be ignited. The starting arc voltage will be increased and will drop to the basic welding current during the set time.

When the button is released, the intensity drops to the final current value. The arc will then extinguish and shielding gas will flow at the set time.

S4T - special four-stroke - after pressing and releasing the button, gas will flow out at the time set by the user and the welding arc will be ignited. The starting arc voltage will be increased and will drop to the basic welding current during the set time.

When the button is pressed and released again, the intensity drops to the final current value. The arc will then extinguish and shielding gas will flow at the set time.

PRE GAS

Adjustment of the shielding gas flow time before welding.

POST GAS

Post-welding shielding gas flow time adjustment.

BURN BACK

Precise regulation of the burn-back time of the end of the welding wire eliminates the risk of the welding wire sticking to the contact tip.

Braze welding

After selecting the type of CuSi wire, the device enables braze welding, mainly used in the automotive industry to join galvanized sheets together.

SPOT WELDING SPOT

Time welding function, used for tacking workpieces, thanks to which it is possible to obtain equal length of welds.

PULSE WIDTH

Duration of the pulse. It allows you to adjust the depth of penetration. Increasing the width increases the penetration depth, reducing the amount of heat introduced into the material, reducing the risk of burning through thinner sheets or smaller components.

PULSE FREQUENCY

The frequency with which the current pulse value changes between the welding current and the base current.

FILLING THE CRATER

Current used in some welding modes when the arc is not quenched immediately after the welding current downslope. It allows you to fill the crater and the end of the weld.

SMOOTH ADJUSTMENT OF WIRE FEED

Smooth regulation of the wire feed speed is supported by an additional potentiometer, which allows you to set the speed for different wire diameters.

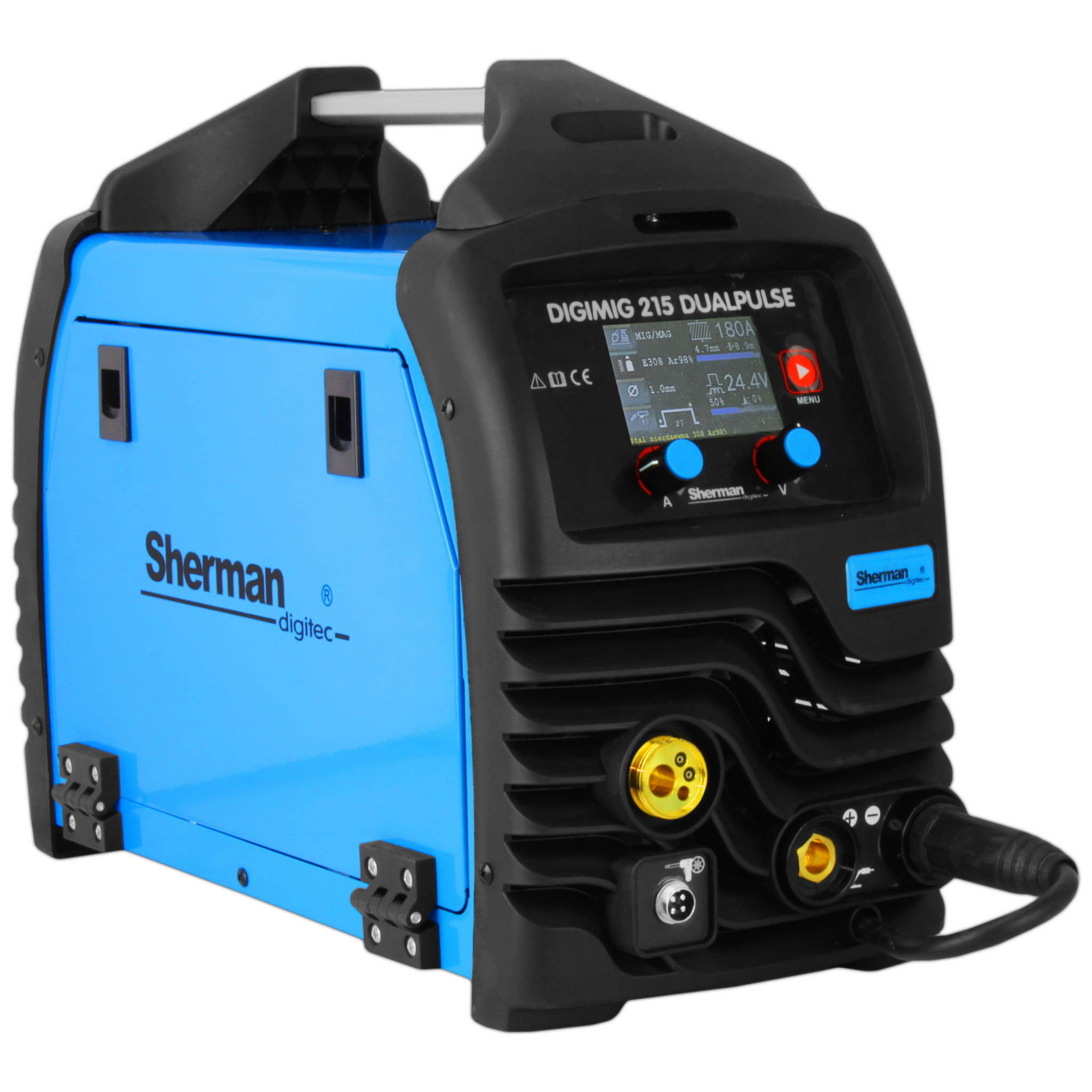

EASY TO USE, CLEAR CONTROL PANEL

The easy-to-use control panel enables precise and smooth adjustment of parameters. The digital display shows the actual current during welding. The semi-automatic welding machine has a menu that facilitates operation and allows you to choose the type of material to be welded.

TIG LIFT WELDING

The device enables TIG welding (in argon shield), after connecting an additional TIG welding torch with a gas valve in the handle to an inverter welding machine. The arc is ignited by rubbing the electrode with the material being welded.

WELDING WITH A SPOOL GUN

The welder allows welding with a handle with an integrated wire feeder. The spool of welding wire D100 is placed in the handle of the handle.

The use of the Spoolgun holder allows welding with two different wires without having to change the welding machine. The Spoolgun Mount is an additional option that can be purchased at our other auctions.

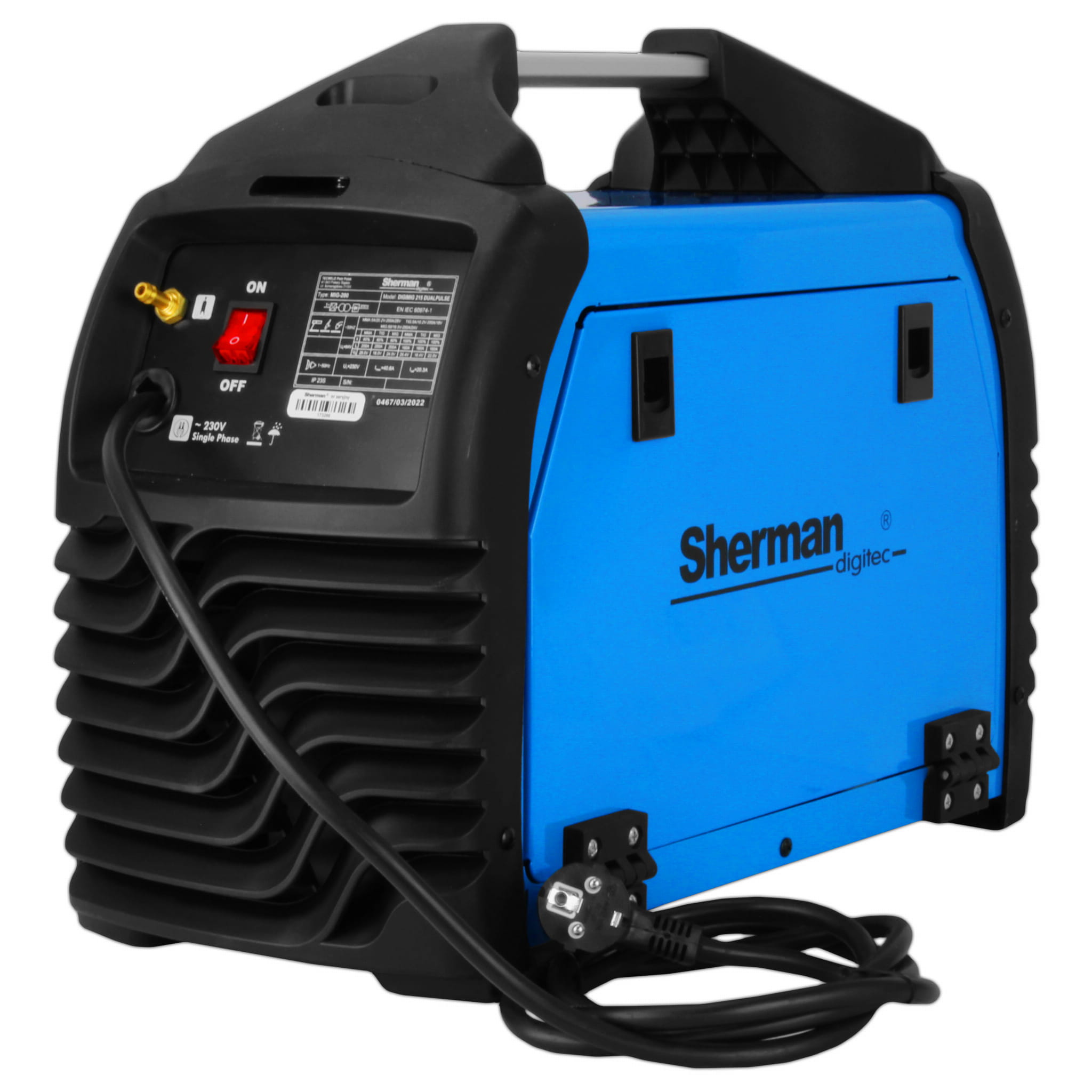

COOLING

The device has a fan cooling system, which significantly increases its efficiency.

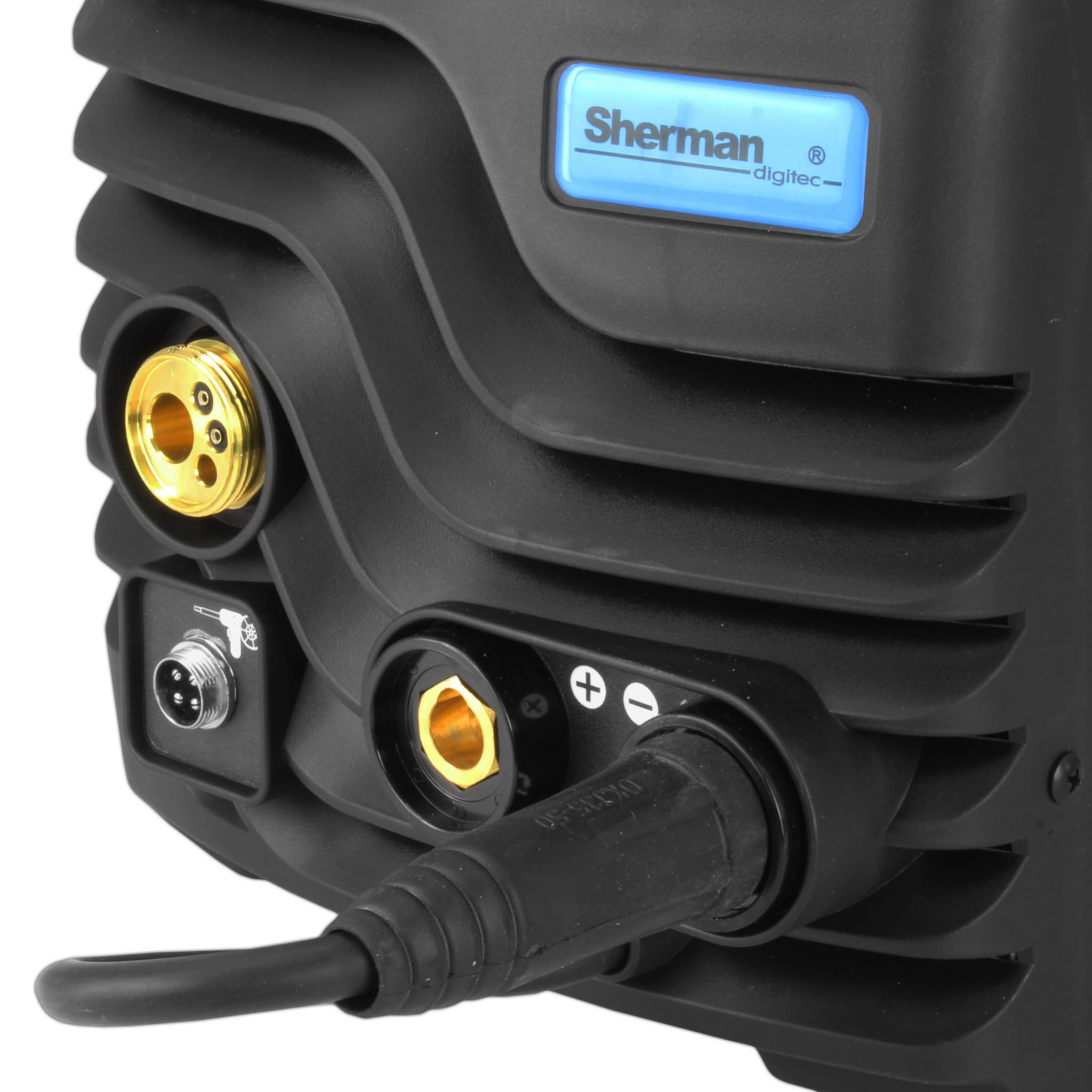

EUROCONNECTOR

Standard connection for welding torches, which enables the connection of various types of torches (e.g. prepared for Aluminum welding or Braze welding by replacing the Teflon insert and contact tip).

MEMORY OF SETTINGS

The device has a memory of the last settings, i.e. after switching off and on again, the last set parameters are restored. In order for the settings to be saved, none of the parameters should be changed for at least one minute.

STRONG AND ROBUST CONSTRUCTION

The housing of the device is made of light and durable composites, resistant to all kinds of mechanical damage.

EASY TRANSPORT

Equipping the welder with a transport handle for convenience when changing jobs.
