⚡ Sherman DIGIMIG 200 HIT inverter welder MIG/MAG MMA TIG

✅ Standard equipment

• Sherman DIGIMIG 200 HIT welder
• Ground cable
• Electrode holder cable

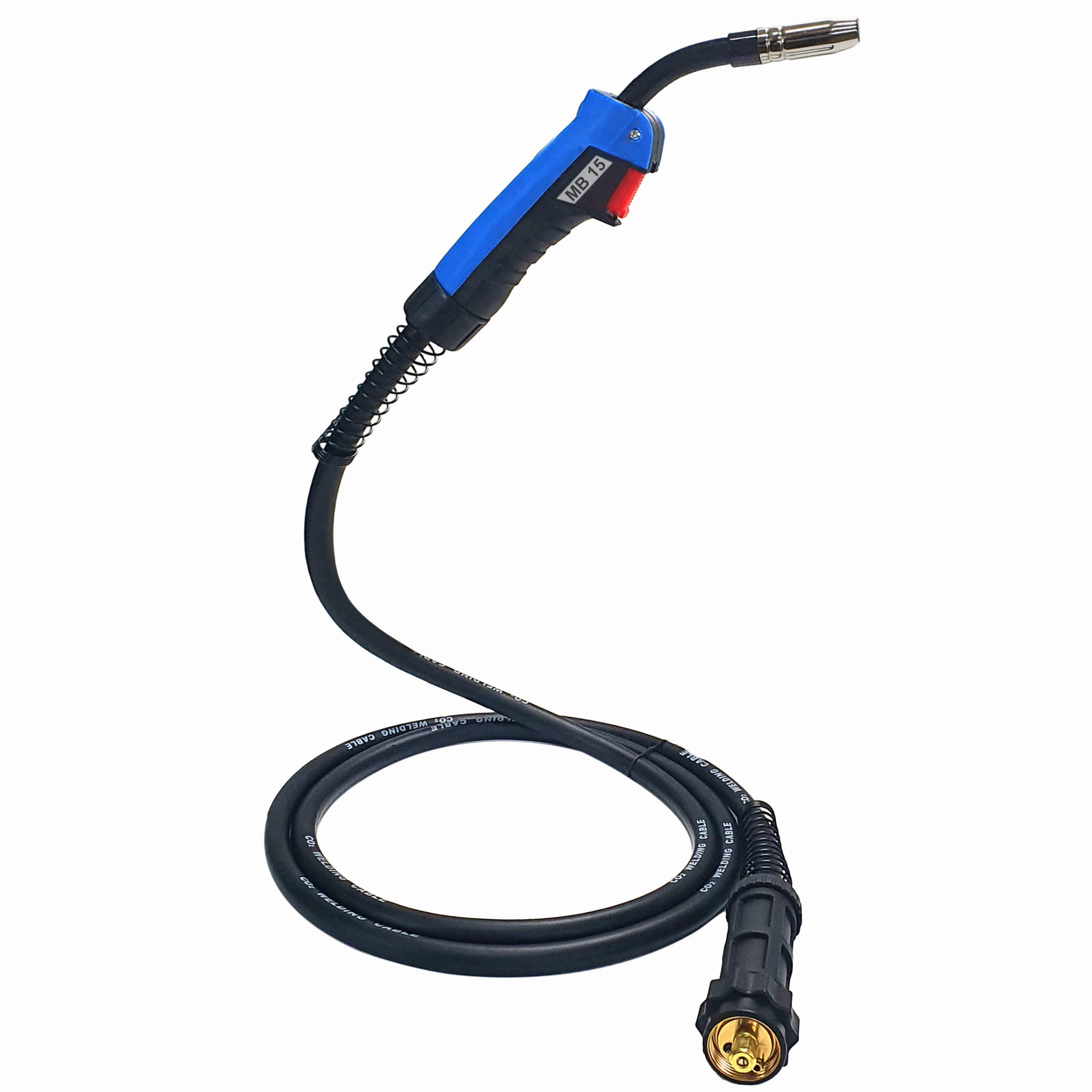

• MIG-15 welding torch 3m

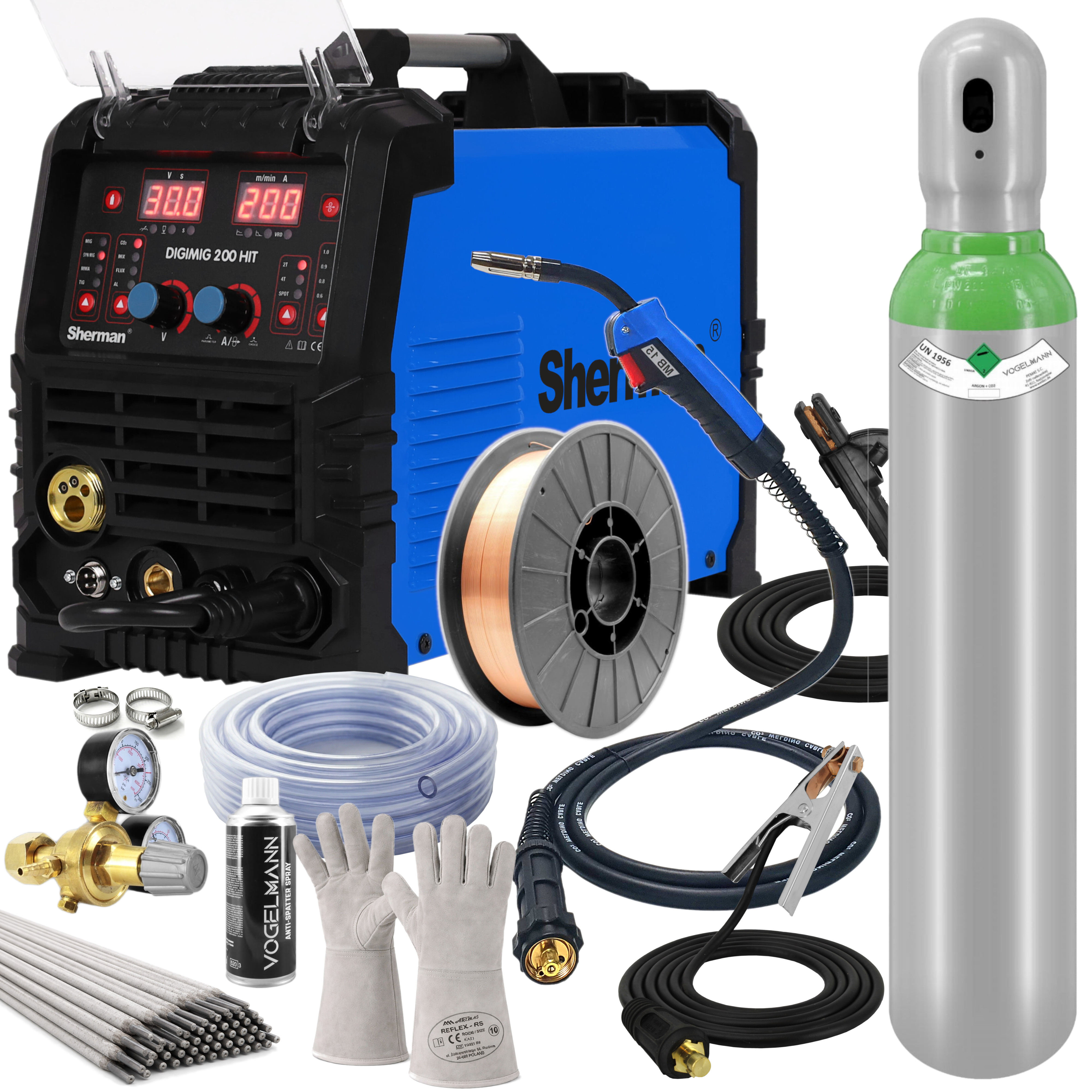

✅ Additional equipment

• Gas cylinder MIX Argon/CO2 150 bar 8l
• Gas regulator Ar/CO2 Exakt
• Welding wire SG2 5kg 0.8mm MIG
• Welding gloves
• Gas hose 3m
• Hose clamp – 2 pcs
• Anti-spatter spray
• Welding electrodes 6013 – 2.5mm 1kg

✅ Product description

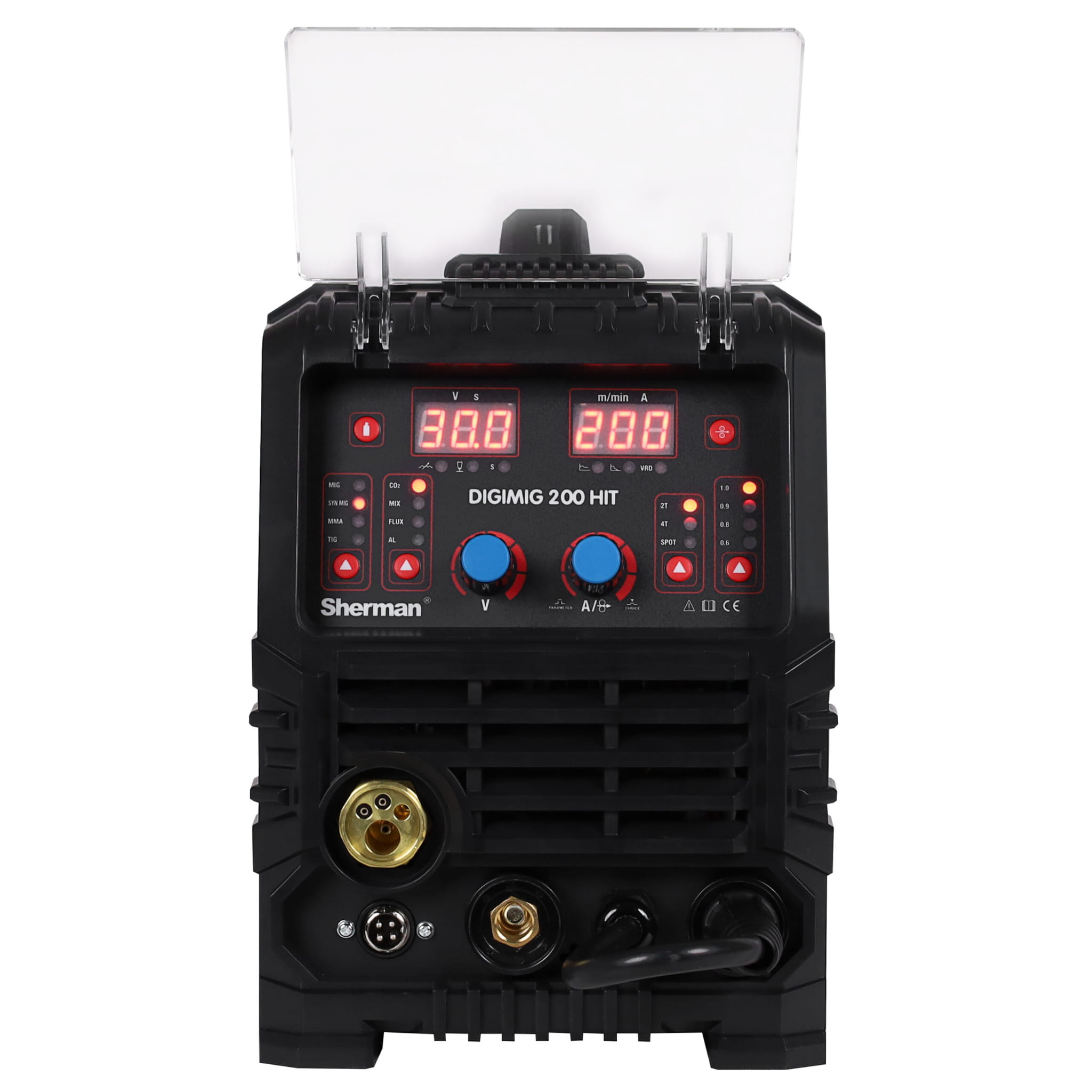

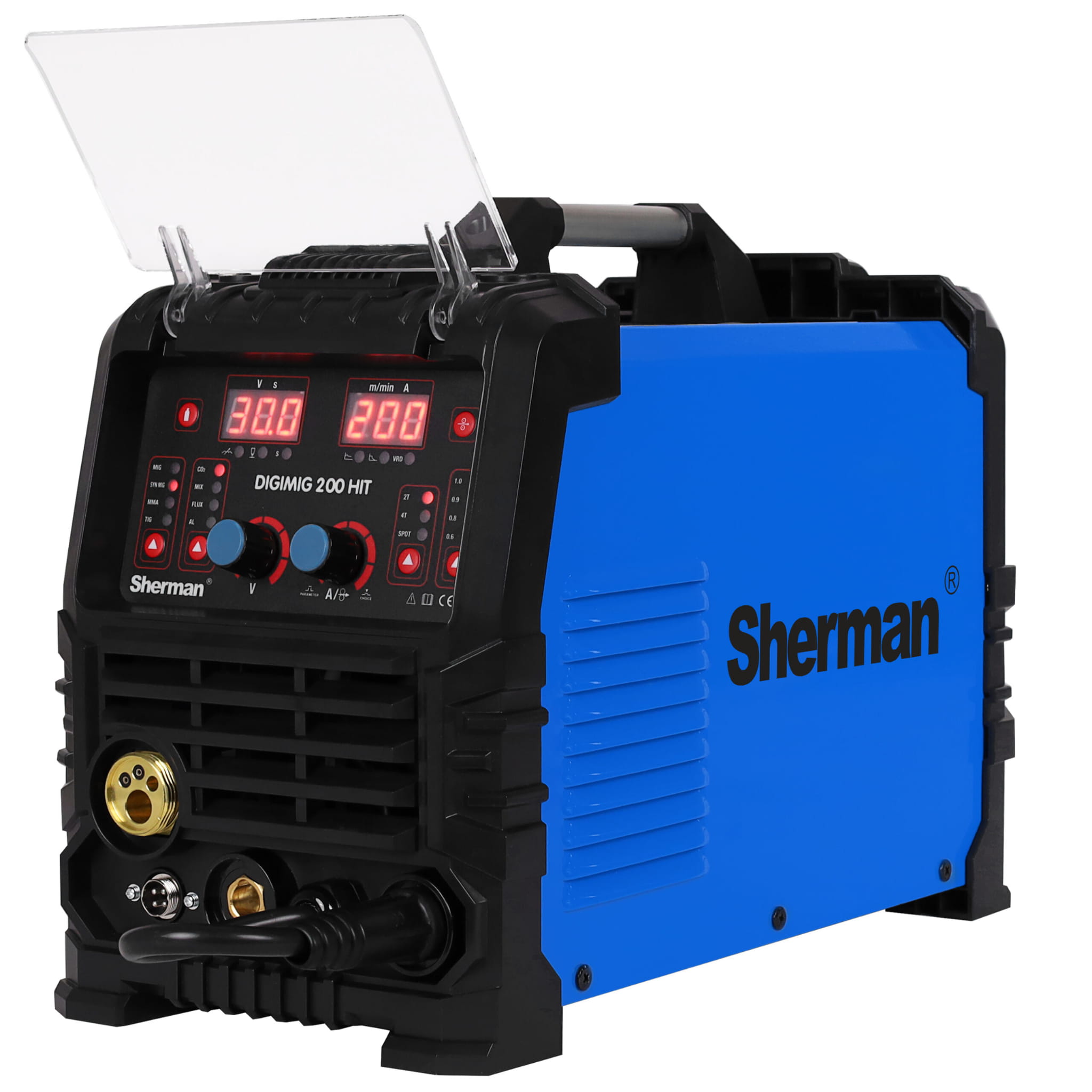

SHERMAN DIGIMIG 200 HIT is a synergic inverter welder designed for welding carbon steels, stainless steels and non-ferrous metals. The device allows MIG/MAG welding (manual and synergic), MMA (stick electrode) and TIG Lift DC.

Thanks to polarity change, the welder allows welding both with shielding gas and with self-shielded wire (FLUX) without gas. The unit is also compatible with a Spool Gun torch (D100 spool – optional).

✅ IGBT technology

IGBT technology ensures high efficiency, a stable welding arc and reduced weight and dimensions. The use of modern transistors increases reliability and energy efficiency.

✅ Synergic MIG/MAG mode

The welder offers synergic programs for steel, aluminium alloys and flux-cored wires. The device automatically selects welding parameters according to material type and thickness, with the possibility of manual correction.

✅ MMA support functions

• HOT START – facilitates arc ignition by temporarily increasing current.
• ARC FORCE – stabilizes the arc when its length changes.
• VRD – reduces no-load voltage to increase safety.

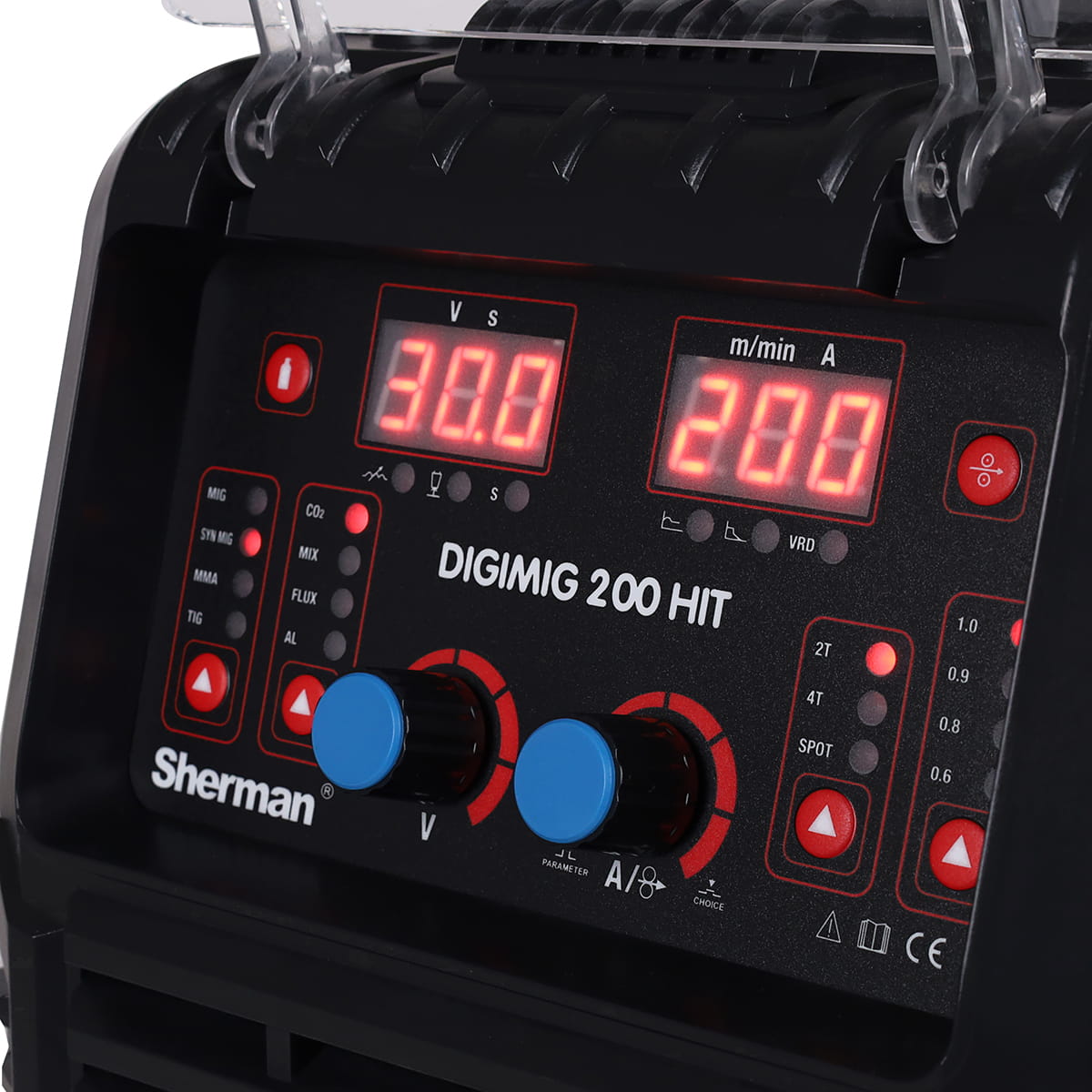

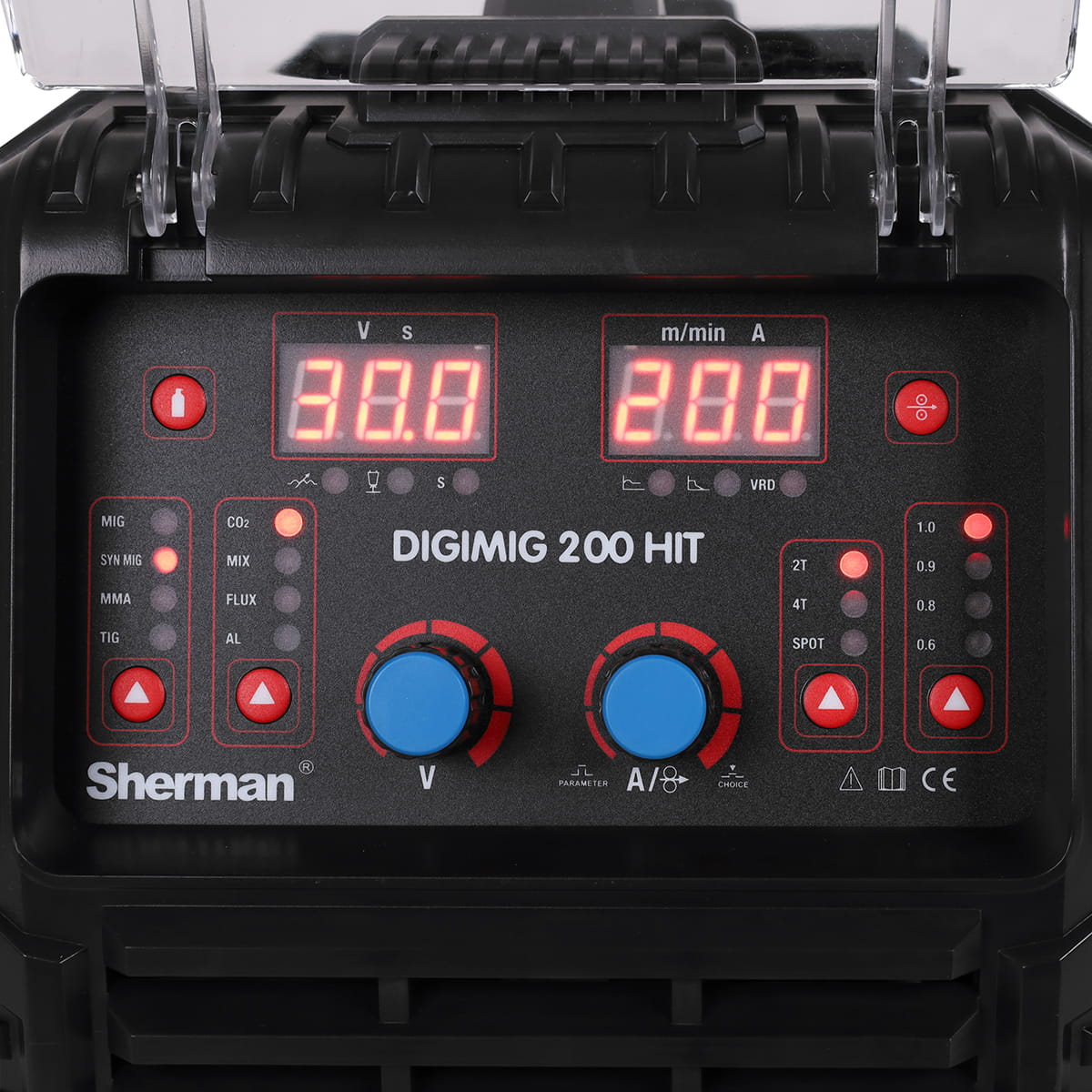

✅ Parameter control and adjustment

• Inductance adjustment – optimization of arc characteristics (especially for thin materials and brazing).
• Spot welding (SPOT) – time function for tack welding.
• 2T/4T operation mode.
• Digital LCD display showing actual welding current.

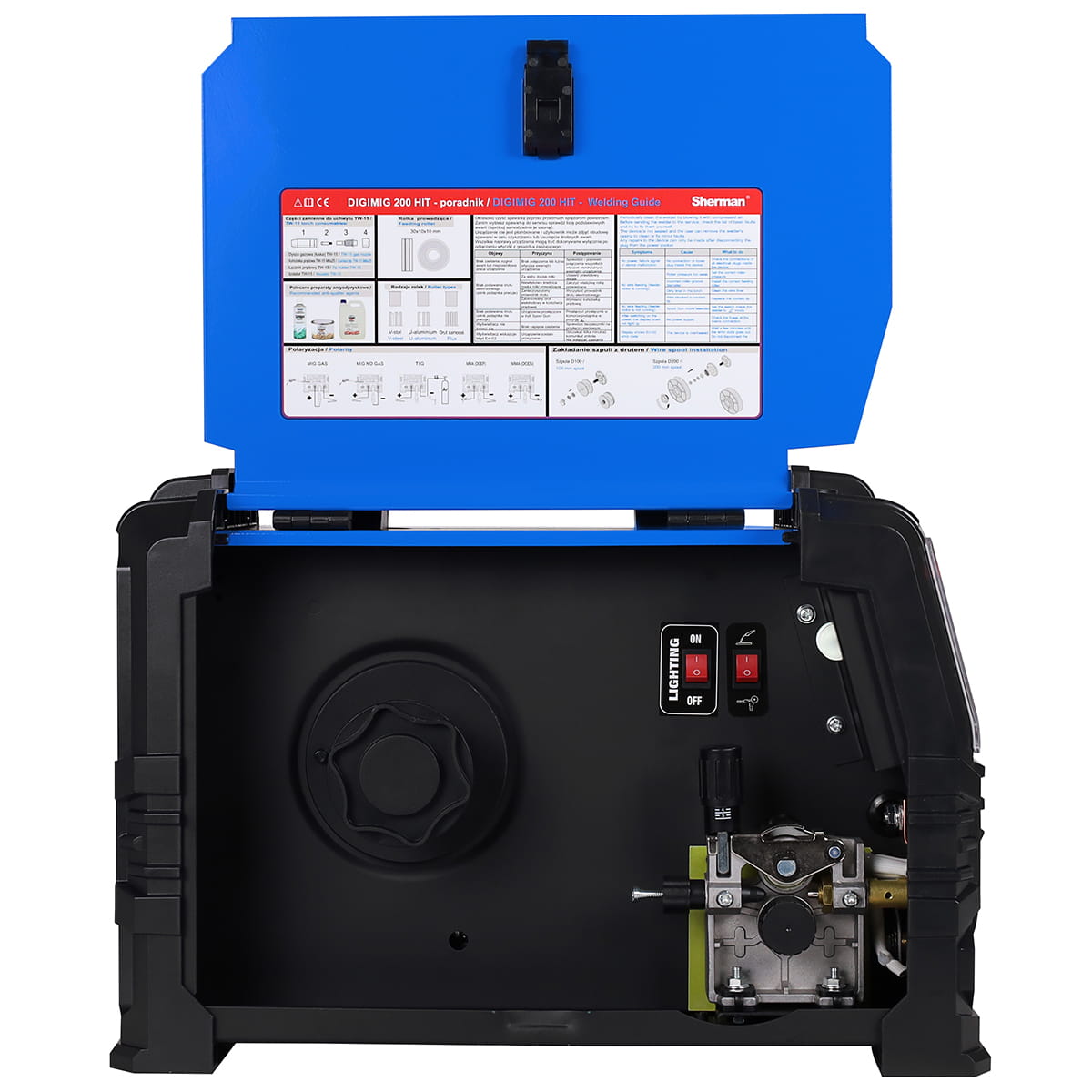

✅ Wire feeder

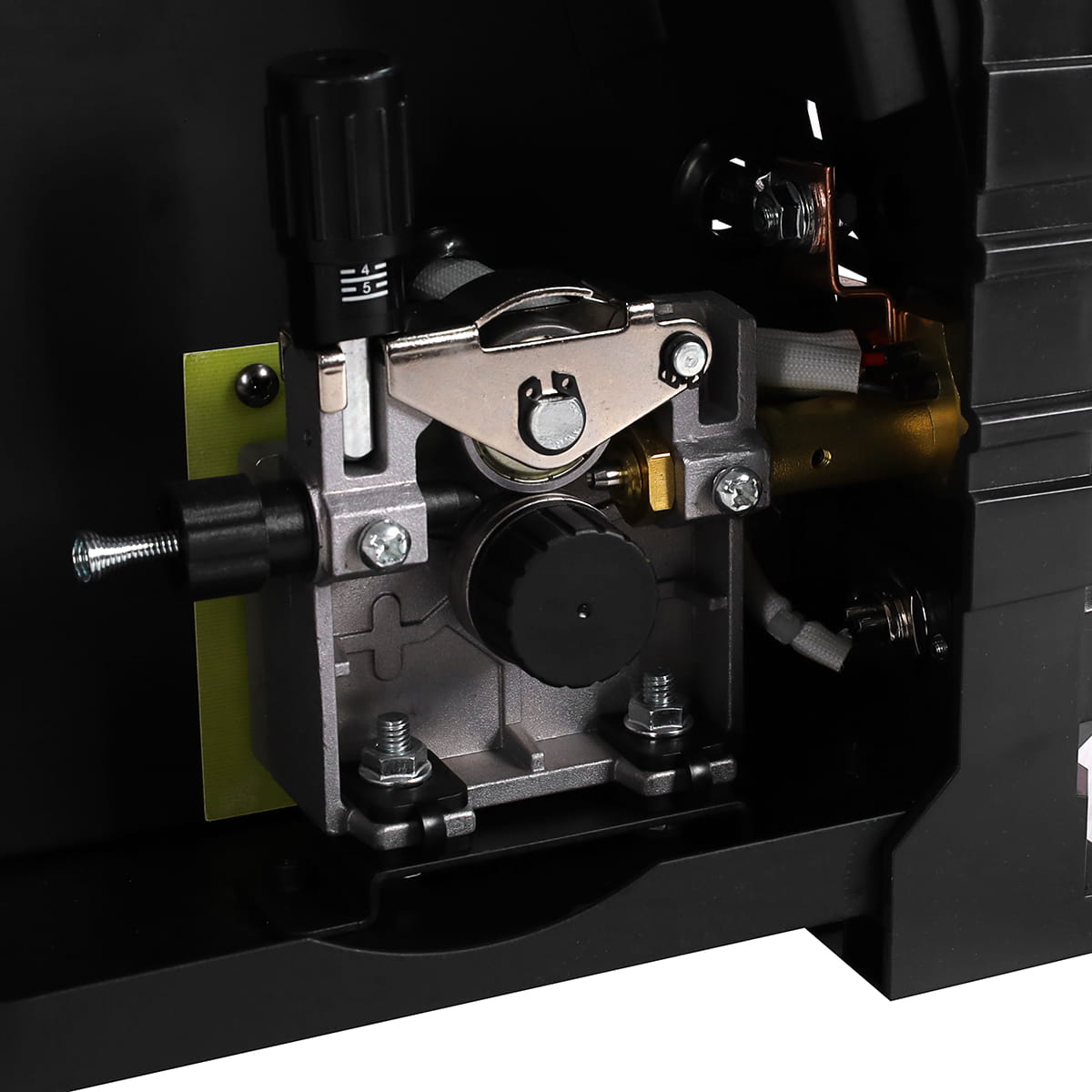

The device is equipped with a 2-roll wire feeder made of aluminium castings. A stable mechanism and a powerful motor ensure smooth wire feeding in the range of 2.5–15 m/min. Supported spool sizes: D100 and D200.

✅ Technical data

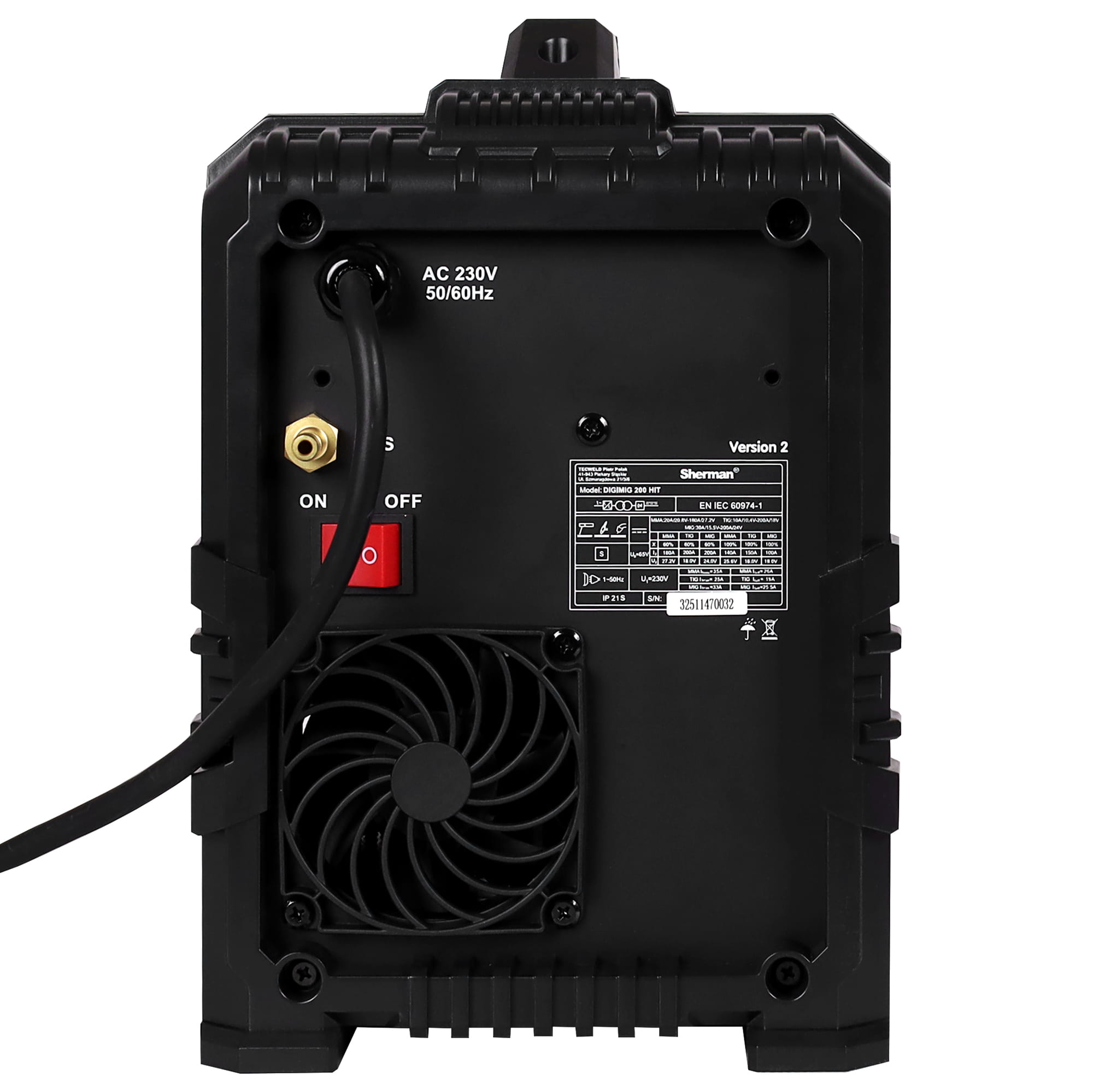

• Power supply: AC 230 V
• Technology: IGBT
• Max MIG/MAG current: 200 A
• Max TIG DC current: 200 A
• Max MMA current: 180 A
• Duty cycle MIG/MAG: 45%
• Duty cycle MMA/TIG: 60%
• No-load voltage: 65 V
• MIG voltage range: 15.5–24 V
• Mains protection: 25 A
• Protection class: IP21
• Weight: 14.38 kg
• Dimensions (L x W x H): 44 x 21 x 37 cm

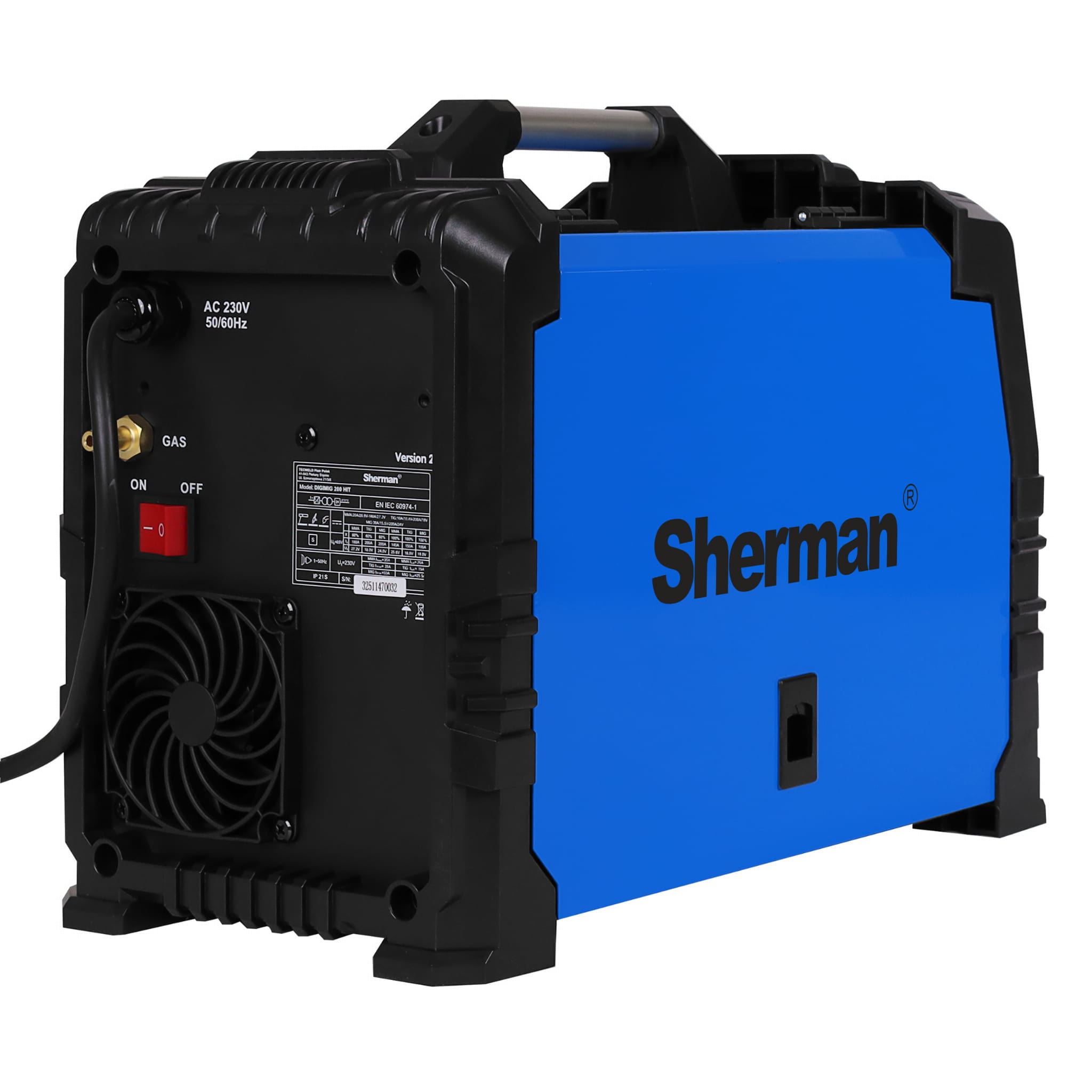

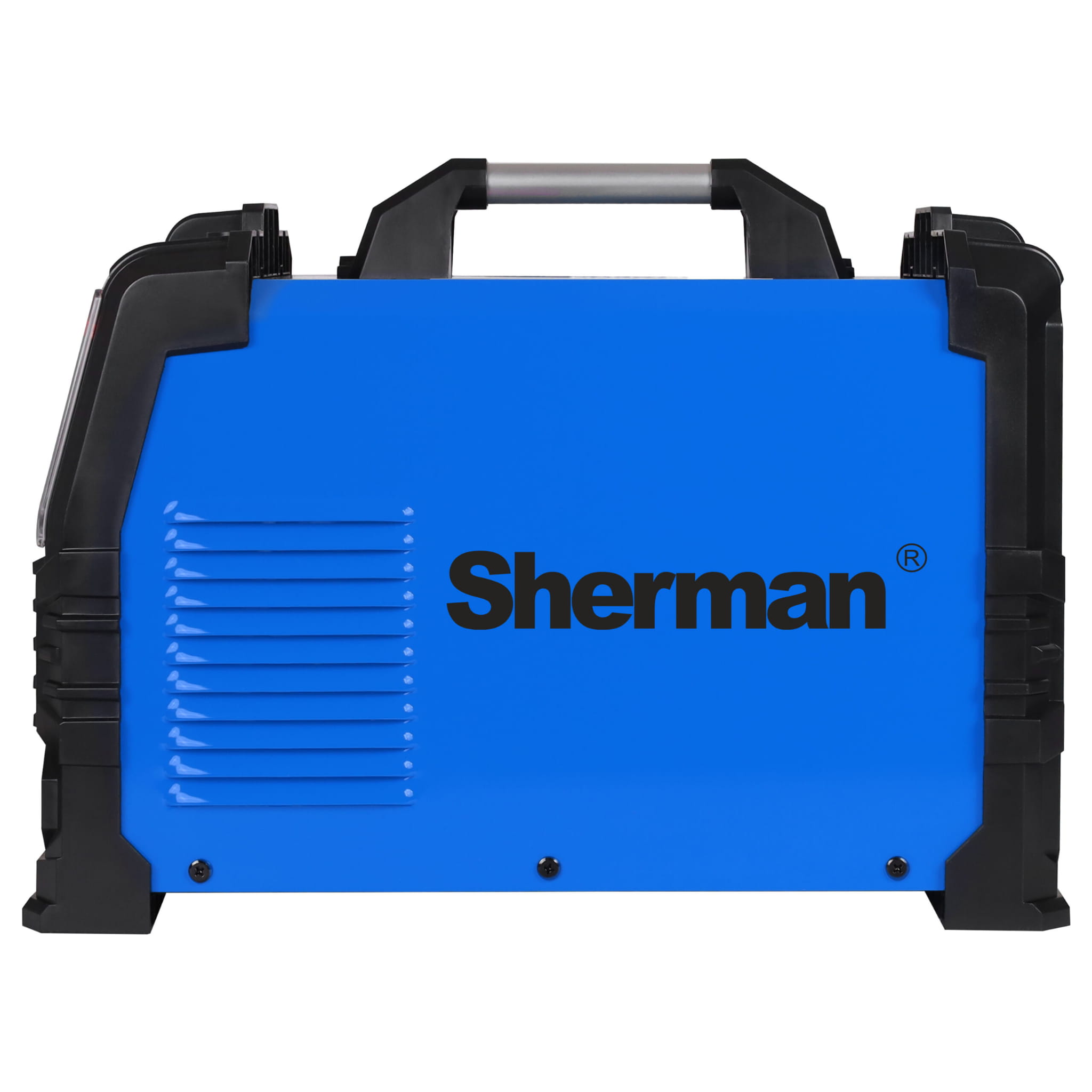

✅ Construction and application

The housing made of durable composites ensures resistance to mechanical damage. A built-in transport handle makes it easy to carry. The welder is intended for use in enclosed or roofed areas (IP21), in workshops, service environments and installation work.
