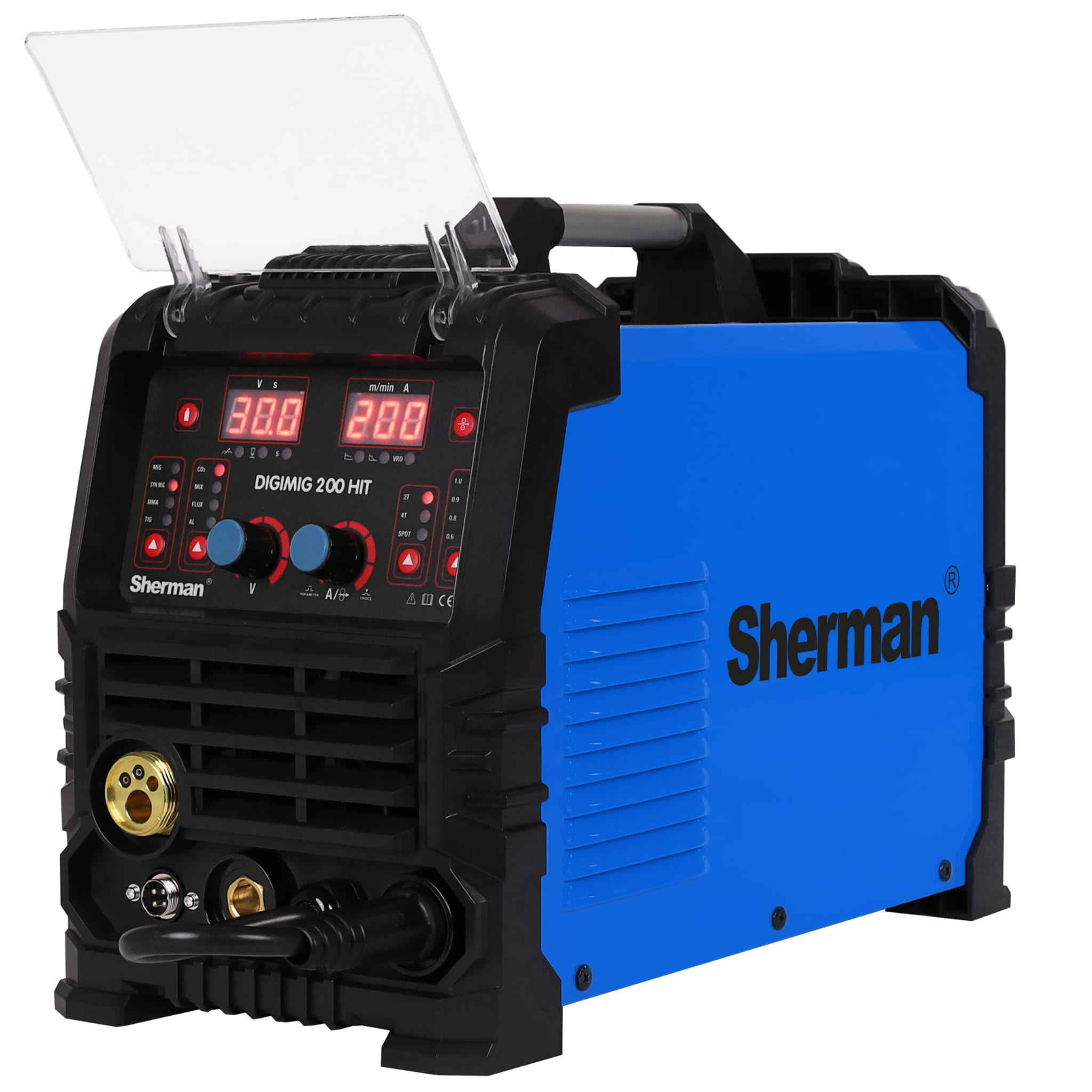

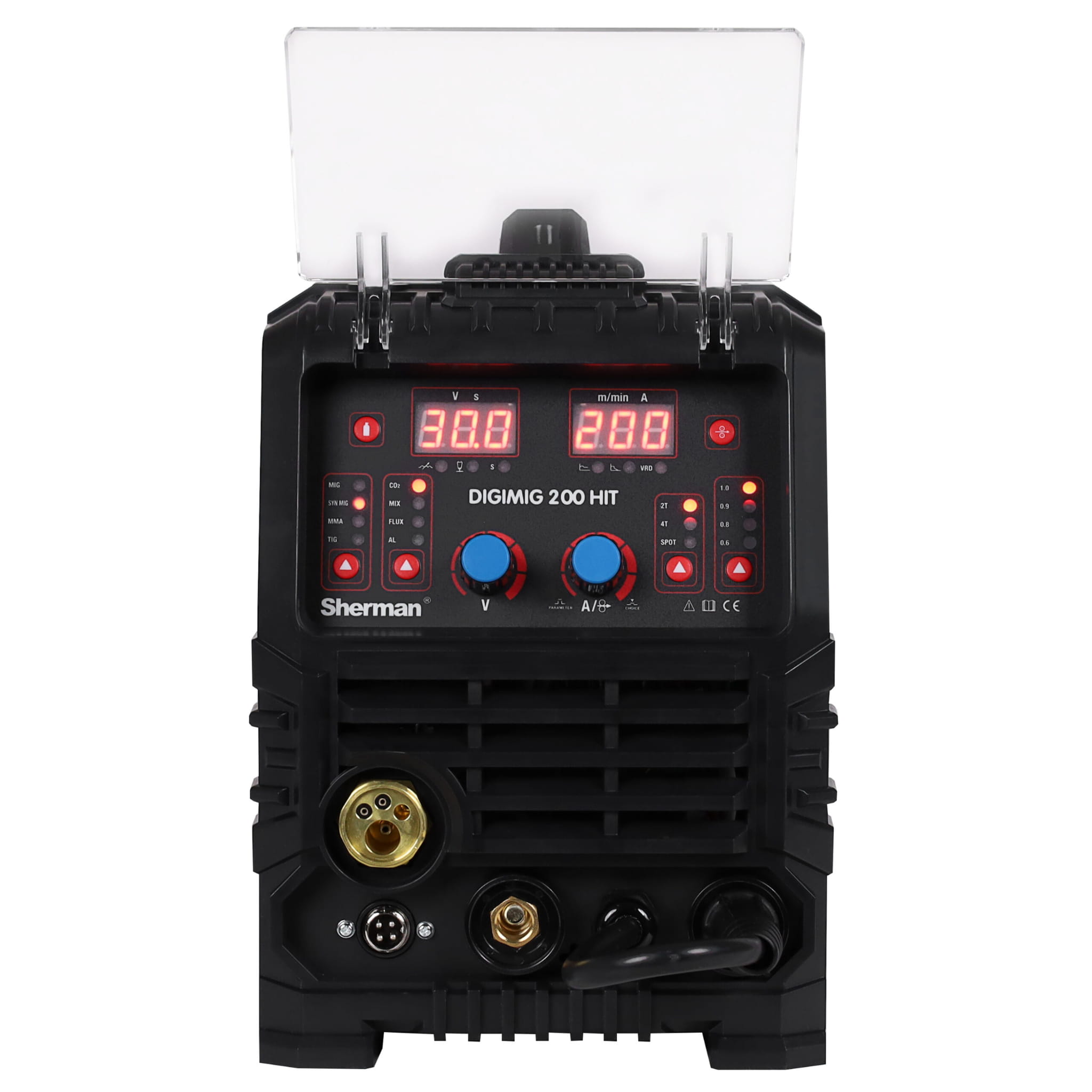

⚡ Sherman DIGIMIG 200 HIT inverter welder MIG/MAG MMA TIG

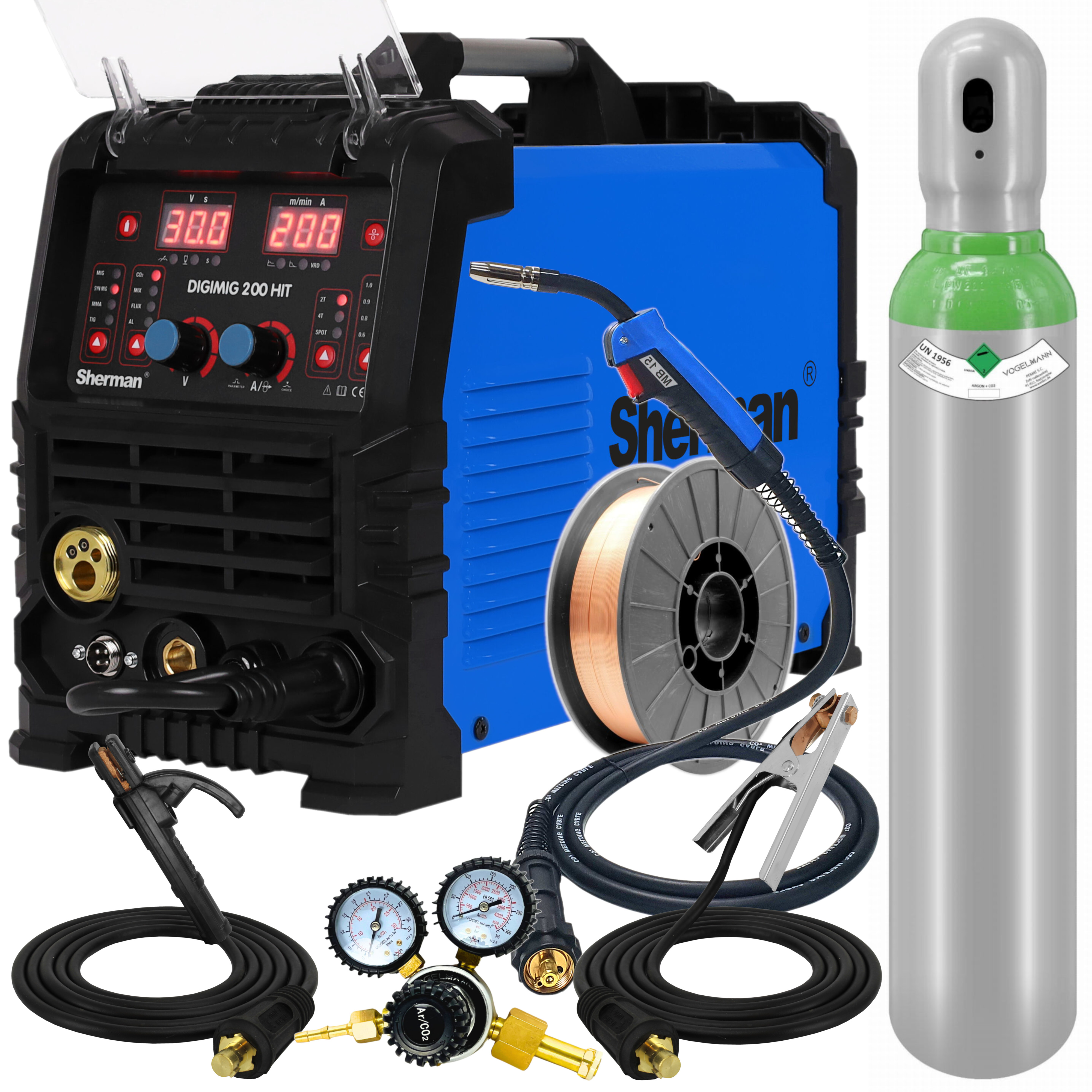

✅ Standard equipment

• Sherman DIGIMIG 200 HIT welder
• Ground cable
• Electrode holder cable

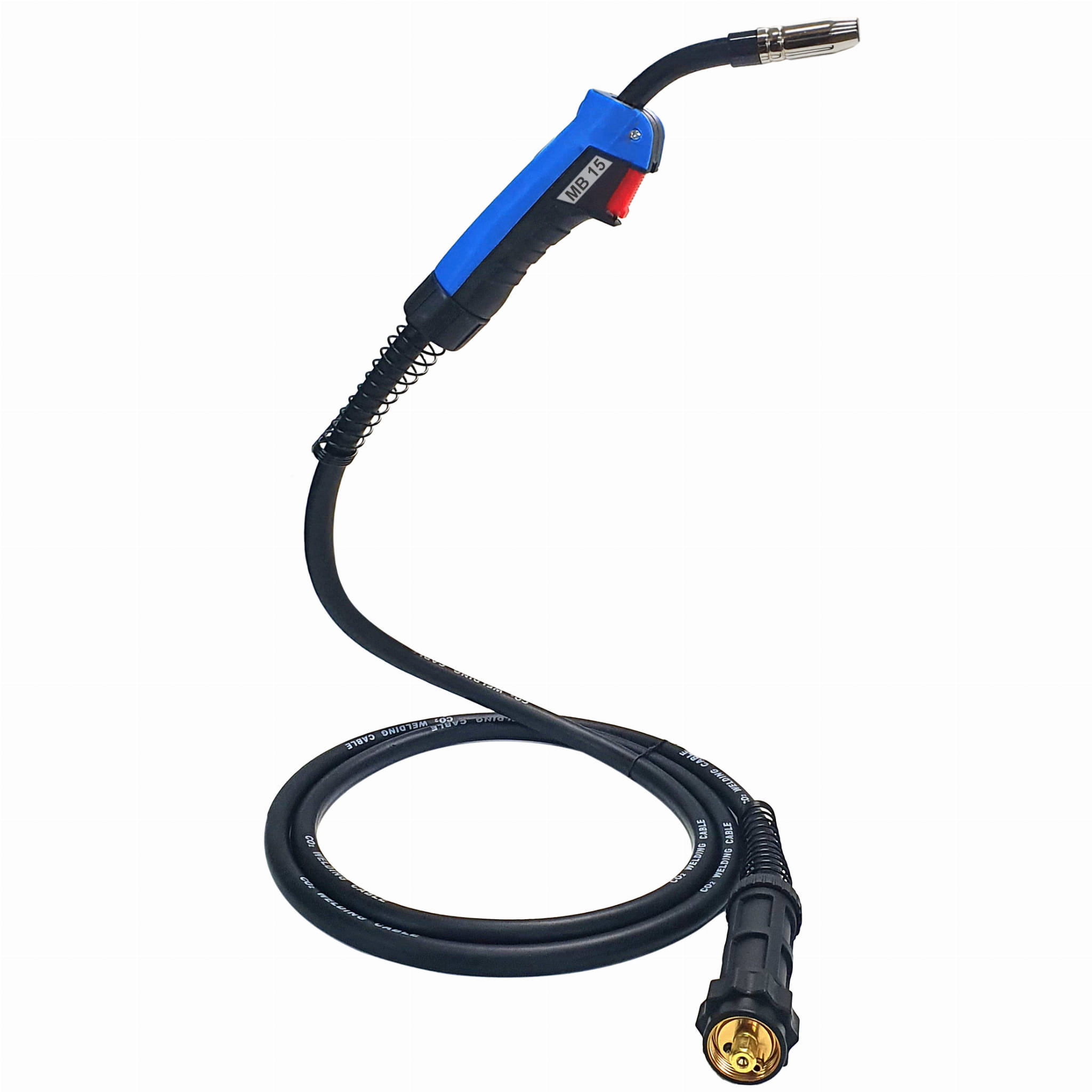

• MIG-15 welding torch 3m

✅ Additional equipment

• Gas cylinder MIX Argon/CO2 150 bar 8l
• Gas regulator Ar/CO2 Aero
• Welding wire SG2 5kg 0.8mm MIG

✅ Product description

The SHERMAN DIGIMIG 200 HIT is a synergic inverter welder designed for welding carbon steels, stainless steels and non-ferrous metals. The device allows MIG/MAG (manual and synergic), MMA and TIG Lift DC welding.

Thanks to polarity change, it allows welding with shielding gas or gasless FLUX wire. The unit is also compatible with a Spool Gun (D100 spool – optional).

✅ IGBT technology

IGBT technology ensures high efficiency, stable arc and reduced weight and size. Modern transistors increase reliability and energy efficiency.

✅ Synergic MIG/MAG mode

The welder offers synergic programs for steel, aluminium alloys and flux-cored wires. Parameters are automatically selected with possibility of manual correction.

✅ MMA functions

• HOT START
• ARC FORCE
• VRD

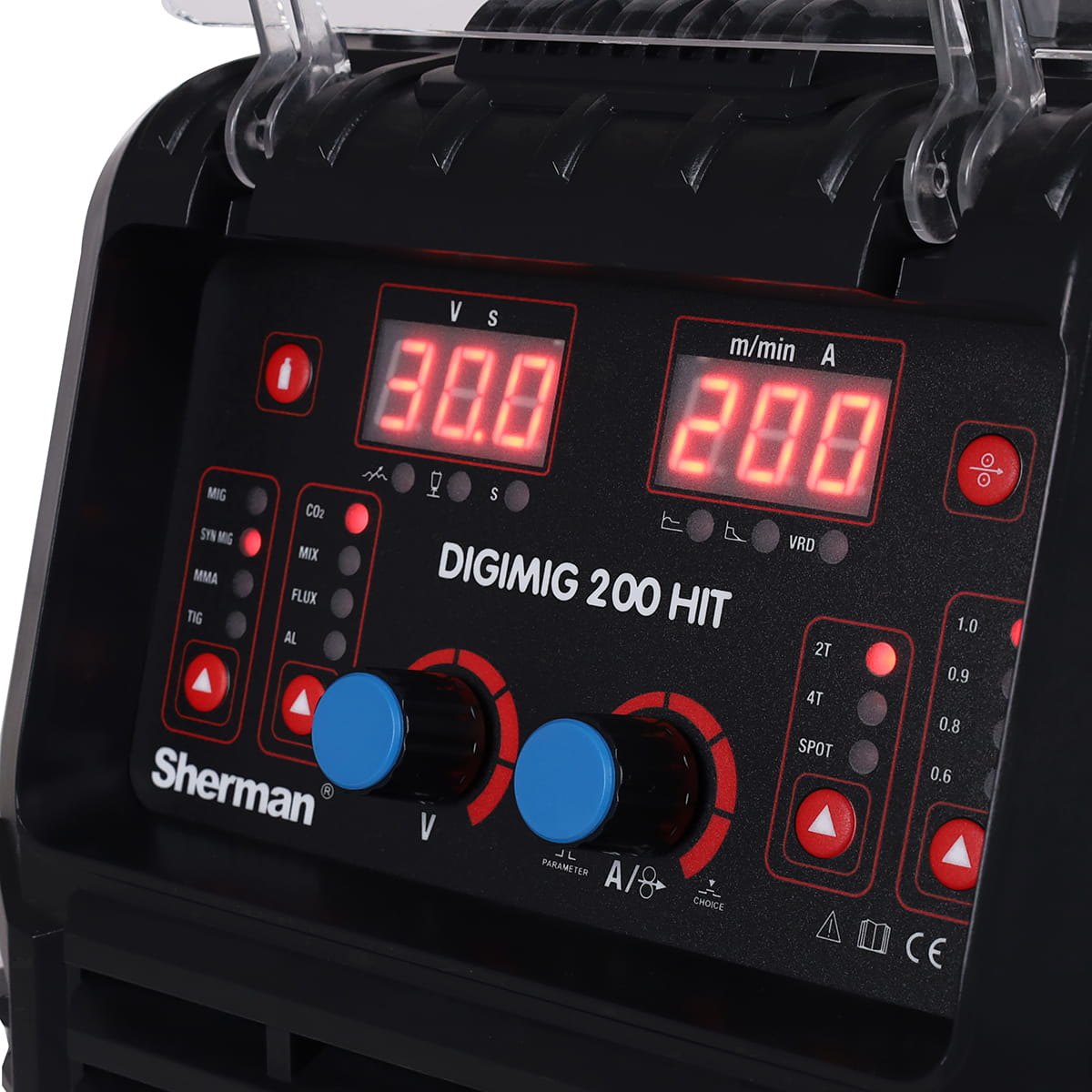

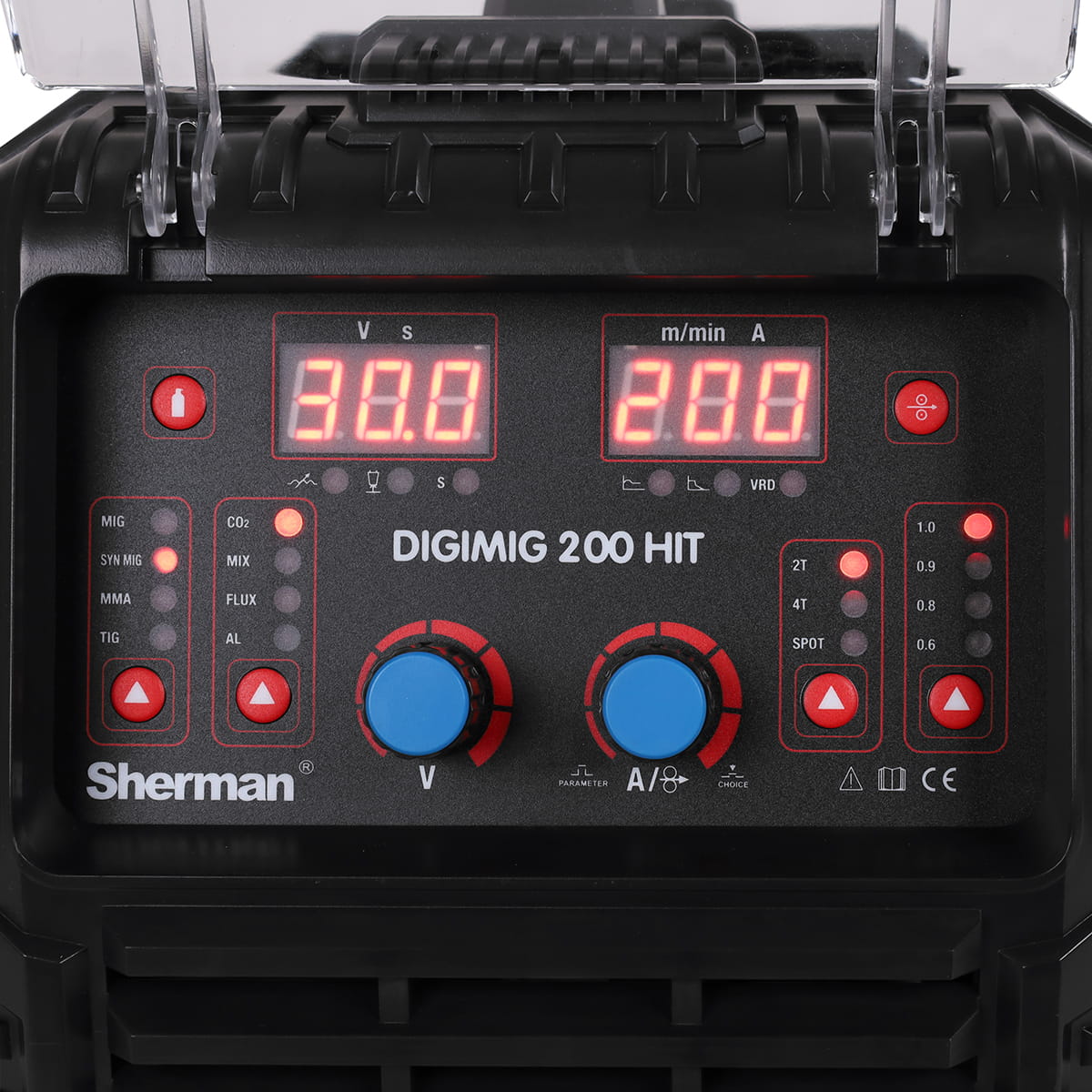

✅ Parameter control

• Inductance adjustment
• Spot welding (SPOT)
• 2T/4T mode
• LCD display

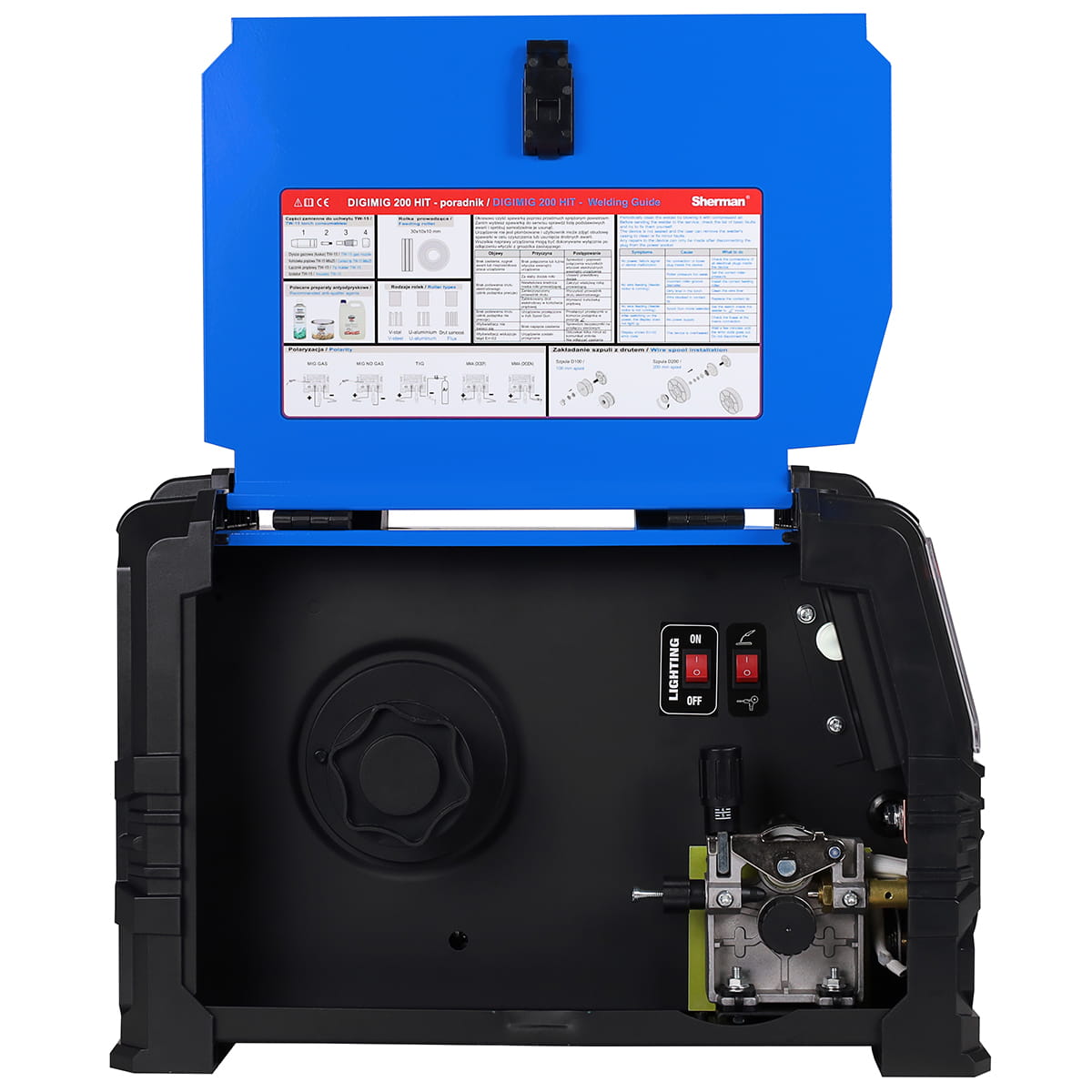

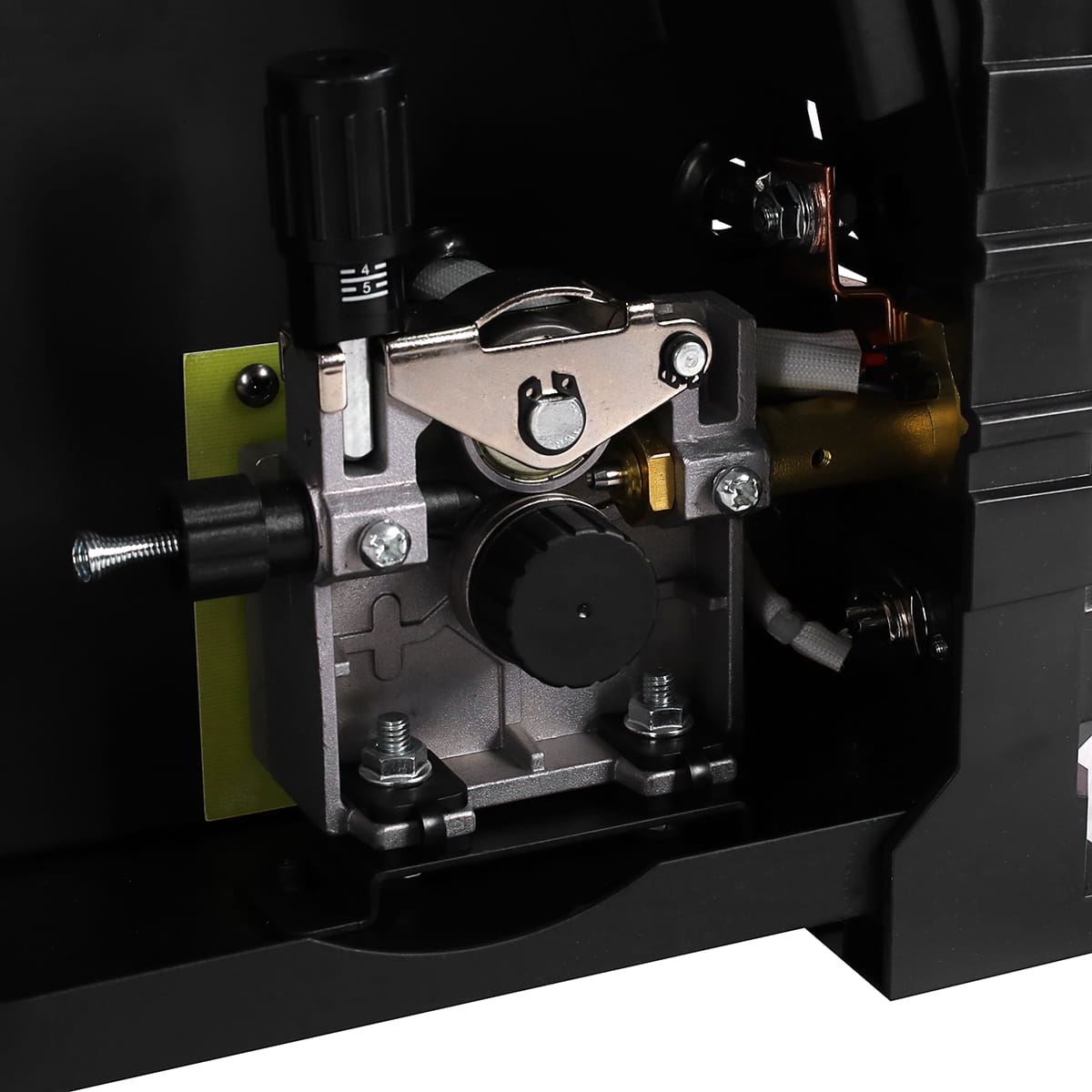

✅ Wire feeder

2-roll aluminium feeder, wire speed 2.5–15 m/min, spool sizes D100 and D200.

✅ Technical data

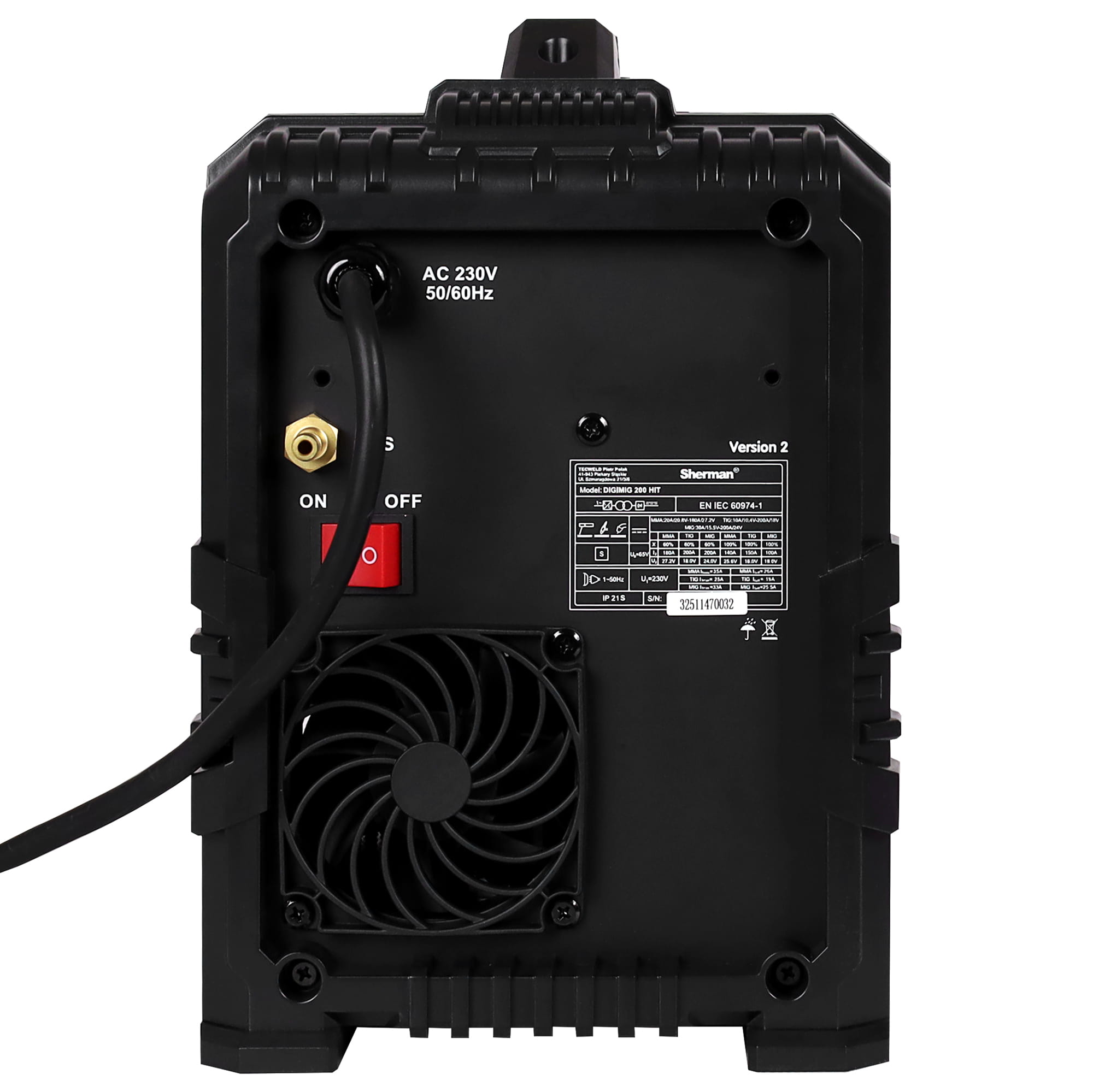

• Power supply: AC 230 V
• Technology: IGBT
• Max MIG/MAG current: 200 A
• Max TIG DC current: 200 A
• Max MMA current: 180 A
• Duty cycle MIG/MAG: 45%
• Duty cycle MMA/TIG: 60%
• No-load voltage: 65 V
• MIG voltage range: 15.5–24 V
• Protection: 25 A
• Protection class: IP21
• Weight: 14.38 kg
• Dimensions: 44 x 21 x 37 cm

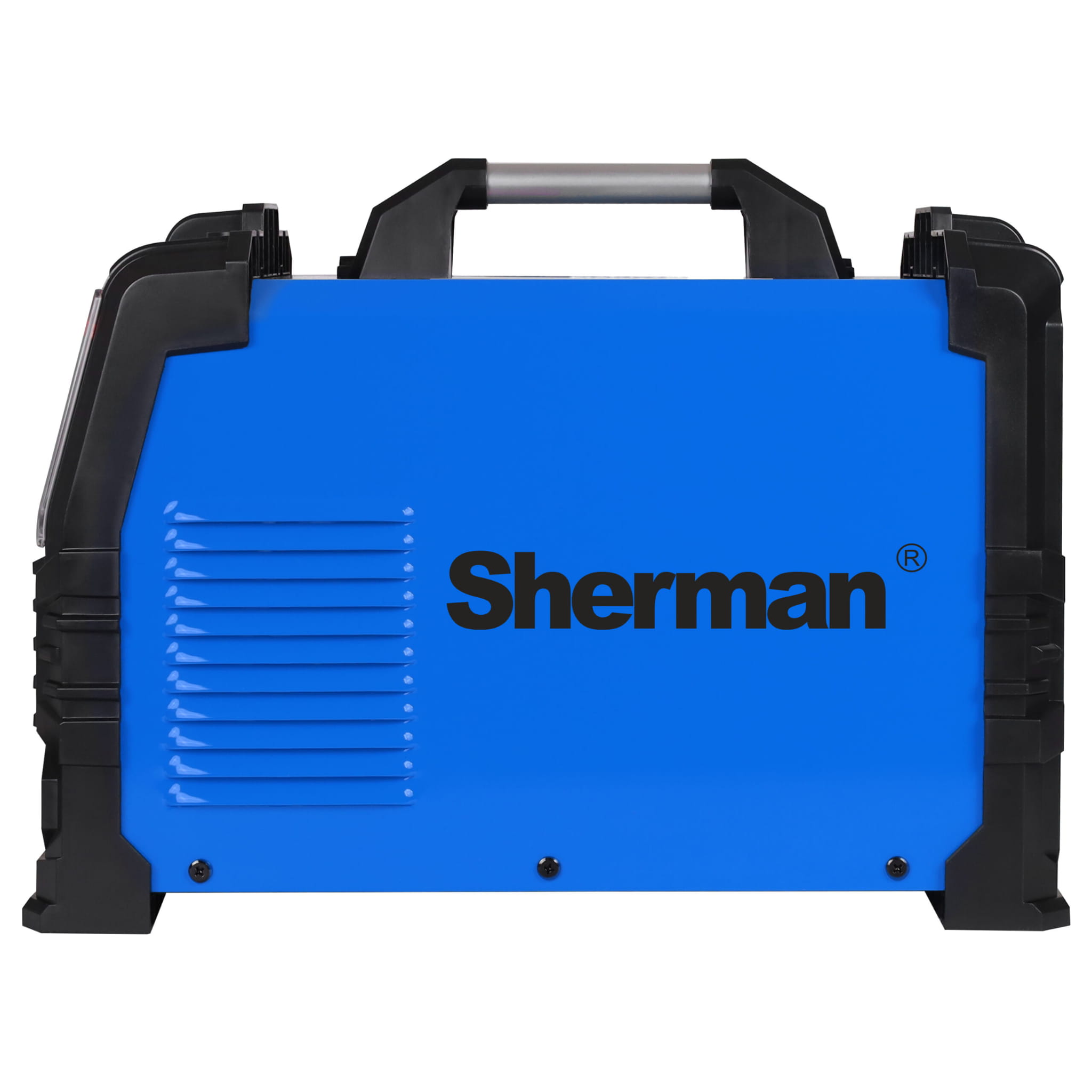

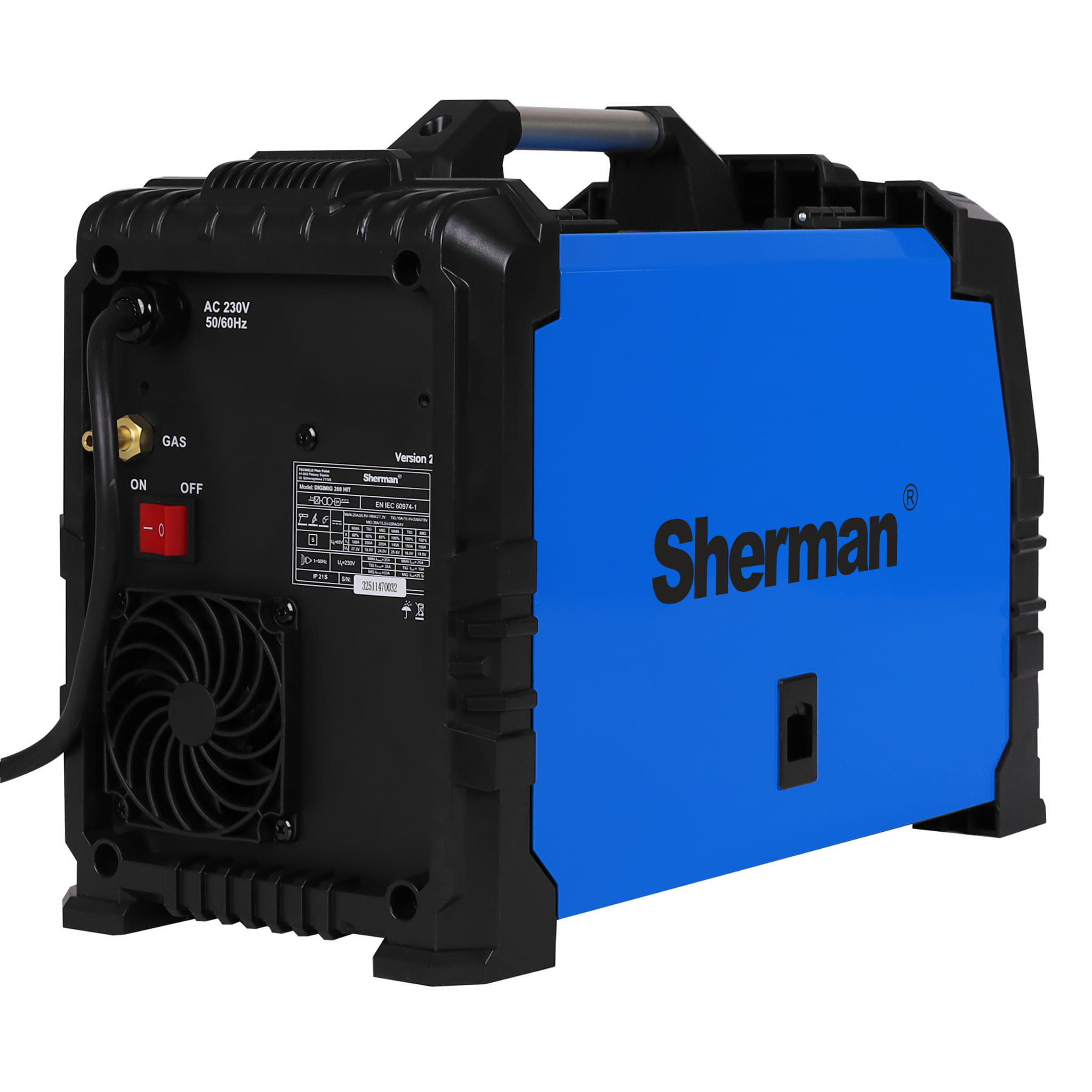

✅ Construction and application

Durable composite housing ensures resistance to mechanical damage. Built-in handle allows easy transport. Designed for indoor or covered use (IP21) in workshops and service environments.
