Sherman DIGIARC 200 Pulse - welding set No. 2

SHERMAN® WELDING MACHINE DIGIARC 200 PULSE - WELDING KIT # 2

| Brand: SHERMAN | Welding methods: MMA, TIG LIFT | Power supply: 230V | Welding current: 200A | Efficiency: 60% |

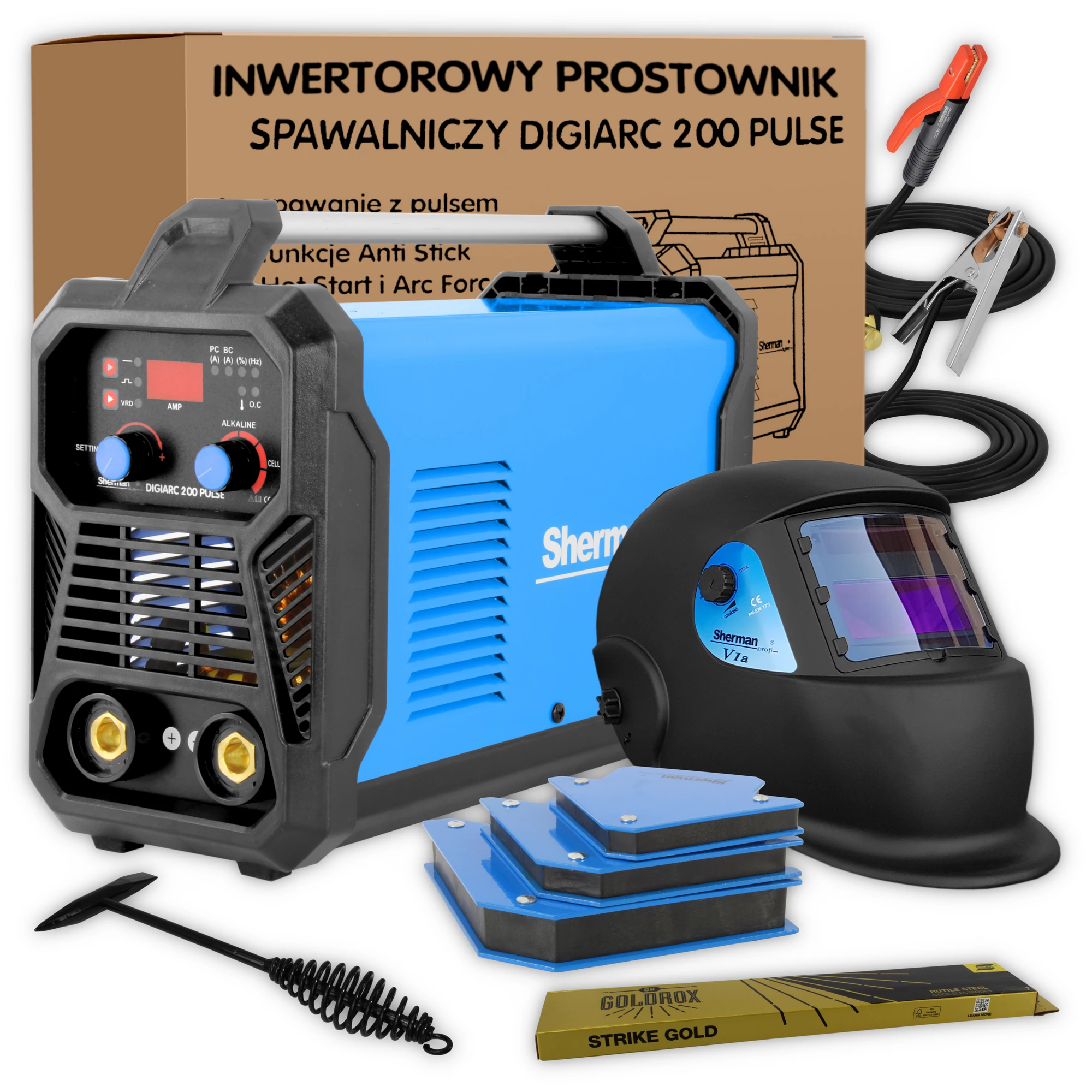

STANDARD EQUIPMENT

• Sherman DIGIARC 200 Pulse welding machine
• Mass grip
• Electrode holder
• User manual
• Warranty Card

ADDITIONAL EQUIPMENT

• Sherman Welding helmet V1a
• Welding angle small 12.5 kg
• Welding angle medium 25 kg
• Welding square large 37.5 kg
• ESAB Electrodes GoldRox 3,2mm 1kg
• Welding hammer

The inverter welding rectifier DIGIARC 200 PULSE made in the IGBT technology is used for manual welding with direct current:

• Steel,
• Cast iron
• Non-ferrous metals

coated electrodes (MMA method).

The welder is equipped with a welding current pulsator that enables high-quality welds, especially when welding stainless steels.

Thanks to the open circuit voltage regulation function, the device allows welding with all types of electrodes, regardless of the type of cover. The welder is equipped with automatic functions:

• HOT START,
• ANTI STICK,
• ARC FORCE,
• VRD with the option of switching it off.

The device is used in closed or roofed rooms, not exposed to direct weather conditions.

TECHNICAL DATA:

• Catalog number: 7812032
• Supply voltage [V]: AC 230 50Hz
• Welding methods: MMA
• Manufacturing technology: IGBT
• Welding current [A]: 200
• Duty cycle [%]: 60
• Tension in the state without load. [V]: 40 - 80 (9 with VRD)
• Max. current consumption [A]: 43.4
• Max. power consumption [kVA]: 6.4
• Welding current control: Smooth
• Weight [kg]: 6
• Dimensions (L x W x H) [mm]: 375 x 150 x 255

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

WORK CYCLE

The duty cycle is based on a 10-minute period. 60% duty cycle means that after 6 minutes of operation, a 4-minute break is required. Duty cycle of 100% means that the device can work continuously without interruption.

EASY TO USE, CLEAR CONTROL PANEL

The easy-to-use control panel enables precise and smooth adjustment of parameters.

HOT START FUNCTION

It works when the arc is struck, causing the welding current to temporarily increase above the value set by the welder. HOT START is designed to prevent the electrode from sticking to the material and is a great help when striking the arc.

ANTI STICK FUNCTION

Short-circuit protection, lowering the welding current if the electrode sticks to the workpiece. This makes it easier to detach and protects the device against damage.

ARC FORCE FUNCTION

Adjusting the dynamics of the welding arc. Shortening the arc length is accompanied by an increase in the welding current, which stabilizes the arc.

VRD FUNCTION

The correct voltage is not restored until just before the arc is struck. This minimizes the risk of electric shock, but in some cases may make the arc difficult to ignite.

WELDING WITH PULSE

It consists in the fact that the welding current changes abruptly between two different current values (peak current and base current) with a certain frequency.

The welder allows you to adjust the peak current, base current, pulse frequency and balance (the ratio of the duration of the peak current to the base current).

LEVEL OF SECURITY

The IP defines the degree to which the device is resistant to solid and water contamination entering the device. IP21S means that the device is suitable for operation in confined spaces and is not suitable for use in rain and snow.

PROTECTION AGAINST OVERHEATING

The power source is equipped with a thermal automatic overload switch. When the temperature of the welding machine is too high, the protection disconnects the welding current and the overheating diode lights up. After the temperature has dropped, the switch will reset automatically.

COOLING

The device has a fan cooling system, which significantly increases its efficiency.
