Sherman 4-roll feeder 4RN DC 42V 30mm rolls
Price:
€95.00
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Vendor:
Sherman
Product code:
WF02RN42
Description

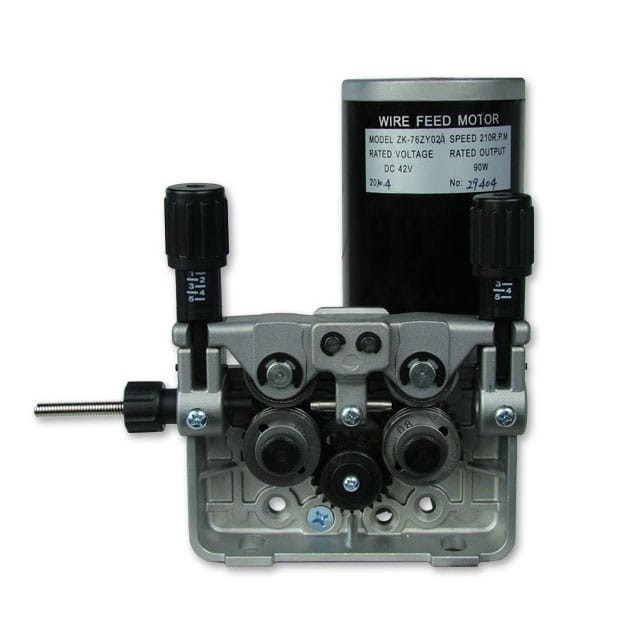

SHERMAN 4 ROLL FEEDER 4RN DC42V
The 4RN wire feeder is a fully professional wire feeder made of die-cast aluminum equipped with 4 drive rolls driven by gear wheels. It is designed for heavy duty work.
As a standard, the feeders have the motor on the right side looking at the feeder from the side of the guide rollers.
TECHNICAL DATA:
- Supply voltage: DC 42V
- Drive roller diameter: 30 mm
- Minimum wire feed speed: 1.8 m/min
- Maximum wire feed speed: 18 m/min
- Catalog number: WF02RN42
LIST OF REPLACEMENT ROLLERS
- Guide roller 30mm 0.8/1.0 RN02N0810
- Guide roller 30mm 1.0/1.2 RN02N1012
- Guide roller 30mm 1.2/1.6 RN02N1216
- Guide roller Al 30mm 1.0/1.2 RN02N1012AL
- Guide roller Al 30mm 1.2/1.6 RN02N1216AL
EXPLOITATION:
- The groove size of the guide roller must be the same as the diameter of the filler wire
- Use the tightening screw to set the correct pressure of the wire
- Too little pressure can cause the wire to slip in the guide roller, and thus unstable wire feed speed and faster wear of the guide roller.
- Too much pressure causes significant resistance, which can cause deformation of the wire and shorten the life of the motor.
- Worn or damaged parts of the feeder should be replaced with new ones immediately
- The feeder should be kept clean and maintained regularly.
- Working temperature - 25 - 40 ºC
