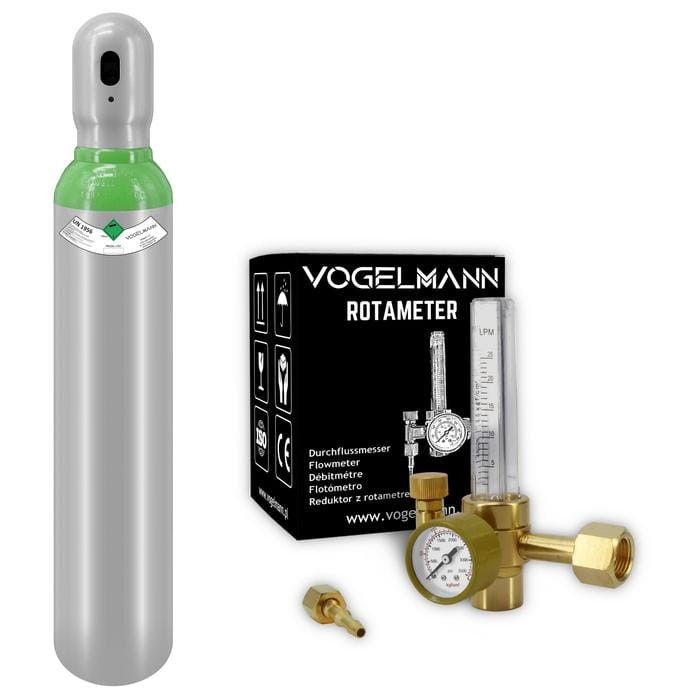

Set Full cylinder ARGON/CO2 + Rotameter Vogelmann gas reducer
Regular price:
product unavailable
add to wish list
Description
VOGELMANN - ARGON/CO2 GAS CYLINDER
The cylinder contains 8l / 1.5m3 of a high-quality argon and CO2 mixture with a working pressure of 150 bar. The protective cap protects the valve against damage during transport or storage.
The cylinder and valve are made in accordance with EN 1964: 1999, have the PI mark and comply with the requirements of ADR/RID.
TECHNICAL DATA:
- Valve: W 21.8 x 1/14 DIN 477
- Content: Argon 82%, Carbon Dioxide 18%
- Capacity: 8l
- Working pressure: 150 bar
- Gas quantity: ~1.5m3
- Height 82 cm
- Diameter about 14 cm
- Weight ~15 kg
- Powder coated according to the current PN-EN standards
- It can be used throughout the European Union without additional testing for 10 years from the date of manufacture.
- Standard in PL,DE, AT, BE, CH, IL, HU, KR, CZ, SK
VOGELMANN ROTAMETER - CYLINDER REGULATOR WITH ARGON/CO2 ROTAMETER
| Brand: Vogelmann | Gas type: CO2, Ar, Ar/CO2 | Inlet thread: W21.8x1/14 | Outlet port: 6.3mm | Catalog number: 1201003 |
ROTAMETER PRESSURE REGULATOR.
The VOGELMANN universal gas regulator with a rotameter allows you to reduce the pressure of gases taken from the cylinder to the required working pressure.
It allows you to automatically obtain the pressure as constant as possible, regardless of changes in the inlet pressure.
APPLICATION.
Single-stage reducer most often used in welding when welding with TIG welders that require precise gas flow settings.
MANOMETER AND ROTAMETER.
It is equipped with a pressure gauge that indicates the pressure in the cylinder and a rotameter that shows the gas flow per minute.
TYPE OF GAS.
It is designed for technical gases such as argon (Ar), carbon dioxide (CO2) and MIX of these gases (Ar/CO2).
UNIVERSAL.
The gas regulator can be connected to any standard cylinder with a W21.8 x 1/14 thread.
TECHNICAL DATA:
- Gas type: CO2, Ar, MIX
- Inlet thread: W21.8x1/14
- Outlet nut thread: G 1/4
- Outlet port: ø6.3mm
- Inlet pressure: 185bar
- Outlet pressure: 0.5 - 10 bar
- Throughput: 30 l/min
