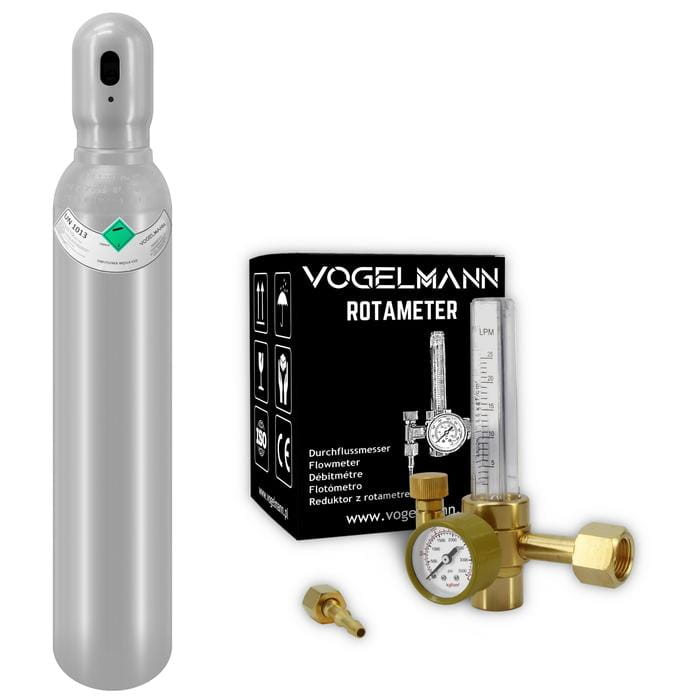

Set Full CO2 cylinder + Vogelmann Rotameter gas reducer

VOGELMANN - CO2 GAS CYLINDER

The cylinder contains 8l / 5kg CO2. The protective cap protects the valve against damage during transport or storage.

The cylinder and valve are made in accordance with the EN 1964: 1999 standard and have the ADR/RID compliance mark.

Technical data:

• Valve: W 21.8 x 1/14 DIN 477
• Content: Carbon Dioxide 100%
• Capacity: 8l
• Working pressure: 150 bar
• Amount of gas: ~5kg
• Height 82 cm
• Diameter approx. 14 cm
• Weight ~16 kg
• Powder coated according to the current PN-EN standards
• It can be used throughout the European Union without additional testing for 10 years
• Standard in PL, DE, AT, BE, CH, IL, HU, KR, CZ, SK

VOGELMANN ROTAMETER - CYLINDER REGULATOR WITH ARGON/CO2 ROTAMETER

| Brand: Vogelmann | Gas type: CO2, Ar, Ar/CO2 | Inlet thread: W21.8x1/14 | Outlet port: 6.3mm | Catalog number: 1201003 |

ROTAMETER PRESSURE REGULATOR.

The VOGELMANN universal gas regulator with a rotameter allows you to reduce the pressure of gases taken from the cylinder to the required working pressure.

It allows you to automatically obtain the pressure as constant as possible, regardless of changes in the inlet pressure.

APPLICATION.

Single-stage reducer most often used in welding when welding with TIG welders that require precise gas flow settings.

MANOMETER AND ROTAMETER.

It is equipped with a pressure gauge that indicates the pressure in the cylinder and a rotameter that shows the gas flow per minute.

TYPE OF GAS.

It is designed for technical gases such as argon (Ar), carbon dioxide (CO2) and MIX of these gases (Ar/CO2).

UNIVERSAL.

The gas regulator can be connected to any standard cylinder with a W21.8 x 1/14 thread.

TECHNICAL DATA

• Gas type: CO2, Ar, MIX
• Inlet thread: W21.8x1/14
• Outlet nut thread: G 1/4
• Outlet port: ø6.3mm
• Inlet pressure: 185bar
• Outlet pressure: 0.5 - 10 bar
• Throughput: 30 l/min
