SPARTUS ProMIG 200PFC

SPARTUS ProMIG 200PFC + SPM 150R

Brand: SPARTUS | Welding methods: MIG, MMA, TIG LIFT | Power supply: AC 230V / 50Hz | Welding current: 200A | Efficiency: 40%

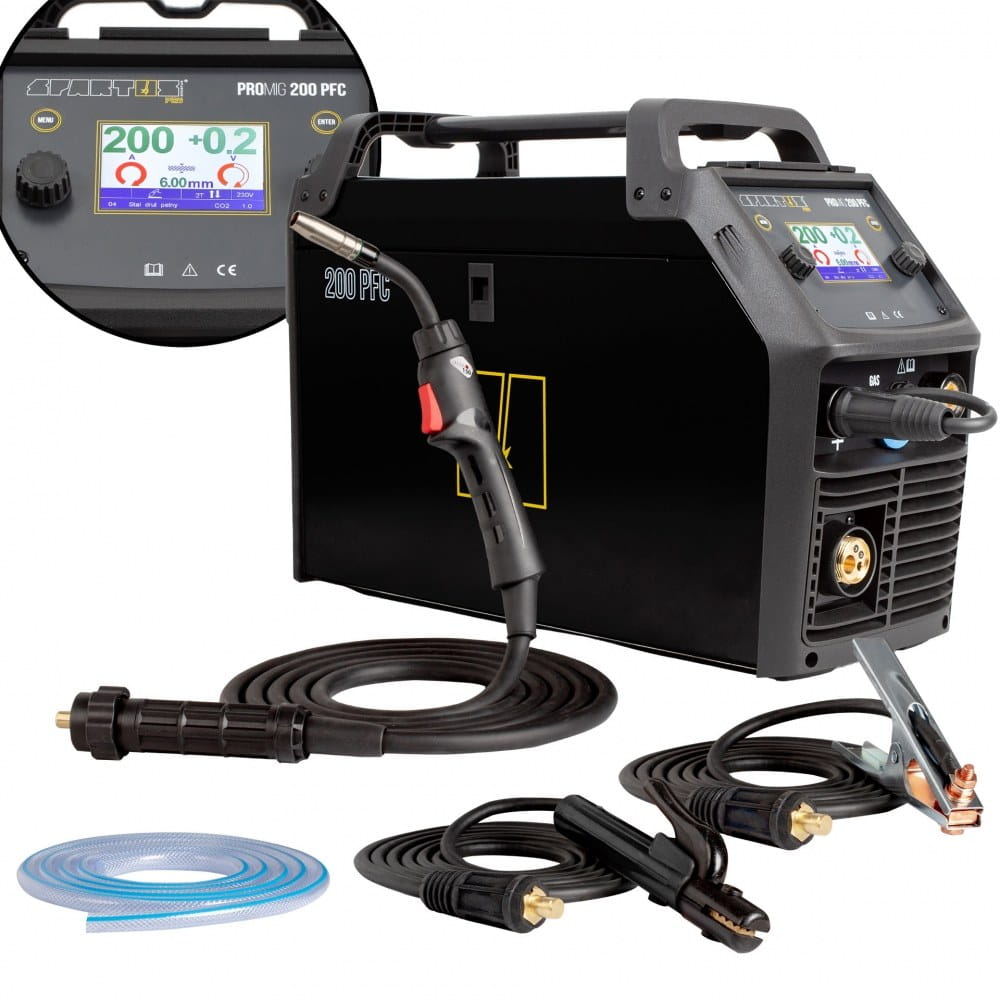

STANDARD EQUIPMENT

• SPARTUS® ProMIG 200PFC welding machine
• SPARTUS® MIG torch SPM 150R [rotating torch body] 3m
• 3m electrode holder
• 3m mass cable
• Gas hose
• User manual

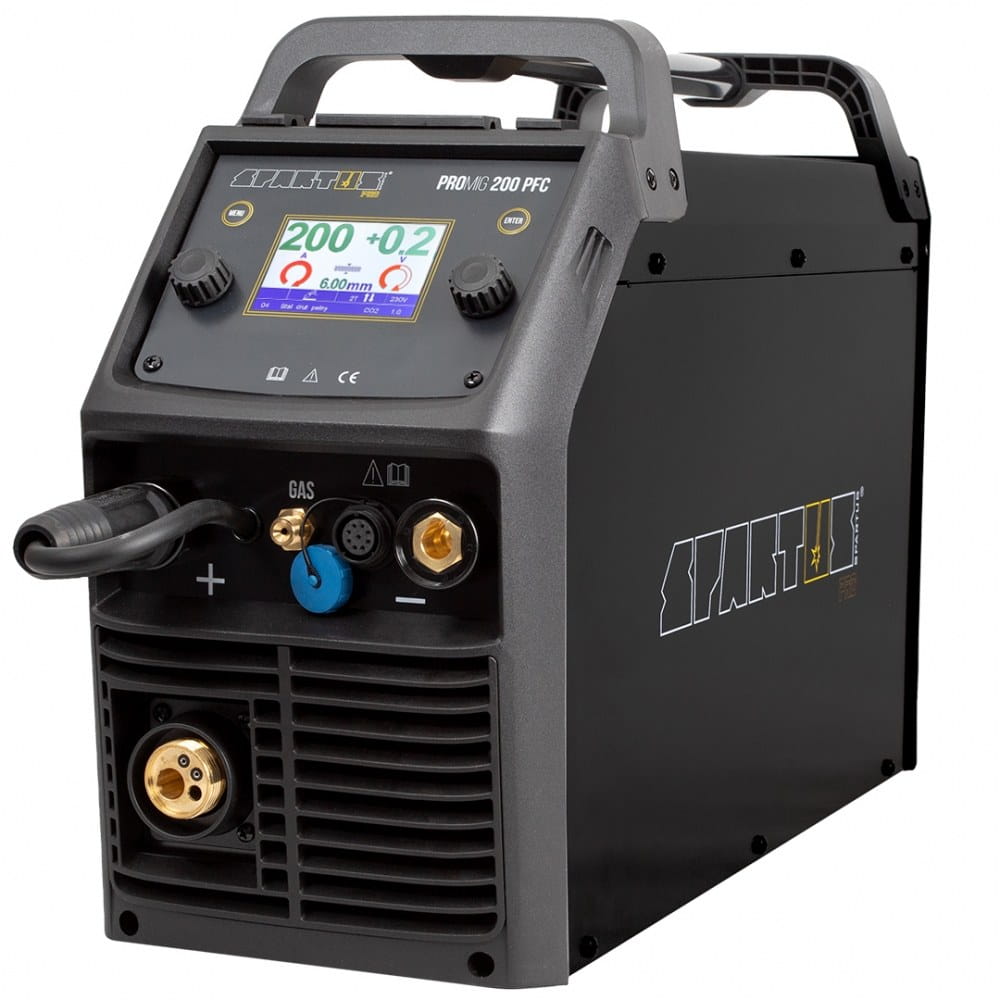

SPARTUS® ProMIG 200PFC is a professional, portable, multi-process semi-automatic welding machine. It enables MIG / MAG, TIG Lift and MMA welding with a maximum welding current of 200A. It is powered from a single-phase 230V network.

The device is made using modern solutions such as: inverter technology, IGBT power transistors, MCU controller, PWM technology, PFC filter.

All the technological solutions used ensure stable output parameters in various conditions, which translates directly into excellent arc characteristics and the quality of the welded joint.

ProMIG 200PFC is equipped with a high-resolution digital color LCD display. It has been programmed for maximum convenience when setting parameters.

The undoubted advantage is the multilingual interface, available in the following languages: Polish, English, Spanish, German, French, Russian, Slovenian, Portuguese, Lithuanian, Serbian, Czech.

The compact size and technologically advanced solutions make this welding machine a perfect device for the shipbuilding industry to perform minor repairs and renovations.

It is also used in widely understood workshop works, light production works and in the automotive industry - sheet metal repairs of car bodies: welding and brazing CuSi3, welding of exhaust systems.

TECHNICAL DATA:

• Supply voltage: ~ 1 × 230V ± 10% 50/60 Hz
• MIG welding current: 25 - 200A
• MIG duty cycle: 40%
• Working output voltage: 15.3 - 24V
• Feeder type: built-in, 2 - roll feeder
• Wire feed speed: 1.5 - 13m / min
• Wire spool: ≤ 5kg / ∅200mm
• Wire diameter: 0.6 / 0.8 / 1.0mm
• 2T / 4T working mode: yes
• TIG welding current: 10 - 200A
• Current down-slope time: 0 - 10s
• MMA welding current: 10 - 200A
• Arc Force: yes
• Hot Start: yes
• VRD: yes
• Current consumption: MIG 25.4A / MMA 28.8A / TIG 20A
• Power factor (cosφ): 0.99
• Efficiency η: 85
• Insulation class: H.
• Protection degree: IP21S
• Weight: 16.4 kg
• Dimensions: 600 x 210 x 410mm

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

LEVEL OF SECURITY

The IP defines the extent to which the device is resistant to solid and water contamination entering the device. IP21S means that the device is suitable for operation in confined spaces and is not suitable for use in rain and snow.

PROTECTION AGAINST OVERHEATING

The IGBT module is protected against overheating by a protective system that switches off the machine's welding circuit. After a few minutes, the welding machine cools down to a temperature that allows it to be switched on again automatically.

WORK CYCLE

The duty cycle is based on a 10-minute period. Duty cycle of 40% means that after 4 minutes of operation, a 6-minute break is required. Duty cycle of 100% means that the device can work continuously without interruption.

MMA

A covered electrode method consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes, e.g. basic, cellulose, rutile or acid.

ARC FORCE

Increasing or decreasing the length of the welding arc depending on the distance between the electrode and the material to be welded. It allows you to adjust the dynamics of the welding arc. Shortening the arc length is accompanied by an increase in the welding current, which stabilizes the arc.

VRD

The VRD function lowers the voltage in no-load condition. The correct voltage is not restored until just before the arc is struck. This minimizes the risk of electric shock, but in some cases may make the arc difficult to ignite.

HOT START

The purpose of this function is to prevent the electrode from sticking to the material and is a great help when striking the arc. It works when the arc is struck, causing the welding current to temporarily increase above the value set by the welder.

SYNERGY

Welding with the MIG / MAG method using synergic settings. The device selects welding parameters depending on the selected type and thickness of the material. These parameters can be changed by the user in order to adjust the settings to their own needs.

16 SYNERGY PROGRAMS

ProMIG 200PFC is equipped with 16 ready-made, synergistic programs for welding such materials as: steel, stainless steel, aluminum, and enables CuSi3 brazing. The user only selects the type of material to be welded and the diameter of the wire. Then, after setting the material thickness, the parameters adjust automatically. Additionally, it allows you to manually correct parameters.

2 ROLL WIRE FEED

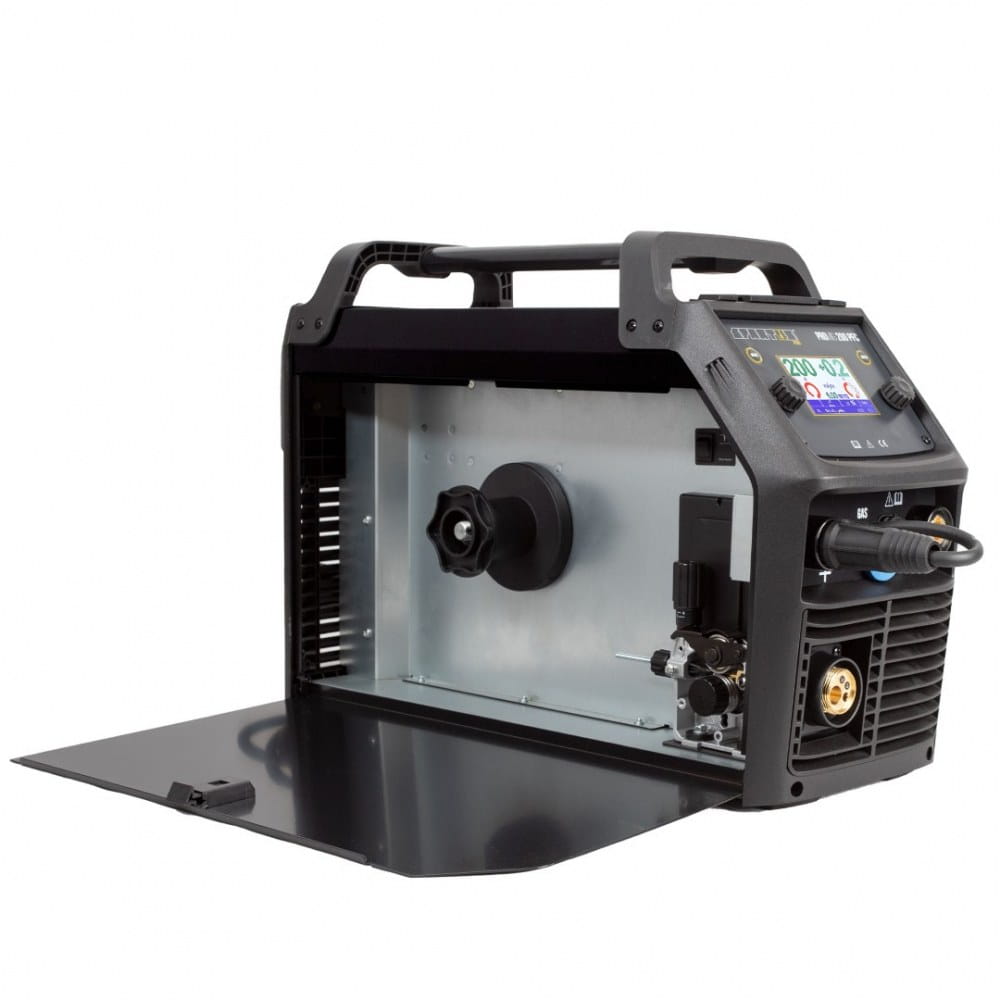

Professional feeder made of die-cast aluminum, has a powerful motor that allows for stable wire feeding without jamming. It is equipped with 2 drive rollers.

SMOOTH ADJUSTMENT OF WIRE FEED

Smooth regulation of the wire feed speed is supported by an additional potentiometer, which allows you to set the speed for different wire diameters.

REGULATION OF INDUCTION

It enables optimization of the arc characteristics depending on the thickness of the welded element as well as the welding method and conditions. The function is useful during MIG / MAG welding of thin elements, preventing them from burning out and brazing of galvanized elements.

2T / 4T

2T - Pressing the gun trigger button will cause gas to pre-flow, then strike the arc and start welding. When the button is released, the arc will be extinguished and gas will flow out.

4T - Pressing and releasing the welding gun button will pre-flow gas, then strike the arc and start welding. When the button is pressed and released again, the arc will be extinguished and gas will flow out.

REVERSING POLARITY - WELDING WITHOUT GAS

Due to the variable polarity, it is possible to weld with the FLUX method with flux-cored wire without shielding gas. The wire is filled with a flux that produces protective gases during welding.

WAVE CONTROL

Precise arc dynamics control provides full control over the welding arc - minimizing the amount of welding spatter. It also allows you to control the width and depth of penetration.

BURN BACK

Control of the burn-back time of the end of the wire allows to eliminate the risk of the welding wire sticking to the contact tip. It also facilitates the performance of short joints during MIG / MAG welding.

SLOW FEED

Soft start of the feeder. Helpful with high wire feed speeds. It enables stable ignition of the arc from the moment of welding commencement, thanks to which the risk of welding defects at the beginning of the weld is reduced to a minimum.

PORTABLE AND LIGHT

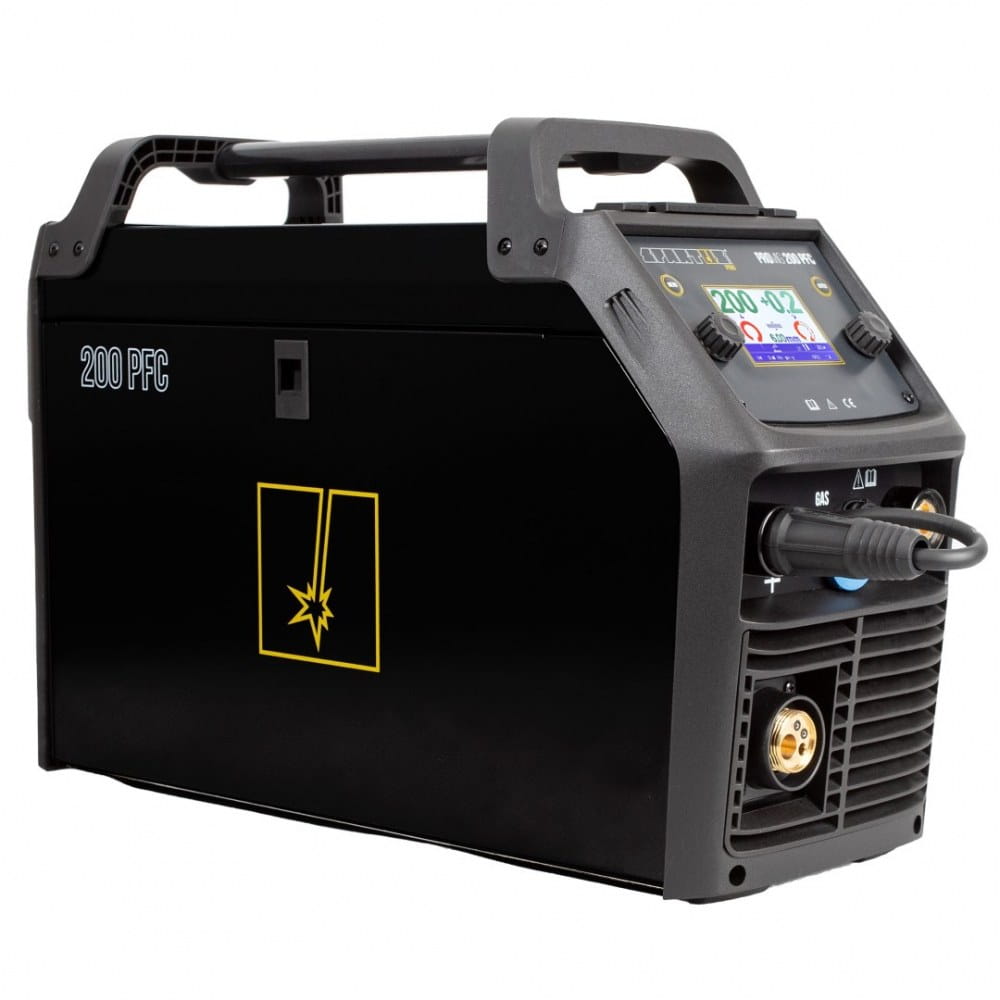

Compact size, light weight and special design make the ProMIG 200PFC extremely handy and easy to transport. Perfect for professional renovation works in the field.

EASY TO USE, CLEAR CONTROL PANEL:

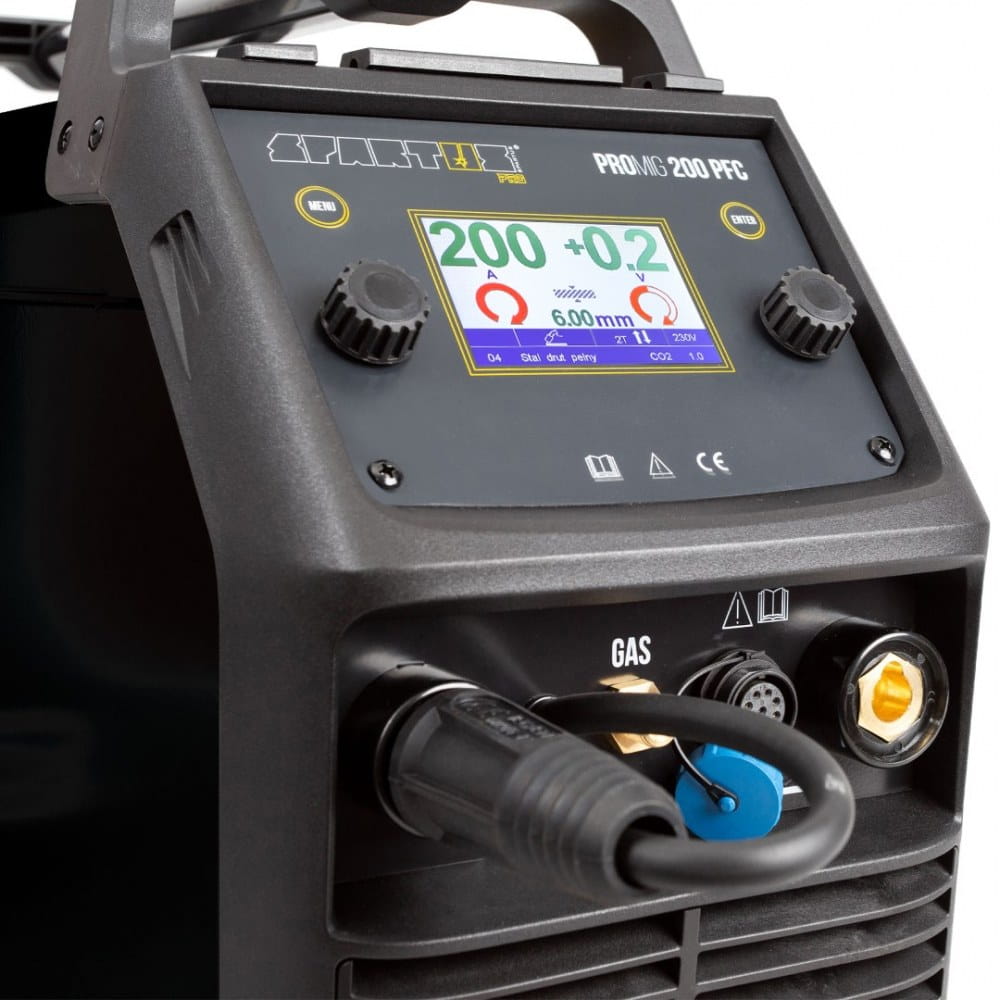

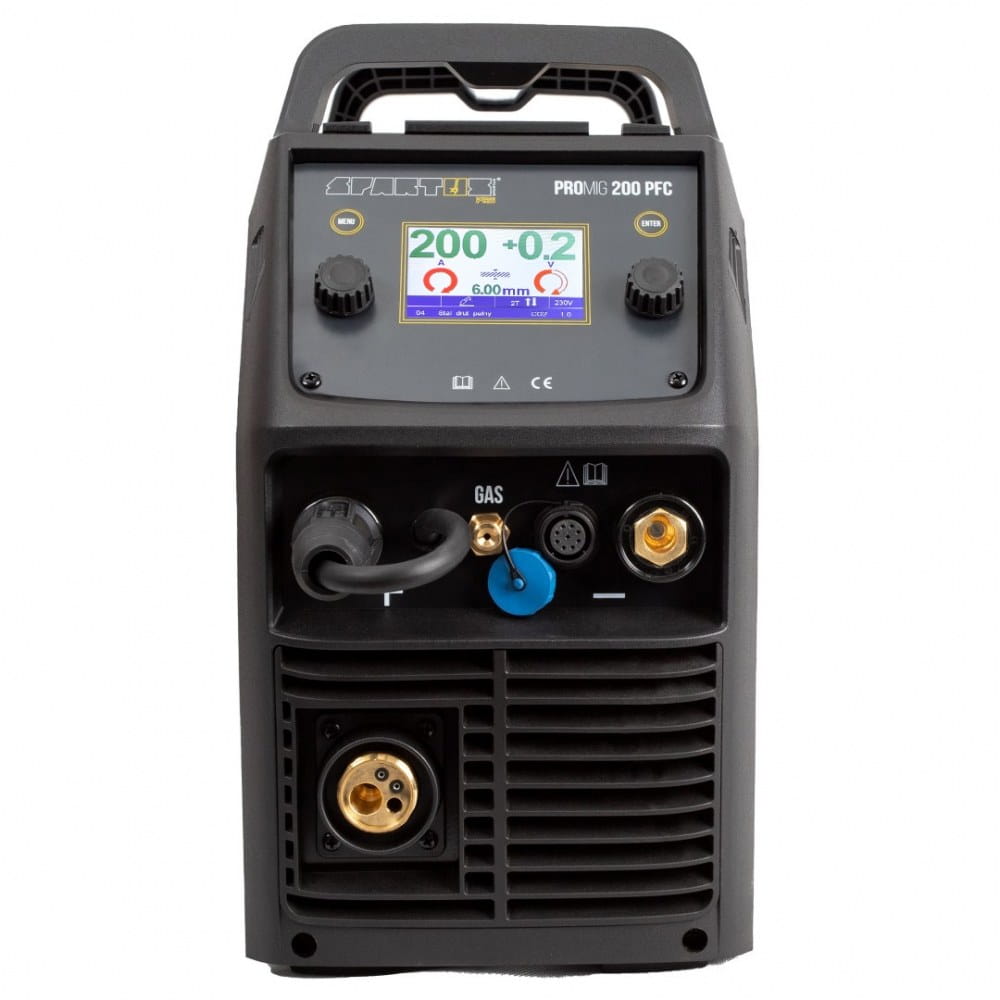

The easy-to-use control panel enables precise and smooth adjustment of parameters. The digital display shows the actual current during welding. The semi-automatic welding machine has a menu that facilitates operation and allows you to choose the type of material to be welded.

POST GAS

Post-welding shielding gas flow time adjustment.

DOWN TIME

Time for the downslope of the welding current from the set value to zero or the value of the crater current.

EUROCONNECTOR

Standard connection for welding torches, which enables the connection of various types of torches (e.g. prepared for aluminum welding by replacing the Teflon insert and contact tip).

TIG LIFT WELDING

The SPARTUS® EasyMIG 215 device enables TIG welding (in argon shield), after connecting an additional TIG welding torch with a gas valve in the handle to an inverter welding machine.

The arc is ignited by rubbing the electrode with the material being welded.

WELDING WITH A SPOOL GUN

The welder gives the possibility of welding with a handle with a built-in wire feeder. The spool of welding wire D100 is placed in the handle of the handle.

The use of the Spoolgun holder allows welding with two different wires without having to change the welding machine.

The Spoolgun Mount is an additional option that can be purchased at our other auctions.

COOLING

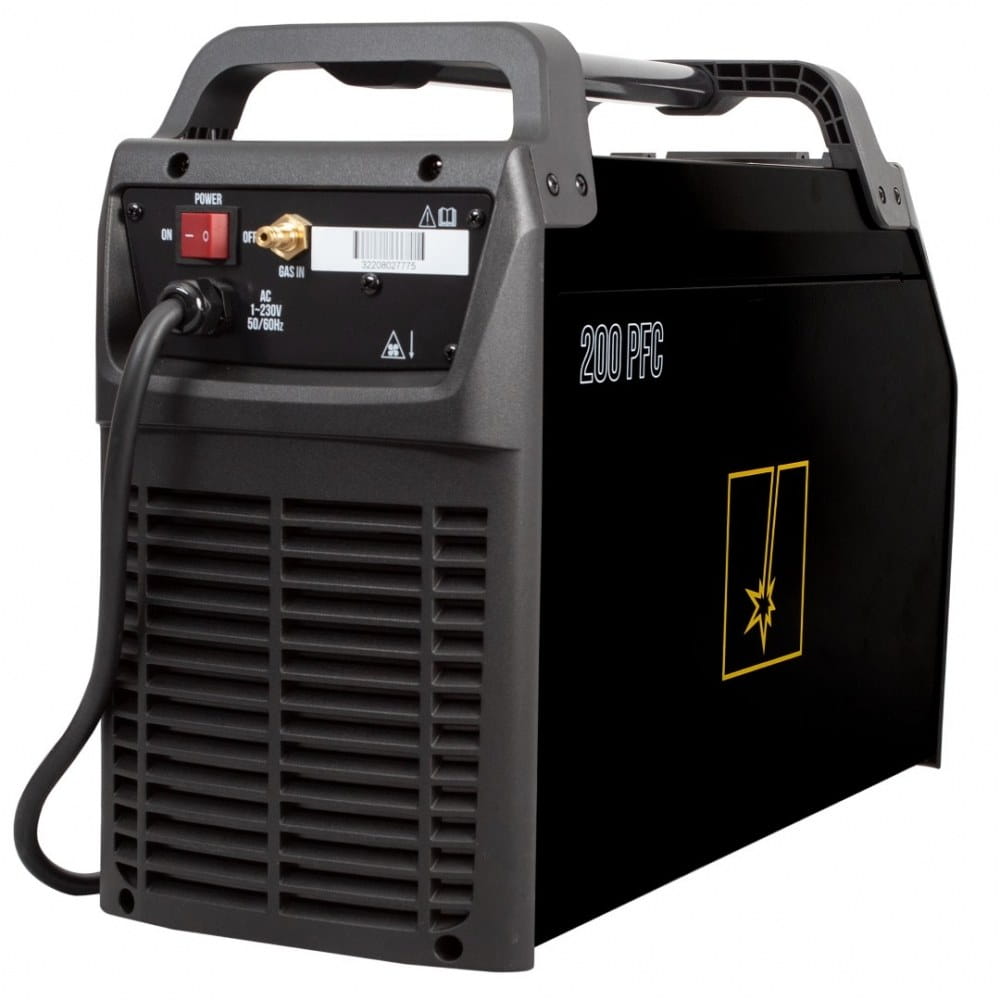

The device has a fan cooling system, which significantly increases its efficiency.
