SPARTUS EASYMIG 210LED

Availability: Last items in stock
Delivery: The price does not include any possible payment costs check the delivery methods
Price: €485.50 485.50
quantity pcs.

product unavailable

add to wish list
Vendor: Spartus
Product code: EASYMIG210LED-PAK-15-3

Description

SPARTUS EASYMIG 210LED

Brand: SPARTUS | Welding methods: MIG, MMA, TIG LIFT | Power supply: AC 230V/50Hz | Welding current: 200A | Efficiency: 60% |

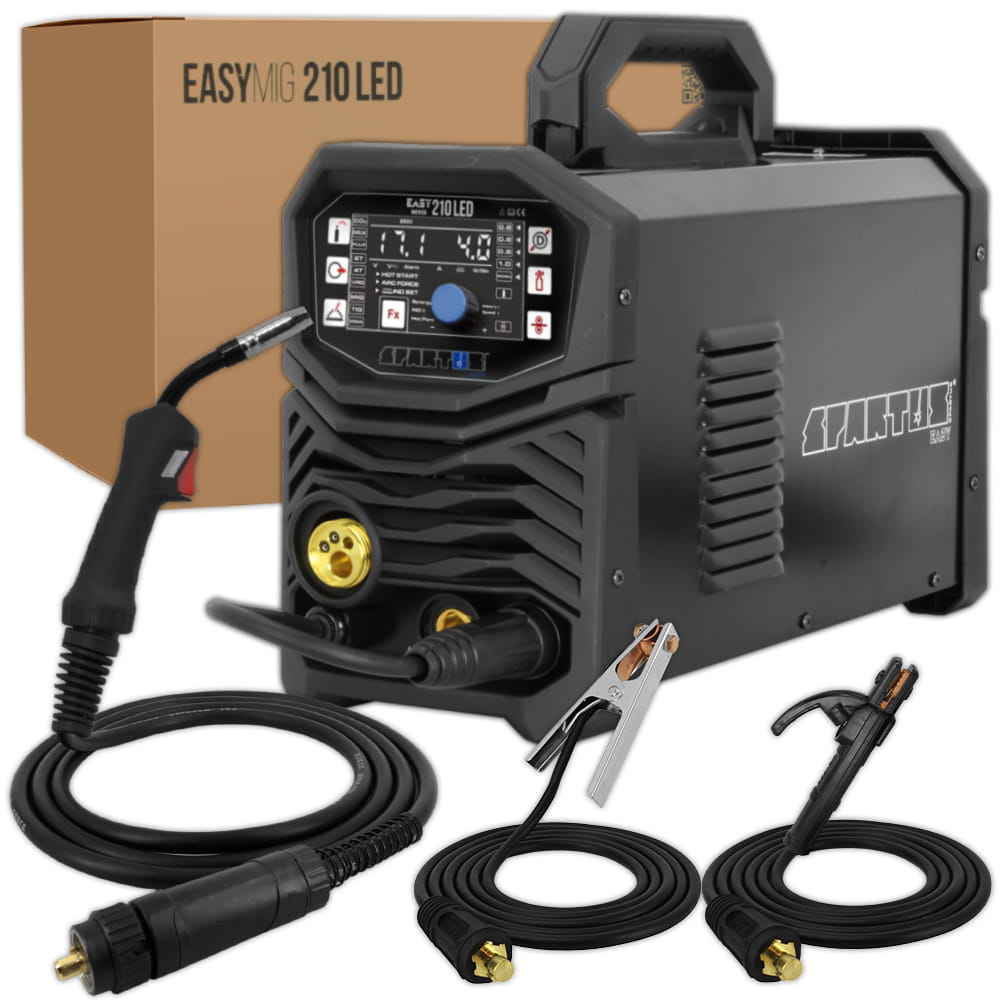

STANDARD EQUIPMENT

  • SPARTUS® EasyMIG 210LED welder
  • SPARTUS® MIG SPE 150 3m torch
  • Electrode holder
  • Ground cable
  • Gas hose
  • User manual

SPARTUS® EasyMIG 210LED is a modern, inverter semi-automatic welding machine, constructed on the basis of IGBT transistors. It has the function:

  • MIG/MAG shielded with inert and active gases,
  • MMA with a covered electrode,
  • TIG Lift with arc ignition by rubbing.
  • FLUX easy change of polarity allows welding with self-shielding wire without gas.

A welding device characterized by simplicity that novice welders will certainly appreciate. Thanks to its low weight and compact design, it is perfect as a portable semi-automatic welding machine.

A simple synergy where the user defines the type of gas and the diameter of the welding wire. Other parameters will be adjusted by the device automatically.

A simple and intuitive LED display allows you to easily manage the parameters of the welding machine.

The welder is made in IGBT inverter technology, which allowed to significantly reduce its weight and dimensions. It is a device designed and manufactured for field work. Small, light and versatile.

TECHNICAL DATA:

  • Supply voltage: ~1× 230V ± 10% 50 / 60 Hz
  • MIG welding current: 50 - 200A
  • MIG duty cycle: 60%
  • Working output voltage: 16.5 - 24V
  • Feeder type: built-in, 2 - roll
  • Wire feed speed: 2 - 12.5m/min.
  • Wire spool: ≤ 5kg / ∅200mm
  • Wire diameter: 0.6 / 0.8 / 1.0mm
  • Synergy: yes
  • 2T/4T working mode: yes
  • ArcForce: yes
  • HotStart: yes
  • VRD: yes
  • Power consumption: MIG 39 / TIG 29 / MMA 34
  • Power factor (cosφ): 0.73
  • Efficiency η: 77%
  • Insulation class: H
  • Degree of protection: IP21S
  • Weight: 10kg
  • Dimensions: 470 x 190 x 330mm

LEVEL OF SECURITY

IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP21S means that the device is adapted to work in closed rooms.

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with the high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

OVERHEAT PROTECTION

The IGBT module is protected against overheating by a protective installation that disables the welding circuit of the device. After a few minutes, the welder cools down to a temperature that allows it to restart automatically.

WORK CYCLE

The duty cycle is based on a 10-minute period. A duty cycle of 60% means that after 6 minutes of operation, a 4-minute break is required. 100% duty cycle means that the device can work continuously without interruption.

MMA

A method that uses a coated electrode, consisting of a metal core covered with a sheath. The device enables welding with all types of electrodes, e.g. basic, cellulose, rutile or acidic.

ARC FORCE

Increasing or decreasing the length of the welding arc depending on the distance between the electrode and the material being welded. Allows you to adjust the dynamics of the welding arc. Shortening the arc length is accompanied by an increase in the welding current, which stabilizes the arc.

VRD

The VRD function lowers the no-load voltage. The correct voltage value is only restored just before the arc is struck. This minimizes the risk of electric shock, but in some cases it may make it difficult to strike the arc.

HOT START

The function is designed to prevent the electrode from sticking to the material and is a great help when striking the arc. It works when the arc is struck, causing a temporary increase in the welding current above the value set by the welder.

SYNERGY

MIG/MAG welding with synergic settings. The device selects the welding parameters depending on the type of gas and the thickness of the material. These parameters can be changed by the user in order to adjust the settings to their own needs.

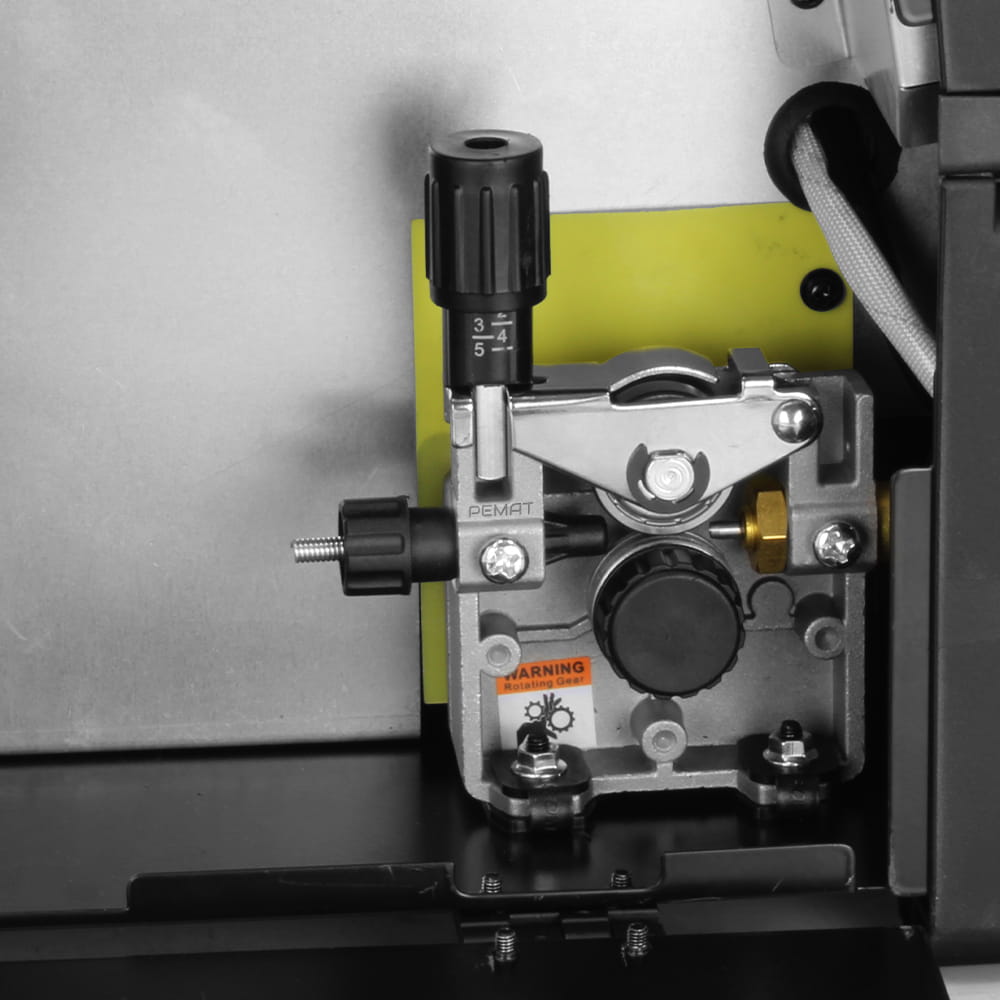

2 ROLL WIRE FEEDER

Professional feeder made of aluminum pressure castings, has a powerful motor that allows for stable wire feeding without jamming. It is equipped with 2 drive rollers.

SMOOTH ADJUSTMENT OF WIRE FEED

Smooth adjustment of the wire feed speed is supported by an additional potentiometer that allows you to set the speed for different diameters of wires.

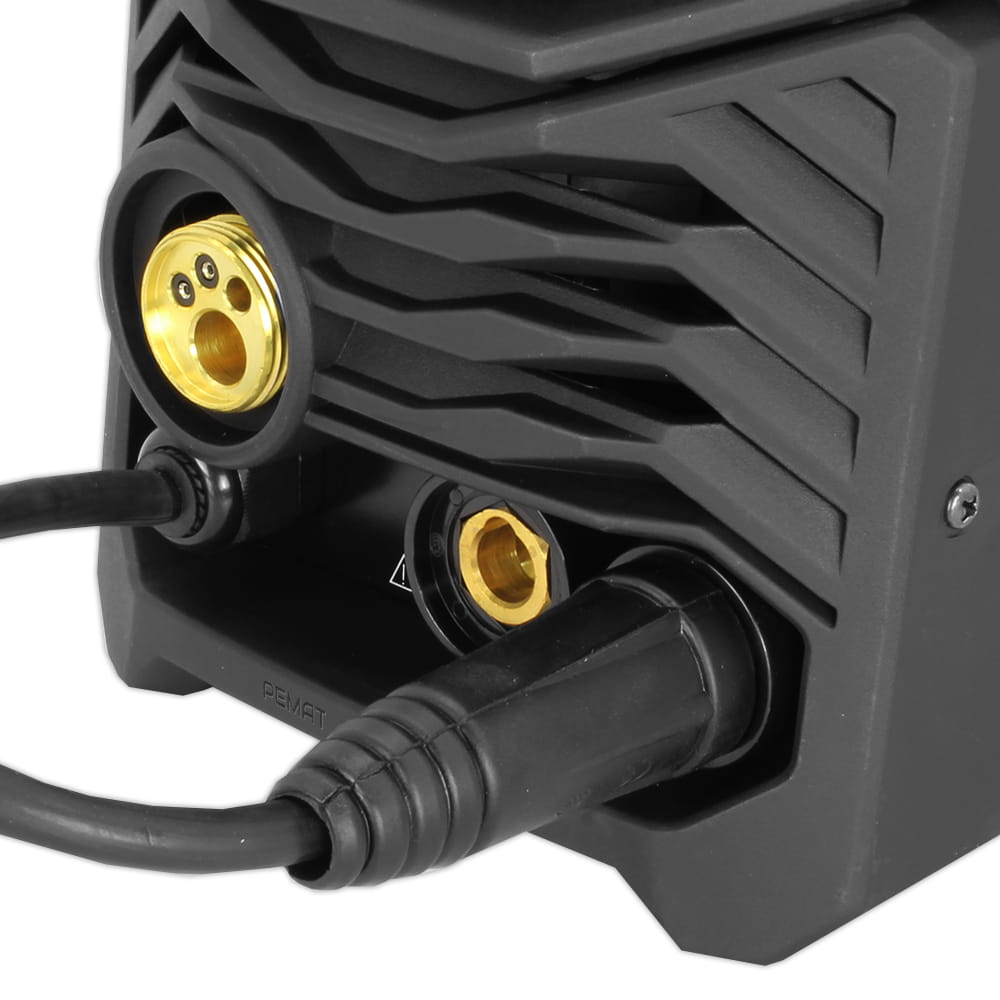

EUROCONNECTOR

Standard welding torch connection that allows you to connect various types of torches (e.g. prepared for aluminum welding by replacing the Teflon insert and contact tip).

INDUCTION ADJUSTMENT

It enables optimization of the arc characteristics depending on the thickness of the welded element as well as the welding method and conditions. The function is useful during MIG/MAG welding of thin elements, preventing their burn-through and braze welding of galvanized elements.

2T/4T

2T - Pressing the welding torch button will pre-flow the gas, then ignite the arc and start welding. When the button is released, the arc will extinguish and the gas will flow.

4T - Pressing and releasing the welding torch button will pre-flow the gas, then ignite the arc and start welding. When the button is pressed and released again, the arc will be extinguished and the gas will flow.

CHANGE OF POLARITY - WELDING WITHOUT GAS

Thanks to the variable polarity, it is possible to weld using the FLUX method with flux-cored wire without shielding gas. The wire is filled with a flux that produces protective gases during welding.

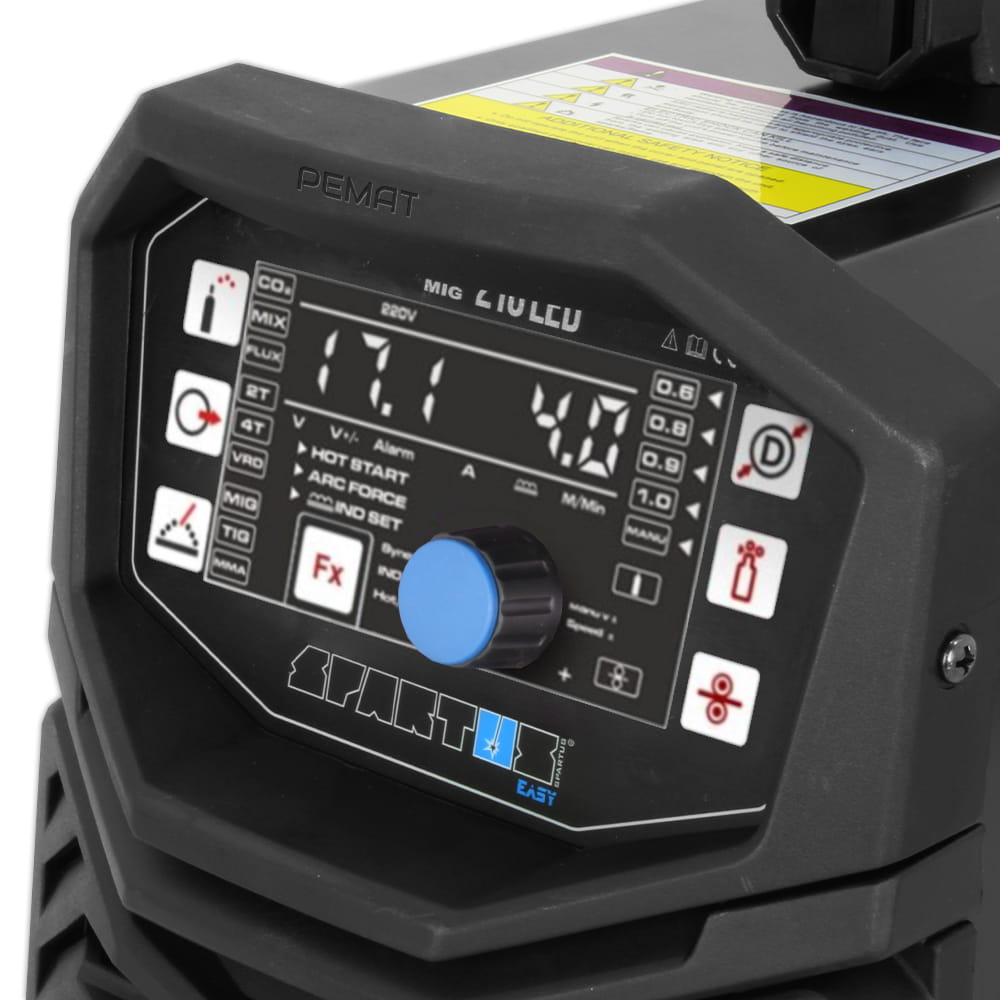

EASY TO USE, CLEAR CONTROL PANEL:

The easy-to-use control panel enables precise and smooth adjustment of parameters. The digital LED display shows the actual welding current. The semi-automatic welding machine has a menu that facilitates operation and allows you to choose the type of material to be welded.

TIG LIFT WELDING

The SPARTUS® EasyMIG 210S device gives the possibility of TIG welding (in an argon shield), after connecting an additional TIG welding torch with a gas valve in the handle to the inverter welder.

The arc is ignited by rubbing the electrode with the material to be welded.

WELDING OF ALUMINUM ALLOYS

Aluminum welding is not a simple activity, it requires the welder's experience, knowledge and adherence to certain practices that will facilitate the execution of welds on aluminum elements.

Depending on the needs, appropriate voltage and inductance corrections should be made to obtain the desired effect.

WIRE TEST

Pressing the wire feed button will start the wire feed motor without starting the shielding gas flow. The power source also starts but does not supply welding current.

SMOOTH ADJUSTMENT OF WIRE FEED

Smooth adjustment of the wire feed speed is supported by an additional potentiometer that allows you to set the speed for different diameters of wires.

INSULATION CLASS H

Type of insulating materials used, informing about the maximum operating temperature of the transformer. Exceeding it during continuous operation shortens the lifetime and time of failure-free operation of the transformer. For class H 180°C.

COOLING

The device has a fan cooling system, which significantly increases its efficiency.
