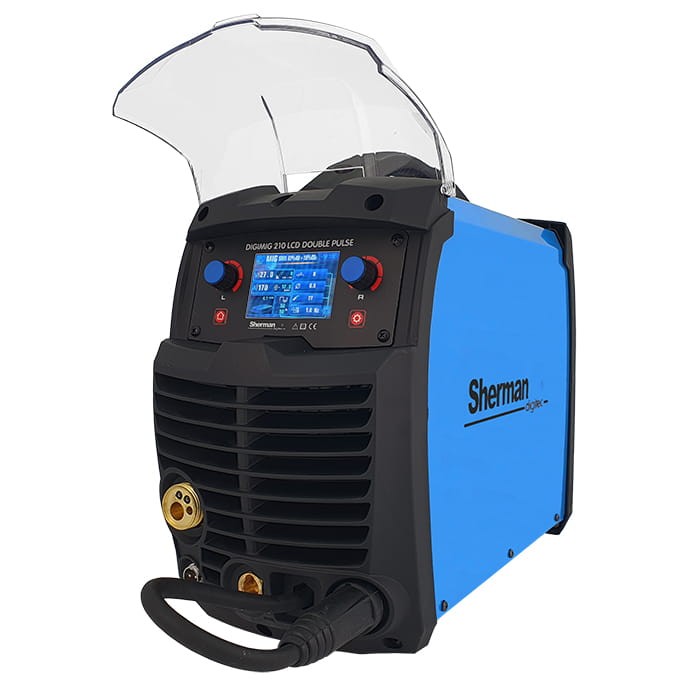

SHERMAN DIGIMIG 210 LCD DOUBLE PULSE

SHERMAN DIGIMIG 210 LCD DOUBLE PULSE

|  Brand: SHERMAN | Welding methods: MIG, MMA, TIG LIFT | Power supply: 230V | Welding current: 200A | Efficiency: 30%

STANDARD EQUIPMENT

• Sherman DIGIMIG 210 LCD DOUBLE PULSE welding machine
• Welding holder TW-15 / 3m
• Electrode cable
• Mass cable
• Additional roller for steel
• Blue steel insert
• Black Teflon cartridge

Synergic welding machine with digital control is used for manual welding of steel and non-ferrous metals. It can also be used for braze welding of thin galvanized sheets.

It enables welding with MMA (coated electrode), TIG Lift (arc ignition by rubbing), and MIG methods. The MIG method can be used in manual and synergic mode, which simplifies its operation.

Due to the change of polarity, the device allows MIG welding with the use of both standard wires in a protective gas shield and self-shielding flux-cored wires.

The use of a pulse or a double pulse allows for a better quality of the weld, high aesthetics with very high efficiency.

The use of refined synergistic settings for carbon steel, stainless steel and aluminum and copper alloys in the welder allows it to be used by people with less experience and hobbyists. '

During MMA welding, you can adjust the HOT START and ARC FORCE functions and turn off VRD.

The device has the memory of the last setting, i.e. after turning it off and on again, the last set parameters are restored. Thanks to the Fan Stop function that turns off the fan at low load on the welding machine, the noise level has been significantly reduced.

TECHNICAL DATA:

• Catalog number:  7812698
• Supply voltage [V]:  AC 230 50Hz
• Welding methods:  MIG, MMA, TIG Lift
• Welding current [A]: MIG:  30? 200 A; MMA: 10? 180 A; TIG: 10? 200 A.
• Duty cycle [%]: MIG:  200A / 30%; MMA: 200A / 30%; TIG: 200A / 30%
• Max. current consumption [A]:  MIG: 39 A; MMA: 45 A; TIG: 29 A.
• Max. power consumption [kVA]:  8.5 kVA
• Welding current control:  Smooth
• Wed spool with wire [mm]:  100, 200
• Speed wire feed [m / min]:  2? 12.8 m / min
• Weight [kg]:  13.3 kg
• Dimensions (L x W x H) [mm]:  495 x 210 x 330 mm

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

LEVEL OF SECURITY

IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP21S means that the device is adapted to work in closed rooms.

PROTECTION AGAINST OVERHEATING

The IGBT module is protected against overheating by a protective system that switches off the machine's welding circuit. After a few minutes, the welding machine cools down to a temperature that allows it to be switched on again automatically.

WORK CYCLE

The duty cycle is based on a 10-minute period. Duty cycle of 30% means that after 3 minutes of operation of the device, a 7-minute break is required. Duty cycle of 100% means that the device can work continuously without interruption.

MMA

A covered electrode method consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes.

ARC FORCE

Increasing or decreasing the length of the welding arc depending on the distance between the electrode and the material to be welded. It allows you to adjust the dynamics of the welding arc. Shortening the arc length is accompanied by an increase in the welding current, which stabilizes the arc.

HOT START

The purpose of this function is to prevent the electrode from sticking to the material and is a great help when striking the arc. It works when the arc is struck, causing the welding current to temporarily increase above the value set by the welder.

VRD

The VRD function lowers the voltage in no-load condition. The correct voltage is not restored until just before the arc is struck. This minimizes the risk of electric shock, but in some cases may make the arc difficult to ignite.

REVERSING POLARITY - WELDING WITHOUT GAS

Due to the variable polarity, it is possible to weld with the FLUX method with flux-cored wire without shielding gas. The wire is filled with a flux that produces protective gases during welding.

SYNERGY

Welding with the MIG / MAG method using synergic settings. The device selects welding parameters depending on the selected type and thickness of the material.

These parameters can be changed by the user in order to adjust the settings to their own needs. Many programs have been prepared for synergic welding.

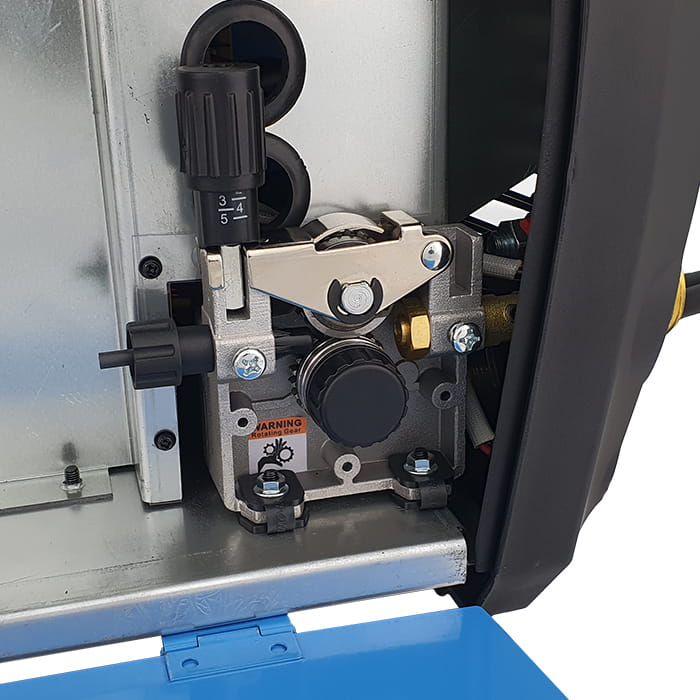

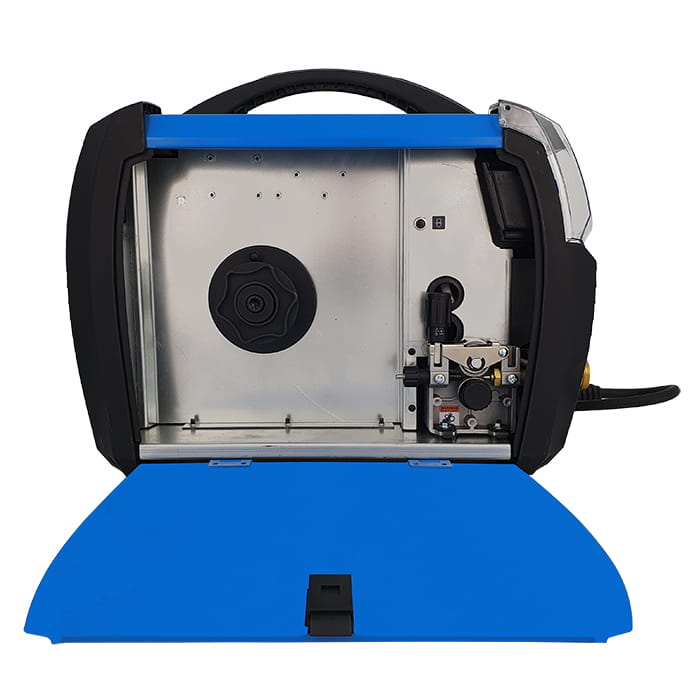

2 ROLL WIRE FEED

Professional feeder made of die-cast aluminum, has a powerful motor that allows for stable wire feeding without jamming. It is equipped with 2 drive rollers.

2T / 4T

2T - Pressing the gun trigger button will cause gas to pre-flow, then strike the arc and start welding. When the button is released, the arc will be extinguished and gas will flow out.

4T - Pressing and releasing the welding gun button will pre-flow gas, then strike the arc and start welding. When the button is pressed and released again, the arc will be extinguished and gas will flow out.

REGULATION OF INDUCTION

It enables optimization of the arc characteristics depending on the thickness of the welded element as well as the welding method and conditions. The function is useful during MIG / MAG welding of thin elements, preventing them from burning out and brazing of galvanized elements.

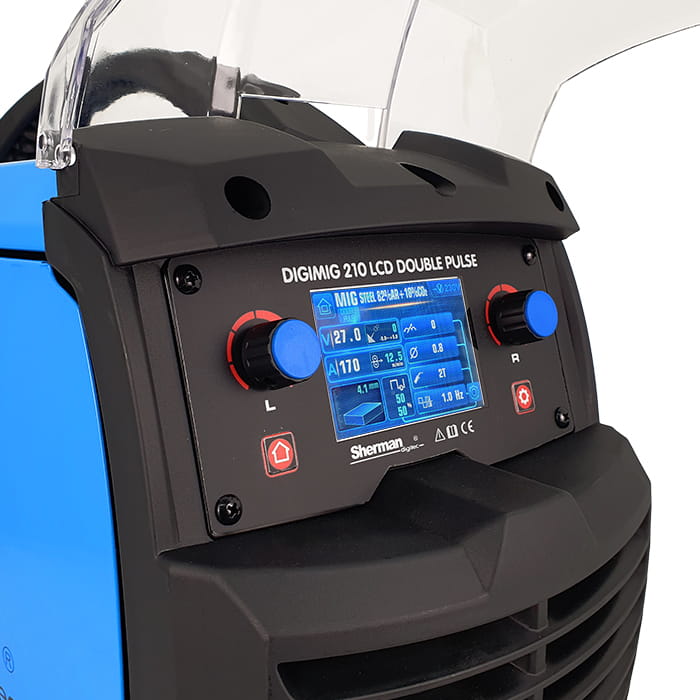

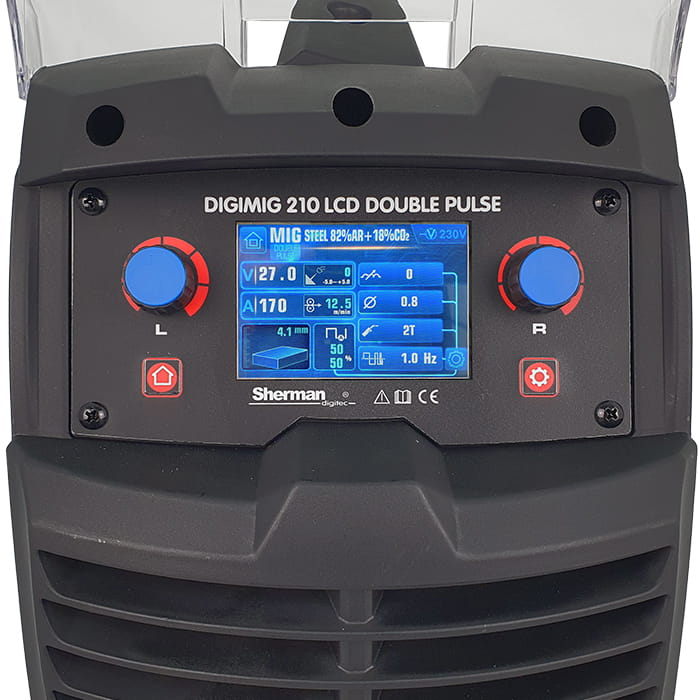

EASY TO USE, CLEAR CONTROL PANEL

The easy-to-use control panel enables precise and smooth adjustment of parameters. The digital LCD display shows the actual current during welding. The semi-automatic welding machine has a menu that facilitates operation and allows you to choose the type of material to be welded.

Braze welding

After selecting the type of CuSi wire, the device enables braze welding, mainly used in the automotive industry to join galvanized sheets together.

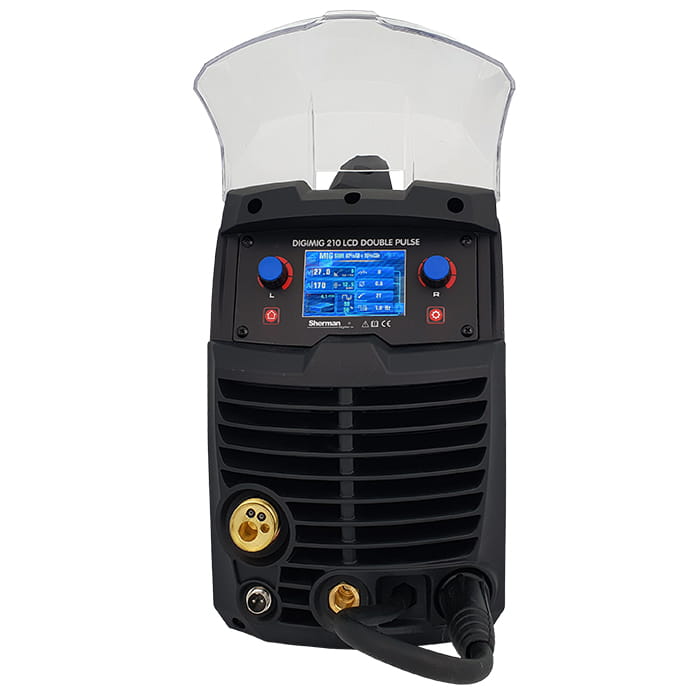

EUROCONNECTOR

Standard connection for welding torches, which enables the connection of various types of torches (e.g. prepared for aluminum welding by replacing the Teflon insert and contact tip).

WELDING WITH A SPOOL GUN

The SPOOL GUN welding gun with an integrated wire feeder is used for MIG / MAG welding. It is mainly used in car workshops and for welding thin sheets.

The spool of welding wire D100 is placed in the handle of the handle. The handle has a standard EURO connector and a control plug. The Spoolgun Mount is an additional option that can be purchased at our other auctions.

GAS FLOW TIME

The time from extinguishing the arc to closing the gas valve to shield the solidifying weld pool from air and to cool the tungsten electrode. Too short a post-flow time may result in oxidation of the weld.

MEMORY OF SETTINGS

The device is equipped with the memory of the last settings - after switching off the welder and restarting it, the last used parameters will be restored.

Braze welding

After selecting the type of CuSi wire, the device enables braze welding, mainly used in the automotive industry to join galvanized sheets together.

MIG PULSE

An advanced form of welding that uses the best of forms of transferring the molten electrode material to the workpiece. Unlike short circuits, pulse welding does not produce spatter or risk a cold "run-in".

Thanks to the cooling of the spray arc process, pulsed MIG is able to extend the range of welding, and the lower heat input does not cause a problem with burning through thin materials. MIG PULSE is one of the best welding processes for a wide variety of metal applications and types.

DOUBLE FLASH PULSE

The MIG / MAG method with double pulse allows you to adjust the pulsation of the current (pulse balance) and to adjust the wire feed speed. Thanks to this, we improve the appearance of the weld. During MIG / MAG welding with double pulse, current pulses occur in two ranges.

POST GAS

Post-welding shielding gas flow time adjustment.

PULSE WIDTH

Duration of the pulse. It allows you to adjust the depth of penetration. Increasing the width increases the penetration depth, reducing the amount of heat introduced into the material, reducing the risk of burning through thinner sheets or smaller components.

PULSE CYCLE

The frequency with which the current pulse value changes between the welding current and the base current.

STRONG AND RELIABLE CONSTRUCTION

The housing of the device is made of light and durable composites, resistant to all kinds of mechanical damage.

EASY TRANSPORT

Equipping the welder with a transport handle for convenience when changing jobs.

TIG DC LIFT

Welding with a tungsten electrode in an inert gas shield using a torch with a gas valve in the handle. The arc is struck by rubbing, similar to MMA ignition.

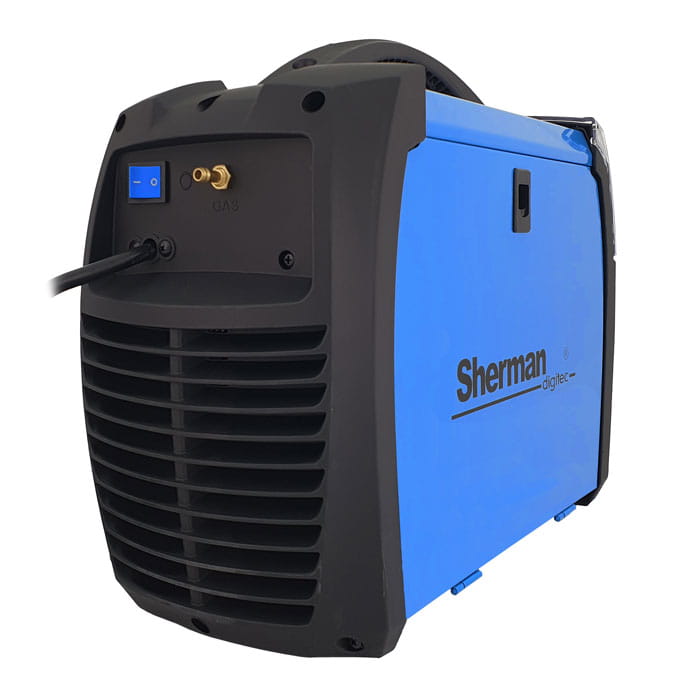

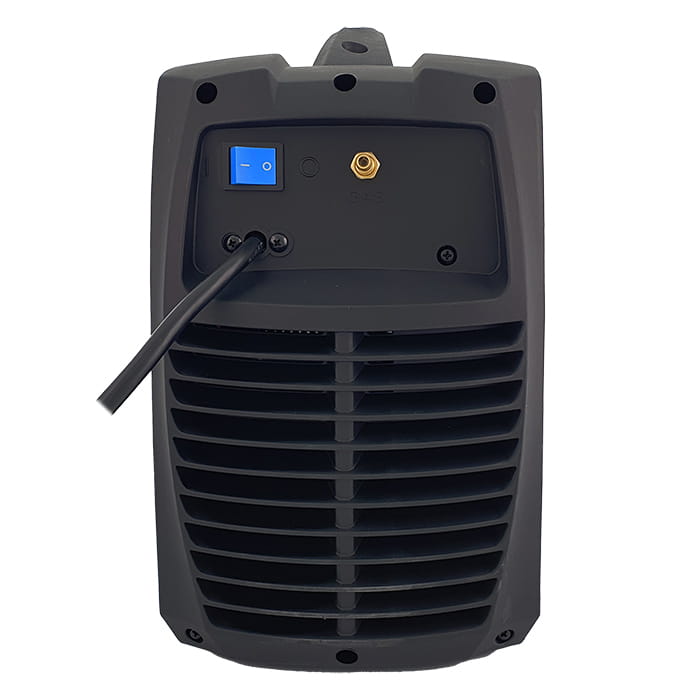

COOLING

The device has a fan cooling system, which significantly increases its efficiency.
