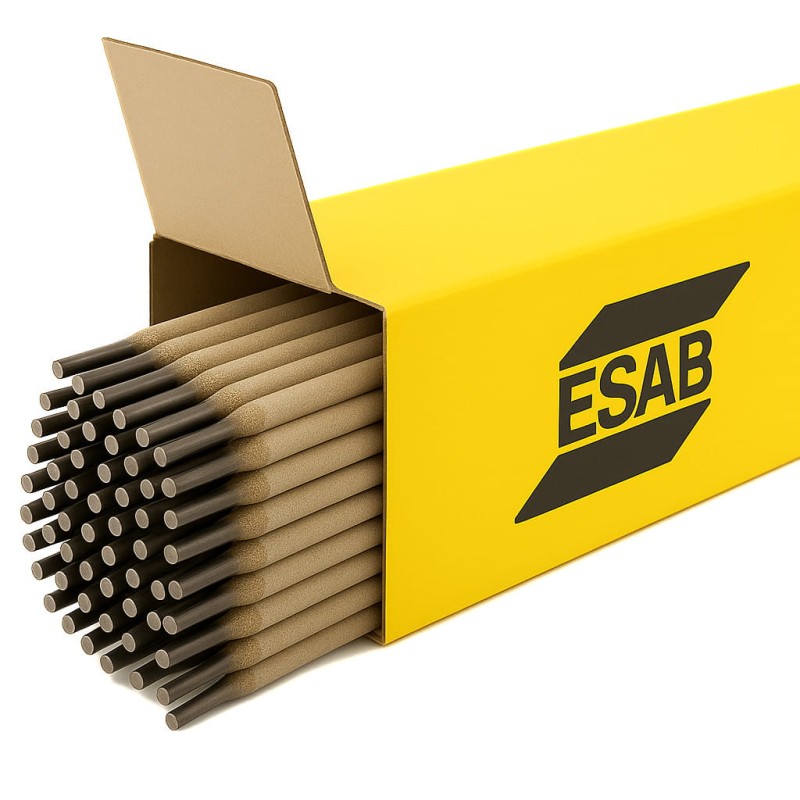

Rutile Electrodes ESAB OK 46.00 E6013 3.2 mm 5.5 kg (189 pcs)
Regular price:
product unavailable
add to wish list
Description
⚡ Rutile Electrodes ESAB OK 46.00 E6013 3.2x350mm
✅ Product Description
ESAB OK 46.00 is a general-purpose rutile electrode with excellent resistance to rust and other surface contaminants. It produces smooth weld beads in all positions, including vertical down. Slag removal is easy, and arc striking and re-striking are trouble-free.
Its properties make it ideal for short welds, root layers, and tack welding.
The package contains 5.5 kg (~189 pieces) of electrodes with a length of 350 mm and diameter of 3.2 mm.
✅ Classifications and Standards
- SFA/AWS A5.1: E6013
- EN ISO 2560-A: E 38 0 RC 11
✅ Approvals
- ABS: 2
- BV: 2
- CE: EN 13479
- DB: 10.039.05
- DNV: 2
- LR: 2
- UKCA: EN 13479
- VdTÜV: 00623
✅ Technical Data
- Welding current: AC, DC±
- Alloy type: carbon-manganese steel
- Coating: rutile-cellulosic
- Minimum open circuit voltage (OCV): 50 V
- Electrode length: 350 mm
- Electrode diameter: 3.2 mm
✅ Typical Mechanical Properties
- Yield strength: 400 MPa
- Tensile strength: 510 MPa
- Elongation: 28%
- Charpy V impact (0 °C): 70 J
✅ Typical Weld Metal Chemical Composition (%)
- Carbon (C): 0.08
- Manganese (Mn): 0.42
- Silicon (Si): 0.30
