Plasma cutter ProCUT 125CNC Spartus

PLASMA CUTTER SPARTUS PROCUT 125CNC PACKAGE SP100H 6M

| Brand: SPARTUS | Power supply: 3 × 400V | Cutting current: 100A | Efficiency: 100% | Max. cutting thickness: 55mm |

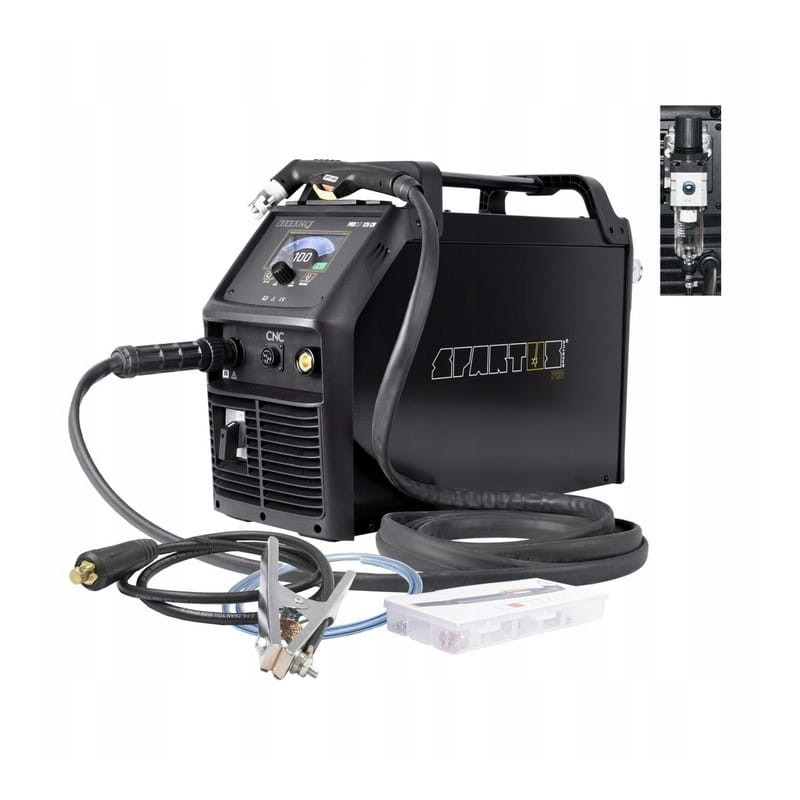

STANDARD EQUIPMENT

• SPARTUS Plasma cutter ProCUT 125CNC
• SPARTUS® 100H 6m torch
• Toolbox with parts of the burner
• Air filter with pressure regulation
• 3m mass cable
• Air tubing with bands
• User manual

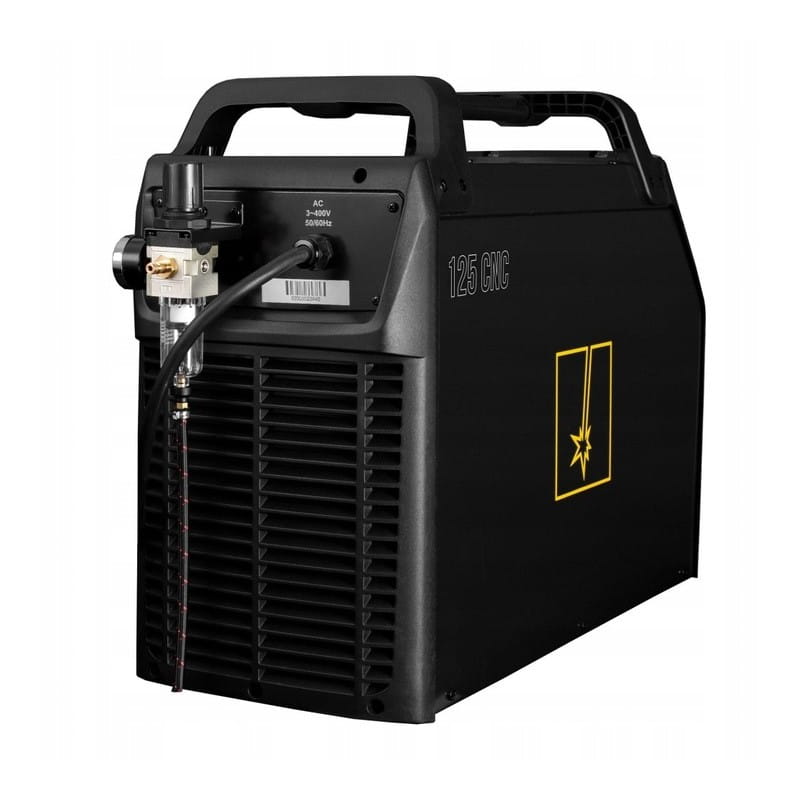

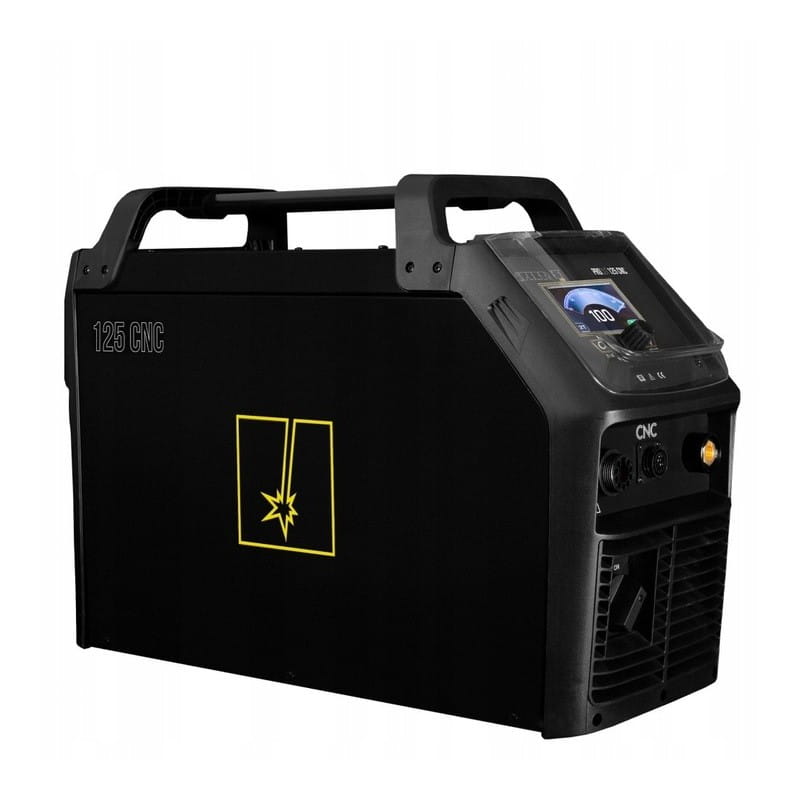

SPARTUS® ProCUT 125CNC

A modern plasma cutter with an integrated CNC control socket. Designed for cutting metals and all electrically conductive materials. It is powered from a three-phase 400V network.

Thanks to the use of modern technologies, we have obtained a professional source with a high 100% duty cycle and 100A cutting current. The maximum thickness of the material to be cut is 55mm.

Built-in system of contactless initiation of the pilot arc (without high frequency HF) - provides excellent cutting quality with extended service life of consumables.

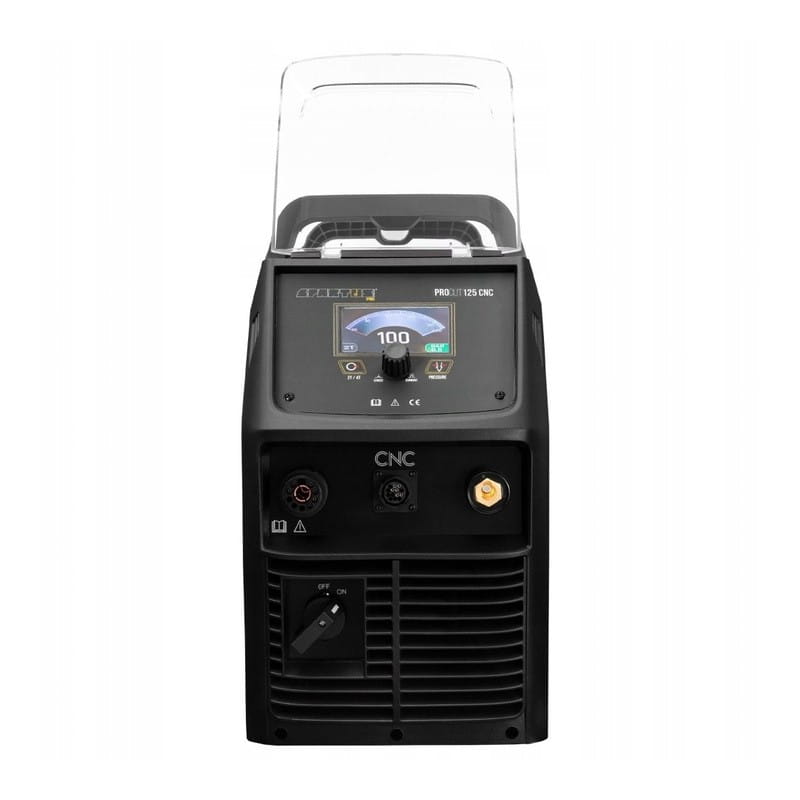

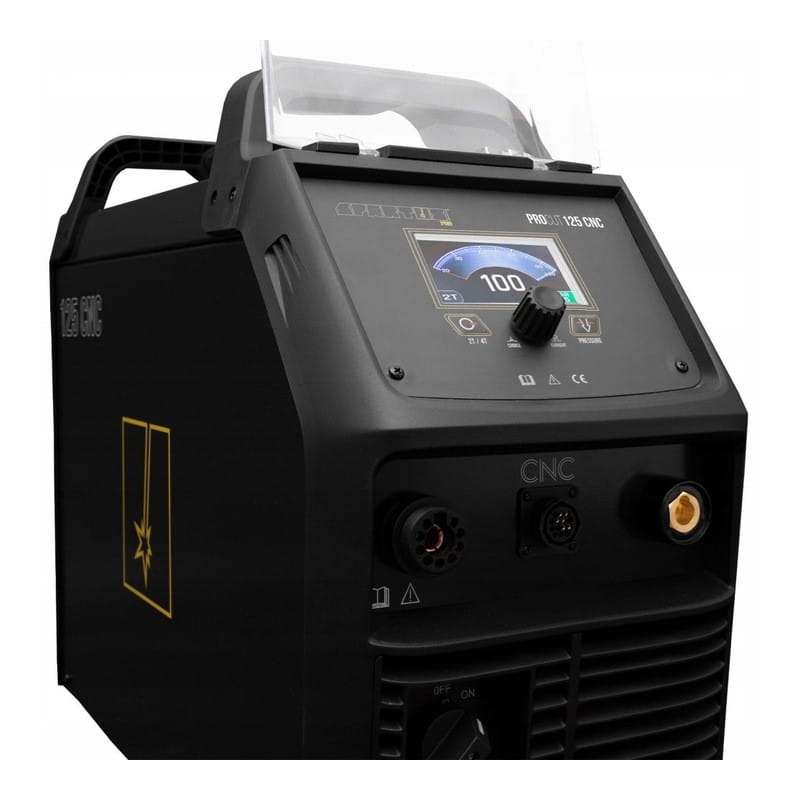

The easy-to-use panel with LCD display allows for smooth adjustment of the cutting current and setting the appropriate pressure. In addition, the cutter is equipped with a switch with the 2T / 4T operation mode.

SPARTUS® ProCUT 125CNC is a professional plasma cutter that will find its application in the production sectors, industry and as a source for CNC plasma tables.

TECHNICAL DATA:

• Supply voltage: ~ 3 × 400V ± 10% 50/60 Hz
• Cutting current [A]: 20-100
• Maximum cutting thickness [mm]: 55
• Duty cycle [%]: 100
• Working output voltage [V]: 88 - 125
• Recommended operating pressure [bar]: 5.5
• Air consumption [l / min]: 250
• Non-contact arc ignition: without HF
• 2T / 4T switch: ✔
• Current consumption [A]: 28
• Power factor (cosφ): 0.76
• Efficiency η [%]: 85
• Insulation class: H.
• Protection degree: IP21S
• Weight [kg]: 32
• Dimensions [mm]: 770 x 270 x 490

LEVEL OF SECURITY

The IP defines the degree to which the device is resistant to solid and water contamination entering the device. IP21 means that the device is suitable for operation in confined spaces and is not suitable for use in rain or snow.

PROTECTION AGAINST OVERHEATING

The power source is equipped with a thermal automatic overload switch. When the temperature of the cutter is too high, the protection will cut off the cutting current and the diode indicating overheating will light up

MAXIMUM CUTTING THICKNESS 55mm

The value of the maximum cutting thickness has been established under optimal cutting conditions for ordinary carbon steel. In order to select the appropriate device, it is recommended to perform technological tests in real operating conditions and on a sample material sample.

WORK CYCLE

Duty cycle of 100% means that the device can work continuously without interruption.

COOLING

The device has a fan cooling system, which significantly increases its efficiency. Regularly check that the cutter's ventilation openings (inlet, outlet) are not covered.

INSULATION CLASS H

The type of insulation materials used, informing about the maximum operating temperature of the transformer. If it is exceeded in continuous operation, it shortens the life and failure-free operation time of the transformer. For H 180 ° C class.

OPERATING MODE 2T

To start cutting, press the micro switch that will start the plasma arc. Releasing the micro switch will stop the cutting process.

OPERATING MODE 4T

Press and release the micro switch to start cutting. The cutting process will be stopped by pressing and releasing the micro switch again.

AIR CONTROL

"PRESSURE" air control button to check if air flow is smooth. If the device is working properly, the screen will show the pressure value.

MOVEMENT AND MOVEMENT

The device should be transported using the mounted transport handle. Also, avoid excessive slopes and slippery surfaces.
