⚡ Nitrogen regulator 0-50 bar + SAE 1/4" adapter + PTFE tape

✅ Product description

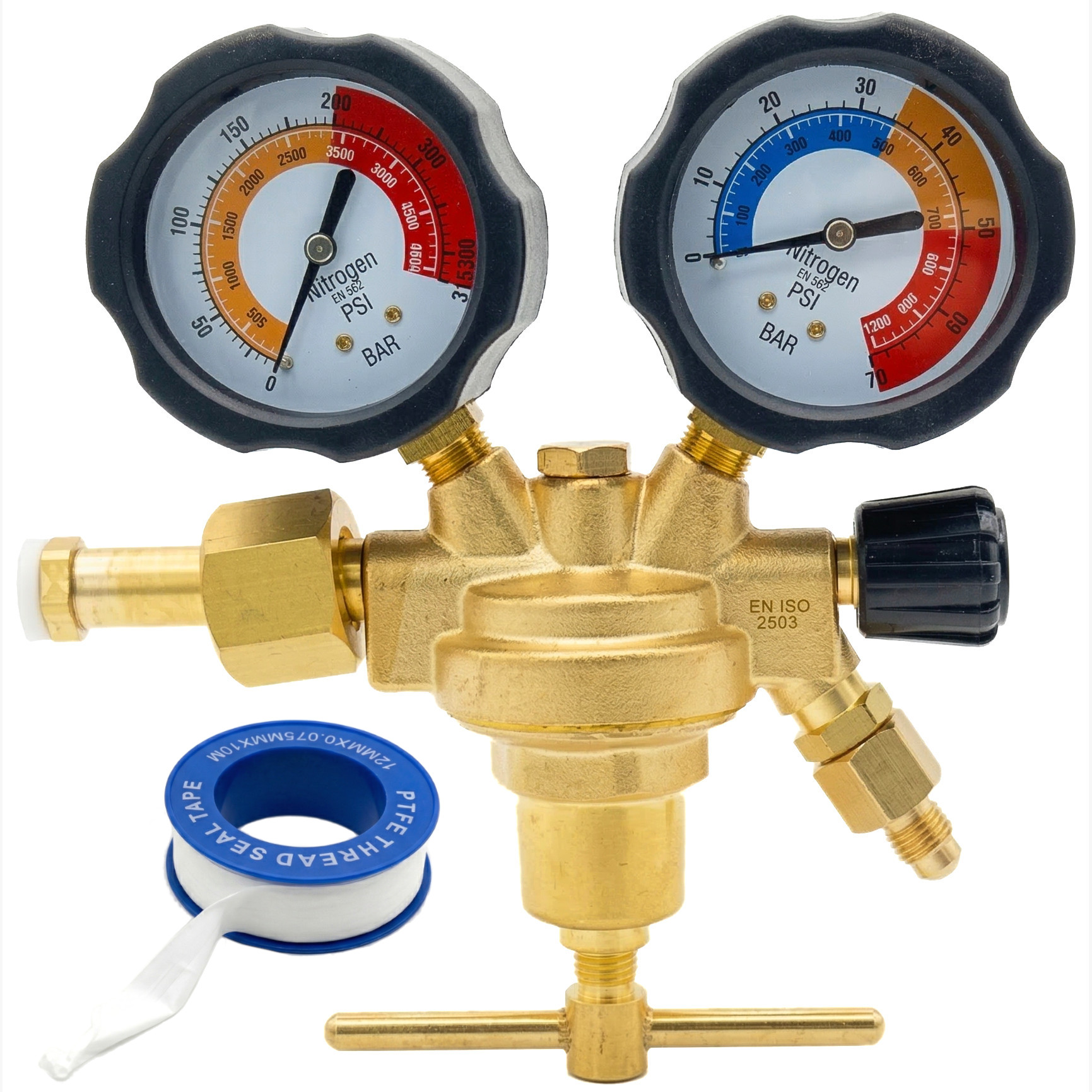

The Vogelmann LeakPro regulator is a precision device designed for use with nitrogen in service, workshop and installation applications. It is particularly suitable for leak testing, pressure control, and servicing air conditioning and refrigeration systems. Its solid construction, wide adjustment range and clear pressure gauges ensure safe and convenient operation in demanding conditions.

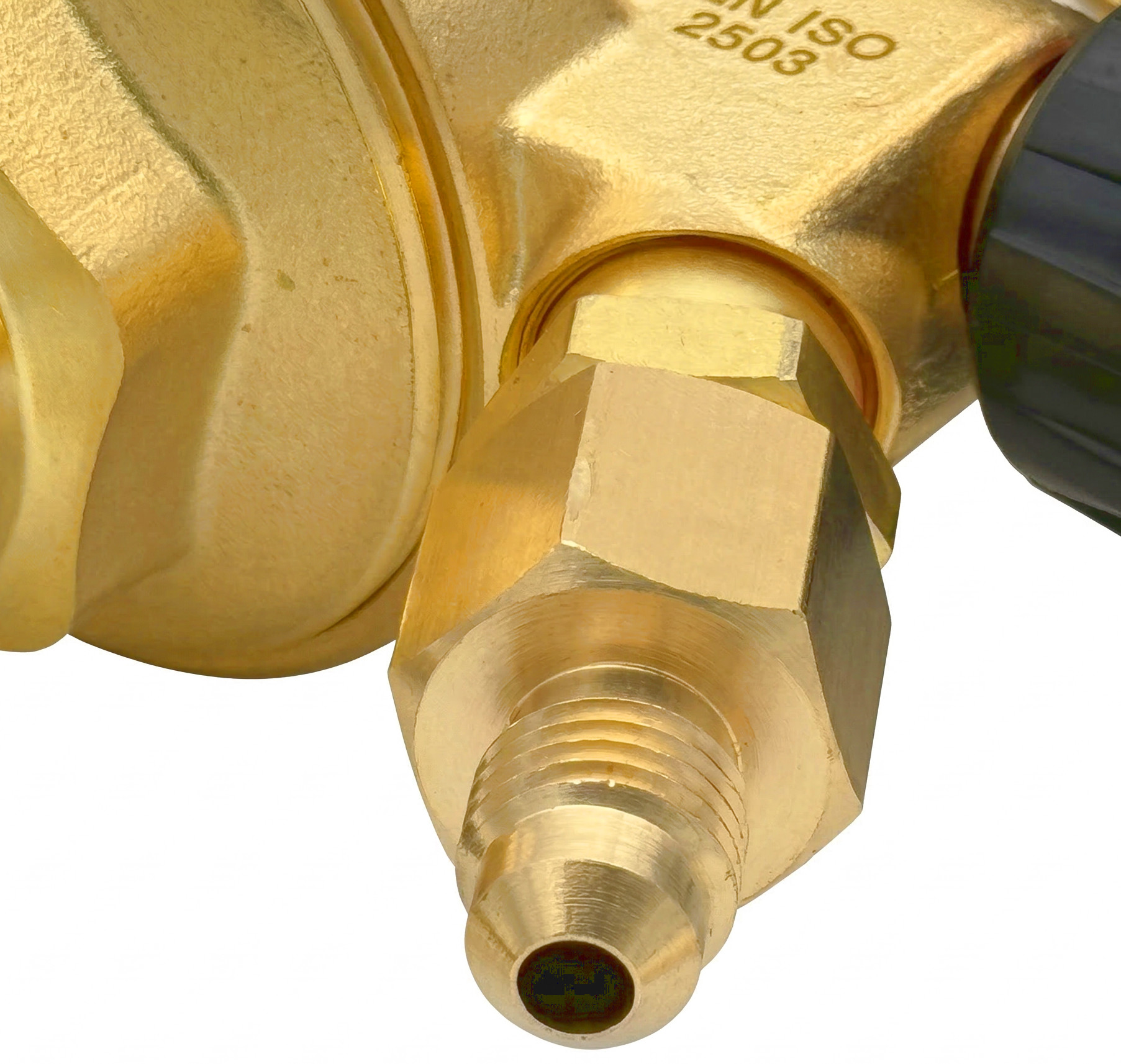

The set also includes an SAE 1/4" adapter, which allows direct connection of the regulator to standard hoses and devices used in air conditioning and refrigeration applications (e.g. HVAC manifold gauge sets). This enables fast and leak-tight nitrogen charging of the system without the need for additional adapters.

The set is also complemented by PTFE thread seal tape intended for sealing threaded connections, which improves installation tightness and work safety.

✅ Application

• leak testing of air conditioning and refrigeration systems,
• service work in the HVAC industry,
• nitrogen pressure control and regulation,
• operation of systems requiring precise delivery of technical gas,
• direct connection to refrigeration installations thanks to the SAE 1/4" connection.

✅ Technical data

• supported gases: nitrogen,
• rated inlet pressure: 0–200 bar,
• outlet pressure range: 2–50 bar,
• flow capacity: 40 m3/h,

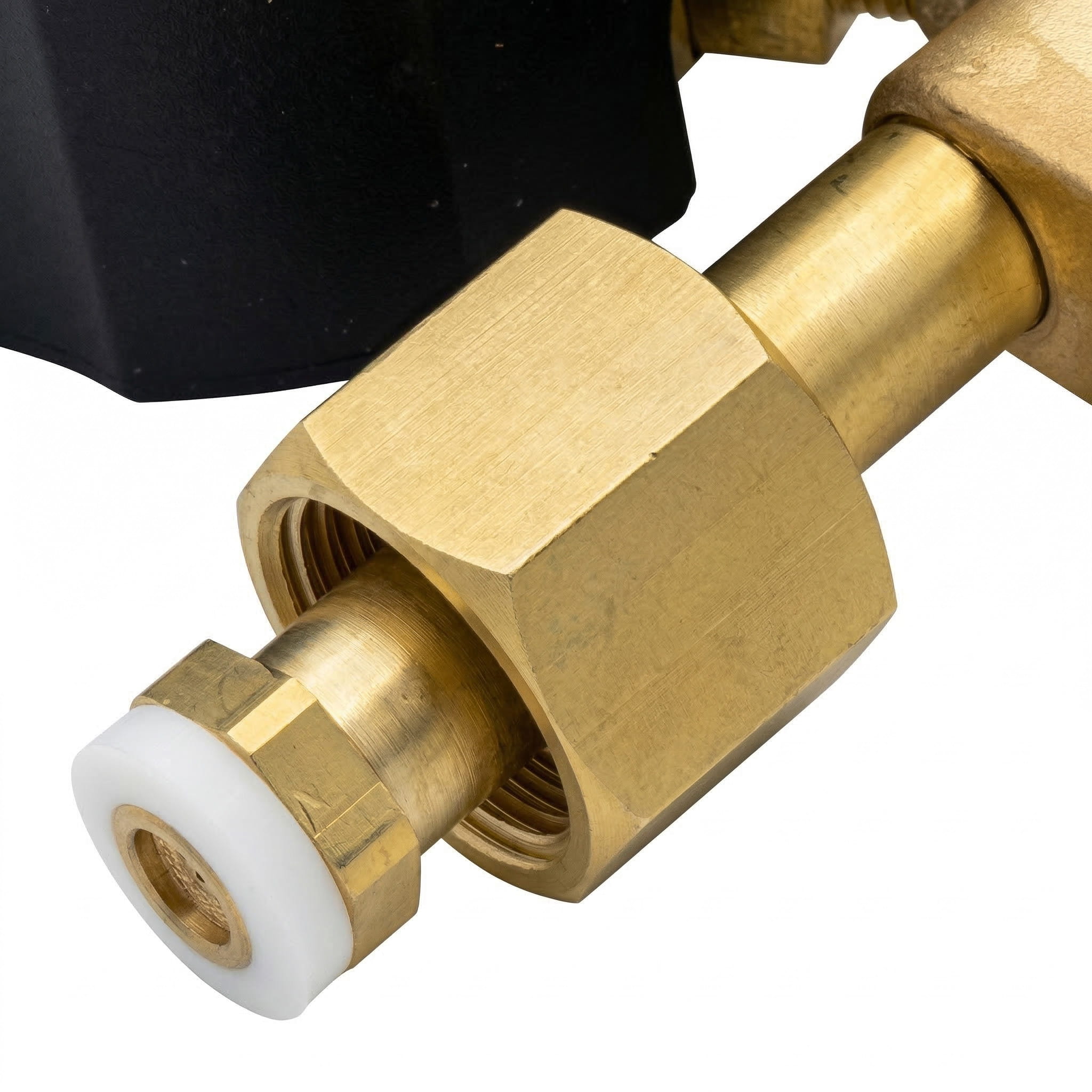

• inlet: W24.32 x 1/14 thread,
• outlet: G1/4 + 6.3 mm hose nipple.

✅ PTFE tape – technical data

• width: 12 mm,
• thickness: 0.075 mm,
• length: 10 m,
• quantity: 1 pc.

Vogelmann LeakPro is a regulator designed for applications requiring stable pressure control and reliable operation with nitrogen. Thanks to the additional SAE 1/4" adapter and PTFE tape, the set is a complete solution for air conditioning service, refrigeration work and leak testing of installations.
