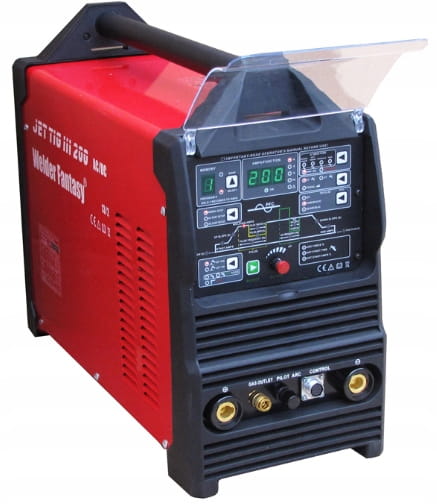

JET TIG III AC/DC 250A inverter welder

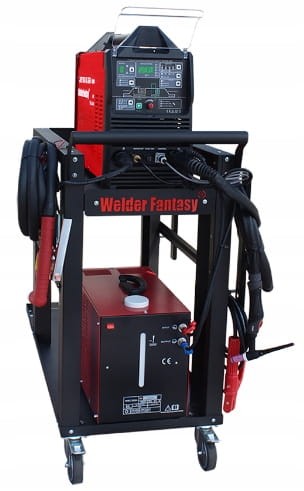

Inverter welding machine JET TIG III AC/DC 250A Welder Fantasy + cooler + trolley

Manufacturer: Welder Fantasy║ Welding methods: MMA, TIG, PLASMA ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

Welder Fantasy is a brand created by FACHOWIEC in 1991. TIG/MMA inverter welders, MIG/MAG semi-automatic welding machines, plasma cutters and other Welder Fantasy equipment have been recognized by thousands of workshops and enterprises in Poland and abroad for many years. The Welder Fantasy brand is:

• The highest quality of devices,
• reliability,
• high working parameters,
• A leader on the Polish market.

Device features:

• Compact, compact design
• Small dimensions and low weight
• IGBT transistors
• 60% efficiency
• LCD display of welding parameters
• Easy-to-use control panel
• Individual program LCD display
• Full 9 programs can be saved
• A very wide range of welding functions

230V powered machines equipped with an industrial plug. They have a PFC (Power Factor Correction) module - enabling significant reduction of losses in industrial lines.

FULL PARAMETERS CONTROL - the ability to manually adjust parameters, including pulse parameters: gas flow before and after welding, balance, peak current, frequency, base current, fall time, etc.

PROGRAM MEMORY - memory function of the last settings after switching on the device and the ability to save programs

The device enables welding using the following methods:

• TIG DC lift-arc - In the TIG lift-arc mode, the arc is ignited when the electrode contacts the workpiece. In TIG DC mode, the current is constant.
• TIG DC HF - To completely eliminate the possibility of tungsten contamination of the weld.
• TIG DC PULS lift-arc - the arc is ignited by contacting the electrode with the material being welded, the pulse function allows welding of thin elements through periodic changes in current intensity.
• TIG DC PULS HF - non-contact HF ignition with an ionizer in TIG DC PULS mode.
• TIG AC lift-arc - a function that allows you to weld aluminum by using alternating current, which performs the function of cathodic cleaning when welding aluminum.
• TIG AC HF - an analogous function that allows aluminum welding with alternating current, ignition is contactless through high-frequency current generated by the ionizer.
• TIG AC PULS lift-arc - welding in this mode is a combination of the use of alternating current with pulse, which allows welding of very thin aluminum elements.
• TIG AC PULS HF - a function that allows welding of thin aluminum elements. Non-contact ignition thanks to the use of an ionizer.
• TIG AC + DC - Mixed current welding is particularly useful when joining elements of different thickness. It also reduces noise emissions compared to AC welding.
• PLASMA CUT - a function that allows cutting electrically conductive elements made of carbon and alloy steels, aluminum and its alloys, brass, copper, and cast iron
• MMA DC+ - Arc ignition is created by touching the tip of the electrode to the welded material. MMA DC+ means welding with positive polarity - more heat is generated in the material and less in the electrode.
• MMA DC- - the difference between MMA DC+ is that the polarity in the MMA DC - mode is negative, so the heat distribution is reversed - more heat is generated at the electrode and less in the welded material.
• MMA VRD DC+ - The function turns off and on the welding power supply when during welding the resistance between the ends of the electrode and the welded element is measured.
• MMA VRD DC- - available in the MMA DC- mode, the VRD (Voltage Reduction Device) function works in the same way as MMA VRD DC+, the difference is in the negative polarity.

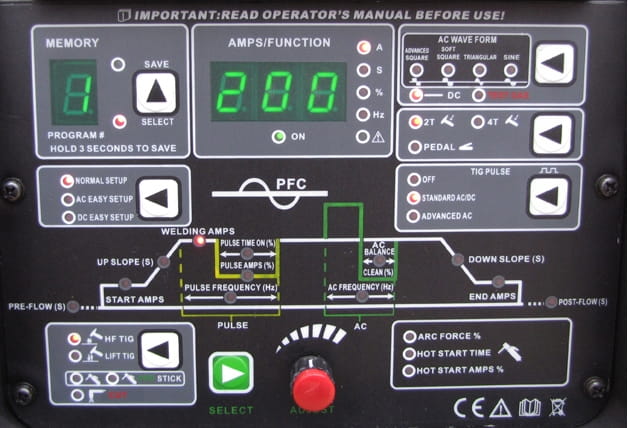

Panel Features:

• ADVANCED SQUARE - a rectangular AC waveform allows you to weld aluminum with the addition of magnesium
• SOFT SQUARE - a trapezoidal AC waveform is used for welding aluminum with the addition of silicon
• TRIANGULAR - setting the triangular current waveform is optimal for welding thin components, including anodized aluminum
• SINE - sinusoidal waveform is recommended for welding pure aluminum 99.999%
• MMA current,
• TIG AC current,
• TIG DC, PULSE current,
• pre-gas, post-gas,
• current rise and fall,
• HOT START,
• MMA ARC FORCE,
• 2-STEP and 4-STEP,
• non-contact HF and contact ignition LIFT,
• the ability to connect a remote control,
• double-function ADJUST knob (coarse and fine adjustment).
• waveform selection

TECHNICAL DATA:

• Power supply: 1~230V 50Hz
• Power consumption TIG/MMA: 6 kVA
• Delayed protection min.: 20A type C
• Insulation class: F
• Housing protection degree: IP21S
• Dimensions: 575*230*435mm
• Weight: 27 kg
• TIG DC welding current range: 3-200 A
• TIG AC welding current range: 5-200 A
• TIG efficiency 60%: 200A
• TIG efficiency 100%: 160A
• Waveform waveform: square, trapezoidal, triangular, sine
• AC current frequency adjustment: 20,250 Hz
• Current balance
• u in AC mode: 5%-90%
• Start gas / end AC/DC mode: 0-25 / 0-50 sec
• Start / end current DC mode: 5-200 / 3-200 A
• Start/end current AC mode: 5-200 A
• Rise/fall time AC/DC mode: 0-25s / 0-25s
• AC/DC pulse base: 3-100%
• AC/DC Pulse Duration: 5%-95%
• Advanced AC mixed current frequency: 0.1-10 Hz
• Pulse current frequency Standard DC: 0.1-500 Hz
• Pulse frequency Standard AC Square (square): 0.1-250 Hz
• Pulse current frequency Standard AC Soft Square, Triangular, Sine: 0.1-10 Hz
• TIG arc ignition function: HF (ionizer) / LIFT
• MMA / VRD MMA no-load voltage: 70 / 21 V
• MMA DC+ / DC- welding current range: 20 160 A
• Efficiency MMA 60%: 160 A
• MMA efficiency 100%: 130 A
• ARC FORCE: 0-100%
• HOT START TIME: 0-2 sec
• HOT START AMPS: 0-100%
• Cutting current range: 20-50 A
• PLASMA efficiency 60%: 50A
• 100% PLASMA Efficiency: 40A
• Cutting thickness: 12mm
• Air consumption: 150-300 l/min

THE COMPLETE SET INCLUDES:

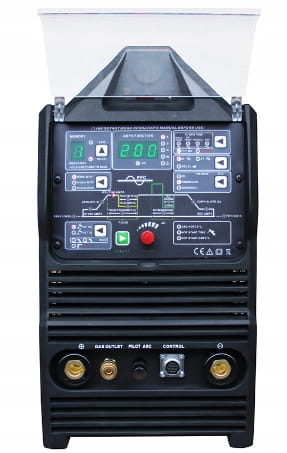

• Welder Fantasy JET TIG III AC/DC 250 IGBT welder,

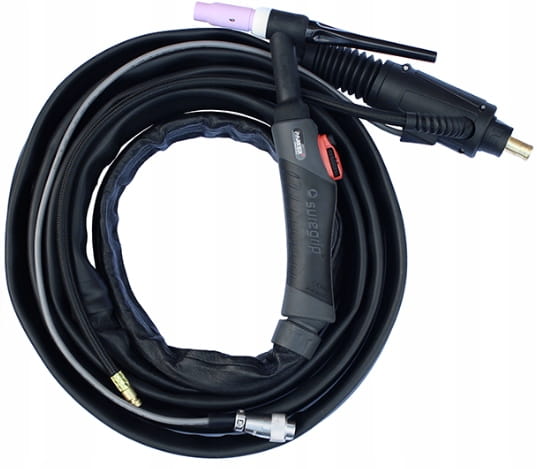

• TIG PARKER SUPERGRIP SGT18 FLEX TIG 4 mb torch (NOTE!: liquid-cooled torch),

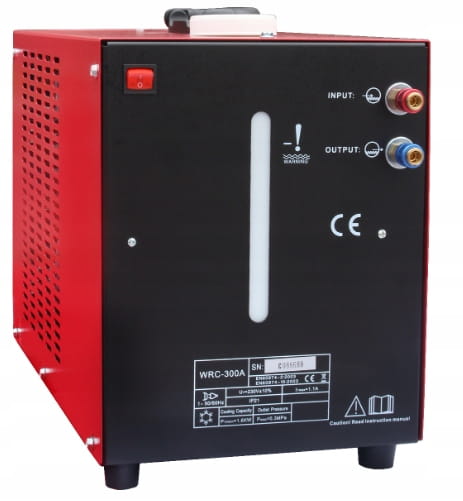

• welding gun cooler,

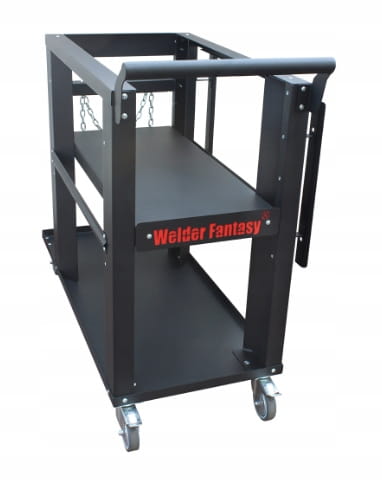

• welding cart,

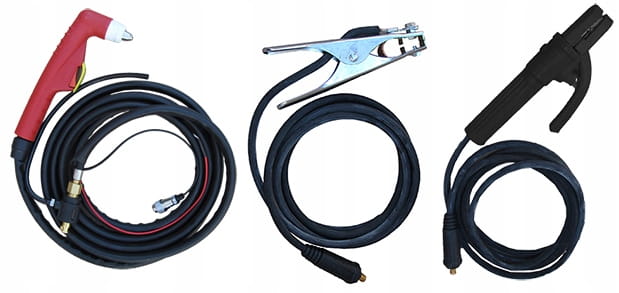

• mass handle 3m,
• electrode holder 3m,
• plasma torch P80-4m,

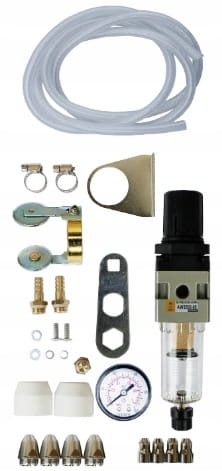

• additional consumables (nozzles, connectors, sleeves, electrodes),
• plasma torch cart,
• compressed air filter and reducer,
• user manual and warranty card.
