JET TIG II TOWER AC/DC 400A IGBT PFC welder

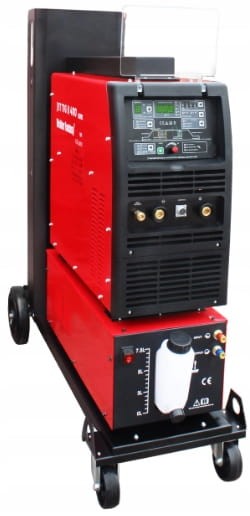

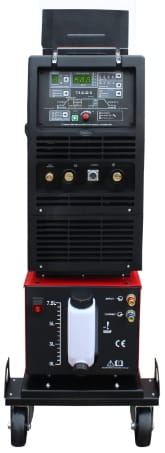

Inverter welding machine JET TIG II TOWER AC/DC 400A IGBT PFC Welder Fantasy + cooler + trolley + holder ARC-T5W 4m

Manufacturer: Welder Fantasy║ Welding methods: MMA, TIG ║ Power supply: 400V ║ Welding current: 400A ║ Efficiency: 60%

Welder Fantasy is a brand created by FACHOWIEC in 1991. TIG/MMA inverter welders, MIG/MAG semi-automatic welding machines, plasma cutters and other Welder Fantasy equipment have been recognized by thousands of workshops and enterprises in Poland and abroad for many years. The Welder Fantasy brand is:

• The highest quality of devices,
• reliability,
• high working parameters,
• A leader on the Polish market.

DEVICE FEATURES:

• compact design,
• integrated design with cooler and trolley,
• IGBT transistors,
• efficiency 60%,
• easy-to-use control panel,
• LCD display of welding parameters,
• individual program LCD display,
• the ability to save a full 9 user programs,

The device enables welding using the following methods:

• TIG DC lift-arc - In the TIG (Tungsten Inert Gas) method, the electric arc is ignited in a shield of inert gas (argon), between the welded element and a non-consumable electrode made of pure tungsten or tungsten with additives.
• TIG DC HF - In order to completely eliminate the possibility of contamination of the weld with tungsten, non-contact arc ignition is used using high-frequency discharges
• TIG DC PULS lift-arc - the arc is ignited by contacting the electrode with the material being welded, the pulse function allows welding of thin elements through periodic changes in current intensity.
• TIG DC PULS HF - non-contact HF ignition with an ionizer in TIG DC PULS mode
• TIG AC lift-arc - . Thanks to the possibility of setting the AC BALANCE parameter, i.e. the balance of alternating current, it is possible to adjust the ratio of the duration of its phases to each other.
• TIG AC HF - an analogous function for welding aluminum with alternating current, ignition is contactless through high-frequency current generated by the ionizer
• TIG AC PULS lift-arc - The arc is ignited by contact of the electrode with the welded material.
• TIG AC PULS HF - a function that allows welding of thin aluminum elements. Non-contact ignition thanks to the use of an ionizer.
• TIG AC + DC - This cycle is repeated throughout the welding process. Mixed current welding is particularly useful when joining elements of different thicknesses. It also reduces noise emissions compared to AC welding.
• MMA DC+ - Arc ignition is created by touching the tip of the electrode to the welded material. MMA DC+ means welding with positive polarity - more heat is generated in the material and less in the electrode.
• MMA DC- - the difference between MMA DC+ is that the polarity in the MMA DC - mode is negative, so the heat distribution is reversed - more heat is generated at the electrode and less in the welded material.
• MMA VRD DC+ - The function turns off and on the welding power supply when during welding the resistance between the ends of the electrode and the welded element is measured.
• MMA VRD DC- - VRD function available in MMA DC mode (Voltage Reduction Device

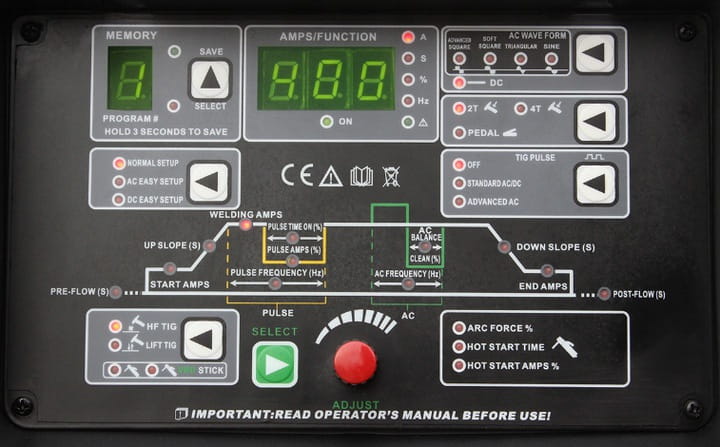

PANEL FUNCTIONS:

• ADVANCED SQUARE - a rectangular AC waveform allows you to weld aluminum with the addition of magnesium
• SOFT SQUARE - a trapezoidal AC waveform is used for welding aluminum with the addition of silicon
• TRIANGULAR - setting the triangular current waveform is optimal for welding thin components, including anodized aluminum
• SINE - sinusoidal waveform is recommended for welding pure aluminum 99.999%
• AC/DC EASY SETUP - possibility to use pre-programmed factory settings.
• NORMAL SETUP - welding parameters set according to individual needs.
• HOT START - a function that increases the current when the welding arc is ignited, making it easier to start welding.
• ARC FORCE - short-circuit current adjustment - shortening the arc length is accompanied by an increase in the welding current, which stabilizes the arc regardless of length fluctuations.
• HF - the device is equipped with an ionizer that allows you to look at the welding arc without contact.
• PRE and POST GAS - gas flow before and after welding.
• UP and DOWN SLOPE - rising and falling welding current.
• PULSE - pulsating current welding mode.
• VRD - Voltage Reduction Device - reduces the no-load voltage of the secondary circuit of the device. Increases safety and reduces the risk of electric shock.
• PFC - Power Factor Correction - increasing the power factor to a value as close as possible to 100% in order to reduce power losses in transmission lines.
• 2-STEP and 4-STEP,
• non-contact HF ignition and by rubbing LIFT,
• the possibility of connecting a remote control - a control pedal, a handle with a potentiometer,
• double-function ADJUST knob (coarse and fine adjustment),
• and others described in the user manual.

TECHNICAL DATA:

• Supply voltage: 3~400V 50Hz
• TIG DC welding current range: 5-400 A
• TIG AC welding current range: 10,400 A
• TIG efficiency: 400A-35%
• Waveform waveform: square, trapezoidal, triangular, sine
• AC current frequency adjustment: 20,250 Hz
• Current balance in AC mode: 5%-90%
• Start gas / end AC/DC mode: 0-25 / 0-50 sec
• Start/end current DC mode: 5-400 A
• Start/end current AC mode: 10,400 A
• Rise/fall time AC/DC mode: 0-25s / 0-25s
• AC/DC pulse base: 3-100%
• AC/DC Pulse Duration: 5%-95%
• Advanced AC mixed current frequency: 0.1-10 Hz
• Pulse current frequency Standard DC: 0.1-500 Hz
• Pulse frequency Standard AC Square (square): 0.1-250 Hz
• Pulse current frequency Standard AC Soft Square, Triangular, Sine: 0.1-10 Hz
• TIG arc ignition function: HF (ionizer) / LIFT
• MMA / VRD MMA no-load voltage: 70 / 21 V
• MMA DC+ / DC- welding current range: 20,315 A
• MMA efficiency: 315A-60%
• ARC FORCE: 0-100%
• HOT START TIME: 0-2 sec
• HOT START AMPS: 0-100%
• TIG/MMA power consumption: 11.5 kVA
• MIN delayed protection: 32 A
• Weight: 118kg
• Set dimensions (L/H/W): 1060 x 1155 x 435 mm

THE COMPLETE SET INCLUDES:

• Welder Fantasy JET TIG II AC/DC 400 IGBT welder,

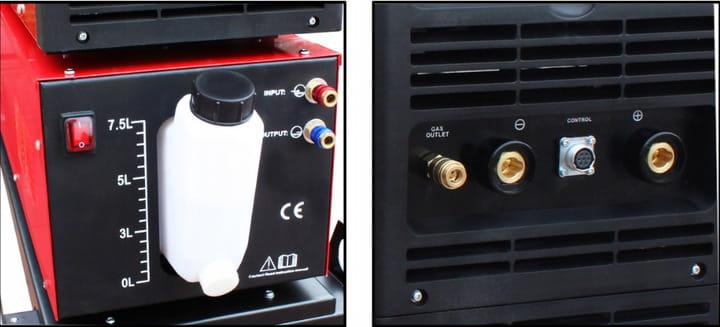

• liquid cooler,
• integrated transport cart,
• liquid-cooled welding torch TIG ARC T5W 4M torch
• mass handle 3m,
• electrode holder 3m,
• user manual and warranty card.
