⚡ SHERMAN DIGIMIG 141 CORE

Welding methods: MIG (gasless), MMA, TIG Lift | Wire type: self-shielded flux-cored steel wire | Operating modes: 2T/4T | Technology: IGBT

✅ Product Description

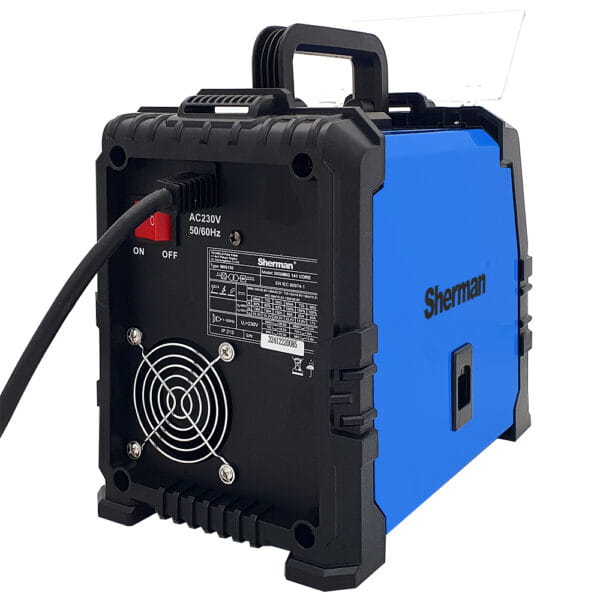

DIGIMIG 141 CORE is a lightweight and easy-to-use welding device designed for gasless welding using self-shielded flux-cored wire (MIG method), shielded electrode welding (MMA), and TIG Lift welding (arc ignition by scratching).

The equipment is intended for home users, hobbyists, and beginners. Thanks to synergy – automatic parameter adjustment – the device is exceptionally intuitive even for inexperienced users.

✅ Key Features:

• Welding with self-shielded flux-cored wire (gasless MIG)
• Synergic programs for easier operation
• Supports MMA and TIG Lift welding methods
• Welding support functions: 2T/4T, Hot Start, Arc Force, VRD
• IGBT technology – lower weight, higher efficiency, lower power consumption
• Compatible with D100 wire spools

✅ Applications

The DIGIMIG 141 CORE welder is perfect for light workshop, repair, and hobby work in home conditions. The device should only be used indoors or under a roof, away from direct exposure to weather conditions.

✅ Included:

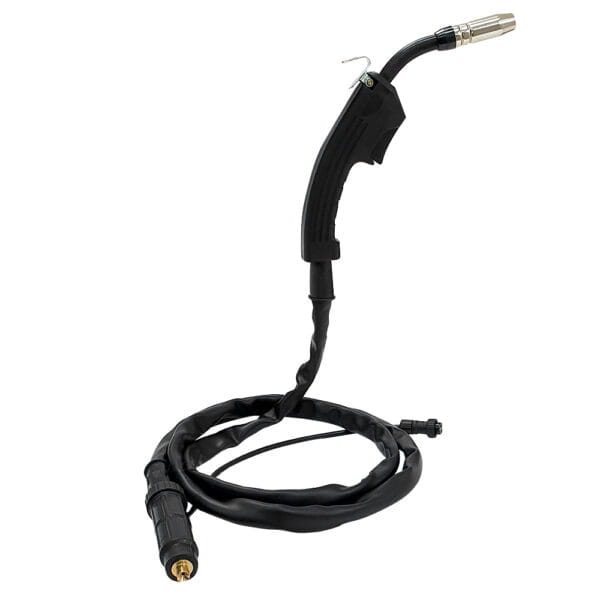

• MIG welding torch
• MMA electrode holder
• Ground cable with clamp

✅ Technical Data

• Catalog number: 7813094
• EAN code: 5903686619137
• Welding methods: MIG/MAG, MMA DC, TIG Lift (scratch start) DC
• Input voltage: AC 230V
• Technology: IGBT
• Max welding current MMA: 130A
• Max welding current TIG DC: 130A
• Max welding current MIG/MAG: 130A
• Duty cycle MMA: 60%
• Duty cycle TIG: 60%
• Duty cycle MIG/MAG: 60%
• No-load voltage: 63V
• MIG welding voltage: 15.5 – 20.5V
• Max current consumption MMA: 26.8A
• Max current consumption TIG: 18.3A
• Max current consumption MIG/MAG: 25.5A
• MIG spot welding time: 1 – 20 s
• Wire spool diameter: 100 mm
• Drive roll dimensions: 28×8 mm (7×7)
• Main welding method: MIG/MAG
• Functions: 2T/4T, Arc Force, Hot Start, 2-roll wire feeder, Gasless welding, MIG spot welding, Digital control, VRD, LED display, Synergy for self-shielded wire
• Network protection: 16A
• Warranty (for companies): 1 year
• Weight: 4 kg
• Dimensions (L x W x H): 28 × 16.5 × 22.7 cm
