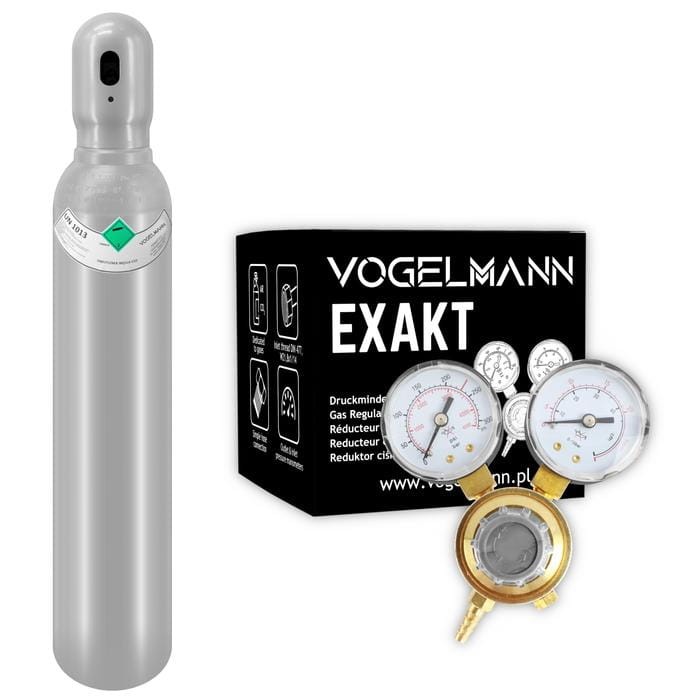

Gas cylinder CO2 + regulator Exakt Vogelmann
Regular price:
product unavailable
add to wish list
Description
The bottle contains 8l / 5kg CO2. A protective cap protects the valve against damage in transit or during storage.
The cylinder and valve are made in accordance with EN 1964: 1999, and have the mark of compliance with the requirements of ADR / RID.
Technical data:
- Valve: W 21.8 x 1/14 DIN 477
- Content: 100% Carbon Dioxide
- Capacity: 8L
- Working pressure: 150 bar
- Amount of gas: ~ 5kg
- Height 82 cm
- Diameter approx. 14 cm
- Weight ~ 16 kg
- Powder coated according to the current PN-EN standards
- It can be used throughout the European Union without additional testing for 10 years
- Standard in PL, DE, AT, BE, CH, IL, HU, KR, CZ, SK
Ar / CO2 gas reducer
Single-stage cylinder regulator with variable outlet pressure regulation. It allows the pressure of gases withdrawn from the cylinder to be lowered to the required outlet (working) pressure and ensures automatic maintenance of this pressure as constant as possible regardless of changes in inlet pressure. The regulator is equipped with a safety valve, through which excess gas is released from the outlet pressure chamber to the outside when the discharge pressure rises above the allowable.
REDUCER TECHNICAL DATA:
- Nominal inlet pressure: 200 bar
- Outlet pressure range 0.5 - 10 bar
- Rated capacity: 20 l / min
- Inlet thread: W 21.8x1 / 14
- Nut thread at outlet G 1/4
- Outlet connection: ø6.3 mm
