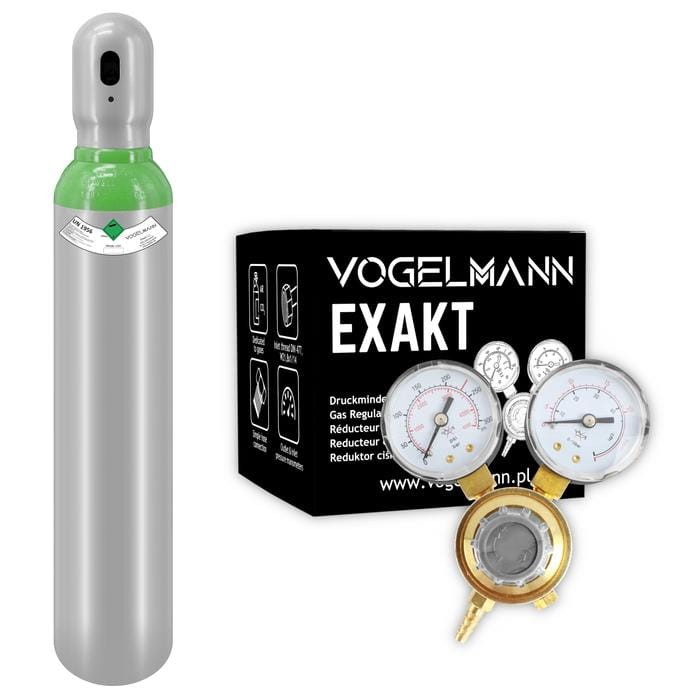

Gas cylinder Argon/CO2 + regulator Exakt Vogelmann

Availability: Available in large quantity
Delivery: The price does not include any possible payment costs check the delivery methods
Price: €125.00

Regular price:

125.00
The lowest price during 30 days prior to the reduction:
quantity pcs.

product unavailable

add to wish list

Description

VOGELMANN - ARGON / CO2 GAS CYLINDER

The bottle contains 8l / 1.5m3 of high-quality argon and CO2 mixture with a working pressure of 150 bar. The protective cap protects the valve against damage during transport or storage.

The cylinder and valve are made in accordance with the EN 1964: 1999 standard, have the PI mark and comply with the requirements of ADR / RID.

TECHNICAL DATA:

  • Valve: W 21.8 x 1/14 DIN 477
  • Content: Argon 82%, Carbon Dioxide 18%
  • Capacity: 8l
  • Working pressure: 150 bar
  • Gas amount: ~ 1.5 m3
  • Height 82 cm
  • Diameter about 14 cm
  • Weight ~ 15 kg
  • Powder coated according to the currently valid PN-EN standards
  • It can be used throughout the European Union without additional testing for 10 years from the date of production.
  • Standard in PL, DE, AT, BE, CH, IL, HU, KR, CZ, SK


VM EXAKT - ARGON / CO2 CYLINDER REDUCER

Brand:  Vogelmann  | Gas type:  CO2, Ar, Ar / CO2  | Inlet thread:  W21,8x1 / 14  | Outlet connection:  4mm  Order number:  1201001  |

PRESSURE REDUCER EXAKT.

The universal VOGELMANN gas regulator allows you to reduce the pressure of gases taken from the cylinder to the required operating pressure.

It allows to obtain the pressure automatically at a constant level, regardless of changes in inlet pressure.

APPLICATION.

Single-stage reducer most often used in welding during MIG welding or TIG welding machines that require a gas shield.

TWO MANOMETERS.

It is equipped with two manometers - the first shows the pressure in the cylinder, the second shows gas flow per minute.

SAFETY VALVE.

The reducer is equipped with a safety valve through which excess gas is released when the outlet pressure exceeds the acceptable limit.

GAS TYPE.

It is designed for technical gases such as argon (Ar), carbon dioxide (CO2) and MIX of these gases (Ar / CO2).

UNIVERSAL.

The gas regulator can be connected to any standard cylinder with a W21.8 x 1/14 thread

TECHNICAL DATA

  • Gas type: CO2, Ar, MIX
  • Inlet thread: W21.8x1 / 14
  • Nut thread at outlet: G 1/8
  • Outlet connection: ø5mm
  • Inlet pressure: 200bar
  • Outlet pressure: 0.5 - 10 bar
  • Throughput: 20l / min
