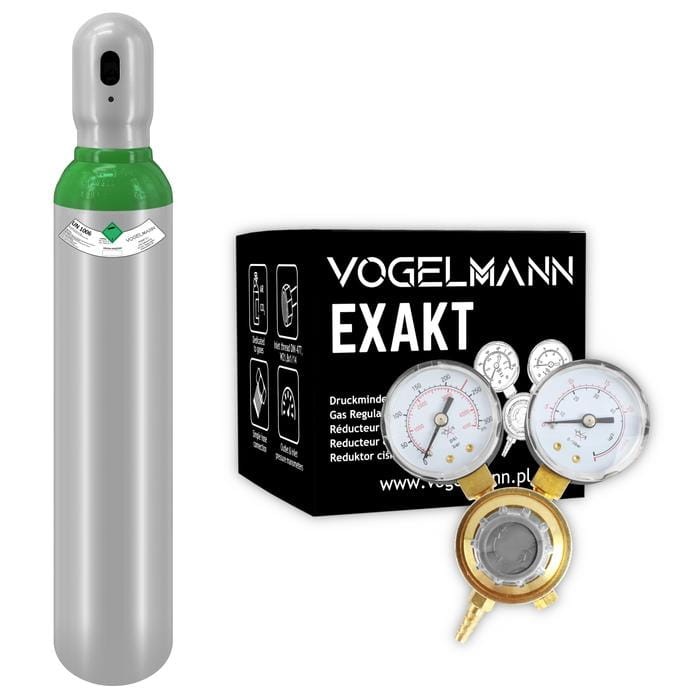

Gas cylinder Argon + regulator Exakt Vogelmann
Regular price:
product unavailable
add to wish list
Description
VOGELMANN - ARGON GAS CYLINDER
A cylinder filled with Argon, class 4.8, is intended for welding in protective gas and other industrial applications. The cylinder is filled with a high-quality welding mixture of 99.998% Argon.
8l cylinders have a protective cap
These cylinders are brand new.
8l cylinders have a working pressure of 150 bar.
Cylinders and valves are made in accordance with the EN1964: 1999 standard and have the π mark of compliance with ADR / RID requirements and the -40 ° C mark. They can be filled throughout the European Union.
TECHNICAL DATA OF THE CYLINDER:
- Valve: W 21.8 x 1/14 DIN 477
- Content: 99.998% Argon
- Capacity: 8l
- Working pressure: 150 bar
- Gas amount: ~ 1.5 m3
- Height 82 cm
- Diameter about 14 cm
- Weight ~ 15 kg
- Powder coated according to the currently valid PN-EN standards
- It can be used throughout the European Union without additional testing for 10 years from the date of production.
- Standard in PL, DE, AT, BE, CH, IL, HU, KR, CZ, SK
VM EXAKT - ARGON / CO2 CYLINDER REDUCER
| Brand: Vogelmann | Gas type: CO2, Ar, Ar / CO2 | Inlet thread: W21,8x1 / 14 | Outlet connection: 4mm | Order number: 1201001 |
PRESSURE REDUCER EXAKT.
The universal VOGELMANN gas regulator allows you to reduce the pressure of gases taken from the cylinder to the required operating pressure.
It allows to obtain the pressure automatically at a constant level, regardless of changes in inlet pressure.
APPLICATION.
Single-stage reducer most often used in welding during MIG welding or TIG welding machines that require a gas shield.
TWO MANOMETERS.
It is equipped with two manometers - the first shows the pressure in the cylinder, the second shows gas flow per minute.
SAFETY VALVE.
The reducer is equipped with a safety valve through which excess gas is released when the outlet pressure exceeds the acceptable limit.
GAS TYPE.
It is designed for technical gases such as argon (Ar), carbon dioxide (CO2) and MIX of these gases (Ar / CO2).
UNIVERSAL.
The gas regulator can be connected to any standard cylinder with a W21.8 x 1/14 thread
TECHNICAL DATA
- Gas type: CO2, Ar, MIX
- Inlet thread: W21.8x1 / 14
- Nut thread at outlet: G 1/8
- Outlet connection: ø5mm
- Inlet pressure: 200bar
- Outlet pressure: 0.5 - 10 bar
- Throughput: 20l / min
