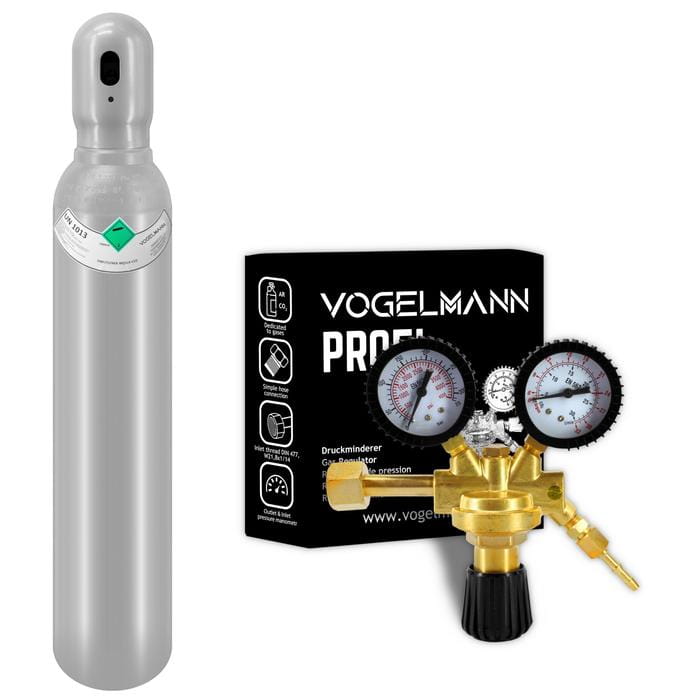

Gas bottle CO2 + gas regulator Profi Vogelmann

VOGELMANN - CO2 GAS BOTTLE

The bottle contains 8l / 5kg CO2. The protective cap protects the valve from damage during transport or storage.

The cylinder and the valve are manufactured in accordance with the EN 1964: 1999 standard and have a mark of conformity with the requirements of ADR / RID.

Technical specifications:

• Valve: W 21.8 x 1/14 DIN 477
• Content: carbon dioxide 100%
• Capacity: 8l
• Working pressure: 150 bar
• Gas amount: ~ 5 kg
• Height 82cm
• Diameter about 14 cm
• Weight ~ 16kg
• Powder coated according to the PN-EN standards currently in force
• It can be used throughout the European Union for 10 years without additional testing
• Standard in PL, DE, AT, BE, CH, IL, HU, KR, CZ, SK

VOGELMANN PROFI - ARGON / CO2 CYLINDER REDUCER

| Brand: Vogelmann | Gas type: CO2, Ar, Ar / CO2 | Inlet thread: W21.8x1/14 | Output connector: 6.3mm | Order number : 1201002 |

PRESSURE REGULATOR PROFESSIONAL.

With the universal VOGELMANN gas regulator, you can reduce the pressure of the gases taken from the cylinder to the required operating pressure.

It allows the pressure to be automatically maintained at the possible constant level, regardless of changes in the inlet pressure.

APPLICATION.

A single stage reducer most commonly used when welding on semi-automatic welders (MIG) or TIG welders that require gas protection.

TWO PRESSURE GAUGES.

It is equipped with two manometers - the first shows the pressure in the bottle, the second - the gas flow per minute.

GAS TYPE.

It is designed for technical gases such as argon (Ar), carbon dioxide (CO2) and MIX of these gases (Ar / CO2).

UNIVERSAL.

The gas regulator can be connected to any standard bottle with a W21.8 x 1/14 thread

TECHNICAL SPECIFICATIONS

• Gas type: CO2, Ar, MIX
• Inlet thread : W21.8x1/14
• Nut thread at the outlet: G 1/4
• Outlet connection : ø6.3 mm
• Inlet pressure : 185bar
• Outlet pressure : 0.5 - 10 bar
• Throughput: 15 m³/h
